Theatrixx Technologies

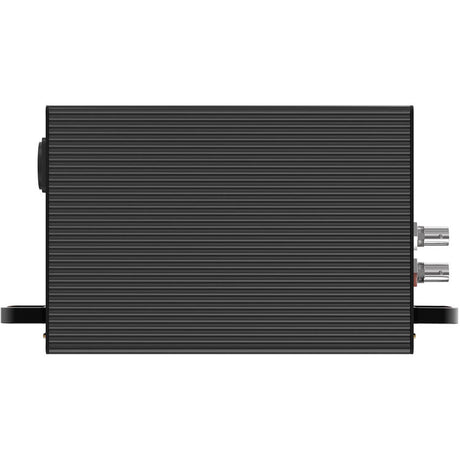

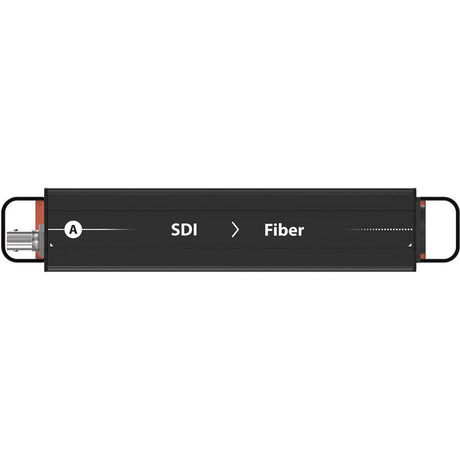

Theatrixx Technologies SDI to Fiber Reversible Module

$625.00

The SDI to Fiber Reversible Module from Theatrixx Technologies is designed for the Theatrixx 8-Bay Reversible Rackmount Frame for Video Converters. It can be inserted in the 8-bay frame from either direction, allowing the inputs/outputs to be positioned at the front or rear, as your application requires. The module features an enclosed design with no exposed PCBs and is protected against static shock, dust, and general wear and tear.

View Product Features

  • Fits Theatrixx 8-Bay Reversible Frame
  • Inserts into Frame from Either Direction
  • Enclosed Design with No Exposed PCBs
  • Gold-Plated Redundant Spring Pins
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies SDI to Fiber Reversible Module

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Key Features

  • Fits Theatrixx 8-Bay Reversible Frame
  • Inserts into Frame from Either Direction
  • Enclosed Design with No Exposed PCBs
  • Gold-Plated Redundant Spring Pins

Theatrixx Technologies SDI to Fiber Reversible Module Specs

Connections
Video Input
1x 12G/6G/3G/HD/SD SDI BNC
Loop-thru
1x 12G/6G/3G/HD/SD SDI BNC
Supported Signals
Video Format Support
12G/6G/3G-SDI Level A and B, HD SDI, SD-SDI with embedded audio
SMPTE Standards
2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M
Video Output
Choice of
Multimode or Singlemode
Choice of
Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
32° to 104°F (0° to 40°C)
Power Requirements
Power Supply
Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
Power Consumption
20W
Voltage Range
12VDC

Key Features

  • Fits Theatrixx 8-Bay Reversible Frame
  • Inserts into Frame from Either Direction
  • Enclosed Design with No Exposed PCBs
  • Gold-Plated Redundant Spring Pins
