Theatrixx Technologies

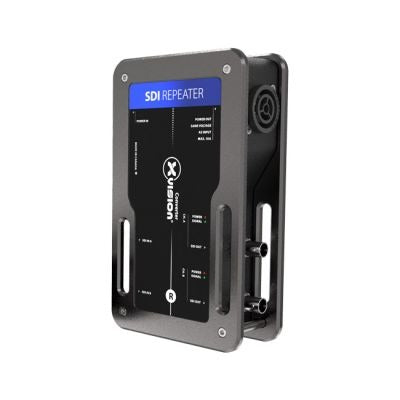

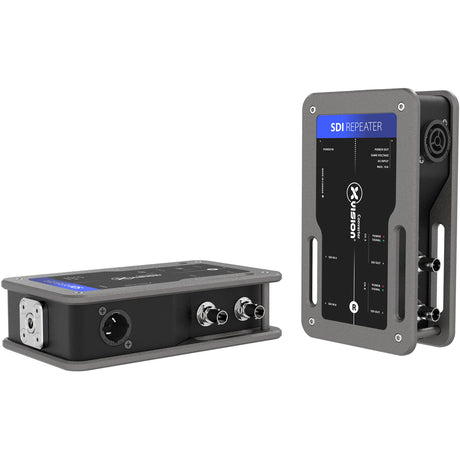

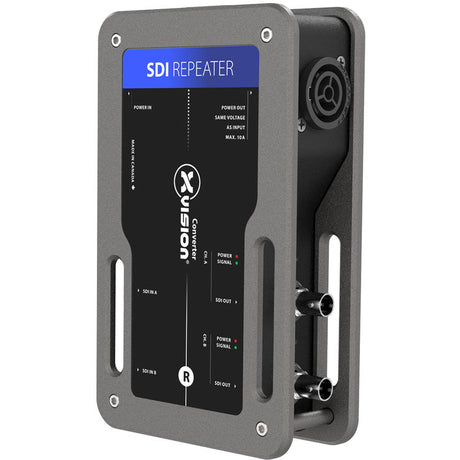

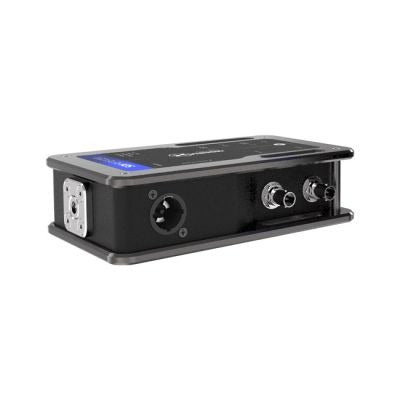

Theatrixx Technologies xVision Dual-Channel SDI Repeater
$650.00
Unit price
/
The xVision Dual-Channel SDI Repeater from Theatrixx Technologies is designed to be used while on the road and supports video at resolutions up to 1080p at 60 fps. It features an integrated power supply with a locking powerCON True1 input and output to power a nearby projector, TV, or laptop. There are two 3G/HD/SD SDI inputs and outputs and a distance of up to 330' is supported.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
Theatrixx-XVVSDI2SDIT1
Theatrixx Technologies xVision Dual-Channel SDI Repeater
$650.00Unit price /View Product -
About the Theatrixx Technologies xVision Dual-Channel SDI Repeater
Key Features
Theatrixx Technologies xVision Dual-Channel SDI Repeater Specs
Video Inputs
2 x BNC (3G-SDI / HD-SDI / SD-SDI)
Input Video Format
SDI (4:4:4/4:2:2 RGB, YUV) 1080p at 24/25/29.97/30/50/59.94/60 fps 720p 50/59.94/60 fps 1080i 50/59.94/60 fps 1080p 23.98 fps 1080PsF 23.98/24/25/29.97/30 fps
Embedded Audio Input
SDI
Video Outputs
2 x BNC (3G-SDI / HD-SDI / SD-SDI)
Output Video Format
SDI (4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 720p 50/59.94/60 fps 1080i 59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps
Embedded Audio Output
SDI
Power I/O
1 x powerCON TRUE1 (90 to 250 VDC up to 10 A) Input
Power Consumption
25 W
Operating Humidity
0 to 90%
Certifications
CAN/CSA, EN60950-1, FCC, UL
