Theatrixx Technologies

Theatrixx Technologies xVision Reversible Module (12G-SDI to Fiber, Singlemode, ST)

$1,486.00

The 12G-SDI to Fiber Reversible Module fits in the 8-Bay Reversible Rackmount Converter system.
The Theatrixx XVVRMSDI2FIBER12GS1 module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

View Product Features

12G-SDI Connectivity: Handles 12G/6G/3G/HD/SD-SDI signals.
Fiber Conversion: Converts SDI to single-mode or multi-mode fiber via SFP module, allowing long-distance transmission.
Plug & Play: Simple operation with no buttons or menus.
Integrated Power: Features a locking PowerCON connector and a built-in AC outlet for powering nearby devices (projectors, laptops).
PowerDaisy-Chain: Includes a powerCON output to link multiple modules.
Tour-Ready Design: Rugged enclosure, magnetic stacking system, and non-skid pads for easy setup and secure stacking.
Mounting Options: Versatile mounting with C-clamp, wall-mount, and belt adapters.
Clear Indicators: Ample status LEDs for quick troubleshooting.
Reclocked Loop-Thru: Amplified SDI loop-thru for monitoring or extending the signal.
Modular: SFP-based for compatibility with standard fiber devices.

In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

New
Theatrixx-XVVRMSDI2FIBER12GS1

Theatrixx Technologies xVision Reversible Module (12G-SDI to Fiber, Singlemode, ST)

$1,486.00

View Product
New
Theatrixx-XVVRMSDI2FIBER12GS2

Theatrixx Technologies xVision Reversible Module (12G-SDI to Fiber, Singlemode, OpticalCON Duo)

$1,486.00

View Product
New
Theatrixx-XVVRMSDI2FIBER12GS3

Theatrixx Technologies xVision Reversible Module (12G-SDI to Fiber, Singlemode, OpticalCON Quad)

$1,486.00

View Product

Already own this item and want to sell it?

Click here to sell your item

About the Theatrixx Technologies xVision Reversible Module (12G-SDI to Fiber, Singlemode, ST)

The 12G-SDI to Fiber Reversible Module fits in the 8-Bay Reversible Rackmount Converter system.
The Theatrixx XVVRMSDI2FIBER12GS1 module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Key Features

12G-SDI Connectivity: Handles 12G/6G/3G/HD/SD-SDI signals.
Fiber Conversion: Converts SDI to single-mode or multi-mode fiber via SFP module, allowing long-distance transmission.
Plug & Play: Simple operation with no buttons or menus.
Integrated Power: Features a locking PowerCON connector and a built-in AC outlet for powering nearby devices (projectors, laptops).
PowerDaisy-Chain: Includes a powerCON output to link multiple modules.
Tour-Ready Design: Rugged enclosure, magnetic stacking system, and non-skid pads for easy setup and secure stacking.
Mounting Options: Versatile mounting with C-clamp, wall-mount, and belt adapters.
Clear Indicators: Ample status LEDs for quick troubleshooting.
Reclocked Loop-Thru: Amplified SDI loop-thru for monitoring or extending the signal.
Modular: SFP-based for compatibility with standard fiber devices.

Theatrixx Technologies xVision Reversible Module (12G-SDI to Fiber, Singlemode, ST) Specs

Connections

Video Input

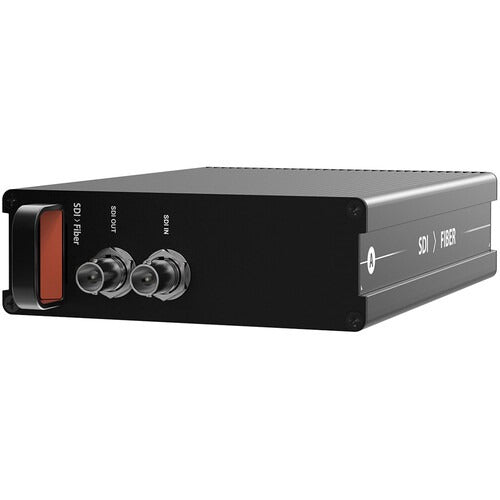

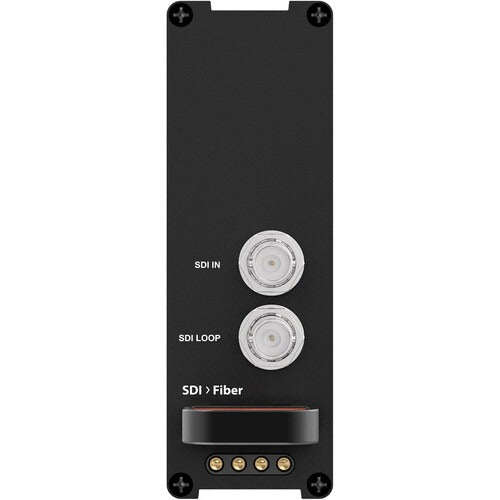

1x 12G/6G/3G/HD/SD SDI BNC

Loop-thru

1x 12G/6G/3G/HD/SD SDI BNC

Video Output

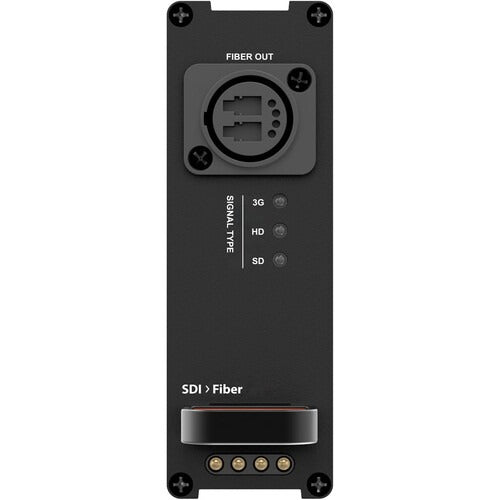

Singlemode, Optical SDI on ST, OpticalCON DUO

Supported Signals

Video Format Support

12G/6G/3G-SDI Level A and B, HD SDI, SD-SDI with embedded audio

SMPTE Standards

2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M

Environmental

Relative Humidity

0% - 90% non-condensing

Operating Temperature

32°F - 104°F (0°C - 40°C)

Power Requirements

Power Supply

Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)

Power Consumption

20W

Voltage Range

12VDC

Key Features

12G-SDI Connectivity: Handles 12G/6G/3G/HD/SD-SDI signals.
Fiber Conversion: Converts SDI to single-mode or multi-mode fiber via SFP module, allowing long-distance transmission.
Plug & Play: Simple operation with no buttons or menus.
Integrated Power: Features a locking PowerCON connector and a built-in AC outlet for powering nearby devices (projectors, laptops).
PowerDaisy-Chain: Includes a powerCON output to link multiple modules.
Tour-Ready Design: Rugged enclosure, magnetic stacking system, and non-skid pads for easy setup and secure stacking.
Mounting Options: Versatile mounting with C-clamp, wall-mount, and belt adapters.
Clear Indicators: Ample status LEDs for quick troubleshooting.
Reclocked Loop-Thru: Amplified SDI loop-thru for monitoring or extending the signal.
Modular: SFP-based for compatibility with standard fiber devices.
