Theatrixx Technologies

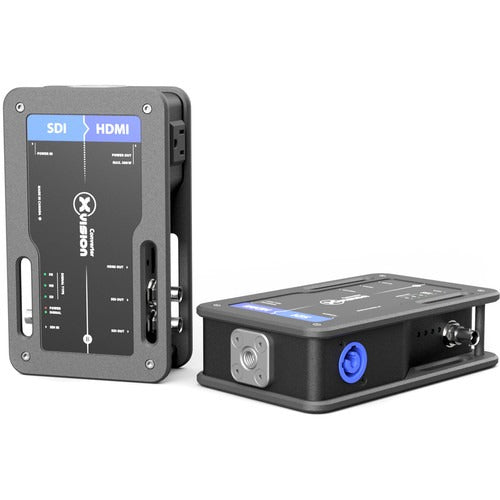

Theatrixx Technologies xVision SDI to HDMI Video Converter

$545.00 - $999.00

The xVision SDI to HDMI Video Converter from Theatrixx Technologies converts an SDI signal to HDMI, and features an integrated power supply with locking PowerCON connector. This converter is equipped with a built-in 120V outlet to power nearby projector, monitor, laptop, and more, while eliminating the need for a power bar to power both the converter and the device. For added convenience, the converter supports reclocked and amplified SDI loop-through output. A locking HDMI port prevents accidental disconnection. The xVision SDI to HDMI converter is ideal for use in professional A/V events, presentations, live shows, and tours.

View Product Features

  • Integrated power supply with locking PowerCON connector
  • Built-in 120V outlet to power nearby device eliminates the need for a power bar
  • Magnetic stacking system and non-skid rubber pad saves on gaffer tape rolls
  • Multiple mounting options include C-clamp, wall mount adapter, LCD mount adapter, and belt adapter
  • Rugged, tour-ready, and durable enclosure
  • Plug-and-play operation avoids DIP switches, buttons, or menus
  • Clear and ample status LED indicators for quick troubleshooting
  • HDMI input tested and compatible with MacBook and iPad
  • Easy on-the-field identification with unique color and alphabetical coding system
  • Locking HDMI port prevents accidental disconnection
  • Reclocked and amplified SDI loop-through
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies xVision SDI to HDMI Video Converter

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the xVision Video Converters.

Key Features

  • Integrated power supply with locking PowerCON connector
  • Built-in 120V outlet to power nearby device eliminates the need for a power bar
  • Magnetic stacking system and non-skid rubber pad saves on gaffer tape rolls
  • Multiple mounting options include C-clamp, wall mount adapter, LCD mount adapter, and belt adapter
  • Rugged, tour-ready, and durable enclosure
  • Plug-and-play operation avoids DIP switches, buttons, or menus
  • Clear and ample status LED indicators for quick troubleshooting
  • HDMI input tested and compatible with MacBook and iPad
  • Easy on-the-field identification with unique color and alphabetical coding system
  • Locking HDMI port prevents accidental disconnection
  • Reclocked and amplified SDI loop-through

Theatrixx Technologies xVision SDI to HDMI Video Converter Specs

Video Input
1x 12G/6G/3G/HD/SD SDI BNC.
Video Output
1x HDMI 2.0 type A with locking system, 2x 12G/6G/3G/HD/SD SDI BNC.
12G Format Support
4096x2160p60, 4096x2160p59.94, 4096x2160p50, 3840x2160p60, 3840x2160p59.94, 3840x2160p50.
6G Format Support
4096x2160p60, 4096x2160p59.94, 4096x2160p50, 3840x2160p60, 3840x2160p59.94, 3840x2160p50.
3G Format Support
1080p50, 1080p59.94, 1080p60.
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30.
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL.
SDI Video Sampling
4:2:2 and 4:4:4.
SDI Audio Sampling
Sample rate of 48 kHz and 24 bit.
SDI Color Space
YUV and RGB.
SDI Auto Switching
Automatically detects incoming signal format.
SMPTE Standards
425M Level A & B, 424M Level A, 292M, 259M.
Alternate Form Factor
Also available as a Reversible Module.
Relative Humidity
0% to 90% non-condensing.
Operating Temperature
0-40 °C.
Power Supply
Built-in power supply, PowerCON input, Edison Nema 5-15 output (loop-thru).
Power Consumption
15W.
Voltage Range
100-120V, 50-60Hz, (100-240V, 50-60Hz available with PowerCON True1).
Courtesy Outlet
Max 10A, same voltage as input.

Key Features

  • Integrated power supply with locking PowerCON connector
  • Built-in 120V outlet to power nearby device eliminates the need for a power bar
  • Magnetic stacking system and non-skid rubber pad saves on gaffer tape rolls
  • Multiple mounting options include C-clamp, wall mount adapter, LCD mount adapter, and belt adapter
  • Rugged, tour-ready, and durable enclosure
  • Plug-and-play operation avoids DIP switches, buttons, or menus
  • Clear and ample status LED indicators for quick troubleshooting
  • HDMI input tested and compatible with MacBook and iPad
  • Easy on-the-field identification with unique color and alphabetical coding system
  • Locking HDMI port prevents accidental disconnection
  • Reclocked and amplified SDI loop-through
