Clear-Com

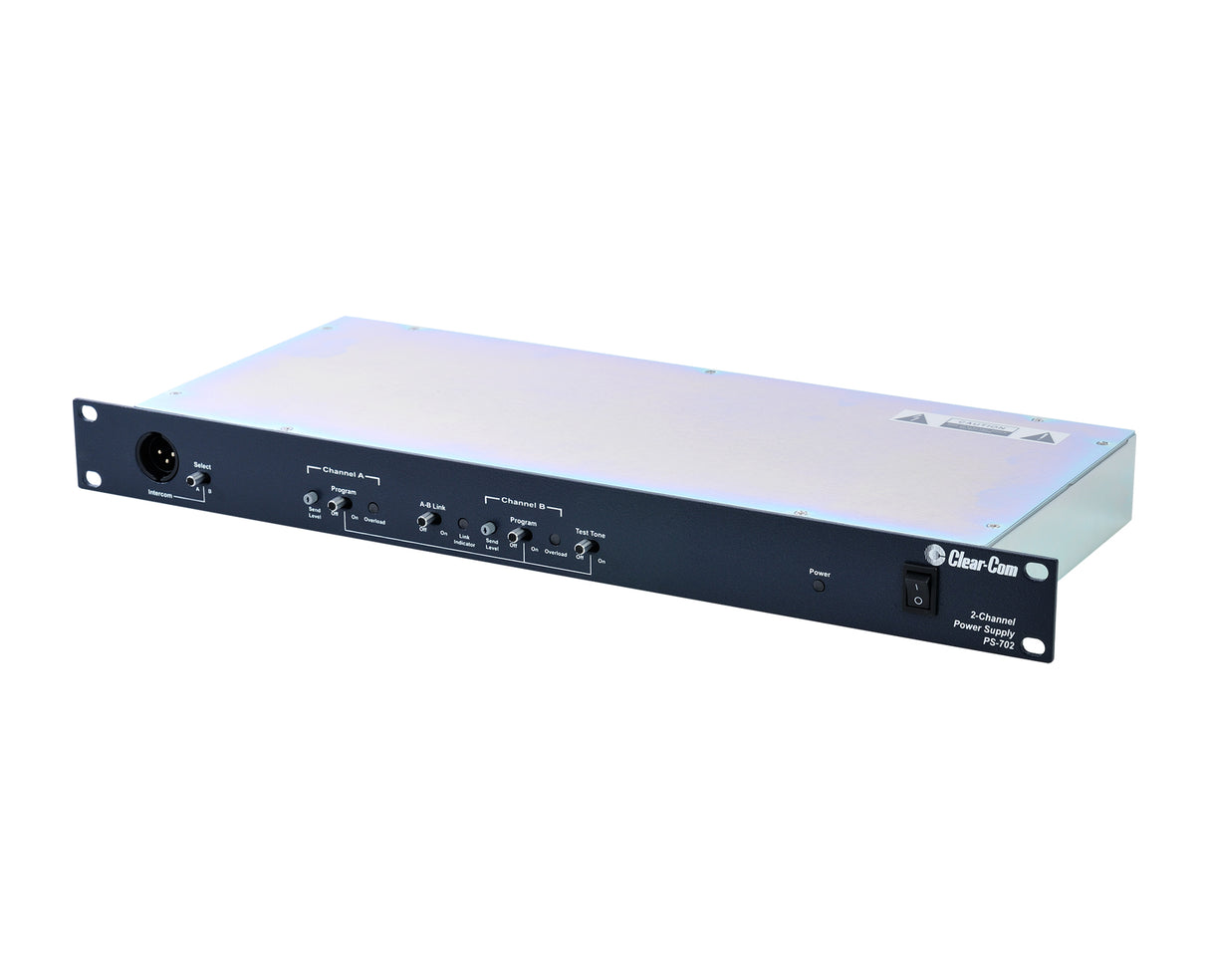

Clear-Com PS-702 2-Channel Power Supply

$0.00

The ClearCom Encore Intercom System PS-702 2 channel intercom power supply is a powerful, yet user-friendly unit that can serve as the heart of a Clear-Com system. The Clear-Com PS-702 is a single-rack-space, one- or two-channel intercom power supply which can provide 1.2 amps (2 amps peak during call signals and other temporary events) per channel to operate Clear-Com beltpacks and remote stations(sold separately). This power is supplied to either or both channels and will support up to 40 beltpacks or 10 speaker stations. Clear-Com's advanced fail-safe design can sense the difference between a short or an overload to optimally protect itself. Power is restored in as little as 0.5 seconds, depending upon whether there was a single or multiple short or overload. The other channel continues to operate normally.

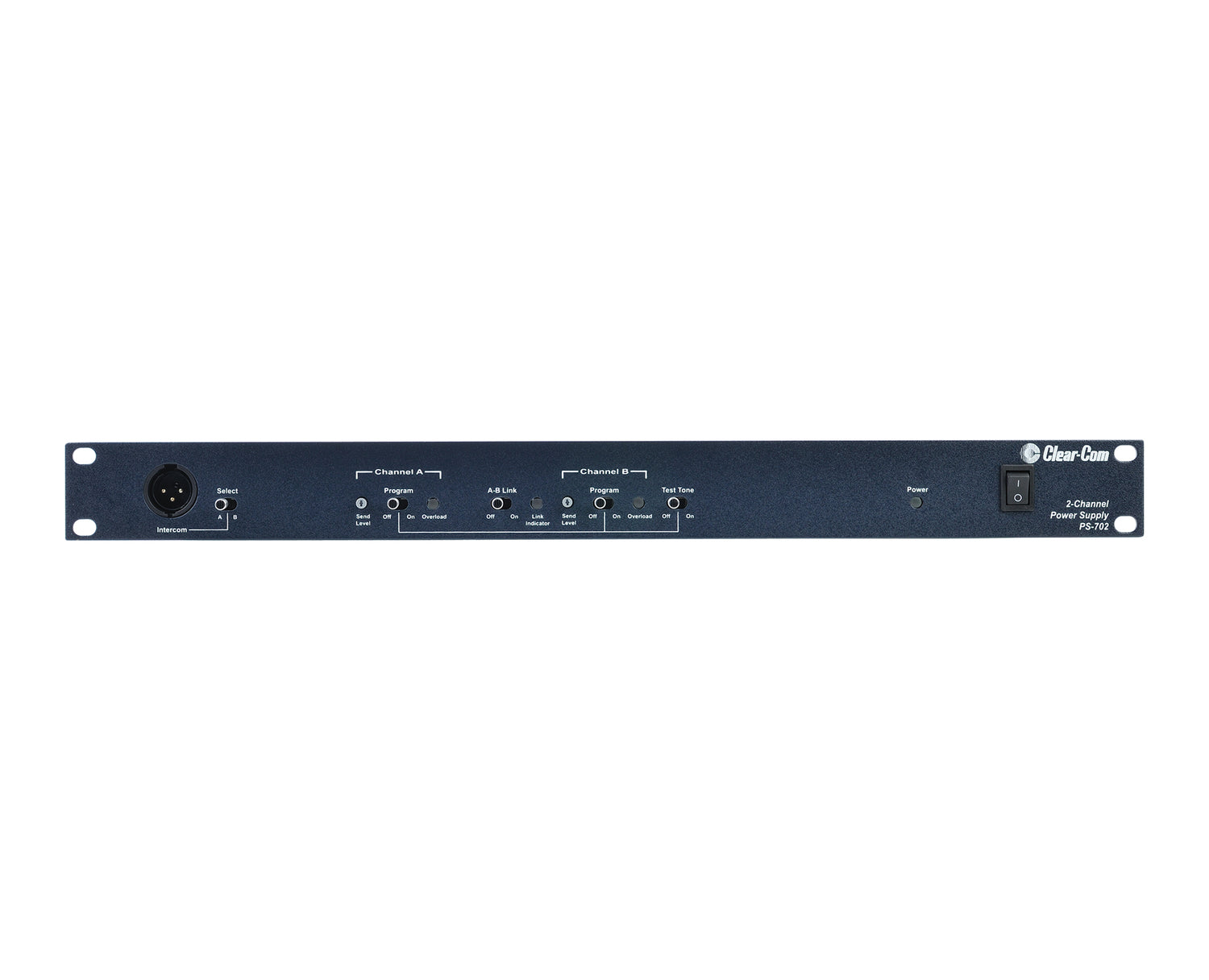

The PS-702's advanced fail-safe circuit will bring the power back up even under full load conditions. LED indicators signal a fault on either channel. A line-level program input offers a master input level. Individual program selects, each with its own send level, are provided for each channel. Use of a switching power supply allows the PS-702 to operate with any AC line voltage from 100 to 240 volts AC at 50 or 60 Hz. The sturdy metal chassis and extra-thick front panel with integral rack ears maintains legendary Clear-Com ruggedness.

View Product Features

2-Channel 2 Amp Power SupplyProvides up to 2 amps at 30 VoltsSupports up to 40 beltpacks, 10 speaker stations
12 headset stationsFull current capacity can be divided between the two channelsExclusive
Intelligent Fault/Overload Sensing (IFOS) for system reset

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the Clear-Com PS-702 2-Channel Power Supply

The Clear-Com PS-702 is a dedicated two-channel power supply designed to provide reliable operating voltage for belt packs and remote stations within a professional party-line intercom system. This external power unit is essential for extending the reach of a communication network beyond the power limitations of the main station or for powering remote sections of a system independently. It delivers clean, regulated DC power over the standard two-wire intercom cabling, ensuring that belt pack users receive consistent audio quality and full functionality without voltage drop, even when they are located a significant distance from the central control hub. Each of its two channels operates independently, allowing it to power two separate intercom lines or zones within a larger installation.

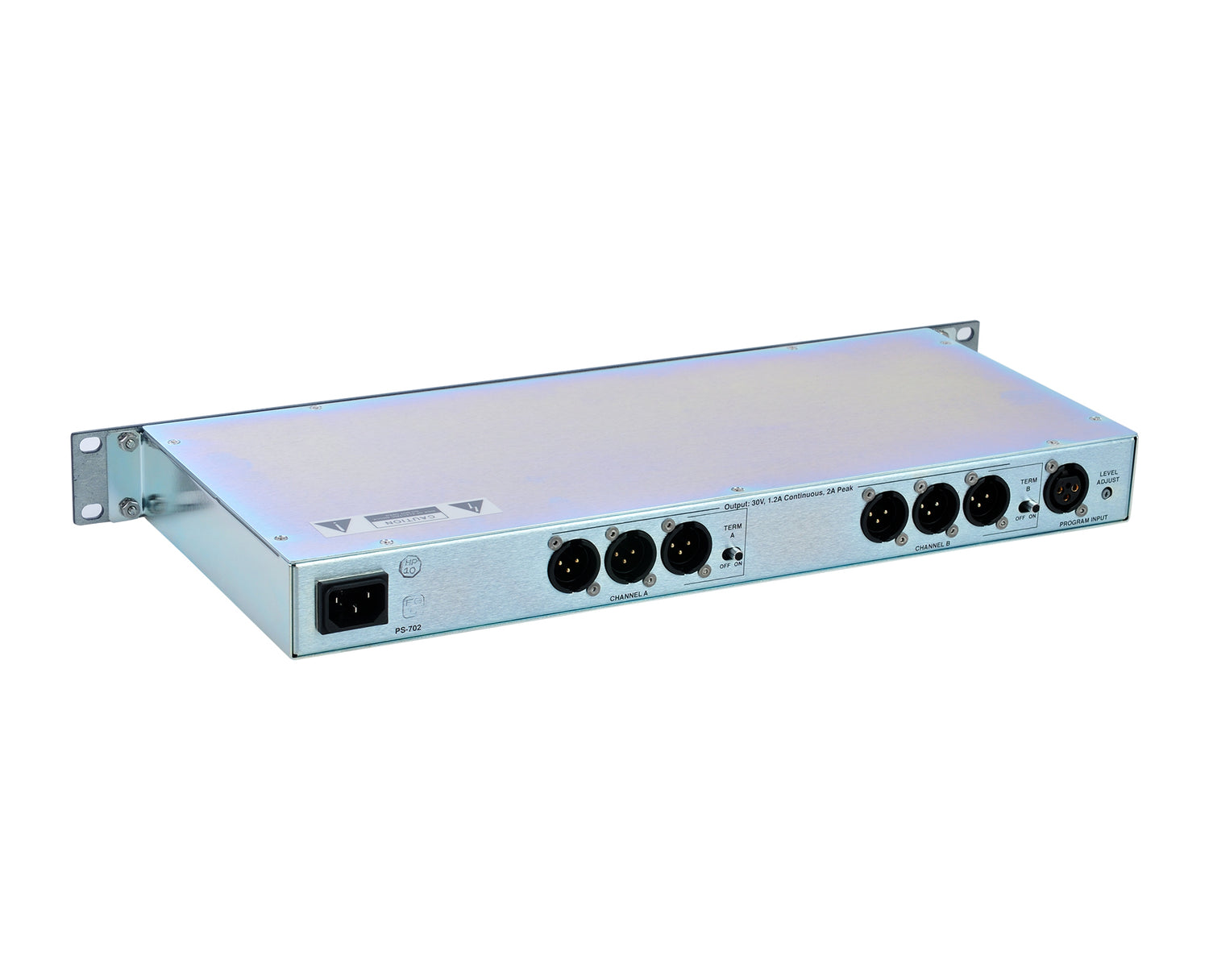

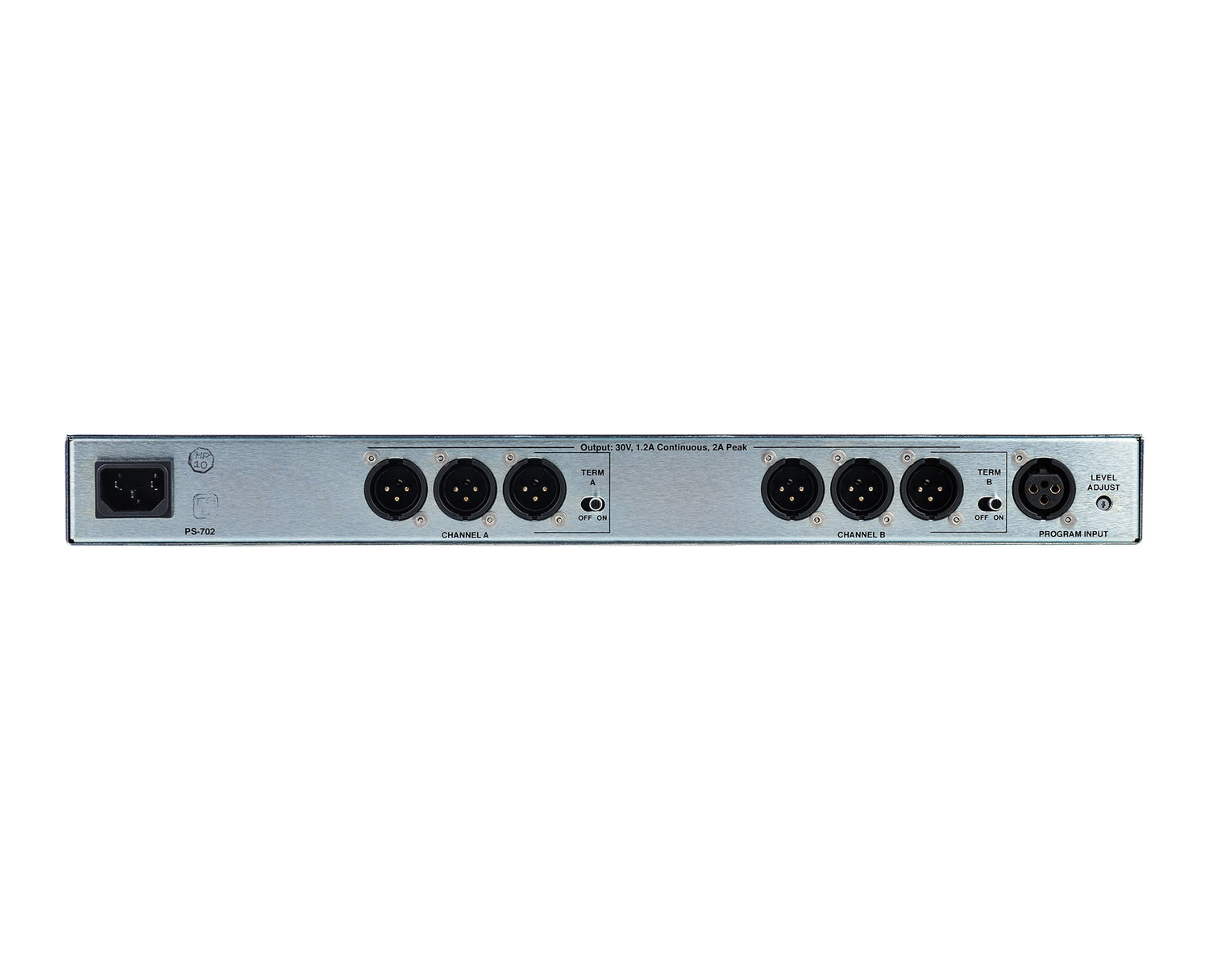

Housed in a compact and durable metal enclosure, the PS-702 is built for reliability in both permanent installations and mobile setups. It typically features front-panel indicator lights for each channel to confirm power output status, aiding in quick troubleshooting. The unit connects to the intercom lines via industry-standard terminal blocks or connectors, making integration straightforward for technicians. By offloading the power distribution function from the main station, this power supply helps prevent overloading and increases the overall scalability of the system, enabling more belt packs to be deployed across a wider area, which is crucial for large venues like theaters, convention centers, or broadcast facilities.

The PS-702 exemplifies the modular design philosophy of professional intercom systems, allowing system designers to add power precisely where it is needed. Its role is foundational: by ensuring every user on the line has sufficient power for their belt pack's microphone and speaker circuits, it guarantees clear transmission and reception of audio. This reliability is non-negotiable in live production environments where communication breakdowns can lead to missed cues and operational errors. As a dedicated, robust, and simple-to-use component, the Clear-Com PS-702 Power Supply is a key element in building a robust, extensive, and dependable wired communication infrastructure.

Key Features

2-Channel 2 Amp Power SupplyProvides up to 2 amps at 30 VoltsSupports up to 40 beltpacks, 10 speaker stations
12 headset stationsFull current capacity can be divided between the two channelsExclusive
Intelligent Fault/Overload Sensing (IFOS) for system reset
