Clear-Com

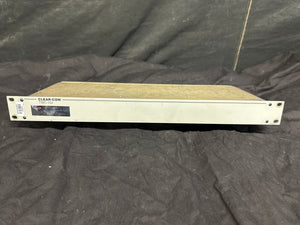

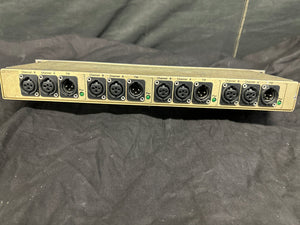

Clear-Com TWC-104 Intercom System

$0.00

The Clear-Com Series 500 intercom stations incorporate the most advanced beltpack design available. They are incredibly rugged (will survive a drop of 60 feet) with excellent audio quality. Designed for maximum speech intelligibility in high-noise environments, these beltpacks are ideal for live performance, television, industrial, aerospace, school, and rental applications.

In high-noise environments, the beltpack mic gain can be switched to a low setting to reduce overload and distortion.

These beltpacks feature noiseless, digital electronic switching of all audio circuits, controlled by a custom integrated circuit. The high-quality “touch” controls on the beltpacks are virtually indestructible. Their size and location on the beltpack allow operation by touch, so the operator doesn’t have to see the beltpack to use it.

The audio headphone circuitry features push-pull power output, allowing the beltpack to drive a headset to very high listen levels. In addition, the limiter compensates for variances in individual voices and eliminates distortion due to overloading of the mic preamp.

If an intercom user removes his headset near a loudspeaker or monitor and forgets to turn off the mic, the high noise may overwhelm normal communications. The problem is the open microphone cannot be easily found. The Remote Mic Kill function in the beltpack solves this problem by enabling the beltpacks’ microphones to be shut off from the Main Station or any other location (using optional RMK-1).

In addition, when any beltpack is disconnected from the intercom line, the beltpack’s microphone circuit is instantly shut off, preventing any squeals or “pops” in the headset.

Visual “call” signaling is used to attract the attention of operators who have removed their headsets. All beltpacks include visual call signaling with very high-intensity, multi-segment LEDs as standard features.

View Product Features

  • Exceptionally lightweight and compact
  • Virtually indestructible, powder-coated, aircraft-grade aluminum and HDS composite material construction
  • Remote Mic Kill function
  • One or two-channel operation on one or two mic cables
  • Two-channel operation on one standard mic cable (RS-522-TW)
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Clear-Com TWC-104 Intercom System

The Clear-Com TWC-104 represents a compact and versatile professional intercom system, typically comprising a central power supply and multiple belt packs designed for small to medium-sized production environments. This system is engineered around a standard two-wire party-line architecture, providing clear, full-duplex communication for up to four users simultaneously. At its core is a power supply unit that delivers regulated voltage to the connected belt packs, ensuring consistent audio quality and microphone performance for all users. The included belt packs are user-friendly devices featuring a volume control, a push-to-talk or latch-to-talk switch, and a call button, allowing each crew member to independently manage their connection to the shared channel. This setup is ideal for applications such as small broadcast studios, house of worship productions, corporate video sets, and educational facilities where reliable, hands-free communication between a limited number of participants is required.

The system is designed for simplicity and quick deployment. The belt packs connect to the main power supply via standard 4-pin XLR cables, which carry both power and audio, eliminating the need for batteries. This wired connection guarantees interference-free audio with no latency, a critical advantage over wireless systems in environments with congested radio frequencies. The TWC-104 often supports the connection of a variety of Clear-Com headsets, allowing users to choose between single-ear or double-ear models based on their need for situational awareness or noise isolation. The entire package is known for its robust construction, with durable components built to withstand the demands of daily use and transport.

By providing an all-in-one, scalable solution, the Clear-Com TWC-104 system lowers the barrier to entry for professional-grade intercoms. It offers the essential features—clear audio, reliable power, and simple controls—without the complexity of larger matrix systems. This makes it a practical and cost-effective choice for productions that require dependable crew coordination but do not need the extensive channel count or advanced routing capabilities of high-end systems. The TWC-104 effectively facilitates the precise timing and collaboration necessary for successful video production, live events, and theatrical performances on a smaller scale.

Key Features

  • Exceptionally lightweight and compact
  • Virtually indestructible, powder-coated, aircraft-grade aluminum and HDS composite material construction
  • Remote Mic Kill function
  • One or two-channel operation on one or two mic cables
  • Two-channel operation on one standard mic cable (RS-522-TW)

Clear-Com TWC-104 Intercom System Specs

System Configuration
System Type
2-Wire Party Line
Typical User Capacity
4 Users
Core Components
Power Supply, Belt Packs
Belt Pack Features
Controls
Volume, Talk/Call Buttons
Connection
4-pin XLR to System
Power
System Powered (No Batteries)
Audio & Connectivity
Communication
Full-Duplex
Headset Compatibility
Standard Clear-Com Headsets
Cable
Integrated Power/Audio over XLR
Physical Design
Construction
Durable for Professional Use
Form Factor
Desktop/Rack Components
Power Supply
Function
Central System Power
Output
Regulated DC for Belt Packs

Key Features

  • Exceptionally lightweight and compact
  • Virtually indestructible, powder-coated, aircraft-grade aluminum and HDS composite material construction
  • Remote Mic Kill function
  • One or two-channel operation on one or two mic cables
  • Two-channel operation on one standard mic cable (RS-522-TW)
