Azden

Azden AZDEN-EX-50L Broadcast Lapel Mic w/ Locking 3.5mm Plug

$0.00

The Azden EX-50L lapel microphone is designed to improve the sound quality of Azden wireless systems. The EX-50L is fitted with a more sensitive microphone element that offers a more nuanced full bodied sound with wider response when compared to the standard lapel microphone supplied with Azden systems. The EX-50L works with 35BT, 15BT and WM-PRO transmitters.

View Product Features

  • Microphone Type: Electret condenser
  • Frequency Response: 30 to 20,000 Hz
  • Sensitivity: -43 dB @ 1 kHz (0 dB = 1 V/Pa)
  • Impedance: 2.2 kΩ
  • SPL: 100 dB
  • S/N Ratio: >50 dB
  • Power Requirement: 1 to 11 VDC
  • Power Consumption: 0.5 mA or less
  • Connector Type: 1/8″ Mini with threaded lock down
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Azden AZDEN-EX-50L Broadcast Lapel Mic w/ Locking 3.5mm Plug

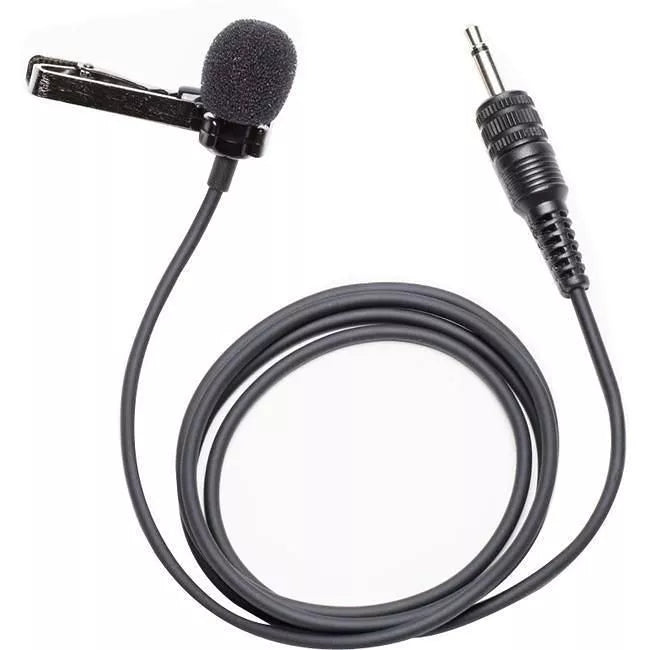

The Azden AZDEN-EX-50L is a professional broadcast-grade lavalier (lapel) microphone designed for clear, discreet speech capture in television production, presentations, interviews, and live broadcasting. It features an omnidirectional electret condenser capsule that is optimized for vocal frequencies, delivering a natural and articulate sound while minimizing background noise due to its close placement to the sound source. The microphone is encased in a durable, low-profile metal housing that is resistant to clothing rustle and electromagnetic interference. A significant feature is its integrated, permanently attached cable that terminates in a locking 3.5mm (1/8-inch) TRS mini-plug. This locking mechanism, often a twist-and-lock collar, secures the connection to the transmitter or recorder, preventing accidental disconnection during movement, which is critical for live events and mobile applications.

The microphone is designed for versatility and ease of use in professional scenarios. It operates on standard plug-in power (3-10V) supplied by most DSLR cameras, camcorders, and portable audio recorders, making it a convenient choice for videographers and journalists. For use with professional wireless systems, it can connect to bodypack transmitters via the 3.5mm input, provided the transmitter supplies the appropriate plug-in power. The EX-50L comes with a comprehensive accessory kit that typically includes a variety of mounting options: an alligator clip for direct attachment to clothing, a magnetic mount for quick placement without piercing fabrics, and often a tie clip and windscreen. These accessories allow for secure and optimal positioning on the talent, ensuring consistent audio quality.

Performance-wise, the microphone is engineered to handle high sound pressure levels without distortion, making it suitable for both whispered dialogue and projected speech. Its frequency response is tailored to enhance voice clarity, and it often includes a built-in high-pass filter to reduce low-frequency rumble from wind or handling noise. The robust, coiled cable (where applicable) or straight cable offers flexibility and strain relief. As a reliable, feature-rich lavalier from a established professional audio manufacturer, the Azden EX-50L provides broadcasters, filmmakers, and presenters with a trusted tool for achieving broadcast-quality spoken audio with the reliability of a secure physical connection.

Key Features

  • Microphone Type: Electret condenser
  • Frequency Response: 30 to 20,000 Hz
  • Sensitivity: -43 dB @ 1 kHz (0 dB = 1 V/Pa)
  • Impedance: 2.2 kΩ
  • SPL: 100 dB
  • S/N Ratio: >50 dB
  • Power Requirement: 1 to 11 VDC
  • Power Consumption: 0.5 mA or less
  • Connector Type: 1/8″ Mini with threaded lock down

Azden AZDEN-EX-50L Broadcast Lapel Mic w/ Locking 3.5mm Plug Specs

Microphone Specifications
Frequency Response
50 Hz - 18 kHz
Sensitivity
-44 dBV/Pa (6.3 mV)
Output Impedance
200 Ohms
Maximum SPL
120 dB (at 1% THD)
Signal-to-Noise Ratio
66 dB
Power & Electrical
Power Requirement
3-10V Plug-in Power (PIP)
Current Consumption
0.5 mA
Cable Length
2.5 meters (8.2 feet)
Cable Type
Oxygen-Free Copper, Shielded
Connector & Mounting
Output Connector
3.5mm (1/8") TRS Mini Plug with Locking Collar
Physical & Environmental
Microphone Dimensions
6 mm diameter x 18 mm length
Weight (microphone only)
Approx. 8 g
Operating Temperature
-10°C to 50°C

Key Features

  • Microphone Type: Electret condenser
  • Frequency Response: 30 to 20,000 Hz
  • Sensitivity: -43 dB @ 1 kHz (0 dB = 1 V/Pa)
  • Impedance: 2.2 kΩ
  • SPL: 100 dB
  • S/N Ratio: >50 dB
  • Power Requirement: 1 to 11 VDC
  • Power Consumption: 0.5 mA or less
  • Connector Type: 1/8″ Mini with threaded lock down
