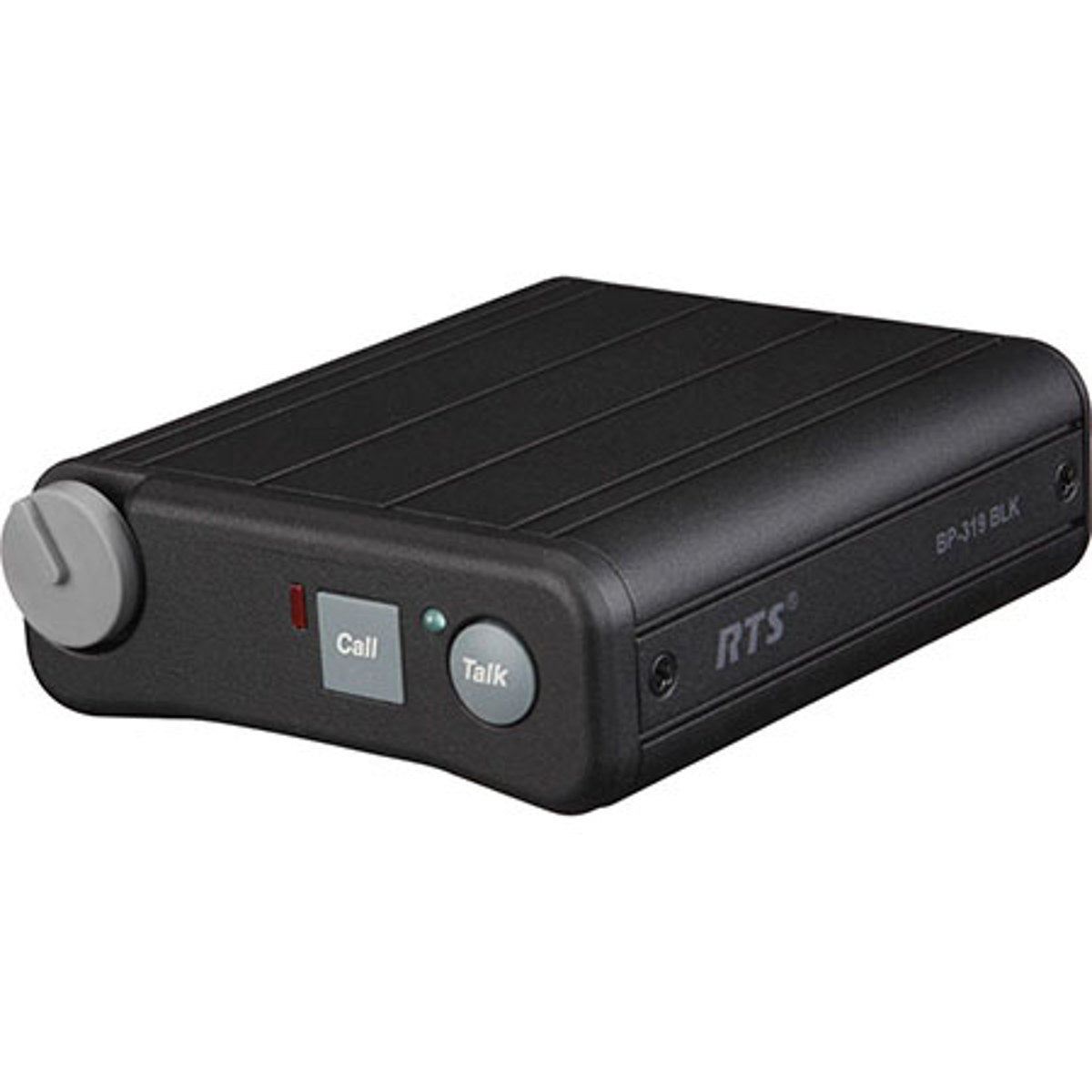

Telex BP-319 1-Channel Beltpack

$0.00

Items Included

Item Notes

Condition: Out of stock
Once stock replenishes, inventory will display below.
Pricing
Sold out
Pre-Owned Guarantee 14 Day Return Window

Description

The Telex BP-319 A5F Connector Single Channel Portable Metal Beltpack in Black is a portable user station for use with RTS Two-Wire intercom systems. This is a microprocessor controlled one-channel intercom beltpack. It has connections for headset/ear set microphones (Dynamic or Electret). The factory setting is for Dynamic. Read more

Features

  • Call function allows the user to send or receive call signals to or from other devices on the intercom channel, including audible call alert on the listen side.
  • Microprocessor controlled microphone kill detect.
  • Powered externally, via the intercom system power supply on channel 1.
  • Headset 5-pin XLR connections.
  • The BP-319 has a built-in auto-sensingheadset connector that will determine automatically whether a dynamic or electret headset is connected to the system.
  • 5-pin Female headset receptacle (needs a headset with a 5-pin male connector)
  • Available in light grey.

Business Financing Options Avaiable

The Telex BP-319 A5F Connector Single Channel Portable Metal Beltpack in Black is a portable user station for use with RTS Two-Wire intercom systems. This is a microprocessor controlled one-channel intercom beltpack. It has connections for headset/ear set microphones (Dynamic or Electret). The factory setting is for Dynamic. Read more

Features

  • Call function allows the user to send or receive call signals to or from other devices on the intercom channel, including audible call alert on the listen side.
  • Microprocessor controlled microphone kill detect.
  • Powered externally, via the intercom system power supply on channel 1.
  • Headset 5-pin XLR connections.
  • The BP-319 has a built-in auto-sensingheadset connector that will determine automatically whether a dynamic or electret headset is connected to the system.
  • 5-pin Female headset receptacle (needs a headset with a 5-pin male connector)
  • Available in light grey.

About the Telex BP-319 1-Channel Beltpack

The Telex BP-319 is a professional-grade, single-channel beltpack unit engineered as a core user interface within two-wire party-line intercom systems, commonly employed in broadcast, live event production, and theatrical environments. Its primary function is to provide reliable, hands-free communication for crew members such as camera operators, stage managers, and lighting technicians, who require constant mobility and clear, uninterrupted audio. The beltpack features a rugged, die-cast metal housing designed to withstand the physical demands of production settings, while its straightforward interface allows for intuitive operation even in high-pressure situations. With a focus on durability and audio clarity, it serves as a dependable workhorse for establishing essential talk/listen paths on a designated channel.

This model is distinguished by its robust audio performance and flexible connectivity options. It incorporates a high-quality, noise-canceling dynamic microphone with a professional XLR connector, effectively isolating the user's voice from ambient background noise. The unit also provides both a high-impedance headphone output for standard headsets and a low-impedance output capable of driving high-volume, high-isolation headphones commonly used in loud environments. An integrated call signal button, which can activate a visual cue light on compatible master stations or other beltpacks, is a critical feature for non-verbal signaling and gaining attention without disrupting the primary audio channel.

Designed for seamless integration into existing party-line infrastructure, the BP-319 operates on standard intercom power supplied by the system's main power supply or master station. It maintains compatibility with a wide range of intercom cabling and can be daisy-chained with other beltpacks and stations to extend the communication network. Its simple yet effective design, centered on a single large channel-select knob and a rotary volume control, ensures operational ease. As a core component of a wired intercom system, the Telex BP-319 delivers the essential combination of rugged construction, clear audio, and operational simplicity required for critical production communications.

Key Features

  • Call function allows the user to send or receive call signals to or from other devices on the intercom channel, including audible call alert on the listen side.
  • Microprocessor controlled microphone kill detect.
  • Powered externally, via the intercom system power supply on channel 1.
  • Headset 5-pin XLR connections.
  • The BP-319 has a built-in auto-sensingheadset connector that will determine automatically whether a dynamic or electret headset is connected to the system.
  • 5-pin Female headset receptacle (needs a headset with a 5-pin male connector)
  • Available in light grey.

Telex BP-319 1-Channel Beltpack Specs

Channel & Audio
Channels
1
Microphone Type
Dynamic (Noise-Canceling)
Microphone Connector
3-pin XLR
Headphone Outputs
2 (Hi-Z & Lo-Z)
Maximum Headphone Output
200 mW
Electrical Specifications
Operating Voltage
12-30V DC (Party-Line)
Current Draw
45 mA (typical)
Frequency Response
100 Hz - 10 kHz
Total Harmonic Distortion
<2%
Physical Construction
Housing Material
Die-Cast Aluminum
Connectors
Neutrik Series
Dimensions
4.5" x 3.0" x 1.4"
Weight
1.8 lbs (0.82 kg)
Controls & Indicators
Primary Control
Channel Select Knob
Secondary Control
Volume Knob
Call Signal
Momentary Button
Indicator
LED Power/Call
Environmental & Compliance
Operating Temperature
14°F to 131°F (-10°C to 55°C)
Safety Certification
UL, cUL Listed

Key Features

  • Call function allows the user to send or receive call signals to or from other devices on the intercom channel, including audible call alert on the listen side.
  • Microprocessor controlled microphone kill detect.
  • Powered externally, via the intercom system power supply on channel 1.
  • Headset 5-pin XLR connections.
  • The BP-319 has a built-in auto-sensingheadset connector that will determine automatically whether a dynamic or electret headset is connected to the system.
  • 5-pin Female headset receptacle (needs a headset with a 5-pin male connector)
  • Available in light grey.

FAQs about Telex BP-319 1-Channel Beltpack
