The Sennheiser EM4 DANTE Digital Rackmount Receiver is a sophisticated four-channel wireless receiver engineered for integration into modern, network-based professional audio systems. Operating within the R1-9 frequency range of 520 to 607 MHz, this unit is designed to capture audio from up to four compatible Sennheiser wireless transmitters—such as handheld or lavalier microphone systems—and deliver it as high-quality, uncompressed digital audio directly onto a Dante network. This architecture fundamentally transforms the workflow in live sound, broadcasting, and large-scale installed applications by eliminating the traditional analog stage box and multicore, instead routing all wireless microphone signals as discrete channels over a single, standardized Ethernet cable alongside other digital audio streams. The receiver's fully digital signal path from RF to network preserves the pristine audio quality and metadata from the transmitters, ensuring fidelity and control.

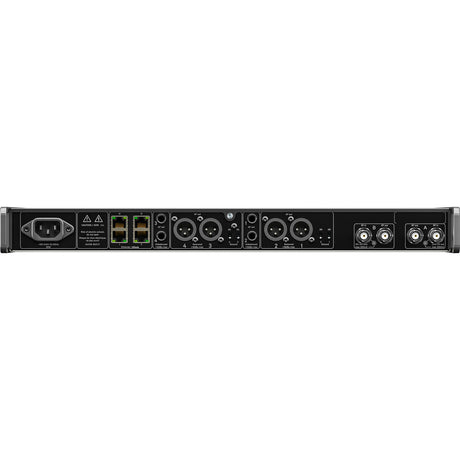

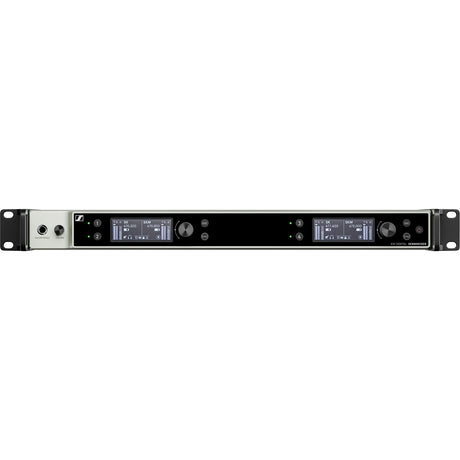

The device is built around a robust 1U rack-mountable metal chassis, featuring a clear, high-resolution color touchscreen interface that provides intuitive access to all critical parameters. Each of the four independent receiver channels offers comprehensive control, including individual gain adjustment, detailed RF and audio metering, and access to transmitter settings such as microphone gain and mute. The integration of Dante networking is seamless, with each wireless channel appearing as a separate, selectable source on the audio network, complete with embedded channel naming and gain metadata. This allows audio engineers to patch inputs directly to a digital mixing console or recording system anywhere on the network with sample-accurate synchronization, greatly simplifying system design and signal management in complex multi-receiver setups.

A cornerstone of the EM4 DANTE's functionality is its advanced frequency coordination and management capabilities. It supports Sennheiser's proprietary Wireless Systems Manager (WSM) software, enabling remote monitoring, control, and coordinated frequency planning for entire wireless ecosystems from a central computer. This is critical for operating large numbers of channels in crowded RF environments, such as major broadcast events or touring musical productions. With features like built-in spectrum analysis for each channel, automatic frequency synchronization with transmitters, and robust error concealment to handle brief signal dropouts, the receiver provides broadcast-grade reliability. Its combination of high-channel-density, networked audio delivery, and intelligent RF management makes it an essential component for any professional audio infrastructure demanding scalable, future-proof wireless solutions.
