🔥 AVGear Deal Zone 🔥

Hot deals. Big savings. Limited quantities.

Sennheiser

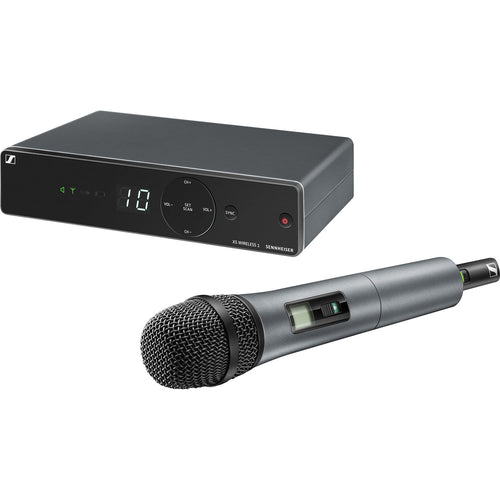

Sennheiser XSW 1-825-A UHF Vocal Set with e825 Dynamic Microphone (A: 548 to 572 MHz)

$329.00

Easy to use all-in-one Wireless system for singers and presenters. Rely on a solid transmission with up to 10 compatible channels in a stable UHF band. Raise your voice. Go for XS Wireless 1 and rely on a solid Wireless transmission with up to 10 compatible channels in a stable UHF band. The XS Wireless 1 Vocal Set is an easy to use all-in-one Wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

View Product Features

  • e825 dynamic cardioid capsule: Delivers warm, smooth sound, rejects feedback.
  • Automatic frequency management: Ensures easy setup and hassle-free operation.
  • Antenna-switching diversity reception: Provides a reliable, stable wireless signal.
  • Up to 10 compatible channels: Allows multiple systems to operate simultaneously.
  • Rugged ABS housing: Ensures durability for frequent stage use.
  • Approx. 10 hours battery life: Long operation time using two AA batteries.
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Sennheiser XSW 1-825-A UHF Vocal Set with e825 Dynamic Microphone (A: 548 to 572 MHz)

The Sennheiser XSW 1-825-A is an entry-level professional wireless vocal system that combines reliable UHF wireless technology with Sennheiser's renowned e825 dynamic microphone capsule. Operating in the 548-572 MHz frequency range (Band A), this complete system includes a compact single-channel receiver and a handheld transmitter with the integrated e825 dynamic vocal microphone. Designed for musicians, presenters, and worship leaders needing a straightforward wireless solution, it provides robust analog transmission with true diversity reception to ensure stable audio delivery with minimal dropouts. The system features automatic frequency selection that scans for clear channels, making setup quick and accessible even for users without technical RF knowledge, while delivering the vocal clarity and durability associated with the Sennheiser brand.

The handheld transmitter is built around the e835's predecessor, the e825, a robust dynamic microphone with a cardioid polar pattern that provides effective feedback rejection and focused front-axis pickup. The microphone capsule is permanently integrated into the wireless transmitter body, creating a unified device that feels balanced and familiar in the hand. The transmitter features simple controls with a power button, mute function, and synchronization capability, along with LED indicators for status and battery level. Powered by two standard AA batteries, it offers substantial operating time for rehearsals, services, or performances, with the rugged metal grill and housing designed to withstand the physical demands of live use.

The compact receiver is engineered for easy integration into various setups, offering both balanced XLR and unbalanced 1/4-inch output connections to connect directly to mixing consoles, powered speakers, or recording interfaces. Its small form factor allows for tabletop placement, attachment to a microphone stand via the integrated 1/4-inch thread, or mounting on a camera hot shoe for broadcast applications. Clear LED meters for audio level and RF signal strength provide immediate visual feedback on system performance. As a complete, affordable wireless system from a trusted professional audio manufacturer, the XSW 1-825-A delivers reliable performance and clear vocal reproduction for small venues, portable PA setups, and fixed installations where simplicity and value are key considerations.

Key Features

  • e825 dynamic cardioid capsule: Delivers warm, smooth sound, rejects feedback.
  • Automatic frequency management: Ensures easy setup and hassle-free operation.
  • Antenna-switching diversity reception: Provides a reliable, stable wireless signal.
  • Up to 10 compatible channels: Allows multiple systems to operate simultaneously.
  • Rugged ABS housing: Ensures durability for frequent stage use.
  • Approx. 10 hours battery life: Long operation time using two AA batteries.

Sennheiser XSW 1-825-A UHF Vocal Set with e825 Dynamic Microphone (A: 548 to 572 MHz) Specs

System Configuration
Product Series
XSW 1
System Type
Wireless Vocal Set with Handheld Transmitter
Frequency Band
Band A (548 - 572 MHz)
Components
Portable Receiver, Handheld Transmitter with e825 capsule
Transmission Type
Analog UHF, True Diversity

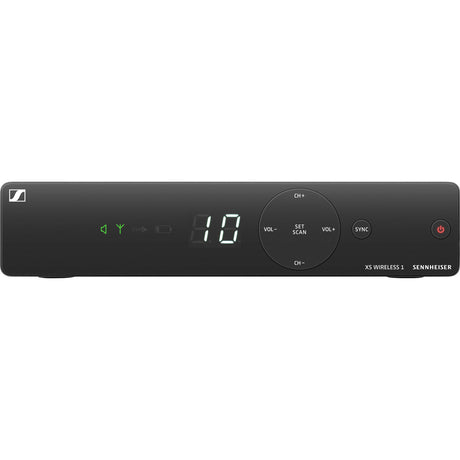

Receiver Specifications
Model
XSW 1 RX
Form Factor
Compact Portable Unit

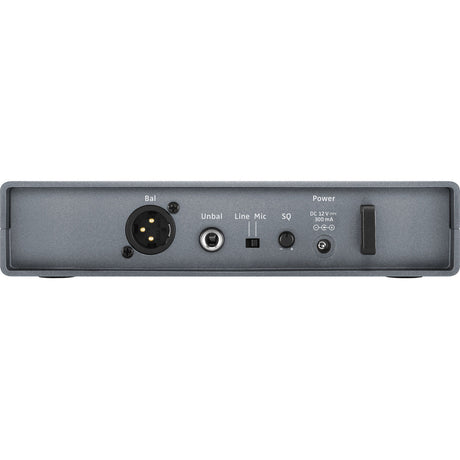

Output Connectors
XLR (Balanced), 6.3 mm Jack (Unbalanced)
Output Level
XLR: +6 dBV, Jack: 0 dBV
Mounting Options
Tabletop, Camera Hot Shoe (optional), 1/4"-20 Thread
Display
LED Indicators for Power, AF Level, RF Signal
Power Supply
External 12V DC (PS 12 Adapter) or 2x AA Batteries
Dimensions (WxDxH)
82 x 125 x 52 mm
Weight
280 g (without batteries)

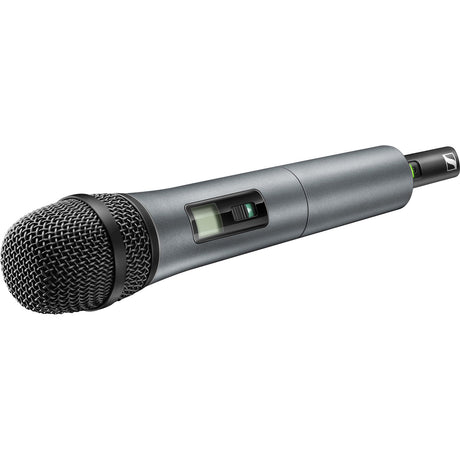

Handheld Transmitter
Model
XSW 1-HH with e825 capsule
Capsule Type
Dynamic, Cardioid
Frequency Response
70 Hz - 18,000 Hz
Sensitivity
1.8 mV/Pa
Polar Pattern
Cardioid
Controls
Power, Mute Buttons
Battery Type
2 x AA Batteries
Battery Life
Approx. 10 hours (alkaline)
Grille
Metal, with integrated antenna
Dimensions (Length)
255 mm
Weight
340 g (without batteries)
Audio & RF Performance
Audio Frequency Response
70 Hz - 18,000 Hz (system)
Dynamic Range
>110 dB (A-weighted)
THD
<0.7% @ 1 kHz
Squelch
Automatic
Operating Range
Up to 70 m line-of-sight
RF Output Power
10 mW / 30 mW (selectable)
General Specifications
Operating Temperature
0°C to +40°C
Power Requirements
Receiver: 12V DC 500mA, Transmitter: 3V DC (2xAA)
Channel Spacing
25 kHz
Preset Frequencies
12 User-selectable

Key Features

  • e825 dynamic cardioid capsule: Delivers warm, smooth sound, rejects feedback.
  • Automatic frequency management: Ensures easy setup and hassle-free operation.
  • Antenna-switching diversity reception: Provides a reliable, stable wireless signal.
  • Up to 10 compatible channels: Allows multiple systems to operate simultaneously.
  • Rugged ABS housing: Ensures durability for frequent stage use.
  • Approx. 10 hours battery life: Long operation time using two AA batteries.
