Lectrosonics

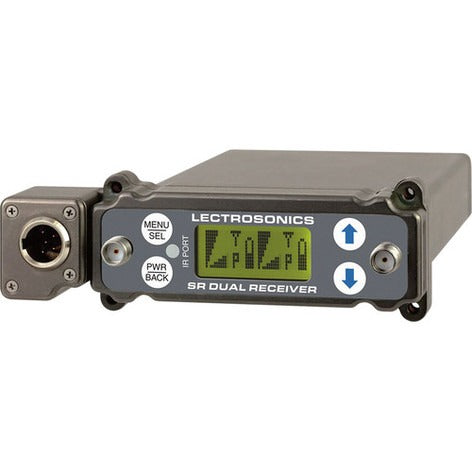

Lectrosonics SRC5P Dual UHF Receiver [Not For use in USA]

$1,200.00

The SRc5P Dual-Channel Slot-Mount ENG Receivers from Lectrosonics consist of two separate receivers built into a single, ultra-compact housing with adapters for video camera receiver slots and for stand-alone use. They can be used when paired with a transmitter & microphone (sold separately) in various environments for ENG (Electronic News Gathering), EFP (Electronic Field Productions) and other audio applications. Each receiver features Digital Hybrid Wireless technology that provides compandor-free audio quality and compatibility with other wireless systems. The RF performance is stable over a wide temperature range, making the receiver perfectly suited in rough environmental conditions. The front panel has a menu-driven LCD interface and four membrane switches which are used to view and alter settings. In addition, the LCD window also displays the pilot-tone indicator, diversity activity, RF level, audio level, and transmitter battery status for both receivers. Furthermore, a built-in spectrum analyzer scans across the tuning range of the receiver and displays a histogram of RF activity across the band. Areas of little or no RF activity are easily recognizable. The two internal receivers can be operated separately and both have switching, antenna-combining diversity, or in tandem with ratio-diversity reception. Finally, a variety of output adapters and mounting options are available for camera-slot operation. The receivers are powered from an external 7 to 18 VDC source. The SRC5P model provides a 5-pin connector next to the control panel with audio output from both channels in addition to the camera-slot outputs.

View Product Features

  • Dual Channel Operation: Two independent channels in compact, single-unit housing.
  • Digital Hybrid Wireless® Technology: Offers companded digital transmission, superior audio quality.
  • Wide Tuning Bandwidth: Covers up to 75 MHz of frequencies, highly flexible.
  • SmartSled Compatibility: Designed for use with the Lectrosonics SmartSled system.
  • Multiple Power Options: Runs on external DC power or optional sled battery.
  • Rugged Construction: Machined aluminum housing for tough field use.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Lectrosonics SRC5P Dual UHF Receiver [Not For use in USA]

The Lectrosonics SRC5P is a professional, dual-channel UHF wireless receiver packaged in a compact, half-rack width metal enclosure. It is specifically designed for international markets, operating on UHF frequency bands that are legal and available outside the United States. This receiver provides two independent true diversity receiver channels in a space-efficient format, making it ideal for film production, broadcast, and live sound applications where equipment footprint and RF performance are critical. It employs Lectrosonics' acclaimed digital hybrid wireless technology, which combines the robust transmission of digital with the sonic transparency of analog FM, delivering exceptional audio clarity and resistance to interference.

Each channel features a backlit alphanumeric display showing frequency, RF level, audio level, and battery status of the paired transmitter. The sophisticated noise-operated squelch ensures the audio output remains silent when no desired signal is present. Output options include both analog XLR and a digital AES3 output on a 5-pin XLR connector, offering flexible integration into analog or digital audio workflows. Its half-rack design allows for high-density installations, enabling up to four discrete receiver channels in a standard 1U rack space.

The SRC5P is built to the exacting standards of Lectrosonics, offering international users the same reliability, audio quality, and RF performance that professionals rely on, but tuned for the regulatory environment of their specific region.

Key Features

  • Dual Channel Operation: Two independent channels in compact, single-unit housing.
  • Digital Hybrid Wireless® Technology: Offers companded digital transmission, superior audio quality.
  • Wide Tuning Bandwidth: Covers up to 75 MHz of frequencies, highly flexible.
  • SmartSled Compatibility: Designed for use with the Lectrosonics SmartSled system.
  • Multiple Power Options: Runs on external DC power or optional sled battery.
  • Rugged Construction: Machined aluminum housing for tough field use.

Lectrosonics SRC5P Dual UHF Receiver [Not For use in USA] Specs

Receiver Configuration
Channels
2 Independent
Form Factor
Half-Rack Width
Diversity
True Diversity (2 Antenna)
RF Specifications
Frequency Range
International UHF Bands (Non-USA)
Technology
Digital Hybrid Wireless
Squelch
Noise-Operated
Audio Output
Analog Output
XLR per Channel
Digital Output
AES3 (5-pin XLR)
Pilot Tone
Supports 32 kHz
Control & Display
Front Panel Display
Dual Alphanumeric
Control Interface
Buttons & Knob
Power & Mounting
Power Requirement
12-18V DC
Rack Units
1U (Half-Rack Width)
Antenna Input
2 x BNC

Key Features

  • Dual Channel Operation: Two independent channels in compact, single-unit housing.
  • Digital Hybrid Wireless® Technology: Offers companded digital transmission, superior audio quality.
  • Wide Tuning Bandwidth: Covers up to 75 MHz of frequencies, highly flexible.
  • SmartSled Compatibility: Designed for use with the Lectrosonics SmartSled system.
  • Multiple Power Options: Runs on external DC power or optional sled battery.
  • Rugged Construction: Machined aluminum housing for tough field use.
