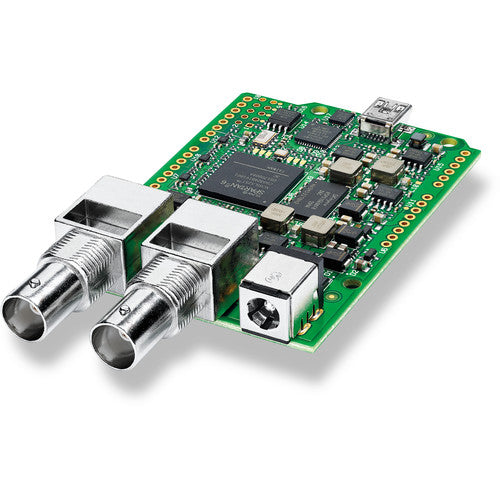

The Blackmagic Design BMD-CINSTUDXURDO/3G Arduino Shield is a specialized interface board designed to connect an Arduino microcontroller development board to Blackmagic's professional Studio Cameras and other compatible SDI equipment. It functions as a hardware bridge, enabling makers, developers, and system integrators to build custom control systems, interactive installations, and automated camera rigs by reading and writing data to and from the camera over its SDI connection using the SDI ancillary data space (ANC data). This opens up possibilities for remote triggering, data logging, motion control synchronization, and integration with sensors or other hardware.

The shield is designed to plug directly into a standard Arduino board (like an Arduino Uno), providing it with the necessary circuitry to communicate with the SDI signal. It uses the 3G-SDI standard, which is backward compatible with HD-SDI. Through this connection, the Arduino can send commands to the camera—such as starting/stopping recording, changing settings like ISO or shutter angle—and receive information from the camera, including tally status, timecode, lens data, and diagnostic information. This bi-directional communication happens without interfering with the primary video and audio signals passing through the SDI cable.

The shield typically requires an external 12V power supply and includes BNC connectors for SDI input and output (pass-through). It is intended for users with programming and electronics experience who wish to extend the functionality of their Blackmagic cameras into custom workflows. By providing an accessible hardware and software interface (often accompanied by example code libraries), this Arduino shield empowers the creative and technical community to develop unique solutions that integrate professional video equipment with the world of physical computing and automation.
