Optical System & Light Source

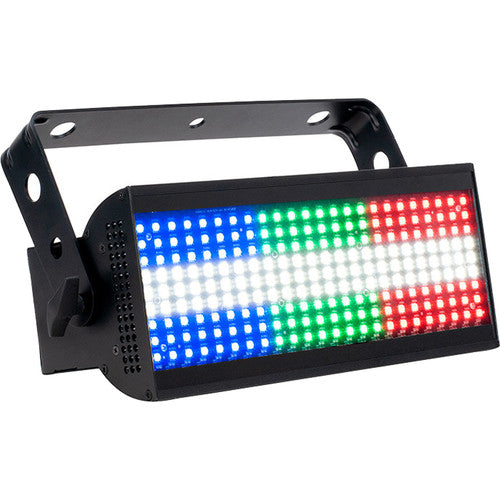

Light Source
300W High-Power RGBW LED Array
LED Configuration
Red, Green, Blue, and dedicated White LEDs
Primary Function
High-intensity strobe and blinder effects
Beam/Field Angle
Wide, flood-type beam for broad audience coverage
Color Capability
Full RGB color mixing + super-bright dedicated white
Strobe Speed
Variable from slow pulse to ultra-fast flash (e.g., 0.5 - 20+ Hz)
Effects Modes
Strobe, pulse, random strobe, built-in chase programs
Dimming
Instant on/off for strobe; capable of smooth dimming for fades
Control
Individual control over RGB color and white intensity during effects
DMX Channels
Multiple selectable modes (e.g., 4, 5, or 7 channels)
Typical 7-Channel
Red, Green, Blue, White, Strobe Speed, Strobe Intensity/Pattern, Dimmer/Master
Control Modes
DMX, Master/Slave, Standalone with auto programs, Sound-Active
Display
Digital display or dip switches for DMX address and mode selection

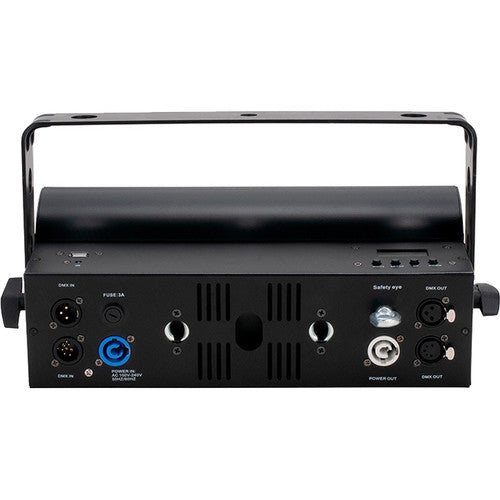

Connectivity
3-pin XLR DMX In/Out (linkable)
Power Supply
Internal, auto-switching (100-240V AC, 50/60Hz)
Power Consumption
~320 Watts (maximum)
Housing
Durable metal (steel or aluminum) PAR-style housing
Cooling
Temperature-controlled fan for active cooling
Weight
Approx. 6 kg (13.2 lbs)
Dimensions (Body)
Approx. 300 x 280 x 200 mm (11.8" x 11" x 7.9")

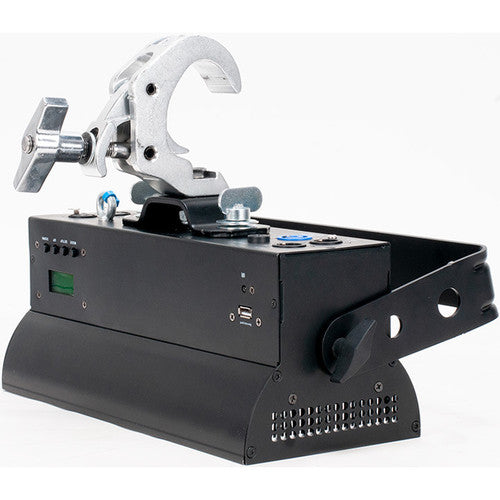

Mounting
Standard yoke with 90° tilt adjustment, U-bracket compatible, safety cable eyelet
Lens
Durable, textured or frosted lens to diffuse the LED array and prevent spotting
Programs
Built-in auto programs for various strobe and color chase sequences
Sound Activation
Built-in microphone with sensitivity adjustment for sound-to-light operation
Thermal Protection
Overheat protection with automatic shut-off or dimming
Typical Use
Concert and festival audience blinders, nightclub peak-time effects, theatrical special FX (explosions, lightning), high-energy event lighting.
