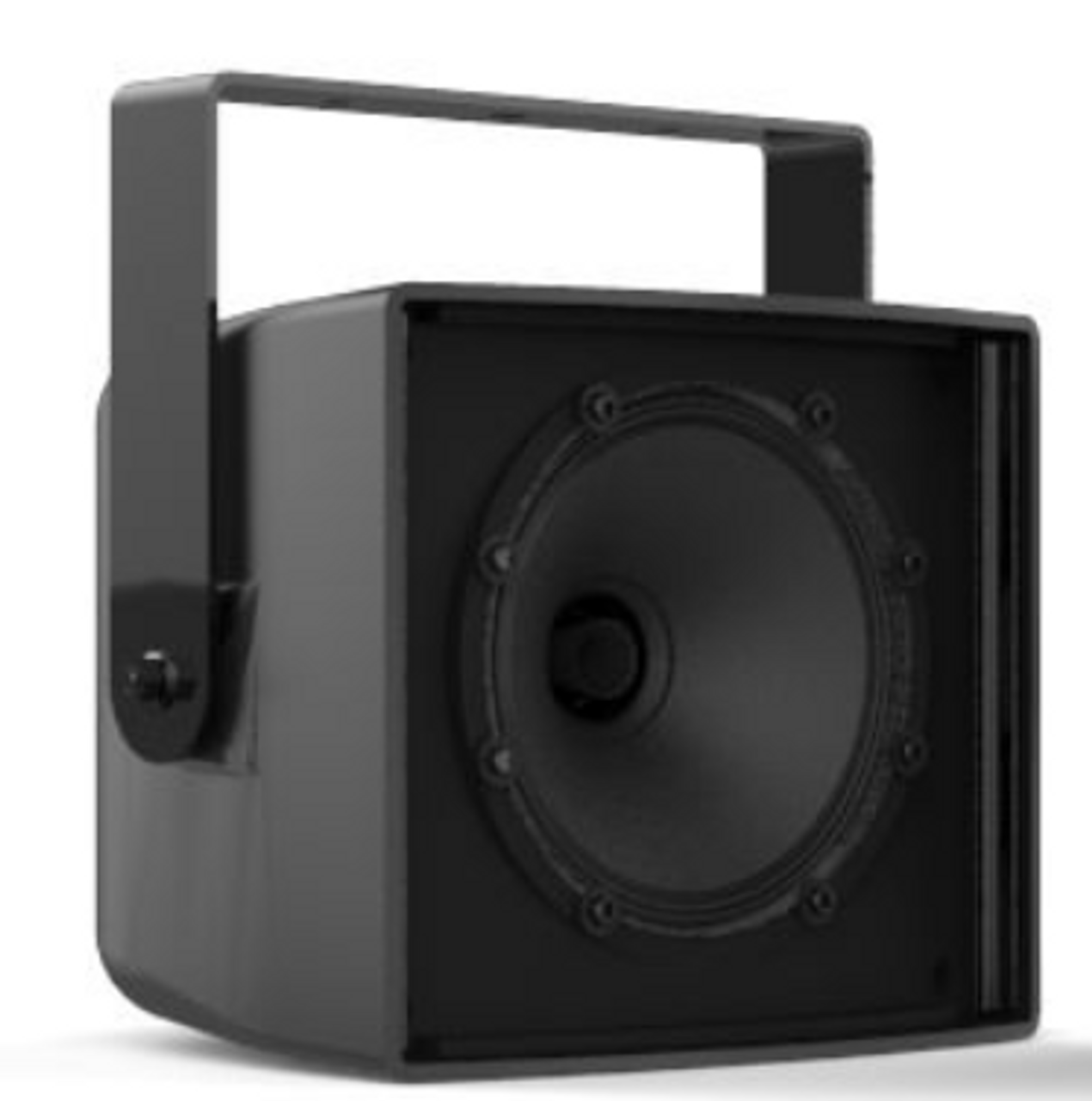

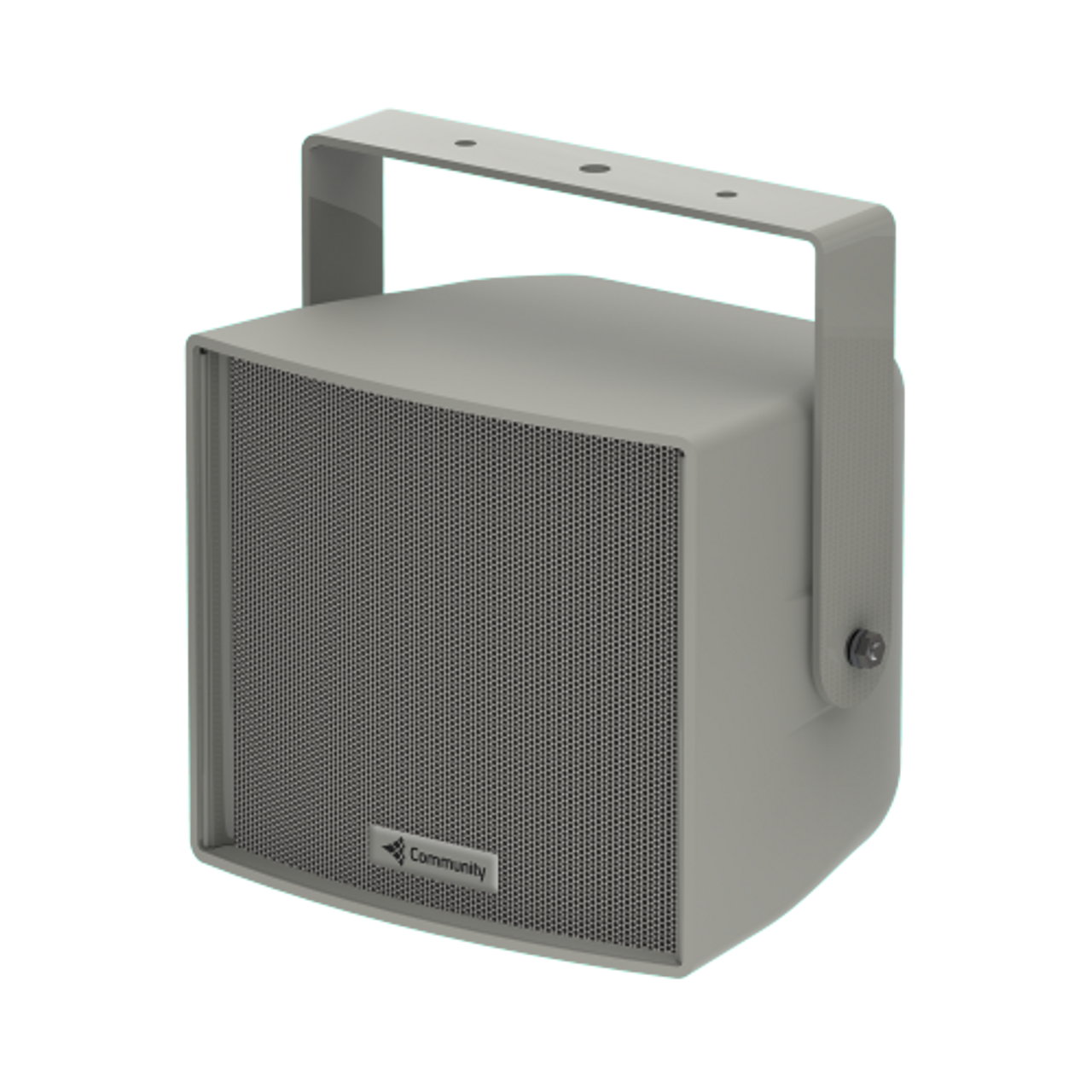

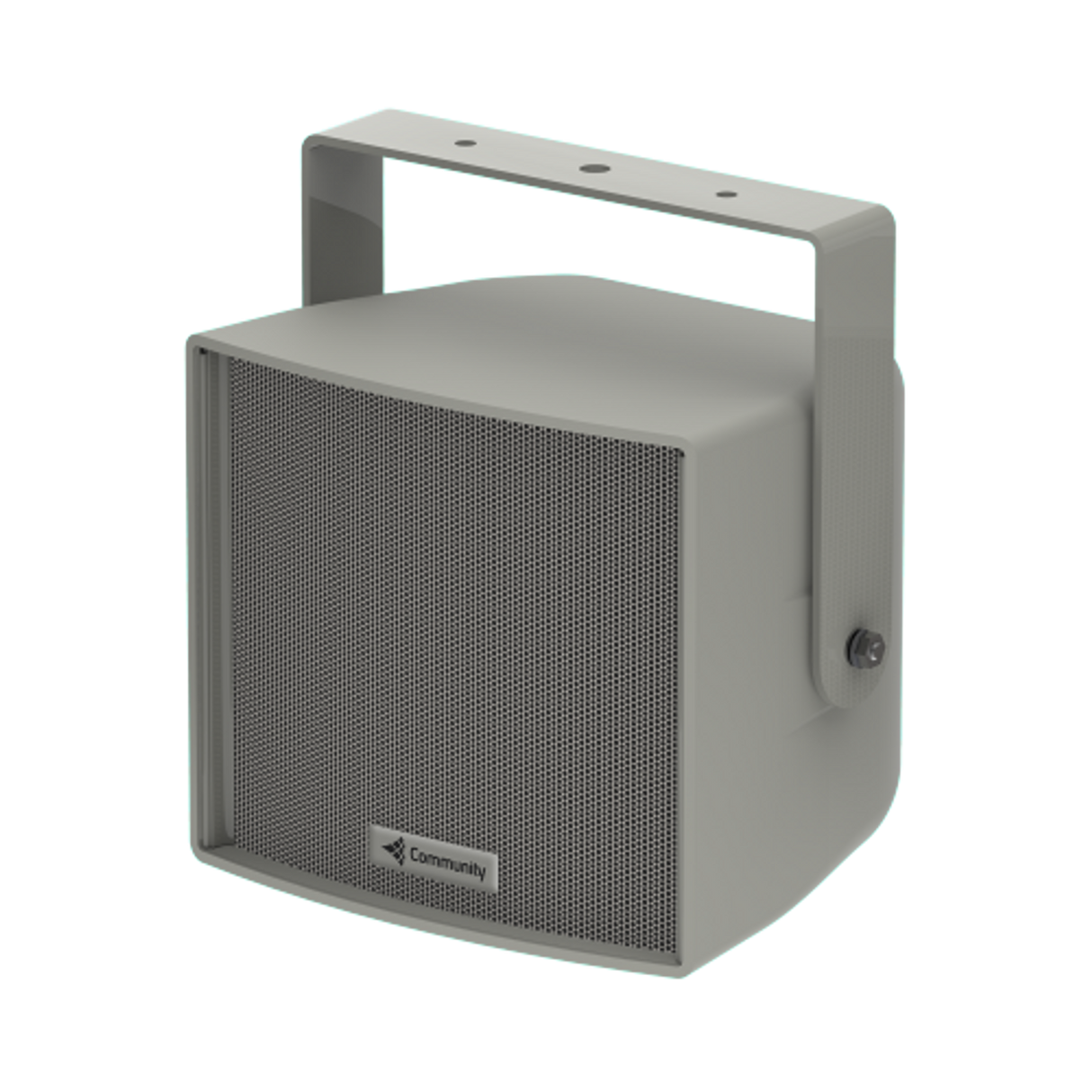

Community R.15COAX Pro 2-Way 6.5-inch Coaxial Loudspeaker

$249.95

The R.15COAX is a two-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long term exposure to tough, environmental conditions and to provide performance normally associated only with indoor loudspeakers. The R.15COAX has a 1.25-inch (32mm) exit HF compression driver and an 6.5-inch (165mm) carbon ring cone LF driver. The HF assembly is coaxially mounted with the LF driver allowing wide 100° coverage with low distortion. The flange-less woofer basket design allows a cone area nearly equivalent to a typical 8-inch driver cone.

The Music/Voice switch provides an "out-of-the-box" selectable response allowing for additional application flexibility. The design uses Community's proprietary Tru-Phase high frequency compression driver phase plug to provide wide dispersion, low distortion and increased intelligibility. The enclosure is sealed to provide maximum vocal clarity and increased intelligibility. The sealed enclosure also provides supreme weather protection for all of the interior components.

View Product Features

  • Excellent musicality and intelligibility, and low distortion in an extremely compact enclosure
  • Weather-resistant, compact, matte finish paintable high impact ABS plastic modified-trapezoidal enclosure
  • Hydrophobically-treated grille and LF driver cones, polymer HF diaphragm, and moisture-sealed crossover
  • 120W Autoformer (standard), selectable 8 ohm or 70V/100V operation
  • Corrosion-resistant dual-layer powder-coated low-profile steel yoke and aluminum grille
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Community R.15COAX Pro 2-Way 6.5-inch Coaxial Loudspeaker

The Community R.15COAX Pro is a professional, two-way coaxial loudspeaker engineered for high-fidelity sound reinforcement in a wide range of installed and portable applications. This speaker utilizes a 6.5-inch coaxial driver design, where the high-frequency compression driver is mounted concentrically within the low-frequency woofer. This architecture ensures perfect acoustic alignment of the sound sources, resulting in exceptional phase coherence, uniform dispersion, and a precise point-source sonic character. The R.15COAX Pro is designed for use in environments where clear, articulate speech reproduction and high-quality music playback are required, such as in houses of worship, performing arts venues, conference rooms, and high-end retail spaces.

The loudspeaker's design centers on a robust, die-cast aluminum basket and a high-power 6.5-inch woofer with a weather-resistant cone, coupled with a 1.4-inch exit compression driver on a coaxial horn. This integrated horn provides consistent, controlled coverage patterns, minimizing lobing and comb-filtering effects that can occur with separate high and low-frequency drivers. The built-in passive crossover network is meticulously designed to provide optimal driver protection and seamless frequency response. The cabinet is constructed from durable, void-free Baltic birch plywood with a textured, weather-resistant finish, making it suitable for both indoor and protected outdoor applications.

Featuring multiple mounting options, including an integrated U-bracket and M10 threaded points, the R.15COAX Pro offers flexible installation for permanent, surface-mounted setups. Its relatively compact size and high power handling allow it to serve as a versatile main loudspeaker for small to medium-sized areas or as a distributed fill speaker in larger systems. With its combination of coaxial clarity, robust construction, and professional-grade components, the Community R.15COAX Pro delivers a transparent and reliable audio performance that meets the demands of critical listening applications.

Key Features

  • Excellent musicality and intelligibility, and low distortion in an extremely compact enclosure
  • Weather-resistant, compact, matte finish paintable high impact ABS plastic modified-trapezoidal enclosure
  • Hydrophobically-treated grille and LF driver cones, polymer HF diaphragm, and moisture-sealed crossover
  • 120W Autoformer (standard), selectable 8 ohm or 70V/100V operation
  • Corrosion-resistant dual-layer powder-coated low-profile steel yoke and aluminum grille

Community R.15COAX Pro 2-Way 6.5-inch Coaxial Loudspeaker Specs

Driver & Acoustic Design
Configuration
2-Way Coaxial
Woofer Size
6.5 inches
High-Frequency Driver
1.4-inch exit compression driver
Crossover
Internal passive network
Dispersion
90° conical (coverage pattern)
Performance Specifications
Frequency Response
75 Hz - 20 kHz (±3 dB)
Power Handling (Continuous/Peak)
150 Watts / 600 Watts
Sensitivity (1W/1m)
94 dB
Maximum SPL (Peak)
124 dB
Impedance
8 ohms
Physical & Construction
Enclosure Material
Baltic Birch Plywood
Finish
Textured Black Weather-Resistant Coating
Grille
Powder-Coated Steel with Foam Backing
Input Connectors
Dual NL4 SpeakON (parallel wired)
Mounting & Hardware
Mounting Options
Integrated U-Bracket, M10 Threaded Inserts (4)
Dimensions (H x W x D)
Approx. 12.5" x 9.5" x 9.5"
Weight
Approx. 18 lbs (8.2 kg)

Key Features

  • Excellent musicality and intelligibility, and low distortion in an extremely compact enclosure
  • Weather-resistant, compact, matte finish paintable high impact ABS plastic modified-trapezoidal enclosure
  • Hydrophobically-treated grille and LF driver cones, polymer HF diaphragm, and moisture-sealed crossover
  • 120W Autoformer (standard), selectable 8 ohm or 70V/100V operation
  • Corrosion-resistant dual-layer powder-coated low-profile steel yoke and aluminum grille
