Evertz

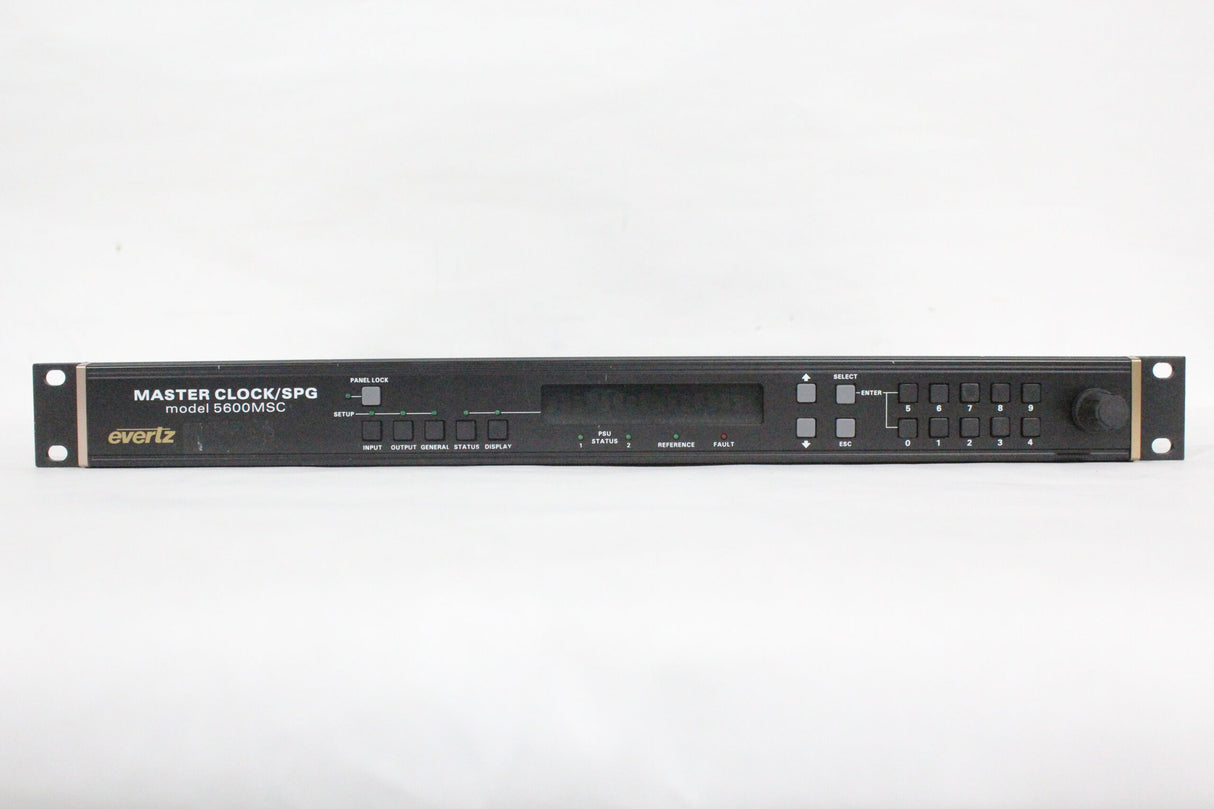

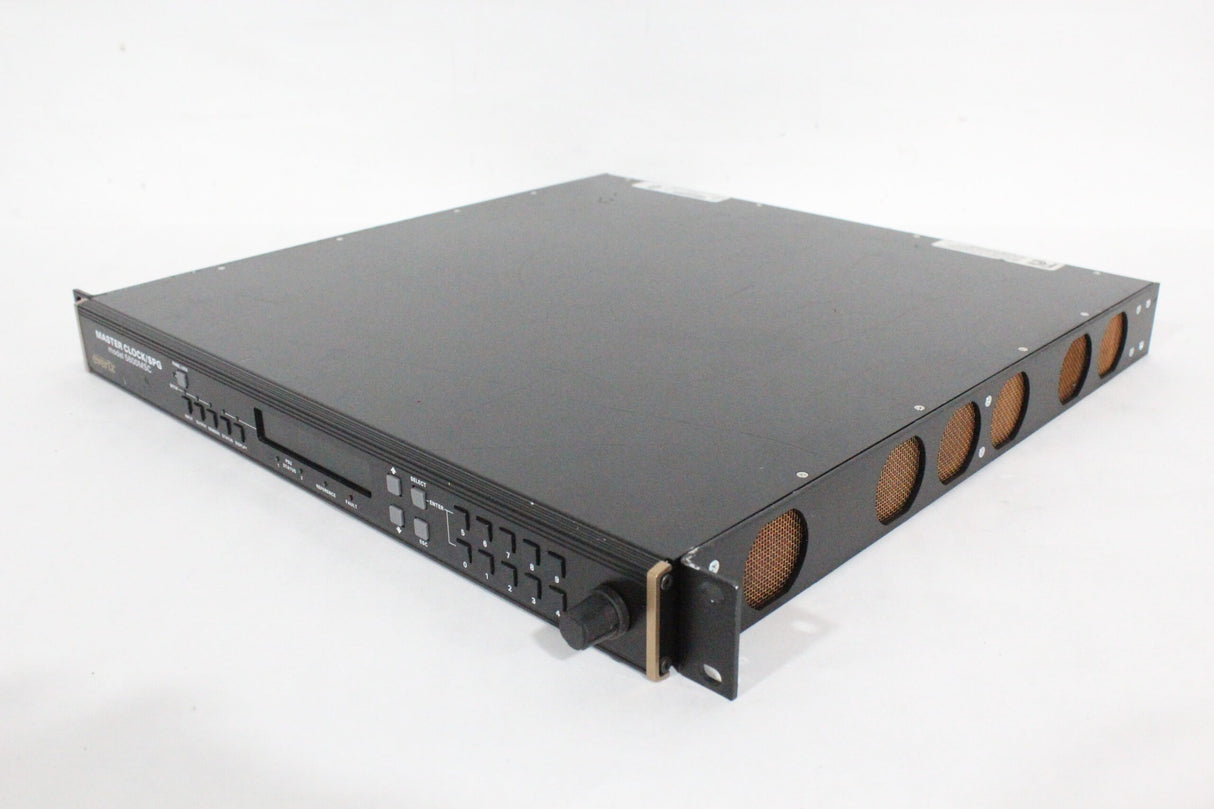

Evertz 5600MSC Master Clock/SPG

$299.00 - $1,124.99

The Evertz 5600MSC (and 5601MSC) is a broadcast-quality master sync pulse generator (SPG) and master clock system. It provides essential synchronization signals for broadcast and post-production facilities, integrating both the master clock and SPG functions into a single unit. It utilizes a high-stability, temperature-controlled oscillator and can also be referenced to external 5 MHz or 10 MHz oscillators for enhanced stability.

View Product Features

Combined Master Clock and SPG : The 5600MSC integrates both the master clock and SPG functions, simplifying synchronization within a facility.
High-Stability Oscillator : A temperature-controlled oscillator provides a frequency reference with better than 0.01ppm accuracy, ensuring minimal drift.
Reference Options : The unit can be referenced to an internal 10MHz oscillator or external 5MHz or 10MHz sources for enhanced stability.

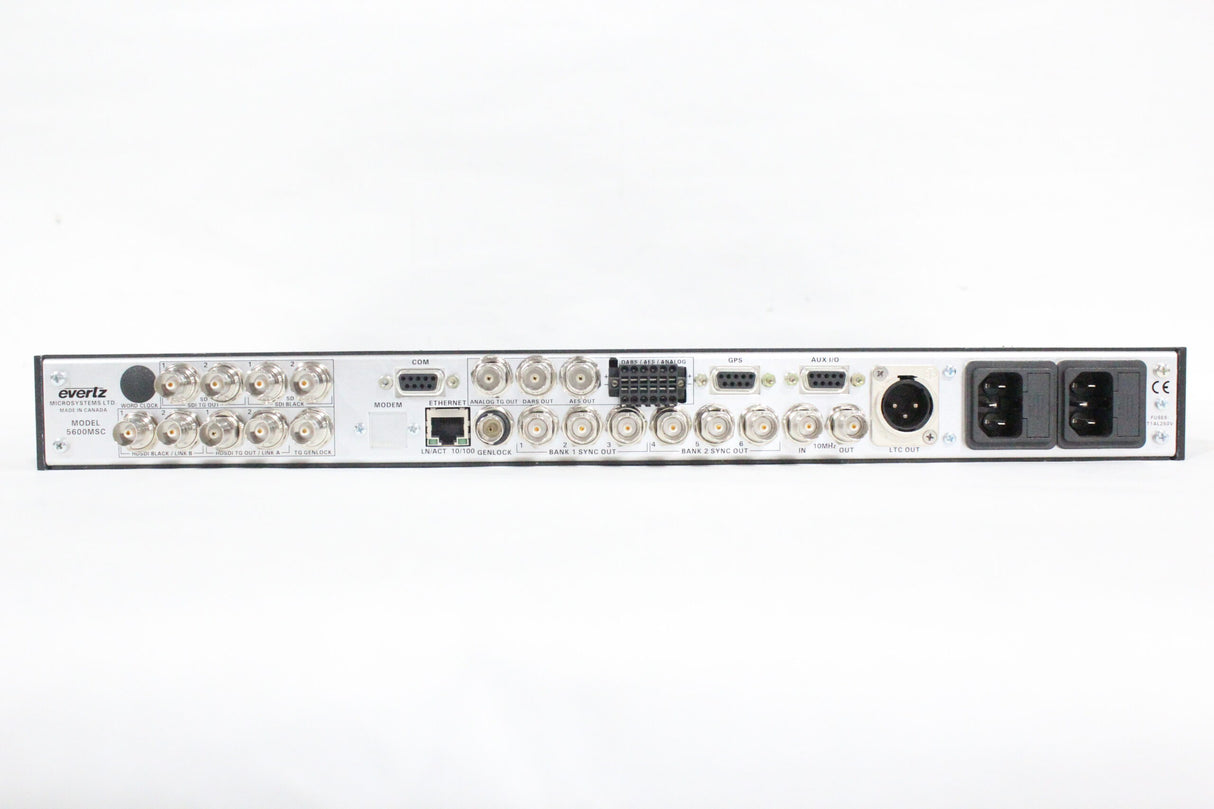

Signal Outputs : The 5600MSC outputs include color black (or tri-level sync), 10MHz, 5MHz, PAL Subcarrier, NTSC Subcarrier, 1 PPS, 1/1.001 PPS, 6/1.001 PPS, PAL color frame pulse, and 48kHz wordclock.
VITC Support : Each color black output can carry vertical interval time code (VITC) on a user-specified line.

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

Already own this item and want to sell it?

Click here to sell your item

About the Evertz 5600MSC Master Clock/SPG

Key Features

Combined Master Clock and SPG : The 5600MSC integrates both the master clock and SPG functions, simplifying synchronization within a facility.
High-Stability Oscillator : A temperature-controlled oscillator provides a frequency reference with better than 0.01ppm accuracy, ensuring minimal drift.
Reference Options : The unit can be referenced to an internal 10MHz oscillator or external 5MHz or 10MHz sources for enhanced stability.
Signal Outputs : The 5600MSC outputs include color black (or tri-level sync), 10MHz, 5MHz, PAL Subcarrier, NTSC Subcarrier, 1 PPS, 1/1.001 PPS, 6/1.001 PPS, PAL color frame pulse, and 48kHz wordclock.
VITC Support : Each color black output can carry vertical interval time code (VITC) on a user-specified line.

Evertz 5600MSC Master Clock/SPG Specs

Key Features

Combined Master Clock and SPG : The 5600MSC integrates both the master clock and SPG functions, simplifying synchronization within a facility.
High-Stability Oscillator : A temperature-controlled oscillator provides a frequency reference with better than 0.01ppm accuracy, ensuring minimal drift.
Reference Options : The unit can be referenced to an internal 10MHz oscillator or external 5MHz or 10MHz sources for enhanced stability.
Signal Outputs : The 5600MSC outputs include color black (or tri-level sync), 10MHz, 5MHz, PAL Subcarrier, NTSC Subcarrier, 1 PPS, 1/1.001 PPS, 6/1.001 PPS, PAL color frame pulse, and 48kHz wordclock.
VITC Support : Each color black output can carry vertical interval time code (VITC) on a user-specified line.
