Hall Research

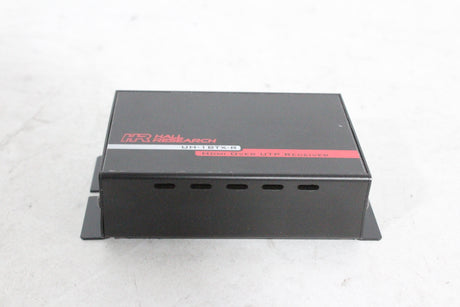

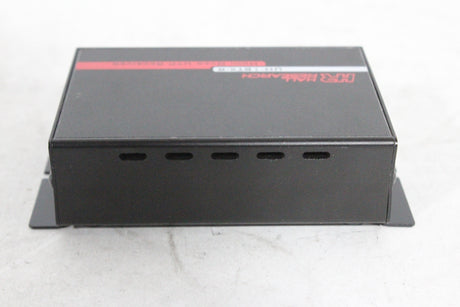

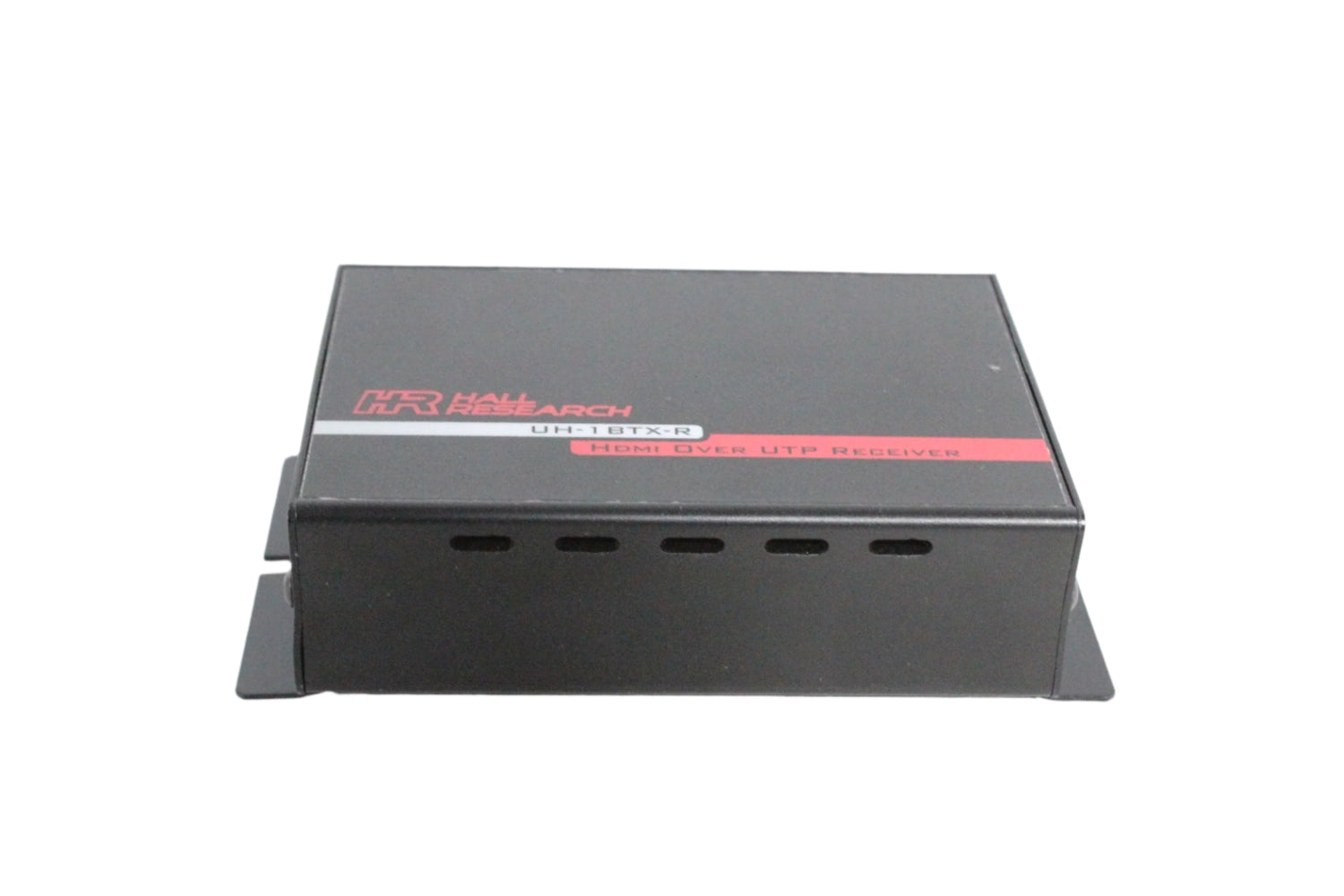

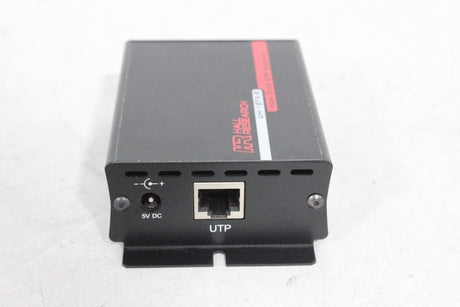

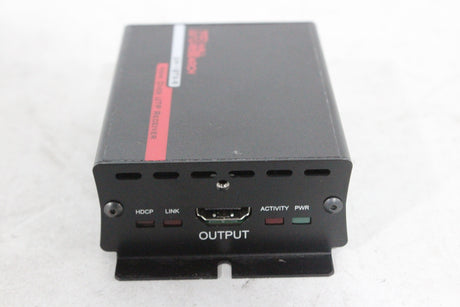

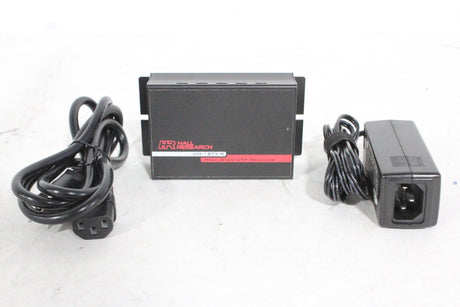

Hall Research UH-1BTX-R HDMI Over UTP Receiver

$24.99

The UH-BT and UH-BTX Receivers are used in conjunction with Senders for extending uncompressed HDMI video and RS-232 control signals up to 230 ft (-BT models) or 328 ft (-BTX models) over a single CAT5e/CAT6 UTP cable. The extenders are comprised of a Sender (-S) and a Receiver (-R) and extend all PC and HD resolutions without compression, up to 4K UHD. Full-duplex RS-232 extension is provided via 3-pin terminal blocks, supporting all baud rates up to 115,200 bps.

View Product Features
  • Extends HDMI (or DVI) RS-232 over a single CAT5e/CAT6 UTP cable up to 230/328' (70/100 m) depending on Model
  • Optional Long Reach mode (BTX Only) to extend 1080p up to 492' / 150 m.
  • Utilizes HDBaseT Class B (HDBaseT-Lite) extension technology
  • Can connect to all HDBaseT and HDBaseT-Lite compliant products
  • Full HD support for 1080p deep color, 3D, and 4K UHD
  • HDCP Compliant with pass-thru EDID from display back to source
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

    No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the Hall Research UH-1BTX-R HDMI Over UTP Receiver

Key Features

  • Extends HDMI (or DVI) RS-232 over a single CAT5e/CAT6 UTP cable up to 230/328' (70/100 m) depending on Model
  • Optional Long Reach mode (BTX Only) to extend 1080p up to 492' / 150 m.
  • Utilizes HDBaseT Class B (HDBaseT-Lite) extension technology
  • Can connect to all HDBaseT and HDBaseT-Lite compliant products
  • Full HD support for 1080p deep color, 3D, and 4K UHD
  • HDCP Compliant with pass-thru EDID from display back to source

Hall Research UH-1BTX-R HDMI Over UTP Receiver Specs

Key Features

  • Extends HDMI (or DVI) RS-232 over a single CAT5e/CAT6 UTP cable up to 230/328' (70/100 m) depending on Model
  • Optional Long Reach mode (BTX Only) to extend 1080p up to 492' / 150 m.
  • Utilizes HDBaseT Class B (HDBaseT-Lite) extension technology
  • Can connect to all HDBaseT and HDBaseT-Lite compliant products
  • Full HD support for 1080p deep color, 3D, and 4K UHD
  • HDCP Compliant with pass-thru EDID from display back to source
