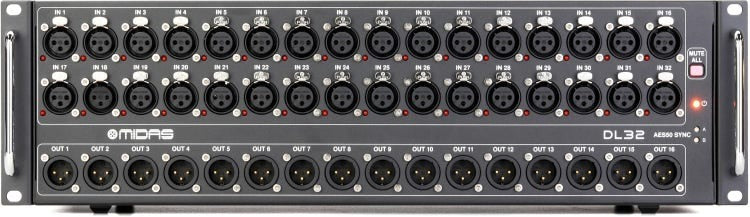

The Midas DL32 is a comprehensive digital stage box designed to serve as the primary remote input/output hub for compatible Midas digital mixing consoles, such as those in the M32 and DL Series. Its primary function is to be placed on or near the stage, converting up to 32 analog microphone or line-level signals into a digital audio stream that is transmitted to the main console over a single Cat-5e or Cat-6 Ethernet cable via the proprietary Midas DL protocol (based on AES50). This setup dramatically reduces the amount of analog cabling required between the stage and front-of-house, improving signal integrity by minimizing noise pickup and simplifying setup. A standout feature is its inclusion of 32 of Midas's renowned, fully discrete microphone preamplifiers, ensuring that every input channel benefits from the sonic clarity, headroom, and musicality for which the brand is famous.

In addition to its 32 inputs, the DL32 provides 16 analog outputs, allowing it to function as a digital splitter and distribution point. These outputs can send mixes, effects returns, or other console outputs back to the stage to drive power amplifiers, in-ear monitor systems, and stage monitors. This bi-directional flow of high-channel-count audio over a single network cable is a cornerstone of modern digital live sound systems. The stage box is built for professional touring and installation, featuring a robust metal chassis, Neutrik connectors, and a design that withstands frequent transport and handling. Its UL certification indicates compliance with specific safety standards, which is often required for professional installations in various venues.

Operation is seamless when connected to a compatible console; all preamp parameters including gain, phantom power, and phase are controlled directly from the mixer's surface. The DL32 can be linked with additional DL Series stage boxes to expand the system's total I/O capacity even further. By offering a high density of premium preamps alongside a substantial output section in a single, efficient digital snake, the Midas DL32 provides live sound engineers and system integrators with a powerful, scalable, and sonically superior solution for building clean, high-performance audio systems for a wide range of events and venues.
