QSC

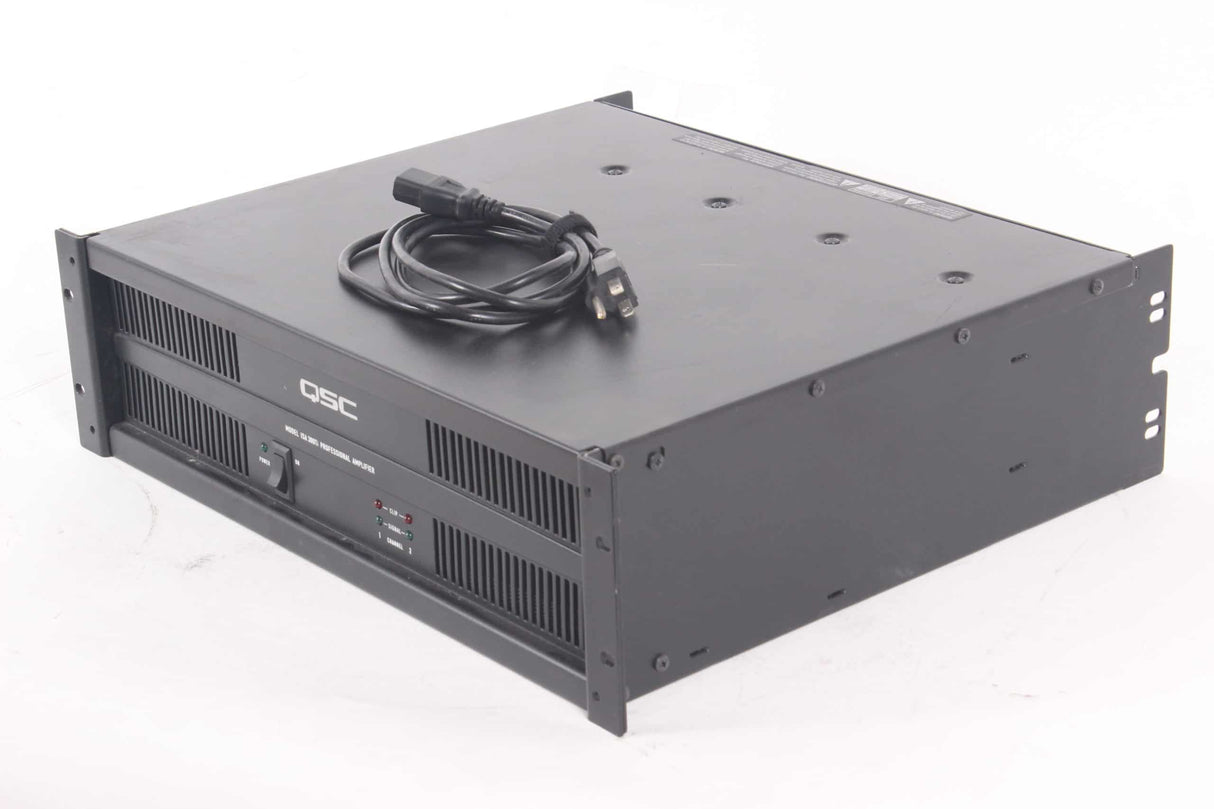

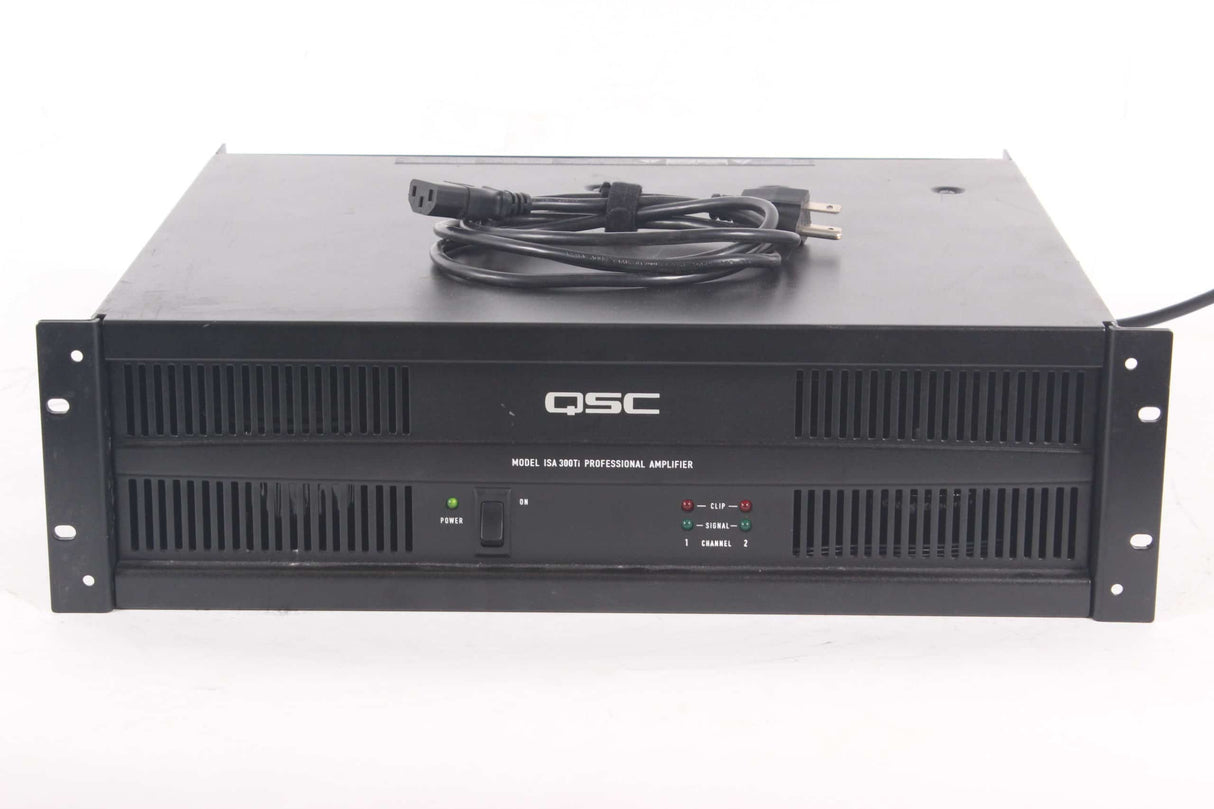

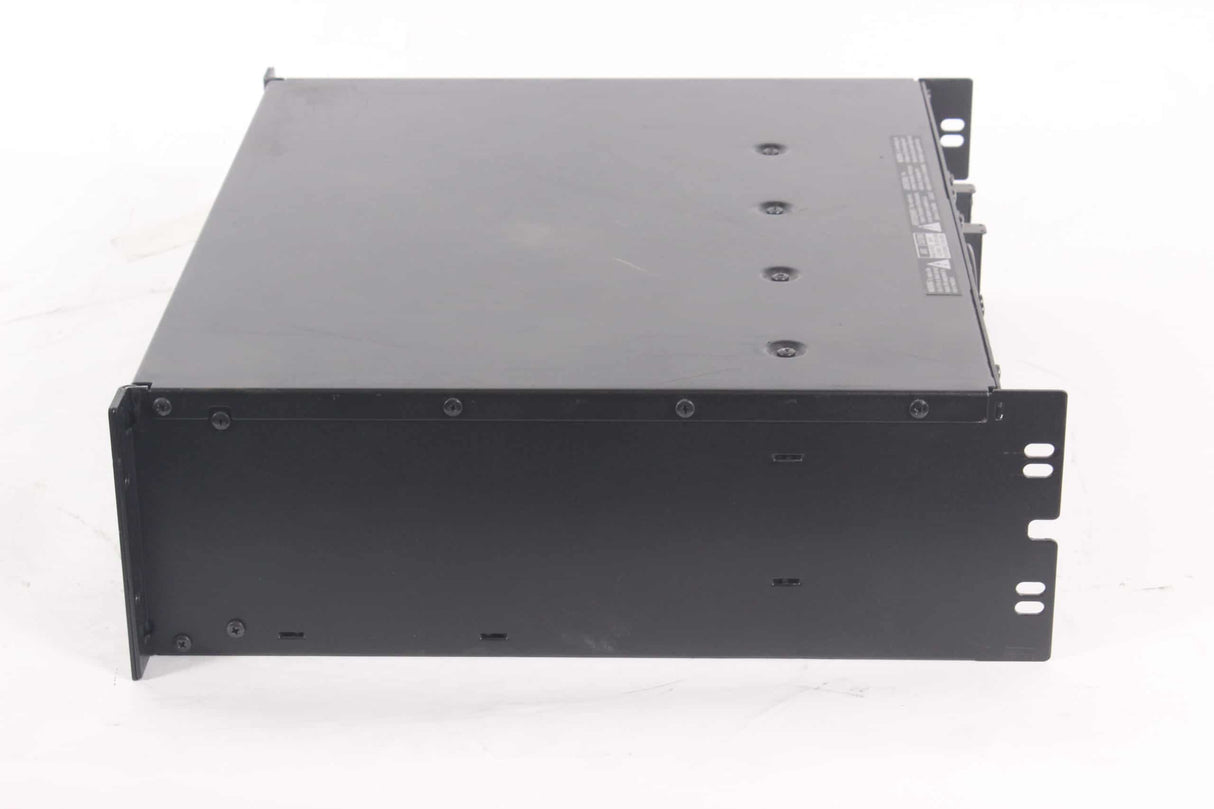

QSC ISA-300Ti 400W Dual Channel Amplifier

$0.00

The QSC ISA-300Ti is a high-performance, dual-channel installation power amplifier designed to be a rugged and cost-effective solution for commercial and installed sound systems. It is a 3U rackmount unit equipped with an internal 70V transformer for distributed audio systems and can also drive standard low-impedance loads down to 2 ohms. This allows a single channel to simultaneously power both low-impedance main speakers and a distributed speaker system.

View Product Features

  • Dual-purpose operation: Low-impedance and isolated 25V/70V/100V outputs.
  • Tamper-resistant controls: Rear-mounted, detented gain knobs prevent tampering.
  • Built-in filters: Selectable high-pass filters protect speaker transformers.
  • Independent clip limiters: Reduces distortion and protects connected speakers.
  • DataPort V2 connectivity: Supports DSP accessories for additional processing.
  • Variable-speed fan: Ensures quiet operation with cooling only on demand.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the QSC ISA-300Ti 400W Dual Channel Amplifier

The QSC ISA-300Ti is a professional dual-channel power amplifier renowned for its robust construction, reliable performance, and high-quality audio reproduction, making it a staple in installed sound and touring applications. Delivering 400 watts per channel into 4 ohms, it utilizes a toroidal transformer-based power supply and a conservative Class AB output stage known for its sonic transparency and ability to handle complex, dynamic program material with low distortion. This amplifier was engineered during an era where durability and straightforward, bulletproof operation were paramount, and its design reflects that ethos with a focus on thermal stability, comprehensive protection circuitry, and intuitive front-panel controls. The ISA series, including the 300Ti, gained a reputation as industry workhorses, frequently found in demanding environments like concert venues, houses of worship, and nightclubs.

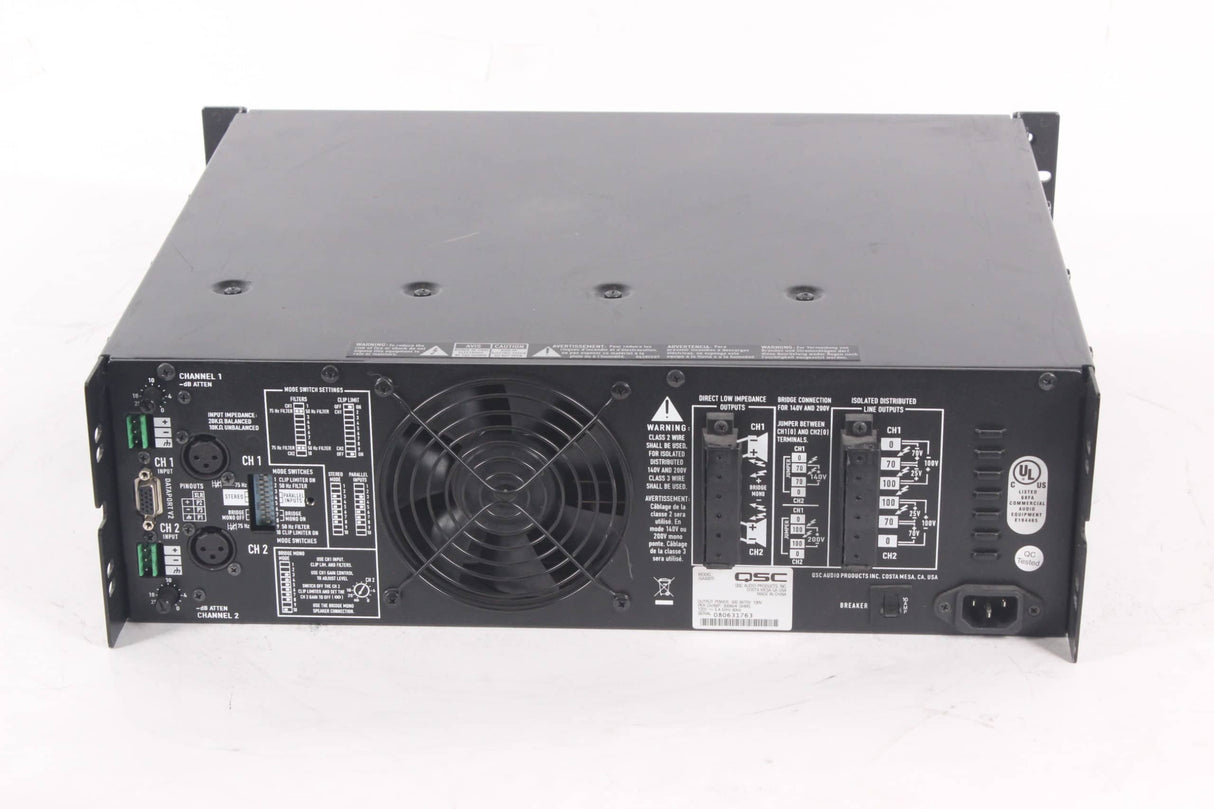

Operational features include independent level controls for each channel, along with clear LED metering that indicates signal presence, clipping, and the activation of the amplifier's protection systems. The rear panel provides professional connectivity with both balanced XLR and 1/4-inch TRS inputs, along with heavy-duty binding post outputs for secure loudspeaker connections. A key feature is its robust protection suite, which includes safeguards against short circuits, DC offset, overheating, and overloads, ensuring the safety of both the amplifier and the connected loudspeakers. The unit's efficient forced-air cooling system, driven by a temperature-controlled fan, maintains optimal operating temperatures even during extended periods of high output, contributing to its legendary longevity.

Housed in a standard 2U rack-mountable steel chassis, the ISA-300Ti is built to withstand the physical demands of frequent transport and continuous operation. Its design prioritizes reliability over flashy features, offering a no-nonsense approach to amplification that has earned the trust of audio professionals for decades. While lacking the networked control and DSP of modern amplifiers, its combination of clean power, rugged build quality, and proven reliability makes it a classic choice for system integrators and sound companies who value performance and durability in a wide range of fixed installation and portable sound reinforcement scenarios.

Key Features

  • Dual-purpose operation: Low-impedance and isolated 25V/70V/100V outputs.
  • Tamper-resistant controls: Rear-mounted, detented gain knobs prevent tampering.
  • Built-in filters: Selectable high-pass filters protect speaker transformers.
  • Independent clip limiters: Reduces distortion and protects connected speakers.
  • DataPort V2 connectivity: Supports DSP accessories for additional processing.
  • Variable-speed fan: Ensures quiet operation with cooling only on demand.

QSC ISA-300Ti 400W Dual Channel Amplifier Specs

Amplifier Performance
RMS Power 4Ω per Ch
400 Watts
RMS Power 8Ω per Ch
275 Watts
Bridged Mono Power 8Ω
800 Watts
Frequency Response
20 Hz - 20 kHz (+0 dB, -1 dB)
Slew Rate
13 Volts per microsecond
Damping Factor 8Ω
>200 :1
Signal Quality Specifications
THD 20Hz-20kHz
0.05% at rated power
IMD (SMPTE)
0.05% at rated power
Signal-to-Noise Ratio
>100 dB (A-weighted)
Crosstalk (1kHz)
>70 dB
Input & Output Characteristics
Input Connectors
XLR-3F, 1/4" TRS
Input Impedance
20 kΩ Balanced
Sensitivity (8Ω rated)
1.15 Vrms
Output Connectors
5-way Binding Posts
Protection & Cooling
DC Offset Threshold
±1.5 V
Thermal Shutdown
85°C (Heatsink Temp)
Cooling Fan Airflow
12 CFM (maximum)
Fan Noise Level
35 dBA at 1 meter
Physical & Electrical
Rack Unit Height
2U (3.5 inches)
Chassis Dimensions
483 mm W x 286 mm D x 89 mm H
Shipping Weight
17.3 kg (38 lbs)
Mains Voltage (US Model)
120 VAC, 60 Hz
Idle Power Consumption
45 Watts
Maximum Current Draw
8.3 Amps @ 120V

Key Features

  • Dual-purpose operation: Low-impedance and isolated 25V/70V/100V outputs.
  • Tamper-resistant controls: Rear-mounted, detented gain knobs prevent tampering.
  • Built-in filters: Selectable high-pass filters protect speaker transformers.
  • Independent clip limiters: Reduces distortion and protects connected speakers.
  • DataPort V2 connectivity: Supports DSP accessories for additional processing.
  • Variable-speed fan: Ensures quiet operation with cooling only on demand.
