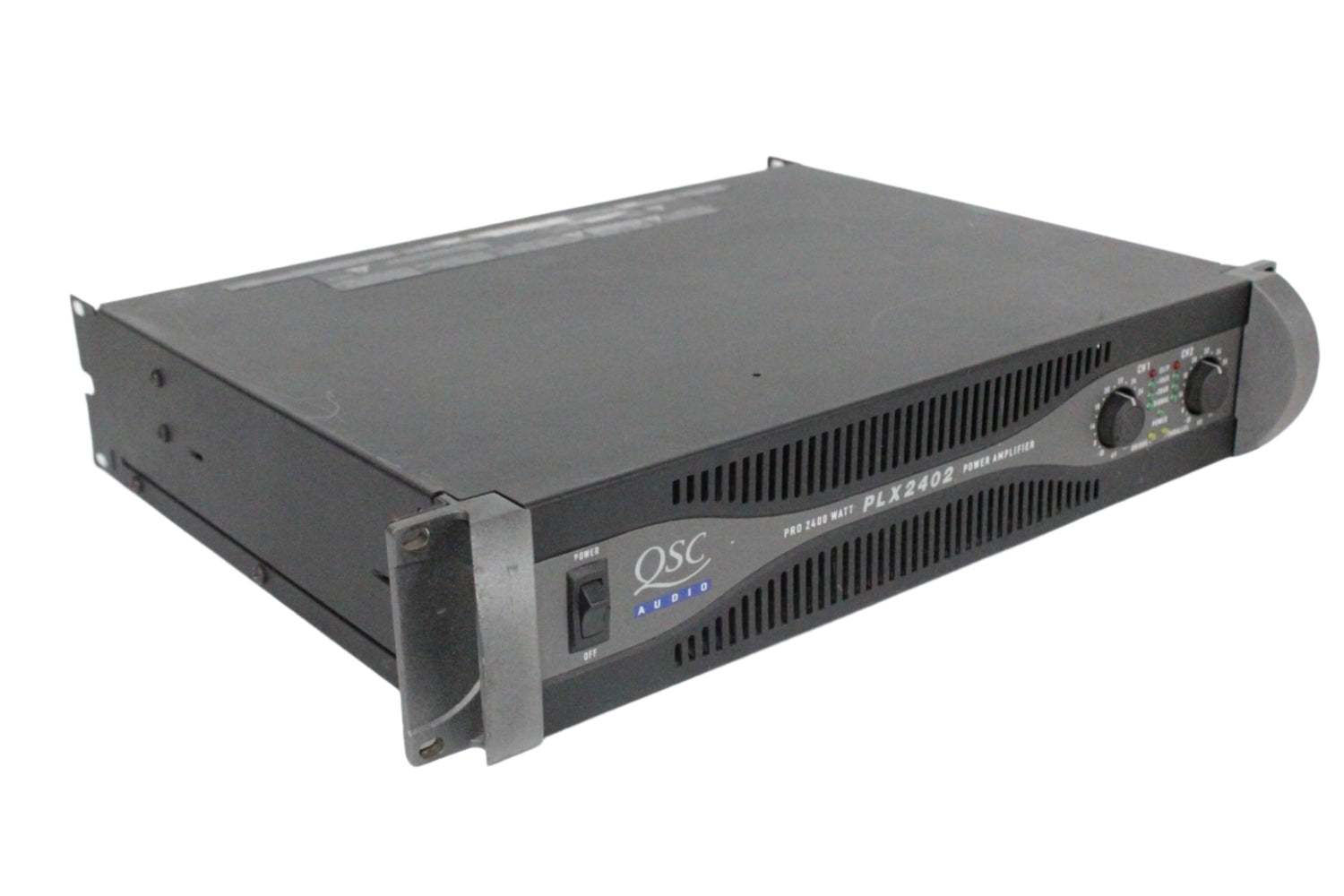

The QSC PLX 2402 is a high-performance, professional two-channel power amplifier designed to deliver substantial clean power for demanding live sound and installation applications. As part of the esteemed PLX series, it utilizes an efficient Class H amplifier topology combined with a switch-mode power supply (SMPS), enabling it to produce high output levels—specifically 500 watts per channel into 8 ohms, 1,100 watts per channel into 4 ohms, and 2,400 watts when bridged mono into 8 ohms—while maintaining relatively low weight and reduced heat generation compared to traditional linear power supply designs. This power density and efficiency make it an ideal choice for touring systems, mobile DJ rigs, and permanent installations where rack space and power consumption are critical considerations, but uncompromised audio fidelity and robust headroom are required.

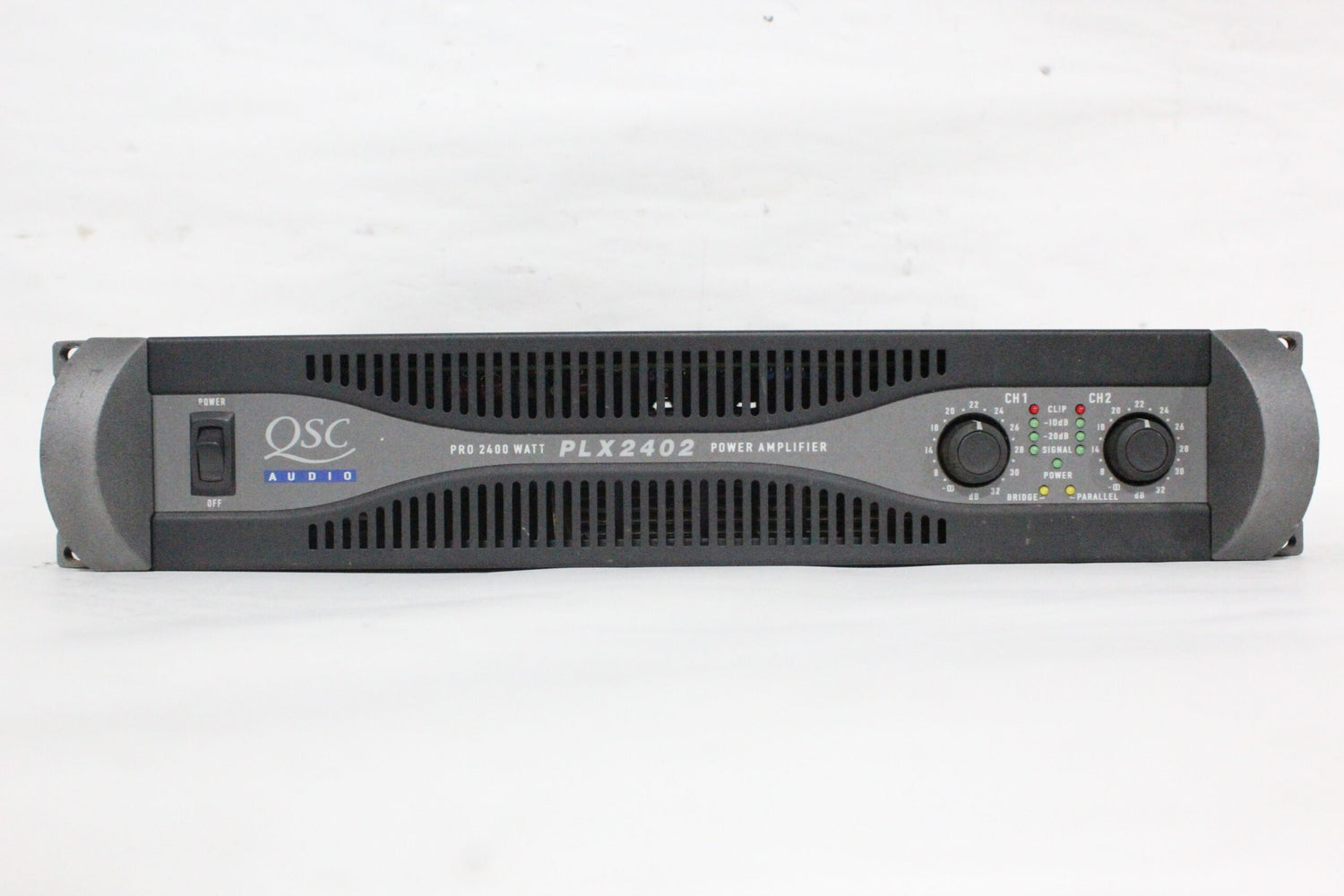

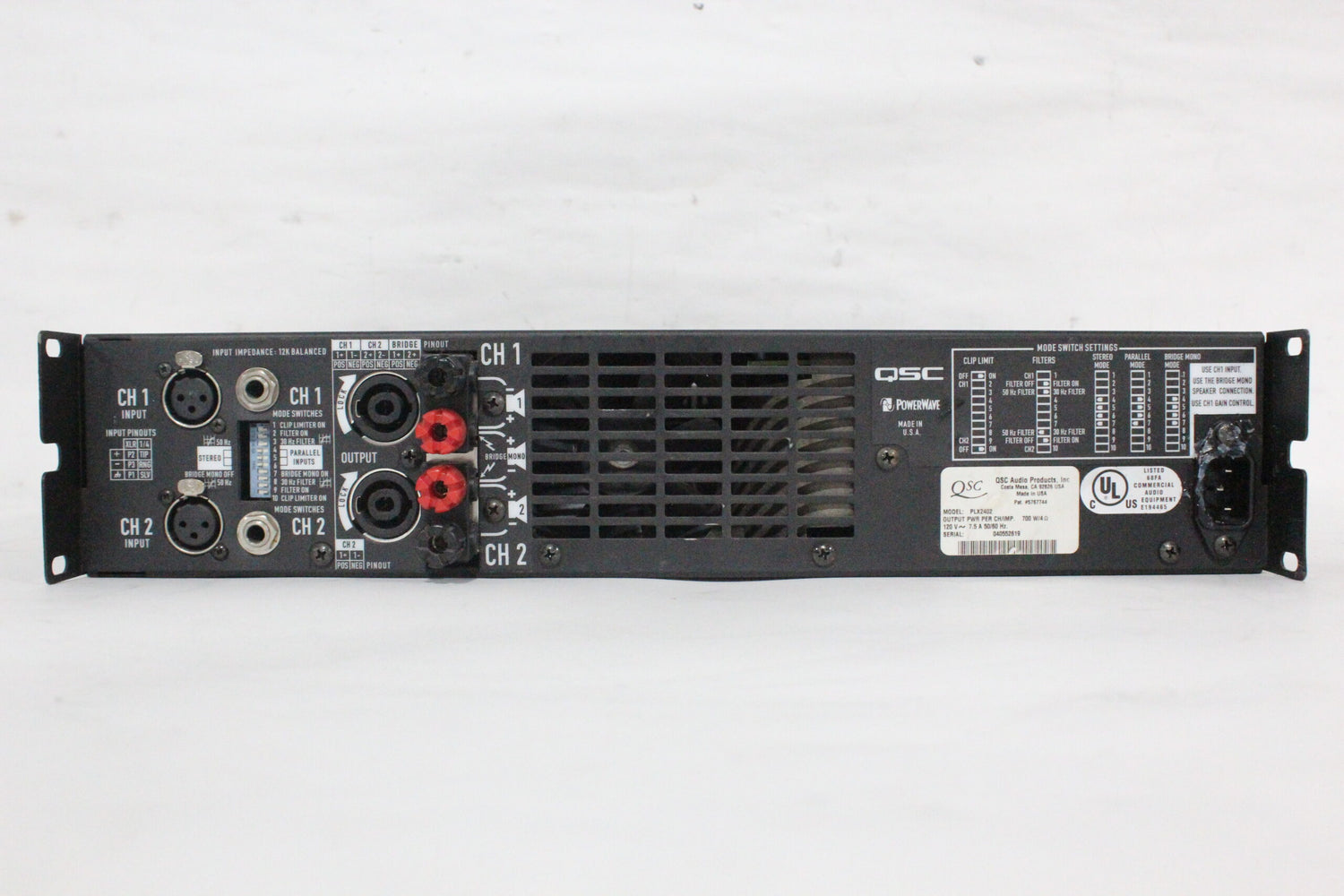

Engineered for reliability, the PLX 2402 incorporates a comprehensive suite of protection circuits, including DC offset detection, thermal overload protection, and current limiting to safeguard against short circuits and excessively low impedance loads. Its front panel provides clear operational feedback through dual 10-segment LED bar graph meters that monitor output level per channel, accompanied by individual LEDs for signal presence, clipping, and protect/thermal status. The rear panel offers flexible connectivity with balanced XLR and 1/4-inch TRS inputs, plus heavy-duty binding post and SpeakON output connectors to ensure secure, professional loudspeaker connections. A selectable input sensitivity control allows for optimal gain staging with a variety of source equipment, from professional mixing consoles to consumer audio devices.

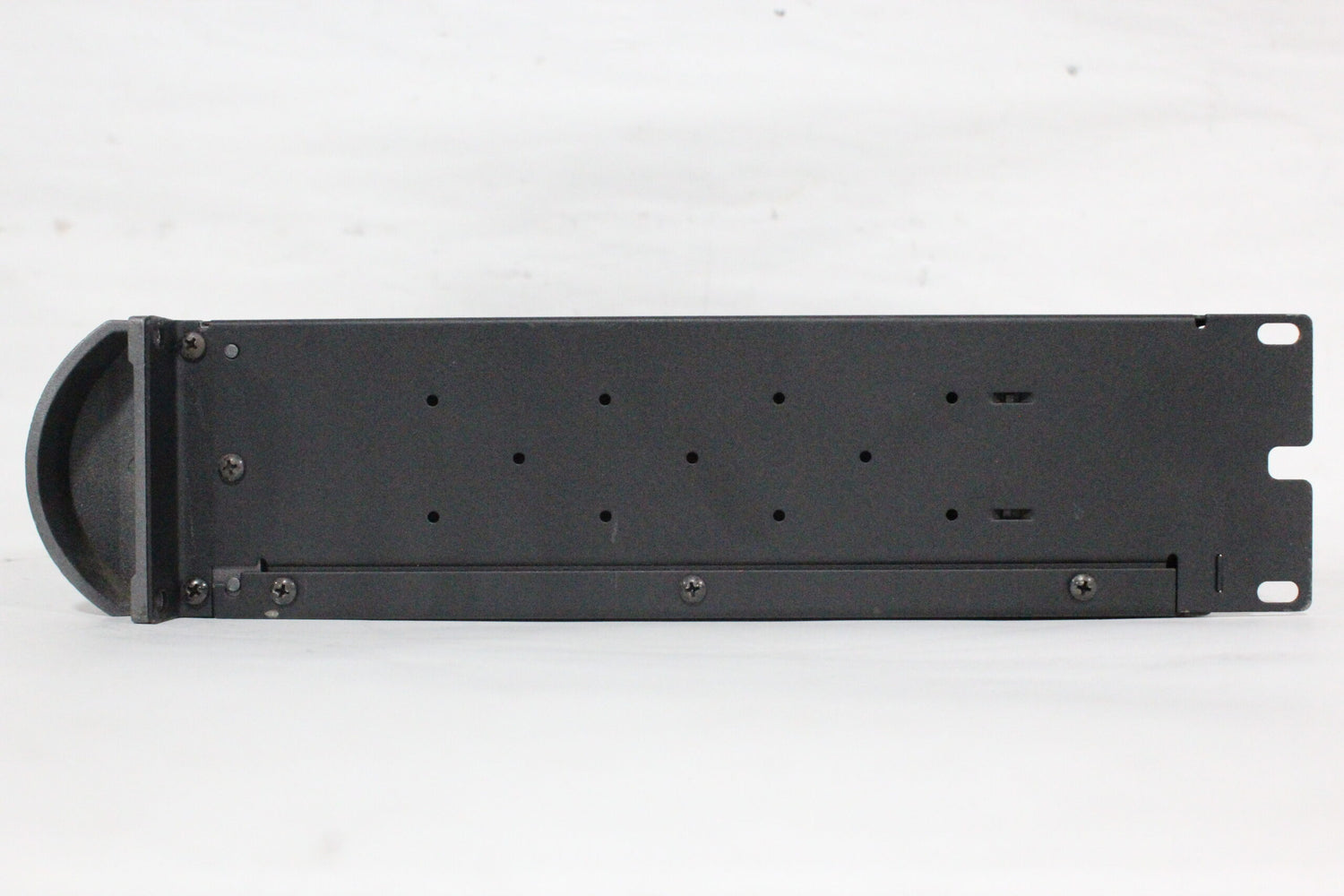

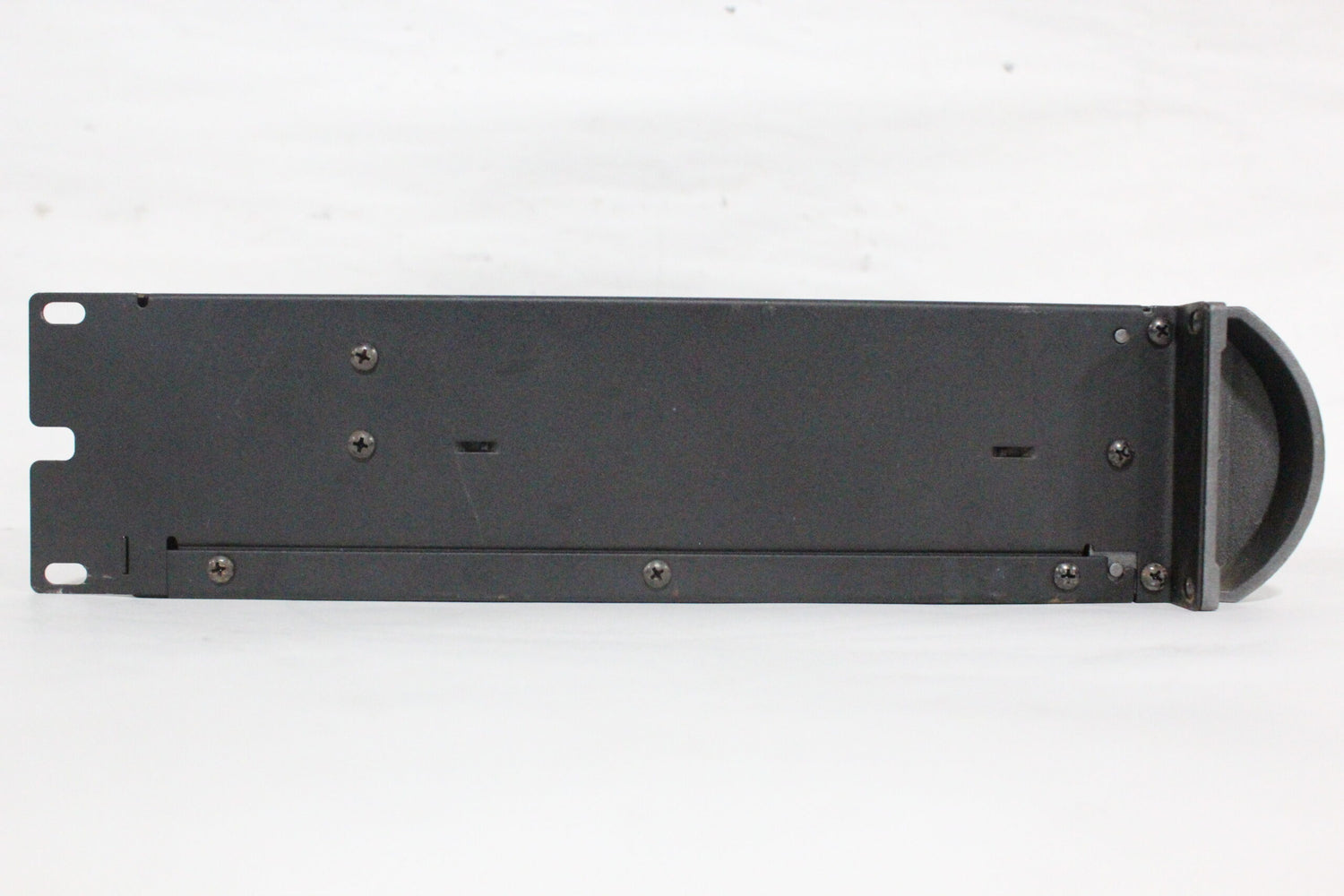

Housed in a sturdy, vented steel chassis that occupies only 2U of rack space, the amplifier features a temperature-controlled, variable-speed cooling fan that ensures quiet operation during normal use and provides increased airflow when necessary under high thermal load. The PLX series is renowned for its roadworthy construction and consistent performance, earning trust in environments where equipment durability is as important as sound quality. By merging high power output, operational efficiency, and proven reliability in a relatively lightweight package, the QSC PLX 2402 stands as a powerful and versatile workhorse amplifier for sound reinforcement professionals.
