Point-source speakers emit sound from a single enclosure and are well-suited to small to mid-size rooms.
Line array speakers stack matching cabinets in a vertical column to spread even sound across large or deep venues.
Your best option depends on venue size, throw distance, budget, and how fast you need to set up and tear down.
What Is a Point Source Speaker?
A point source speaker is a single cabinet where the drivers sit close together and project sound outward from one location. This layout creates a spherical pattern that fills a room from a single point. Most models use a 2-way design, pairing a woofer for low frequencies with a tweeter for high frequencies.
A 3-way version adds a mid-range speaker for cleaner detail across different frequencies. Some point source loudspeakers go a step further with a coaxial driver, where a dome tweeter mounts inside the center of the woofer. This arrangement makes the cabinet behave as a true single-point source. The result is wide dispersion, a smooth frequency response, and consistent sound across a broad listening area.
Build quality shows up in the parts. A well-made 2-way point source loudspeaker pairs a neodymium woofer and carbon fiber cone with a treated cloth surround, driven by a high-intensity neo ring magnet for tight, accurate low end. An aluminum dome tweeter or compression driver with a precise voice coil delivers smooth, detailed highs. Protective grills guard the drivers in transit, and a wide dynamic range keeps soft and loud passages clear.
How Do Point Source Speakers Create Sound?
Point source speakers radiate sound waves outward from one spot, so volume drops off as you move farther back. A spherical wave loses roughly 6 dB every time you double your distance from the cabinet, which makes coverage easy to plan in compact rooms but hard to sustain in deep ones.
Point source technology has stayed a live-sound standard for decades thanks to its simple, coherent design. The trade-off is that a single point source loses energy faster over long distances than a line array does.

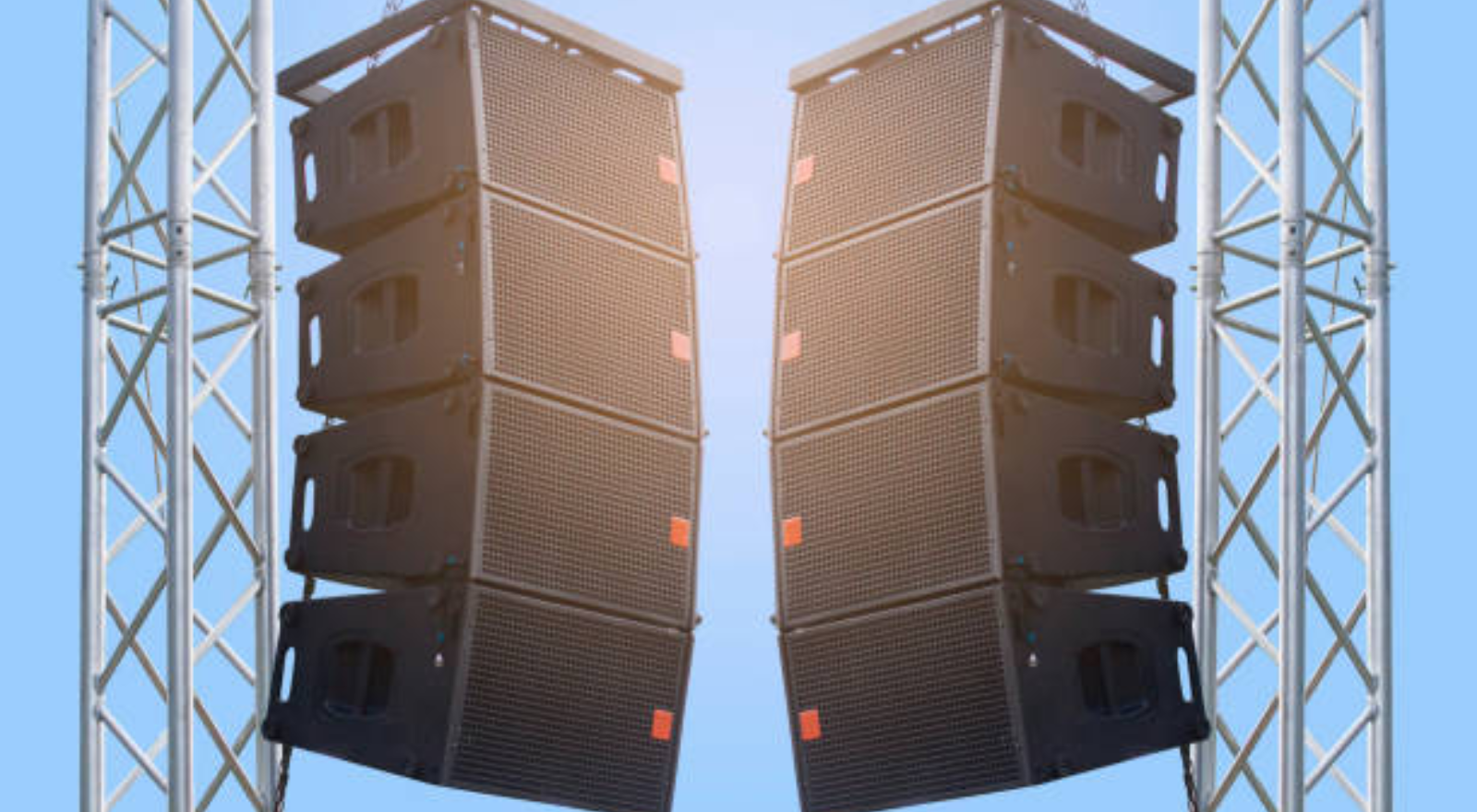

What Is a Line Array Speaker?
A line array speaker is a group of identical cabinets hung or stacked in a vertical column. The cabinets couple together to form a near-cylindrical wavefront that holds its volume over long distances. This design covers arenas, theaters, and outdoor events with even sound across every row, front to back.
Line array speakers control vertical dispersion tightly while spreading sound wide across the horizontal plane. Engineers angle each cabinet, a process called splaying, to aim energy at the audience and away from ceilings and reflective walls. Adding cabinets to the column does more than raise output. A longer array extends control over low frequencies and pushes the cylindrical behavior farther into the room, which is why large venues hang large arrays.
How Does a Line Array Control Sound Over Distance?
A line array works on constructive and destructive interference between its cabinets. Careful spacing and angling create a coherent wavefront that travels farther and stays consistent. In the array's near field, that cylindrical wave loses only about 3 dB per doubling of distance, half the drop-off of a spherical wave from a single traditional speaker.
That cylindrical behavior does not last forever. Past a transition distance that depends on the array's length and the frequency in question, the wavefront spreads spherically and falls off like a point source again. Longer arrays push that transition point deeper into the venue, which is another reason big rooms call for more boxes.
Point Source vs Line Array: What Is the Real Difference?
Point source and line array speakers differ in how they cover a room. A point source speaker sends sound outward in a spherical pattern from one point, which fits small to mid-size venues where the audience sits close. Its volume drops off faster front to back and it throws shorter distances, but it sets up fast, costs less upfront, tunes easily, and scales by adding cabinets to cover separate zones. Point source rigs are the common pick for clubs, houses of worship, and corporate events.
A line array stacks cabinets into a vertical column and creates a cylindrical wavefront that holds volume steady between the front row and the back wall. That even coverage and long throw make it the setup for large or deep venues, arenas, festivals, and outdoor events with big crowds. It costs more at the outset, takes more time to rig and fly, needs processing to tune, and extends its coverage by adding boxes to the column.
| Factor | Point Source | Line Array |
|---|---|---|
| Sound dispersion | Wide, spherical from a single point | Controlled cylindrical wavefront |
| Throw / SPL over distance | Falls off faster, strong near-field | Even SPL across long distances |
| Best venue size | Small to mid-size | Mid to large, deep, or outdoor |
| Setup | Fast, ground-stack or pole | Rigging, flying, trained crew |
| Cost | Lower entry cost | Higher initial investment |
| Scalability | Add cabinets independently | Add boxes that couple as one source |
| Processing | Simpler tuning | Needs DSP, splay, delay alignment |
Buy Point-Source & Line-Array Speakers for Less
Get new or used speakers at prices below retail, matched to the coverage your room needs.
How Far Does Each System Throw?
Throw distance is the fastest way to narrow your choice. A quality point source cabinet covers most rooms where the back row sits within about 50 to 75 feet of the stage. Push past that and the 6 dB drop-off forces you to run the front rows uncomfortably loud just to reach the back.
Line arrays earn their keep when the deepest seats sit 100 feet or more from the stage. Because the coupled column loses level more slowly, the difference between the front row and the back row stays small without excessive volume up front.
The middle ground, roughly 75 to 100 feet, is where room shape, ceiling height, and budget decide the call. A larger point source with fill speakers, a column array, or a compact line array can each work depending on the space.
Where Does the Column Array Fit In?
A column array sits between the two. A column speaker stacks several small drivers in a slim, vertical enclosure, often over a separate subwoofer. It gives you a compact footprint, fast setup, and clear speech coverage without the rigging a full line array needs.
Column arrays work well in houses of worship, corporate rooms, and multipurpose spaces where sightlines matter and the budget is tighter. They cover the middle ground for venues that are too large for a single point source but do not need a flown line array.
Which Speaker Setup Fits Your Venue?
Match the system to your room and your audience. Use this as a starting point:
- Point source speakers: clubs, small theaters, houses of worship with low ceilings, conference rooms, and mobile applications where fast setup matters
- Line array speakers: arenas, large auditoriums, outdoor events, and festivals where sound travels far and the crowd is large
- Column arrays: mid-size rooms, reverberant spaces, and installs where a slim profile and easy setup come first
- Hybrid setups: large rooms with tricky shapes, where you pair a main system with fill speakers
When Should You Combine Both?
Many large productions run a line array for the main coverage and add point source speakers as front-fills, under-balcony fills, and side-hangs. This covers seating that the array speakers cannot reach. Time-align the fills with delays so the two sources arrive together and avoid comb filtering.
What About Rigging, Weight, and Safety?
Flying a line array is a structural project, not just an audio one. Every hang depends on rated fly bars, pins, and shackles, chain motors or a fixed rigging point, and a venue structure certified to hold the total load. A full-size array with its fly hardware can weigh over a thousand pounds per side, so venues often require an engineer's sign-off before anything leaves the ground.
Point source cabinets skip most of that. A tripod, pole mount, wall bracket, or single fly point handles the job, which is a big part of why mobile DJs, bands, and small venues stay with point source rigs.
How Should You Pair Subwoofers with Each System?
Neither full-range point source cabinets nor line array boxes reproduce deep bass on their own, so most systems add subwoofers.
With point source rigs, subs usually sit on the ground under or beside the tops. Ground stacking gains boundary reinforcement from the floor, and a pole between sub and top keeps the pair aligned.
Line array systems offer two options. Ground-stacked subs deliver maximum impact and easy access, while flown subs behind or beside the array keep low-end coverage even from front to back and free up floor space. Many productions combine both.
In either setup, placement shapes coverage. Spacing multiple subs across the stage front can create hot and dead spots from interference, so many engineers use cardioid sub arrays, which arrange or process cabinets to cancel energy behind the stack and focus bass on the audience. Whatever the layout, set the crossover and time-align the subs with the tops so both arrive together.
How Does Your Mixer and Signal Chain Affect Speaker Choice?
Your speakers are the last link in your sound system, so the gear feeding them matters as much as the cabinets. The mixer sets levels and tone, a processor handles crossovers and a high-pass filter, and the amplifier delivers power to passive speakers. A clean signal in means clean sound out.
Match your amplifier power and impedance to the speakers you choose. Line arrays usually need more processing and more amplifier channels than a pair of point source cabinets. Plan the full system, not just the boxes, before you buy. Browse mixers and audio amplifiers to round out your rig, and read our guide on how passive speakers work for more on the signal path.
Round Out Your Rig
Pair your speakers with the gear they need to perform. Your mixer sets the tone for the whole signal path, so it pays to match power and impedance before you buy.
What Should You Look For When Buying Speakers?
Run through this checklist before you commit to new or pre-owned gear:
- Match power and impedance to your amps. Buying cabinets your amplifier cannot drive leaves output on the table.
- Inspect rigging and fly points on used line arrays. Bent fly bars, worn pins, and damaged rigging points are safety issues, not cosmetic ones.
- Listen for driver rub, buzz, or blown components. A quick sine sweep through each cabinet exposes most problems.
- Buy matched sets. The same model and production run keeps an array consistent.
- Check the protective grills and surrounds. Torn surrounds and dented grills point to harder use.
- Weigh price against the job. A small venue rarely needs a touring-grade array.
