What Is Audio Routing?

Audio routing is how every input in your system finds its way to the right output, controlled by a mix of hardware and software that defines the signal path. The same idea applies from a two-microphone podcast setup to a festival main stage, but the complexity and the equipment involved scale with the job.

The model most engineers use looks like this: source → input → processing → output → destination.

Along the way, a signal might pass through a channel strip, be duplicated and sent to an audio bus for group processing, or be split to both a house mix and a monitor mix. A channel typically carries one signal, while an audio bus combines several channels into a single path for things like group compression or a subgroup fader.

Signal Path Components

• Audio source: a microphone, instrument, or playback device
• Audio input device: a preamp, stage box, or audio interface
• Processing stage: EQ, dynamics, delay, or DSP
• Audio bus or channel: the internal pathway through the mixer
• Output device: an amplifier, speaker, recorder, or headphones

Why Audio Routing Matters in Professional Environments

Proper audio routing is the difference between a show that runs clean and one that fights feedback, dropouts, and latency. In any professional setup, routing decides reliability, flexibility, and sound quality.

Every pro use case depends on it.

• A broadcast engineer needs discrete paths for program audio, talent IFB, and mix-minus feeds to remote guests.
• A house of worship sound operator needs the pastor's wireless mic clean in the room and clean on the livestream, which are two different outputs with different processing.
• A rental and staging company needs a setup that can be redeployed at a new venue in hours.
• A studio engineer needs to route a tracking session through outboard gear without repatching for every song.

In each use case, a single wrong cable or muted bus creates an audio problem that stops the work cold.

Audio Routing Equipment

Audio Mixers and Mixing Consoles

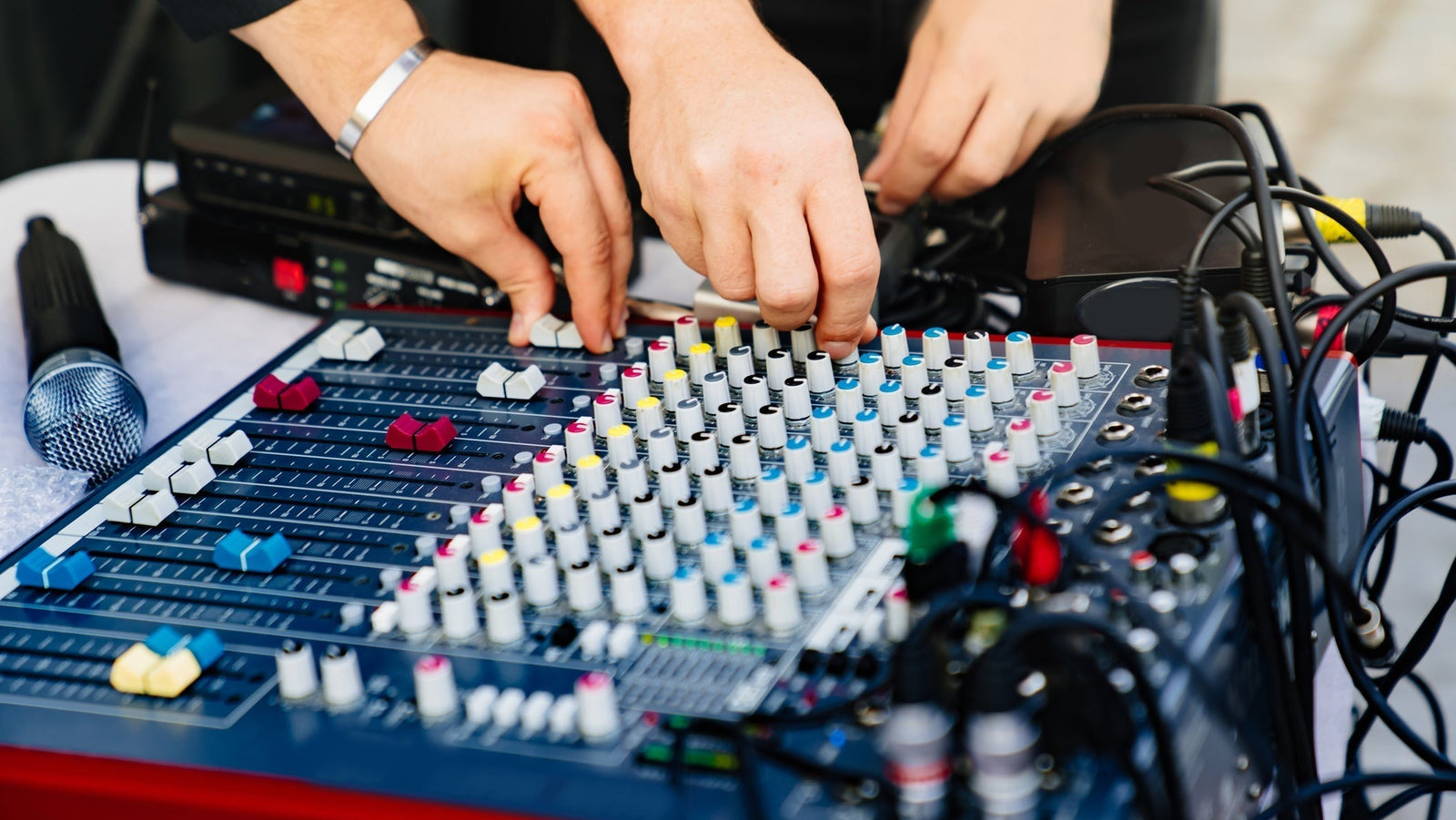

An audio mixer is the central hub in most live and studio setups. Every input lands on a channel, gets level-adjusted and processed, and is then sent to one or more output channels. The mixing console is where routing decisions get made in real time.

Analog mixers handle signals through physical circuitry and feel familiar to anyone who has worked with outboard gear. Digital consoles convert the audio signal into data, which opens up features like scene recall, remote control, and software-defined routing. Most touring and install systems today run digital for the flexibility, though analog mixers still have a place in smaller rigs and broadcast remotes where simplicity matters.

Learn more about the difference between analog and digital mixers



DSPs and Matrix Processors

A DSP, or digital signal processor, is a programmable audio device that handles routing plus EQ, compression, delay, crossover, and acoustic echo cancellation in a single rack unit. Matrix processors from Biamp, QSC Q-SYS, Symetrix, and BSS Soundweb are the core of most commercial install work, especially in corporate buildings, stadiums, and houses of worship.

What sets them apart from a mixing console is the design model. You build the signal path visually in software, dragging blocks for inputs, processing, and outputs, then load the program onto the hardware. Once deployed, the unit runs without an operator. That makes DSPs the right tool for fixed installs where the same audio system has to perform the same job every day for years. Shop both new and used options on the AVGear audio signal processing and routing collection.

Patch Bays

A patch bay is the original routing tool: a physical grid of jacks that lets engineers repatch signals without crawling behind a rack to rewire. It sits between your outboard gear and your console, and it turns a hardwired rack into a flexible audio production environment.

Two wiring schemes matter. Normalled patch bays default to a fixed connection that gets broken as soon as you insert a cable, which is useful for the most common routing. Half-normalled bays break the connection only on the top row, so you can tap a signal without interrupting the original path. Studios, broadcast facilities, and theaters lean on patch bays because the same rack of gear gets reassigned to a different source every day.

Audio Interfaces

An audio interface is the bridge between analog gear and a computer, handling analog-to-digital and digital-to-analog conversion. USB audio interfaces are the most common format, with Thunderbolt and PCIe units used where channel counts or latency requirements run higher.

The spec that trips people up most is sample rate. Every digital audio device in a signal chain has to run at the same rate, or you get glitches, dropouts, and phase issues. A recording studio might run at 96 kHz while a broadcast truck runs at 48 kHz, and mixing the two without a sample rate converter creates problems fast. Interfaces also define your channel count in and out of the DAW, which shapes how you track and mix.

Networked Audio Hardware

Networked audio protocols like Dante, AVB, and MADI move dozens to hundreds of channels of audio signals over a single Cat5e, Cat6, or fiber run. They have replaced analog snakes in modern touring and install work because one thin cable can do the job of a hundred-pair copper snake.

Endpoints like networked stage boxes, wall plates, and DSPs connect to the network the way IT gear does. You assign channels in software, and the audio stream flows where you tell it to.

How Audio Routing Changes by Environment

Routing looks different depending on the job. A live sound environment prioritizes speed, redundancy, and discrete monitor feeds. A studio prioritizes flexibility and signal integrity. An install prioritizes zone control and long-term reliability. The gear overlaps, but the routing logic does not.

Live Sound

In a live sound environment, the front-of-house console routes the main mix to the PA system, while a monitor console or a set of aux sends from FOH feeds in-ear monitors and wedges. A stage box on stage sends every input back to the consoles over an analog multi or a digital protocol. Each musician usually needs their own mix on a different output channel, built from the same inputs the FOH engineer is using for the main speaker array.

Recording and Studio

In a studio, microphones and DIs hit a preamp, then a patch bay, then the console or audio interface. Once a signal is in the DAW, it can be routed to a separate track for isolation and overdubs, or sent to an audio bus for shared processing across a drum kit or a vocal stack. The patch bay handles everything outside the box, and the DAW handles everything inside.

Broadcast and Streaming

Broadcast routing requires discrete paths for program audio, talent IFB, and mix-minus feeds to remote guests. For podcasts and streaming, a virtual audio device like Loopback, VoiceMeeter, or BlackHole moves application audio between programs on one computer, so a Zoom call can feed OBS while music plays from a separate player. The OS audio settings determine which audio output goes to headphones, speakers, and the recording software, and getting that wrong is the single most common audio problem in a streaming setup.

Commercial Installs

In commercial installs like houses of worship, corporate campuses, and venues, a DSP-driven matrix routes audio signals to multiple zones from a single processor. Paging, background music, and program audio share the same audio system. A Bluetooth device input on a wall plate can feed the same DSP as the main mixing console, and the processor decides which source plays in which zone.

Analog vs. Digital Audio Routing

Analog routing carries sound as voltage on copper cable. Digital routing carries it as data over USB, a network, or an internal bus. Most modern professional systems use both: analog at the microphone and speaker ends, digital through the processing chain in the middle.

Common Audio Routing Problems and How to Fix Them

When something sounds wrong, routing is usually the first place to look. Most problems come down to the signal being sent to the wrong place, at the wrong format, or through a muted point in the signal path. Running a mental checklist beats randomly unplugging things.

• Wrong output device selected in the OS audio settings
• Sample rate mismatch between the audio interface and the DAW
• Muted channel, muted bus, or a fader pulled down at the output
• Feedback loop caused by a monitor sending audio back into a live mic
• Phantom power off when a condenser mic needs it, or on when a ribbon mic does not
• A Bluetooth device grabbing audio focus over the wired audio input device
• Ground loop hum from a badly grounded signal path

Building an Audio Routing Setup That Works

Start with the end in mind. List every audio source you need to capture, pick a central hub sized for your channel count with headroom, plan each output path before you buy cable, and match sample rate across every digital device in the chain. A routing setup designed on paper first almost always beats one built cable-by-cable.

• Inventory every input: microphones, instruments, playback devices, video feeds with embedded audio, Bluetooth device sources
• Pick a central audio mixer or DSP sized for your channel count plus 20 to 30 percent headroom
• Define every output path: main speaker arrays, monitors, recording, streaming, zone outputs
• Confirm that every digital device in the chain runs at the same sample rate
• Label every cable and patch point, because the system will be troubleshot by someone who was not there on install day
