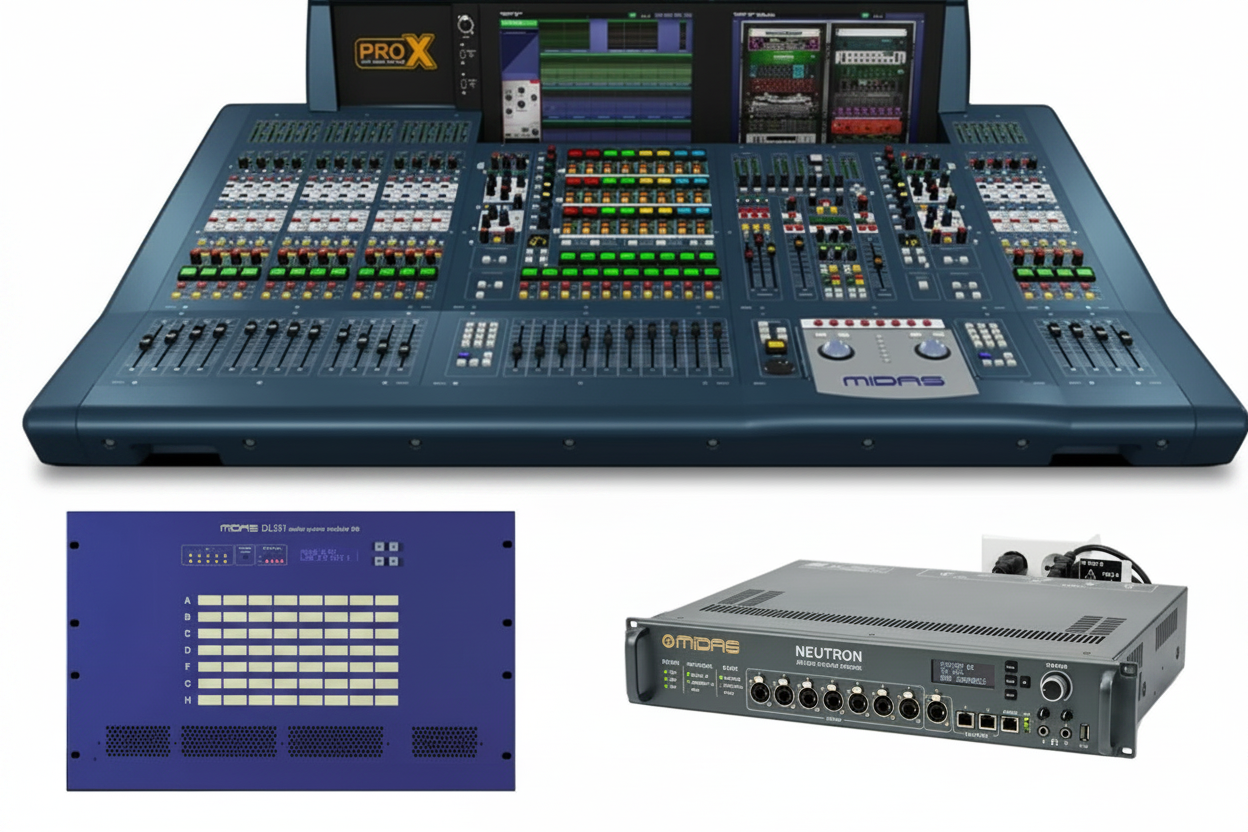

Midas PRO X Control Surface

• High-Channel Control: Directs up to 168 simultaneous input channels and 99 time-aligned, phase-coherent mix buses from a compact, sub-60-inch footprint.
• Tactile & Visual Mapping: Pairs 29 motorized 100mm faders with dual 15-inch daylight-viewable touchscreens for seamless visual indexing.
• Channel Extension Mode: Utilizes an "Extend" feature to deploy all 26 main faders in a single, sequential line for fast layer tracking.
• Backward File Compatibility: Loads legacy show files from older Midas PRO 3, 6, and 9 systems instantly without requiring manual rebuilding.
• VCA & POP Groups: Controls system routing rapidly via 10 VCA and 8 POP (Population) groups to bring buried channels onto primary layers.

Midas Neutron Audio Engine

• High-Performance DSP Spine: Delivers 108 Gigaflops of 40-bit floating-point processing via four internal cards configured with N+1 hardware redundancy.
• Massive Point-to-Point Routing: Manages an independent routing matrix capable of handling up to 800 discrete audio channels on a scene-by-scene basis.
• Dual HyperMAC Infrastructure: Features an onboard router supporting 192 bidirectional channels over optical links up to 500 meters or Cat5e copper up to 100 meters.
• Triple Redundant Power: Houses three hot-swappable power supply units to ensure continuous, fail-safe operation during major live broadcast events.
• Network Integration Hub: Connects seamlessly with standard AES50 stage hardware and expands via optional network bridge cards like Dante and MADI.

Midas DL351 Modular Stage Box

• Custom Card Flexibility: Features 8 modular hardware slots that accommodate DL4-series I/O cards to provide up to 64 premium inputs or outputs.
• Touring Grade Fidelity: Operates at a native 24-bit/96kHz sample rate using Midas's legendary low-distortion, digitally controlled microphone preamplifiers.
• Redundant AES50 Ports: Built with 4 locking Neutrik etherCON ports that auto-route digital audio to a backup link if a primary snake fails.
• Hardware MIDI & GPIO: Integrates discrete MIDI In/Out/Thru connections alongside dual 25-pin GPIO ports to sync external hardware with console automation.
• Dual Power Electronics: Safe-guards stage operations with dual independent, auto-ranging universal switch-mode power supplies.
