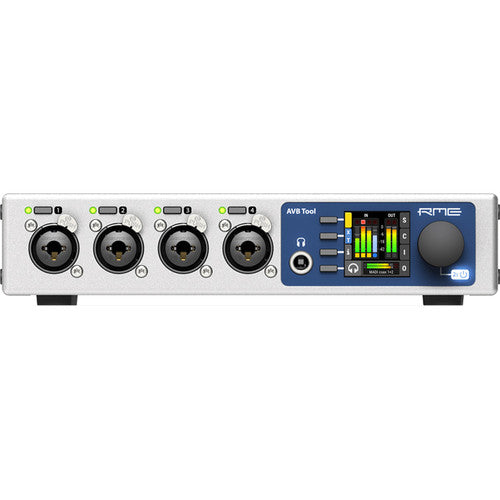

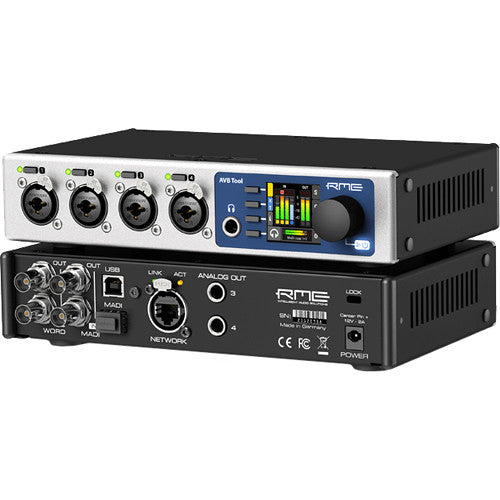

The AVBTOOL features four high-precision analog inputs via XLR/TRS combo jacks, each with a remote-controllable 75dB gain range and switchable Hi-Z for instruments. These inputs are derived from the same technology used in the first four channels of RME's high-end 12Mic preamp, ensuring exceptional sound quality. The unit also provides two balanced line outputs and a stereo headphone output for convenient monitoring of any network or local signal.

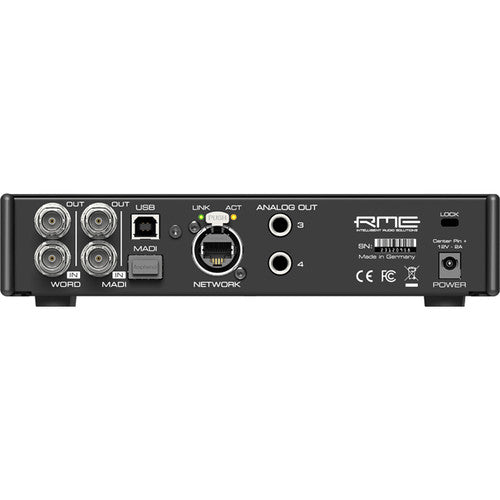

On the digital side, the AVBTOOL is a powerful MADI-to-AVB converter and router, supporting up to 128 channels over both AVB and MADI. The AVB implementation is MILAN-compatible and supports up to eight streams in each direction. A coaxial MADI port and an optional optical SFP module provide flexible MADI connectivity, including seamless redundancy. Control of the device can be done directly from the front panel or remotely via a web interface. RME's signature SteadyClock FS technology ensures ultra-low jitter for stable and clear digital audio.
