Ashly

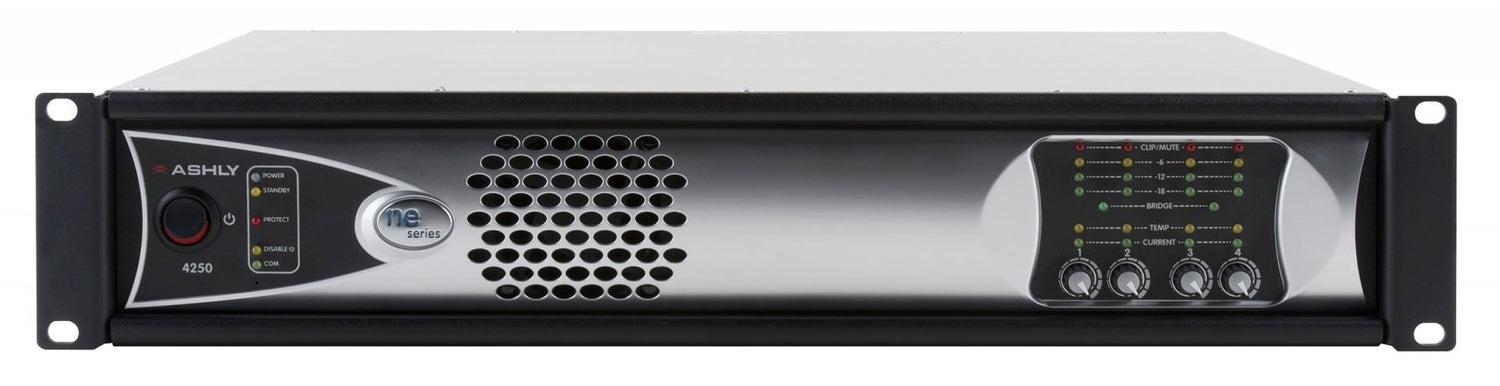

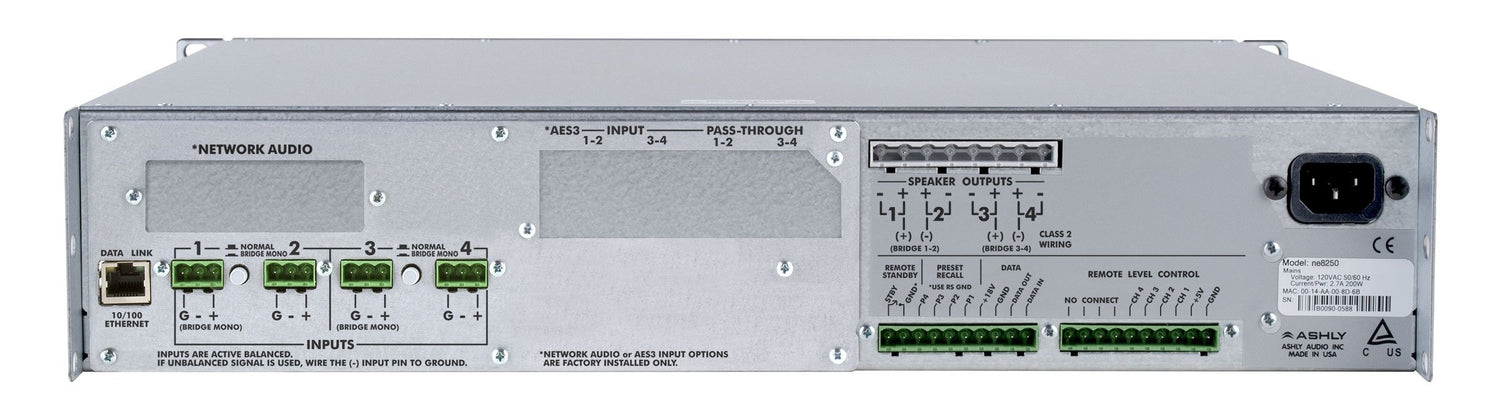

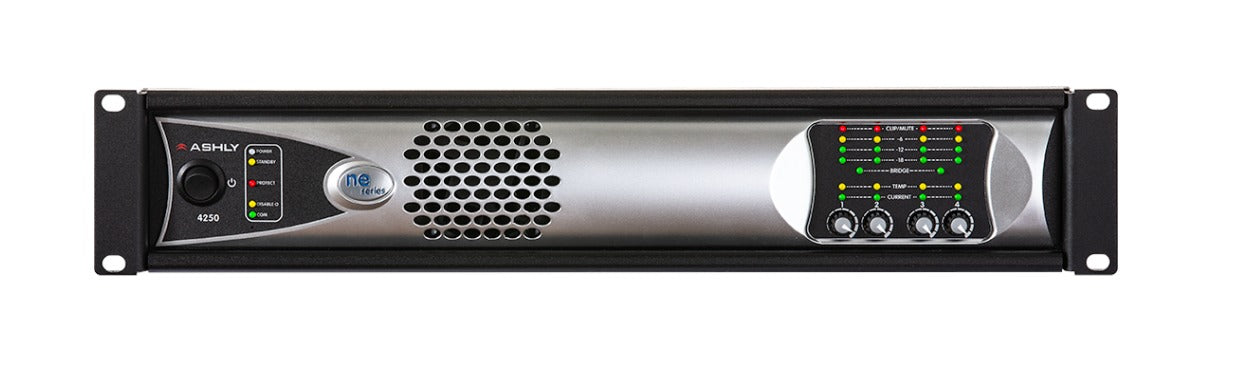

Ashly ne4250.70peD 4-Channel Amplifier with OPDante Option Card

$3,149.00

The ne4250.70ped combines an energy-efficient Class-D amplifier with a switching power supply for reliable and powerful performance. The integrated Protea DSP, featuring dual 32-bit/96 kHz SHARC processors, offers a full suite of audio processing tools for each channel, including equalization, dynamics (compressor/limiter, gate, ducker), delay, and signal generation. The pre-installed Dante network audio card allows the amplifier to receive digital audio signals directly over a standard Ethernet network. This eliminates the need for separate audio cabling and simplifies system design. Remote configuration, control, and monitoring of all amplifier functions are handled via Ashly's Protea NE Software, accessible over a standard 10/100 Ethernet connection.

View Product Features

• 4-channel amplifier: Provides 250W per channel at 70V constant voltage.
• Integrated Protea DSP and Dante: Combines powerful signal processing with network audio input.
• Network control: Full remote control and monitoring via Ethernet.
• High efficiency: Utilizes a Class-D output stage with a switching power supply.
• Bridgeable: Channels can be bridged for higher output power into a 140V load.
• Selectable HPF: Software-controlled high-pass filters (80Hz, 400Hz, or off).
• Euroblock connectors: Standardized inputs and outputs for secure wiring.
• Comprehensive protection: Built-in circuitry for thermal and overcurrent protection.

In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Ashly ne4250.70peD 4-Channel Amplifier with OPDante Option Card

The Ashly ne4250.70peD is a sophisticated four-channel network power amplifier specifically engineered for large-scale commercial distributed audio systems. A key feature is its built-in capability to directly drive 70V and 100V constant-voltage speaker lines, making it an ideal, all-in-one solution for background music and paging applications in venues like shopping malls, airports, hotels, and educational campuses. Each of its four channels is powered by a high-efficiency Class D amplifier, delivering substantial and clean power to long speaker runs without the need for external transformers. This integrated design simplifies installation, reduces points of failure, and provides precise per-channel control over the voltage and power delivered to each zone.

This amplifier is defined by its intelligent network integration, coming equipped with an OPDante option card slot. This allows for native connectivity to a Dante Audio over IP network, enabling the amplifier to receive digital audio streams for all four channels directly via a standard Ethernet cable. This convergence of power amplification and networked audio transport facilitates flexible, scalable system designs where audio can be routed from any Dante source on the network. Furthermore, the amplifier includes onboard DSP for each channel, configurable via network software, providing essential zone-specific processing like parametric EQ, output delay, and protective limiting directly at the amplification point.

Built for reliability in 24/7 operation, the ne4250.70peD includes comprehensive protection circuitry for each channel, guarding against thermal overload, short circuits, and other faults. Its compact 1U chassis saves valuable rack space while housing the powerful amp modules, network audio card interface, and DSP engine. Remote monitoring of parameters such as output level, clipping status, and temperature is available through Ashly's network software. By combining constant-voltage outputs, Dante readiness, and per-channel DSP in a single unit, this amplifier represents a modern, centralized, and intelligent solution for powering and managing extensive commercial sound systems.

Key Features

• 4-channel amplifier: Provides 250W per channel at 70V constant voltage.
• Integrated Protea DSP and Dante: Combines powerful signal processing with network audio input.
• Network control: Full remote control and monitoring via Ethernet.
• High efficiency: Utilizes a Class-D output stage with a switching power supply.
• Bridgeable: Channels can be bridged for higher output power into a 140V load.
• Selectable HPF: Software-controlled high-pass filters (80Hz, 400Hz, or off).
• Euroblock connectors: Standardized inputs and outputs for secure wiring.
• Comprehensive protection: Built-in circuitry for thermal and overcurrent protection.

Ashly ne4250.70peD 4-Channel Amplifier with OPDante Option Card Specs

Amplifier Output
Channels
4
Amplifier Class
Class D
Output Voltage
70V, 100V
Network & Processing
Audio Network
Dante (via OPDante Card Slot)
Onboard DSP
Per Channel
Control Interface
Ethernet
Power Specifications
Power per Channel
250W
DSP Functions
EQ, Delay, Limiter
Physical Design
Rack Units
1 U
Connections
Speaker Output
Screw Terminal
Network Audio
Dante Option

Key Features

• 4-channel amplifier: Provides 250W per channel at 70V constant voltage.
• Integrated Protea DSP and Dante: Combines powerful signal processing with network audio input.
• Network control: Full remote control and monitoring via Ethernet.
• High efficiency: Utilizes a Class-D output stage with a switching power supply.
• Bridgeable: Channels can be bridged for higher output power into a 140V load.
• Selectable HPF: Software-controlled high-pass filters (80Hz, 400Hz, or off).
• Euroblock connectors: Standardized inputs and outputs for secure wiring.
• Comprehensive protection: Built-in circuitry for thermal and overcurrent protection.
