SKU: NE4250.70PED

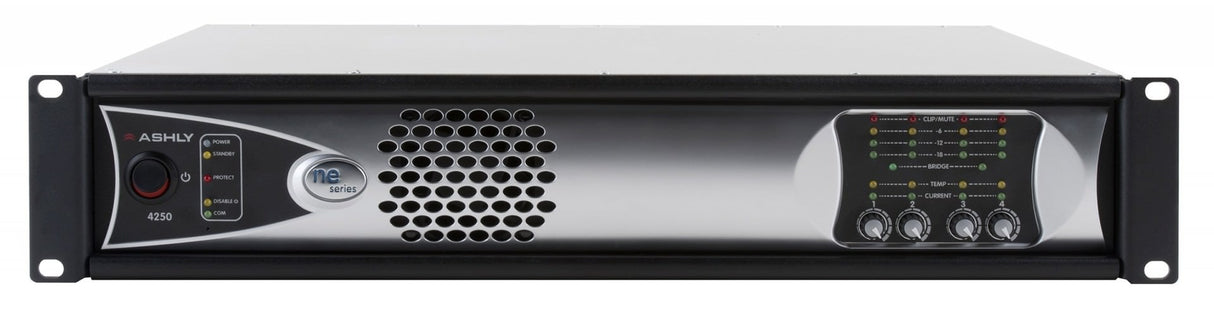

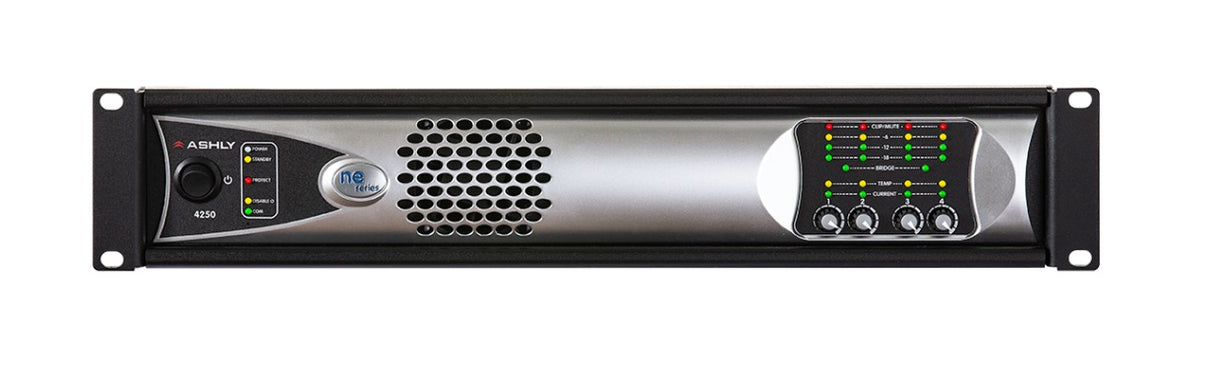

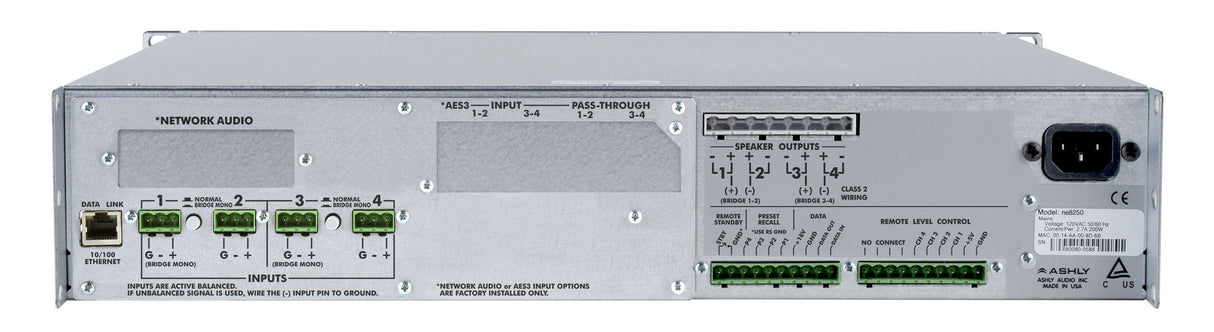

Ashly ne4250.70peD 4-Channel Amplifier with OPDante Option Card

$3,149.00

Items Included

Ashly ne4250.70peD 4-Channel Amplifier with OPDante Option Card

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Title
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

Designed around an energy efficient Class-D platform with a switching power supply, ne Series amps offer ease of use, setup and control using standard 10/100 Ethernet protocol and Protēa™ NE Software. No special outboard control units are needed. Choose either 4 or 8-channel packages rated at 250W per channel, with separate low impedance or constant voltage models. Each can be customized for any installation by adding your choice of AES3 inputs, Dante® , CobraNet®, or 4-channel mic preamp card. Read more

Features

  • Protēa DSP, and Dante® options
  • FIR Filter capable (pe versions only)
  • DC voltage remote gain control
  • Ethernet remote control and monitoring
  • DSP Processing on inputs and outputs (pe only)
  • Switch mode supply, Class-D output
  • Stepped, calibrated input attenuators
  • Remote turn on/off
  • Disable all front panel controls via software
  • Temperature-sensitive variable speed fan with side-to-front airflow
  • Selectable HPF frequencies on 25V, 70V and 100V models
  • 4-stage level meters
  • Output current and temp indicators
  • Low Impedance, 25V, 70V, 100V models
  • Safety/Compliance: TUV, CE, FCC,RoHS
  • 10/100 Ethernet comes standard

Business Financing Options Avaiable

Designed around an energy efficient Class-D platform with a switching power supply, ne Series amps offer ease of use, setup and control using standard 10/100 Ethernet protocol and Protēa™ NE Software. No special outboard control units are needed. Choose either 4 or 8-channel packages rated at 250W per channel, with separate low impedance or constant voltage models. Each can be customized for any installation by adding your choice of AES3 inputs, Dante® , CobraNet®, or 4-channel mic preamp card. Read more

Features

  • Protēa DSP, and Dante® options
  • FIR Filter capable (pe versions only)
  • DC voltage remote gain control
  • Ethernet remote control and monitoring
  • DSP Processing on inputs and outputs (pe only)
  • Switch mode supply, Class-D output
  • Stepped, calibrated input attenuators
  • Remote turn on/off
  • Disable all front panel controls via software
  • Temperature-sensitive variable speed fan with side-to-front airflow
  • Selectable HPF frequencies on 25V, 70V and 100V models
  • 4-stage level meters
  • Output current and temp indicators
  • Low Impedance, 25V, 70V, 100V models
  • Safety/Compliance: TUV, CE, FCC,RoHS
  • 10/100 Ethernet comes standard

About the Ashly ne4250.70peD 4-Channel Amplifier with OPDante Option Card

The Ashly ne4250.70peD is a sophisticated four-channel network power amplifier specifically engineered for large-scale commercial distributed audio systems. A key feature is its built-in capability to directly drive 70V and 100V constant-voltage speaker lines, making it an ideal, all-in-one solution for background music and paging applications in venues like shopping malls, airports, hotels, and educational campuses. Each of its four channels is powered by a high-efficiency Class D amplifier, delivering substantial and clean power to long speaker runs without the need for external transformers. This integrated design simplifies installation, reduces points of failure, and provides precise per-channel control over the voltage and power delivered to each zone.

This amplifier is defined by its intelligent network integration, coming equipped with an OPDante option card slot. This allows for native connectivity to a Dante Audio over IP network, enabling the amplifier to receive digital audio streams for all four channels directly via a standard Ethernet cable. This convergence of power amplification and networked audio transport facilitates flexible, scalable system designs where audio can be routed from any Dante source on the network. Furthermore, the amplifier includes onboard DSP for each channel, configurable via network software, providing essential zone-specific processing like parametric EQ, output delay, and protective limiting directly at the amplification point.

Built for reliability in 24/7 operation, the ne4250.70peD includes comprehensive protection circuitry for each channel, guarding against thermal overload, short circuits, and other faults. Its compact 1U chassis saves valuable rack space while housing the powerful amp modules, network audio card interface, and DSP engine. Remote monitoring of parameters such as output level, clipping status, and temperature is available through Ashly's network software. By combining constant-voltage outputs, Dante readiness, and per-channel DSP in a single unit, this amplifier represents a modern, centralized, and intelligent solution for powering and managing extensive commercial sound systems.

Key Features

  • Protēa DSP, and Dante® options
  • FIR Filter capable (pe versions only)
  • DC voltage remote gain control
  • Ethernet remote control and monitoring
  • DSP Processing on inputs and outputs (pe only)
  • Switch mode supply, Class-D output
  • Stepped, calibrated input attenuators
  • Remote turn on/off
  • Disable all front panel controls via software
  • Temperature-sensitive variable speed fan with side-to-front airflow
  • Selectable HPF frequencies on 25V, 70V and 100V models
  • 4-stage level meters
  • Output current and temp indicators
  • Low Impedance, 25V, 70V, 100V models
  • Safety/Compliance: TUV, CE, FCC,RoHS
  • 10/100 Ethernet comes standard

Ashly ne4250.70peD 4-Channel Amplifier with OPDante Option Card Specs

Amplifier Output
Channels
4
Amplifier Class
Class D
Output Voltage
70V, 100V
Network & Processing
Audio Network
Dante (via OPDante Card Slot)
Onboard DSP
Per Channel
Control Interface
Ethernet
Power Specifications
Power per Channel
250W
DSP Functions
EQ, Delay, Limiter
Physical Design
Rack Units
1 U
Connections
Speaker Output
Screw Terminal
Network Audio
Dante Option

Key Features

  • Protēa DSP, and Dante® options
  • FIR Filter capable (pe versions only)
  • DC voltage remote gain control
  • Ethernet remote control and monitoring
  • DSP Processing on inputs and outputs (pe only)
  • Switch mode supply, Class-D output
  • Stepped, calibrated input attenuators
  • Remote turn on/off
  • Disable all front panel controls via software
  • Temperature-sensitive variable speed fan with side-to-front airflow
  • Selectable HPF frequencies on 25V, 70V and 100V models
  • 4-stage level meters
  • Output current and temp indicators
  • Low Impedance, 25V, 70V, 100V models
  • Safety/Compliance: TUV, CE, FCC,RoHS
  • 10/100 Ethernet comes standard
