Theatrixx Technologies

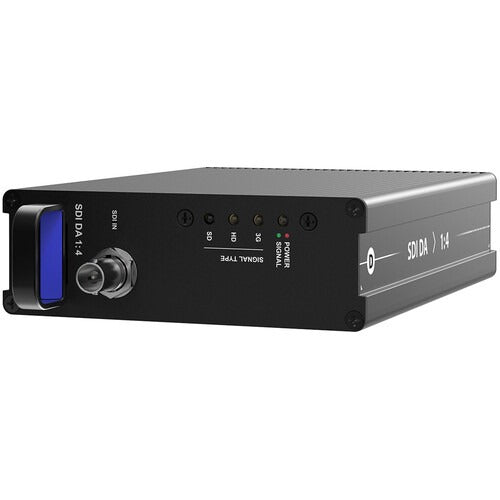

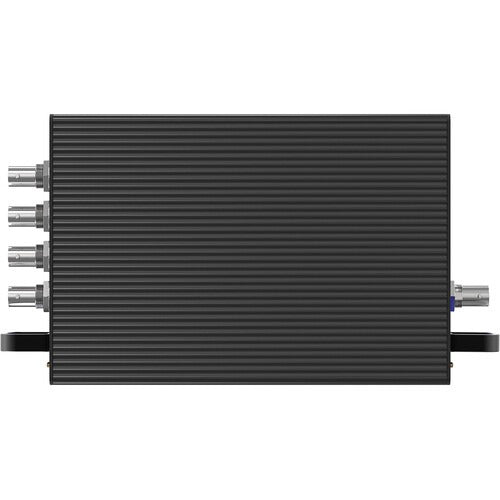

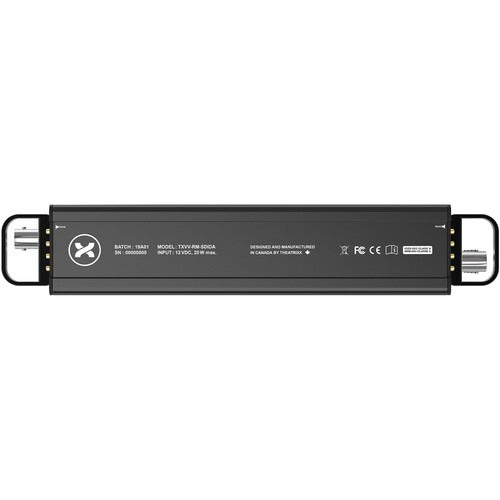

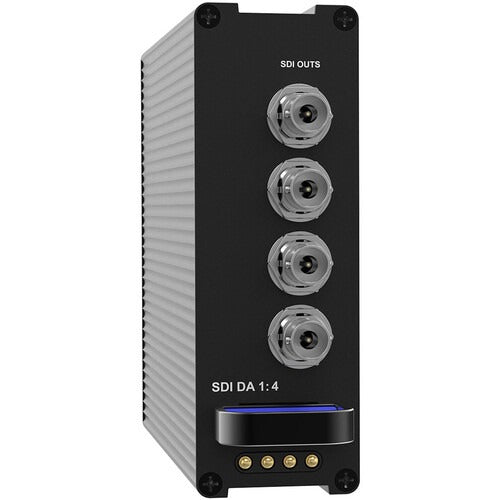

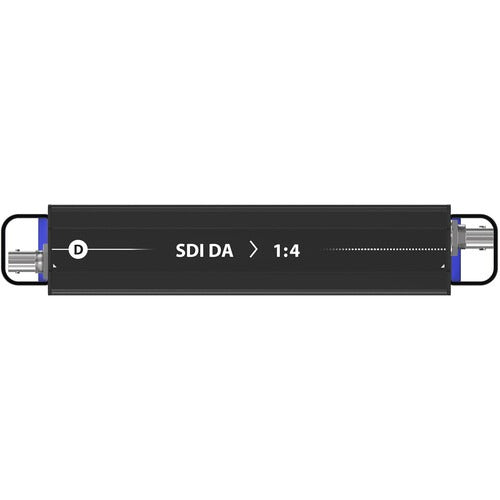

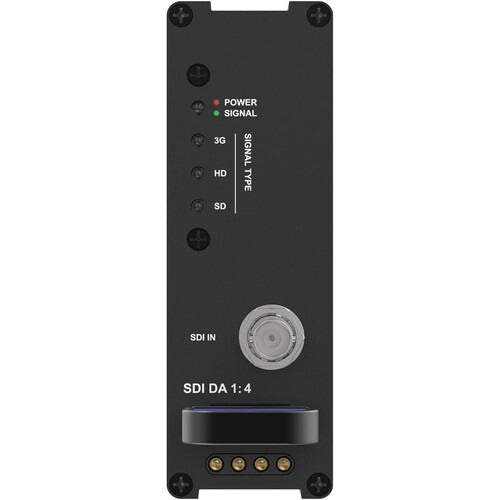

Theatrixx Technologies 3G-SDI Distribution Amplifier 1:4 Reverse Module

$499.00 - $780.00

The Theatrixx XVVRM-SDIDA4 module can be inserted in their 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

View Product Features
  • Reversible Design: Can be inserted front-to-back in the 8-Bay frame for flexible I/O placement.
  • 12G-SDI Support: Handles high-bandwidth formats like 4K/UHD (3840x2160p @ 60/50fps).
  • Video Standards: Supports 12G, 6G, 3G, HD, and SD-SDI signals, including SMPTE standards.
  • Reclocked & Amplified Outputs: Ensures signal integrity over long cable runs.
  • Embedded Audio: Carries up to 16 channels of 24-bit, 48kHz audio.
  • Auto-Sensing: Automatically detects incoming signal format (YUV/RGB, etc.).
  • Rugged & Efficient: Enclosed design protects against dust/shock, with magnetic stacking and color-coding for easy identification.
  • Power System: Uses redundant power pins from the frame, eliminating external bricks and providing a convenient loop-through outlet for nearby devices.
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    Theatrixx-XVVRM-SDIDA4

    Theatrixx Technologies 3G-SDI Distribution Amplifier 1:4 Reverse Module

    $499.00
    View Product
  • New

    Theatrixx-XVVRM-SDIDA4-12G

    Theatrixx Technologies 12G-SDI Distribution Amplifier 1:4 Reverse Module

    $780.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the Theatrixx Technologies 3G-SDI Distribution Amplifier 1:4 Reverse Module

The Theatrixx XVVRM-SDI2SDI is an SDI Repeater dual channel Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system.

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Key Features

  • Reversible Design: Can be inserted front-to-back in the 8-Bay frame for flexible I/O placement.
  • 12G-SDI Support: Handles high-bandwidth formats like 4K/UHD (3840x2160p @ 60/50fps).
  • Video Standards: Supports 12G, 6G, 3G, HD, and SD-SDI signals, including SMPTE standards.
  • Reclocked & Amplified Outputs: Ensures signal integrity over long cable runs.
  • Embedded Audio: Carries up to 16 channels of 24-bit, 48kHz audio.
  • Auto-Sensing: Automatically detects incoming signal format (YUV/RGB, etc.).
  • Rugged & Efficient: Enclosed design protects against dust/shock, with magnetic stacking and color-coding for easy identification.
  • Power System: Uses redundant power pins from the frame, eliminating external bricks and providing a convenient loop-through outlet for nearby devices.

Theatrixx Technologies 3G-SDI Distribution Amplifier 1:4 Reverse Module Specs

Connections
Video Input
2x 3G/HD/SD SDI BNC
Video Output
2x 3G/HD/SD SDI BNC
Supported Signals
3G Format Support
1080p50, 1080p59.94, 1080p60
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Sample rate of 48 kHz and 24 bit
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatically detects incoming signal format
SMPTE Standards
425 M Level A & B, 424 M, 292 M, 259 M
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
32° to 104°F (0° to 40°C)
Power Requirements
Power Supply
Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
Power Consumption
20W
Voltage Range: 12VDC

Key Features

  • Reversible Design: Can be inserted front-to-back in the 8-Bay frame for flexible I/O placement.
  • 12G-SDI Support: Handles high-bandwidth formats like 4K/UHD (3840x2160p @ 60/50fps).
  • Video Standards: Supports 12G, 6G, 3G, HD, and SD-SDI signals, including SMPTE standards.
  • Reclocked & Amplified Outputs: Ensures signal integrity over long cable runs.
  • Embedded Audio: Carries up to 16 channels of 24-bit, 48kHz audio.
  • Auto-Sensing: Automatically detects incoming signal format (YUV/RGB, etc.).
  • Rugged & Efficient: Enclosed design protects against dust/shock, with magnetic stacking and color-coding for easy identification.
  • Power System: Uses redundant power pins from the frame, eliminating external bricks and providing a convenient loop-through outlet for nearby devices.
