SKU: Theatrixx-XVVRM-SDIDA4-12G

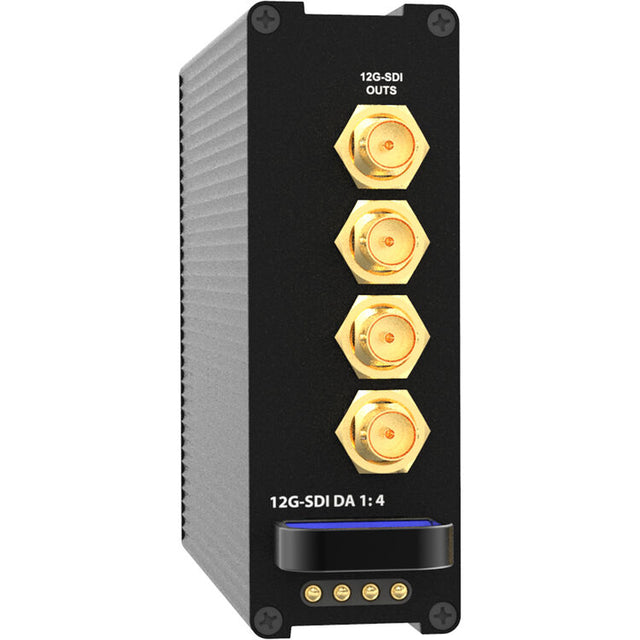

Theatrixx Technologies 12G-SDI Distribution Amplifier 1:4 Reverse Module

Name: Theatrixx Technologies 12G-SDI Distribution Amplifier 1:4 Reverse Module
Brand: AVGear.com
SKU: Theatrixx-XVVRM-SDIDA4-12G
Price: 780.00 USD
Availability: InStock

$780.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The Theatrixx XVVRM-SDIDA4=12G module can be inserted in their 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed. Read more

Features

Video Input: 1 x 12G-SDI BNC
Video Output: 8 x 12G-SDI BNC (reclocked & amplified)
12G format: 4096x2160p @ 60/50 fps3840x2160p @ 60/50 fps
6G format: 4096x2160p @ 30/25/24 fps, 3840x2160p @ 30/25/24 fps
3G format: 1920x1080p @ 60/50 fps
HD format: 1920x1080p @ 30/25/24 fps, 1920x1080i @ 60/50 fps, 1280x720p @ 60/50 fps
SD format: 720x480i @ 60 fps, 720x576i @ 50 fps
Embedded audio: Up to 16 channels, 24 bit, 48 kHz
SMPTE Standards: ST2082-1S, ST2082-10, ST425M Level A and B, ST424M, ST292M, ST259M
Height: 121.5 mm (4.78 in)
Depth: 225 mm (8.85 in)
Width: 41 mm (1.61 in)
Weight: 710 g (1.56 lbs)
Alt. form factor: Also available in rackmount module (RM)
Operating temp.: 0-40° C
Relative Humidity: 0 % to 90 % RH non-condensing
Built-in Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
Power Consumption: 45W max.
Operational Voltage Range: 100-240 V 50-60 Hz

Business Financing Options Avaiable

View Available Financing

Features

Video Input: 1 x 12G-SDI BNC
Video Output: 8 x 12G-SDI BNC (reclocked & amplified)
12G format: 4096x2160p @ 60/50 fps3840x2160p @ 60/50 fps
6G format: 4096x2160p @ 30/25/24 fps, 3840x2160p @ 30/25/24 fps
3G format: 1920x1080p @ 60/50 fps
HD format: 1920x1080p @ 30/25/24 fps, 1920x1080i @ 60/50 fps, 1280x720p @ 60/50 fps
SD format: 720x480i @ 60 fps, 720x576i @ 50 fps
Embedded audio: Up to 16 channels, 24 bit, 48 kHz
SMPTE Standards: ST2082-1S, ST2082-10, ST425M Level A and B, ST424M, ST292M, ST259M
Height: 121.5 mm (4.78 in)
Depth: 225 mm (8.85 in)
Width: 41 mm (1.61 in)
Weight: 710 g (1.56 lbs)
Alt. form factor: Also available in rackmount module (RM)
Operating temp.: 0-40° C
Relative Humidity: 0 % to 90 % RH non-condensing
Built-in Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
Power Consumption: 45W max.
Operational Voltage Range: 100-240 V 50-60 Hz

No products currently in stock

About the Theatrixx Technologies 12G-SDI Distribution Amplifier 1:4 Reverse Module

Key Features

Video Input: 1 x 12G-SDI BNC
Video Output: 8 x 12G-SDI BNC (reclocked & amplified)
12G format: 4096x2160p @ 60/50 fps3840x2160p @ 60/50 fps
6G format: 4096x2160p @ 30/25/24 fps, 3840x2160p @ 30/25/24 fps
3G format: 1920x1080p @ 60/50 fps
HD format: 1920x1080p @ 30/25/24 fps, 1920x1080i @ 60/50 fps, 1280x720p @ 60/50 fps
SD format: 720x480i @ 60 fps, 720x576i @ 50 fps
Embedded audio: Up to 16 channels, 24 bit, 48 kHz
SMPTE Standards: ST2082-1S, ST2082-10, ST425M Level A and B, ST424M, ST292M, ST259M
Height: 121.5 mm (4.78 in)
Depth: 225 mm (8.85 in)
Width: 41 mm (1.61 in)
Weight: 710 g (1.56 lbs)
Alt. form factor: Also available in rackmount module (RM)
Operating temp.: 0-40° C
Relative Humidity: 0 % to 90 % RH non-condensing
Built-in Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
Power Consumption: 45W max.
Operational Voltage Range: 100-240 V 50-60 Hz
