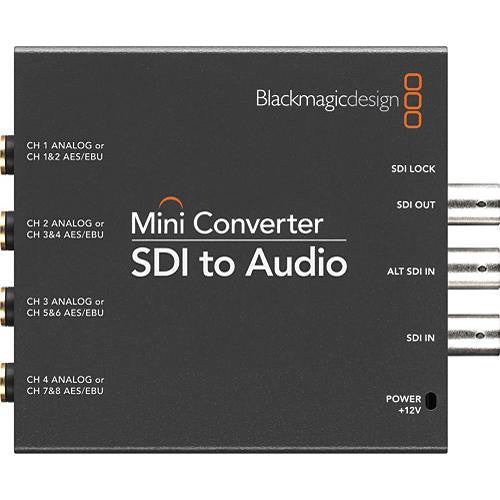

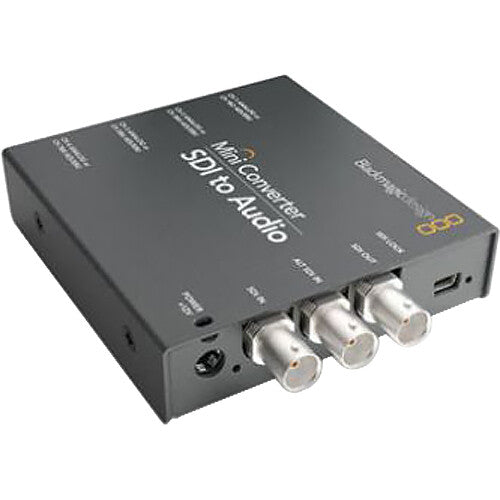

The Blackmagic Design Mini Converter SDI to Audio is a compact, professional interface device designed to extract embedded audio from an SDI video signal and output it as discrete analog audio channels. This 8-channel model is particularly useful in broadcast, live production, and post-production workflows where audio embedded within an SDI feed needs to be separated for monitoring, recording, or routing to an analog mixing console or amplifier. It accepts a standard SDI input (supporting SD, HD, and often 3G-SDI formats) and features eight balanced analog XLR or TRS outputs, providing clean, isolated audio channels that correspond to the audio pairs embedded in the SDI stream. This allows engineers to access dialogue, music, and effects tracks independently or sum them for different purposes.

Operation is typically straightforward and hardware-based, requiring no software configuration for basic use. The converter automatically detects the incoming SDI signal format and sample rate, locking to the audio embedded within it. It includes features like sample rate conversion to ensure compatibility if the input audio rate differs from the desired output, and it can re-clock the SDI video signal, outputting a clean SDI feed with the audio still embedded for downstream equipment. This loop-through capability is valuable for preserving the signal chain. The unit is housed in a small, rugged metal case and can be powered via an included AC adapter or, in some cases, via the SDI input using Phantom Power, which is especially convenient for field use.

Designed for reliability and ease of integration, this Mini Converter solves a common signal distribution problem in hybrid analog/digital environments. It enables legacy audio systems to interface seamlessly with modern SDI-based video infrastructure. By providing high-quality digital-to-analog conversion in a portable form factor, the Blackmagic Design SDI to Audio Mini Converter serves as an essential bridge tool for audio engineers and video technicians working in diverse production settings.
