SKU: 2105-512

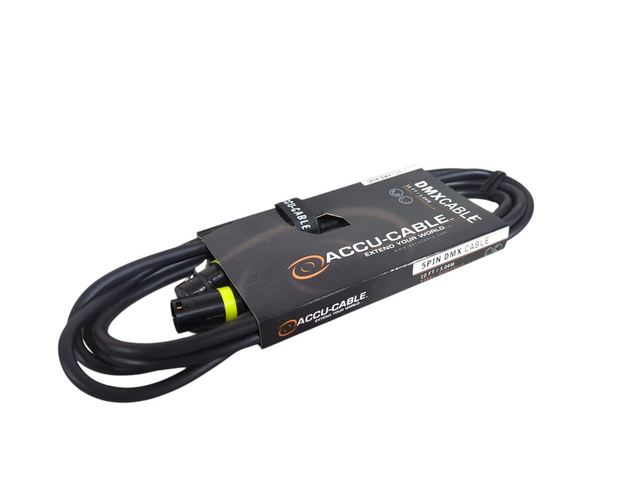

Accu-Cable AC5PDMX10 5 Pin DMX Cable (10')

$19.95

Items Included

ADJ Accu-cable 5-pin DMX Cable (10')

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The Accu-Cable AC5PDMX10 is a 10-foot DMX cable designed for connecting compatible lighting equipment in professional stage, studio, and event production environments. Featuring five-pin DMX connectors, it supports signal connections between compatible lighting consoles, DMX controllers, and fixtures equipped with matching interfaces. Its practical length provides flexibility for equipment placement in lighting rigs, performance venues, and temporary event setups. This cable is suited to applications requiring a dedicated DMX connection for lighting control. Read more

Features

Provides a 10-foot cable length for lighting setups.
Features five-pin DMX connectors for compatible equipment.
Connects DMX controllers with supported lighting fixtures.
Suitable for stage, studio, and event lighting applications.
Supports lighting signal connections between compatible DMX devices.
Offers convenient cable routing for professional production environments.

Business Financing Options Avaiable

View Available Financing

Features

Provides a 10-foot cable length for lighting setups.
Features five-pin DMX connectors for compatible equipment.
Connects DMX controllers with supported lighting fixtures.
Suitable for stage, studio, and event lighting applications.
Supports lighting signal connections between compatible DMX devices.
Offers convenient cable routing for professional production environments.

No products currently in stock

About the Accu-Cable AC5PDMX10 5 Pin DMX Cable (10')

The Accu-Cable AC5PDMX10 is a professional 10-foot, 5-pin DMX cable designed for reliable digital communication between DMX controllers, lighting fixtures, effects, and other compatible DMX512 equipment. It uses a 5-pin XLR male-to-female configuration, providing a standard connection for professional lighting systems. The cable measures 10 feet (3.05 meters) and is constructed with 22 AWG stranded tinned-copper conductors, providing a durable signal path for professional stage and entertainment applications. ADJ identifies the AC5PDMX10 as a 10-foot DMX cable intended for linking lighting effects in DMX or Primary/Secondary control modes.

The cable uses a twisted-pair construction with polyethylene insulation and a polyethylene inner jacket. Its shielding system consists of Duofoil aluminum foil-polyester tape with 100% coverage, combined with a tinned-copper braid providing 85% coverage. The outer jacket is made from PVC, helping protect the cable from wear and reducing kinking during handling. The cable has a specified 110-ohm nominal characteristic impedance, making it appropriate for DMX data transmission rather than ordinary microphone-cable applications.

The AC5PDMX10 also provides detailed electrical and mechanical characteristics for professional installations, including 12.5 pF/ft conductor-to-conductor capacitance at 1 kHz, 23 pF/ft conductor-to-shield capacitance, and a nominal 76% velocity of propagation.

Key Features

Provides a 10-foot cable length for lighting setups.
Features five-pin DMX connectors for compatible equipment.
Connects DMX controllers with supported lighting fixtures.
Suitable for stage, studio, and event lighting applications.
Supports lighting signal connections between compatible DMX devices.
Offers convenient cable routing for professional production environments.

Already own this item and want to sell it?

Click here to sell your item

Accu-Cable AC5PDMX10 5 Pin DMX Cable (10') Specs

Cable & Connector Configuration

Cable Length

10 ft (3.05 m)

Connector 1

5-Pin XLR Male

Connector 2

5-Pin XLR Female

Connection Type

5-Pin Male to 5-Pin Female

Number of Conductors

Number of Pairs

Conductor Construction

Wire Gauge

22 AWG

Conductor Material

Tinned Copper

Stranding

0.15 x 19

Conductor Diameter

0.0354 in (0.899 mm)

Insulation Material

Polyethylene

Inner Jacket Material

Polyethylene

Inner Jacket Diameter

0.055 in (1.40 mm)

Shielding & Jacket

Shield Type

Duofoil Tape + Tinned Copper Braid

Aluminum Foil Coverage

100%

Tinned Copper Braid Coverage

85%

Outer Jacket Material

PVC

Shielded

Yes

Nominal Overall Diameter

0.295 in (7.49 mm)

Electrical Performance

Nominal Characteristic Impedance

110 Ω

Conductor-to-Conductor Capacitance

12.5 pF/ft @ 1 kHz

Conductor-to-Shield Capacitance

23 pF/ft @ 1 kHz

Velocity of Propagation

76%

Nominal Delay

1.6 ns/ft

Conductor DC Resistance

24 Ω/1,000 ft @ 20°C

Pair Shield DC Resistance

15 Ω/1,000 ft @ 20°C

Attenuation

0.6 dB/100 ft @ 1 MHz

Maximum Recommended Current

2.1 A per conductor @ 25°C

Key Features

Provides a 10-foot cable length for lighting setups.
Features five-pin DMX connectors for compatible equipment.
Connects DMX controllers with supported lighting fixtures.
Suitable for stage, studio, and event lighting applications.
Supports lighting signal connections between compatible DMX devices.
Offers convenient cable routing for professional production environments.
