SKU: 2105-516

Accu-Cable AC5PDMX25 5-Pin DMX Cable (25')

$25.00

Items Included

Accu-Cable AC5PDMX25 5-Pin DMX Cable (25 ft)

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The Accu-Cable AC5PDMX25 is a 25-foot DMX cable designed for connecting compatible lighting equipment in professional stage, studio, and live event environments. Equipped with five-pin DMX connectors, it provides a dedicated connection between compatible lighting consoles, DMX controllers, and fixtures. Its extended cable length offers greater flexibility when positioning equipment across lighting rigs, performance spaces, and production setups. Suitable for entertainment lighting applications, this cable helps integrate compatible devices into a DMX control system. Before installation, verify that connected equipment uses matching five-pin DMX connections to ensure proper compatibility. Read more

Features

Provides 25-foot length for flexible lighting equipment placement.
Features five-pin connectors for compatible DMX lighting equipment.
Connects lighting controllers with supported DMX-compatible fixtures.
Suitable for stage, studio, and live event applications.
Supports DMX signal connections between compatible lighting devices.
Simplifies cable routing across professional lighting production setups.

Business Financing Options Avaiable

View Available Financing

Features

Provides 25-foot length for flexible lighting equipment placement.
Features five-pin connectors for compatible DMX lighting equipment.
Connects lighting controllers with supported DMX-compatible fixtures.
Suitable for stage, studio, and live event applications.
Supports DMX signal connections between compatible lighting devices.
Simplifies cable routing across professional lighting production setups.

No products currently in stock

About the Accu-Cable AC5PDMX25 5-Pin DMX Cable (25')

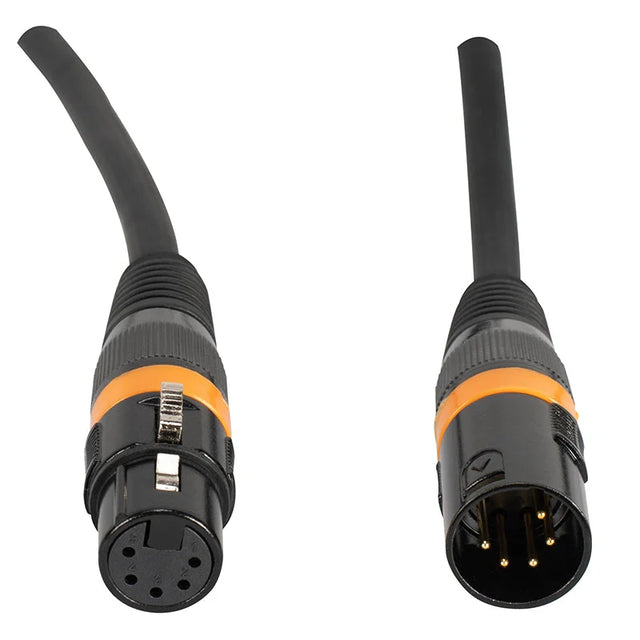

The Accu-Cable AC5PDMX25 is a professional 25-foot, 5-pin DMX cable designed for connecting DMX controllers, lighting fixtures, effects, and other compatible DMX equipment. It features a 5-pin XLR male-to-female configuration, providing a standard connection for professional lighting-control systems. With a total length of 25 feet (7.62 meters), the cable offers useful reach for stage, theater, studio, touring, and event-production applications. ADJ specifies the AC5PDMX25 as a cable intended for linking lighting effects for DMX or Primary/Secondary control modes.

The cable uses 22 AWG stranded tinned-copper conductors arranged as a twisted pair, with polyethylene insulation and a polyethylene inner jacket. Its shielding consists of Duofoil aluminum foil-polyester tape with 100% coverage, combined with a tinned-copper braid providing 85% coverage. The outer jacket is made from PVC and is designed to help prevent kinking during handling and storage. The cable has a verified 110-ohm nominal characteristic impedance, making it specifically suited to DMX data transmission rather than ordinary microphone-audio applications.

The AC5PDMX25 also has detailed electrical and mechanical specifications suited to professional production environments. Its documented characteristics include 12.5 pF/ft conductor-to-conductor capacitance at 1 kHz, 23 pF/ft conductor-to-shield capacitance, a 76% nominal velocity of propagation, and a 1.6 ns/ft nominal delay.

Key Features

Provides 25-foot length for flexible lighting equipment placement.
Features five-pin connectors for compatible DMX lighting equipment.
Connects lighting controllers with supported DMX-compatible fixtures.
Suitable for stage, studio, and live event applications.
Supports DMX signal connections between compatible lighting devices.
Simplifies cable routing across professional lighting production setups.

Already own this item and want to sell it?

Click here to sell your item

Accu-Cable AC5PDMX25 5-Pin DMX Cable (25') Specs

Cable & Connector Configuration

Cable Length

25 ft (7.62 m)

Connector 1

5-Pin XLR Male

Connector 2

5-Pin XLR Female

Connection Type

5-Pin Male to 5-Pin Female

Number of Pairs

Total Conductors

Conductor Construction

Wire Gauge

22 AWG

Conductor Material

Tinned Copper

Stranding

0.15 x 19

Conductor Diameter

0.0354 in (0.899 mm)

Insulation Material

Polyethylene

Inner Jacket Material

Polyethylene

Inner Jacket Diameter

0.055 in (1.40 mm)

Shielding & Jacket

Shield Type

Duofoil Tape + Tinned Copper Braid

Aluminum Foil Coverage

100%

Tinned Copper Braid Coverage

85%

Outer Jacket Material

PVC

Nominal Overall Diameter

0.295 in (7.49 mm)

Shielded

Yes

Key Features

Provides 25-foot length for flexible lighting equipment placement.
Features five-pin connectors for compatible DMX lighting equipment.
Connects lighting controllers with supported DMX-compatible fixtures.
Suitable for stage, studio, and live event applications.
Supports DMX signal connections between compatible lighting devices.
Simplifies cable routing across professional lighting production setups.
