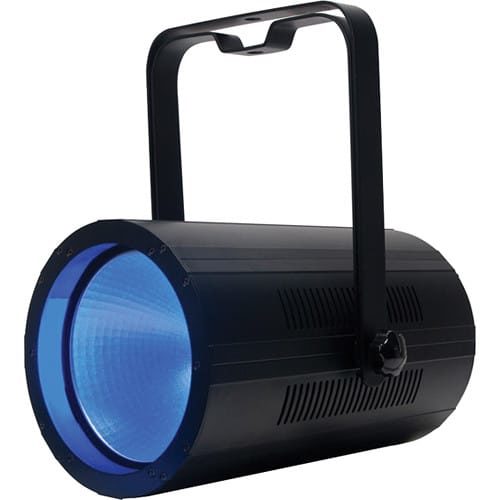

ADJ COB CANNON WASH ST LED PAR Can (RGBA)

$0.00

Items Included

Item Notes

Condition: Out of stock
Once stock replenishes, inventory will display below.
Pricing
Sold out
Pre-Owned Guarantee 14 Day Return Window

Description

The ADJ COB Cannon Wash ST is a shorter version of the popular COB Cannon Wash fixture. It uses advanced RGBA COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGBA shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the COB Cannon Wash ST is a QUAD RGBA 4-In-1). It also doubles as an uplight with its scissor yoke that act as legs to set the fixture upright to wash walls and ceilings. Read more

Features

  • Flicker Free operation (No flickering on camera)
  • Produces powerful, smooth RGBA color mixing with rich palettes of color
  • Use as Wash/par or Pixel Mapped for a stunning visual effect
  • Scissor yoke allows fixture to be mounted on truss or set on the ground
  • Optional Barn Doors (BAR001) sold separately
  • Run all night – No duty cycle

Business Financing Options Avaiable

The ADJ COB Cannon Wash ST is a shorter version of the popular COB Cannon Wash fixture. It uses advanced RGBA COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGBA shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the COB Cannon Wash ST is a QUAD RGBA 4-In-1). It also doubles as an uplight with its scissor yoke that act as legs to set the fixture upright to wash walls and ceilings. Read more

Features

  • Flicker Free operation (No flickering on camera)
  • Produces powerful, smooth RGBA color mixing with rich palettes of color
  • Use as Wash/par or Pixel Mapped for a stunning visual effect
  • Scissor yoke allows fixture to be mounted on truss or set on the ground
  • Optional Barn Doors (BAR001) sold separately
  • Run all night – No duty cycle

About the ADJ COB CANNON WASH ST LED PAR Can (RGBA)

The ADJ COB CANNON WASH ST is a high-intensity LED wash fixture that leverages advanced Chip-on-Board (COB) technology to deliver exceptional output and smooth color mixing in a compact PAR can form factor. Designed for stage, studio, and event lighting, it features a potent RGBA (Red, Green, Blue, Amber) LED array integrated onto a single COB module. This engineering approach eliminates the multiple discrete LEDs found in traditional fixtures, producing a perfectly uniform beam with no pixelation or color shadows, resulting in a clean, homogeneous wash of light ideal for illuminating performers, sets, and atmospheres with professional-grade quality.

The fixture's optical system is built around a variable beam angle, often controlled via a motorized zoom function, allowing users to adjust the spread of light from a tight spot to a wide flood without moving the fixture. This flexibility makes it a versatile tool for both precise highlighting and broad area coverage. The inclusion of a dedicated Amber LED in the RGBA color system is a significant advantage, enabling the creation of rich, saturated warm tones, realistic skin tones, and vibrant pastels that are difficult to achieve with standard RGB mixes alone. Combined with a high CRI (Color Rendering Index), this ensures colors on stage appear true and vivid under its illumination.

Control and integration are streamlined for professional environments. The COB CANNON WASH ST offers full DMX-512 compatibility with multiple channel modes, providing detailed control over intensity, color mixing, zoom, and built-in effects like strobe and dimming curves. It also supports standalone operation with internal programs and sound-activated modes for simpler setups. Housed in a durable, lightweight aluminum casing with an efficient thermal management system, the fixture is built to dissipate heat effectively, ensuring consistent performance and long LED lifespan even during extended use.

Ultimately, the ADJ COB CANNON WASH ST represents a significant step forward in LED wash light performance. By combining the sheer output and smooth field of COB technology with a versatile zoom system and a rich RGBA color palette, it provides lighting designers and technicians with a powerful, reliable, and feature-rich wash light. It is an excellent choice for applications ranging from live concerts and theatrical productions to permanent installations in clubs and houses of worship, where high-quality, controllable wash lighting is a fundamental requirement.

Key Features

  • Flicker Free operation (No flickering on camera)
  • Produces powerful, smooth RGBA color mixing with rich palettes of color
  • Use as Wash/par or Pixel Mapped for a stunning visual effect
  • Scissor yoke allows fixture to be mounted on truss or set on the ground
  • Optional Barn Doors (BAR001) sold separately
  • Run all night – No duty cycle

ADJ COB CANNON WASH ST LED PAR Can (RGBA) Specs

Optical
Beam Angle
Motorized Zoom (e.g., 15° to 45° range)
Color Mixing
RGBA system for rich color and white tones
CRI (Color Rendering Index)
Typically >90 (High)
Control
Protocols
DMX-512, Master/Slave, Sound-Active, Standalone
DMX Channels
Multiple modes (e.g., 7CH, 14CH)
Control Features
Dimming, strobe, color macros, zoom control
Electrical
Power Input
100-240V AC, 50/60Hz
Power Consumption
Varies with output (e.g., ~200W maximum)
Physical
Housing
Die-cast aluminum
Cooling
Active fan cooling
Mounting
Standard yoke with 1/4-turn safety lock
Connection
3-pin & 5-pin XLR In/Out (DMX & Power)

Key Features

  • Flicker Free operation (No flickering on camera)
  • Produces powerful, smooth RGBA color mixing with rich palettes of color
  • Use as Wash/par or Pixel Mapped for a stunning visual effect
  • Scissor yoke allows fixture to be mounted on truss or set on the ground
  • Optional Barn Doors (BAR001) sold separately
  • Run all night – No duty cycle

FAQs about ADJ COB CANNON WASH ST LED PAR Can (RGBA)

What is the ADJ COB Cannon Wash ST LED Par Can?

It is a high-output wash fixture featuring advanced Chip-On-Board (COB) LED technology. Designed for stage lighting, church venues, and club production, it delivers vibrant color mixing with smooth, shadow-free illumination from a single light source.

What light engine and LED chip set does it use?

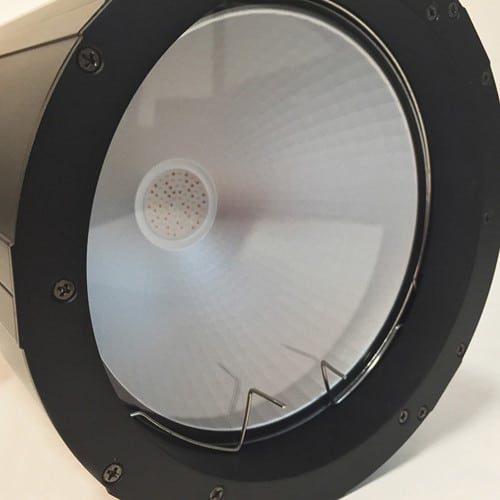

The fixture uses a single 150-Watt COB RGBA (Red, Green, Blue, Amber) LED diode. The addition of amber allows for rich color blending, warmer tones, and natural pastels that traditional RGB wash lights cannot easily achieve.

What does the "ST" stand for in this model name?

"ST" stands for Short Casing (or Short Throw). This version features a more compact, shorter housing design than the original COB Cannon Wash, making it much easier to position in tight spaces, low ceilings, or inside stage trussing.

What beam angles are available out of the box?

The fixture natively produces a wide 80-degree beam angle for massive wash coverage. It also includes easily swappable 40-degree and 50-degree lens optics in the box so you can narrow the light spread for focused stage washing or uplighting.

How can I control the COB Cannon Wash ST?

It offers flexible control options, including multiple DMX channel modes (up to 10 channels), Sound Active mode, Auto Run mode, and Static Color mode. It is also compatible with the optional ADJ UC IR wireless remote and Airstream IR controller app.

Does it offer flicker-free operation for videos and camera setups?

Yes, it features flicker-free operation with 5 selectable dimming curve options (Standard, Stage, TV, Architectural, and Theatre). This makes it well-suited for live streaming, broadcast television, and video production environments.

How is the fixture mounted or positioned?

It comes equipped with a versatile dual-yoke mounting bracket system. This dual bracket allows you to hang the fixture from a lighting truss using a standard clamp, or unfold it to stand securely on the floor as a up-lighting spot.

Can I link multiple units together for power and signal?

Yes, it features 3-pin and 5-pin DMX inputs/outputs alongside PowerCon input and output connections. This allows you to chain both DMX data signal and main AC power across multiple fixtures to keep cable layouts clean.
