ADJ

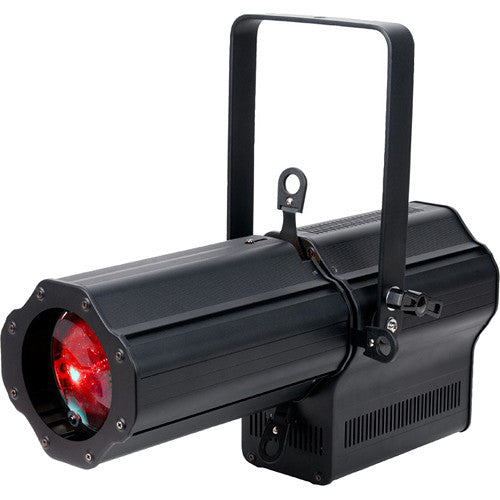

ADJ ENC132 Encore Profile 1000 Color RGBW LED Ellipsoidal w/ Manual Zoom and 12-30° Zoom

$633.70 - $929.99

The Encore Profile 1000 Color RGBW LED Ellipsoidal with Manual Zoom and 12-30° Zoom from American DJ, is a variable color output theatrical fixture that features manual zoom and focus control. It features five separate operating modes, five dimming modes, a master/slave function, and uses up to five DMX channels. The light outputs 64 static colors and is equipped with four replaceable GOBOs so you can create a variety of patterns.

The fixture allows you to adjust the beam spread from 12 to 30°. At 12° the fixture throws its beam up to 130', and at 30° beam spread the fixture throws its beam up to 90'. Manual zoom allows you to adjust the beam spread and the manual focus enables focusing your gobo pattern where you need it. As to be expected with a theatrical ellipsoidal built-in, manual framing shutters allow you to neatly cut and control the output. Compatible with optional IR remote controls, so you can control the fixture via DMX or IR.

View Product Features

  • 120W RGBW Ellipsoidal with Zoom
  • 5 Modes and Master/Slave Function
  • 5 DMX Channels
  • 0 to 100% Electronic Dimming
  • 64 Static Colors
  • 130' Throw at 12° Beam Spread
  • 90' Throw at 30° Beam Spread
  • Manual Zoom and Focus
  • Manual Framing Shutters
  • IR Remote Compatible
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the ADJ ENC132 Encore Profile 1000 Color RGBW LED Ellipsoidal w/ Manual Zoom and 12-30° Zoom

The ADJ ENC132 Encore Profile is a modern LED ellipsoidal reflector spotlight (ERS) that redefines fixed installation and theatrical lighting with efficient, solid-state technology. Replacing traditional high-wattage tungsten or HPL lamps, this fixture employs a high-output RGBW LED engine to deliver a fully saturated spectrum of color alongside a high-quality variable white light, all from a single, cool-running source. Its primary function is to provide precise, shaped illumination for key lighting, area lighting, and pattern projection in theaters, churches, television studios, and architectural applications. The fixture features a manual zoom mechanism that allows the user to physically adjust the beam angle across a versatile range from a tight 12-degree spot to a wider 30-degree flood, providing flexibility to tailor the field size to the specific requirements of each application without changing lenses.

The optical system is built around a genuine ellipsoidal reflector and lens train, engineered to produce a sharp, defined beam edge with excellent field flatness and homogeneity. It includes standard framing shutters for shaping the light into squares, rectangles, or other geometric forms, and a slot for accepting metal or glass gobos for pattern projection. The color system offers extensive creative control, enabling pure, saturated colors from the RGB mixing system, a wide range of pastels, and a variable white light from a warm 3200K to a cool 6500K to match other light sources or set a specific mood.

Designed for reliability in permanent installations, the ENC132 operates silently with minimal heat output, reducing ventilation requirements and enhancing safety around set pieces or drapery. It draws significantly less power than a conventional 1000-watt ellipsoidal while offering vastly superior color capabilities. This fixture represents a sustainable, versatile, and professional-grade lighting instrument that brings the creative advantages of LED color mixing and efficiency to the precise world of profile spotlights.

Key Features

  • 120W RGBW Ellipsoidal with Zoom
  • 5 Modes and Master/Slave Function
  • 5 DMX Channels
  • 0 to 100% Electronic Dimming
  • 64 Static Colors
  • 130' Throw at 12° Beam Spread
  • 90' Throw at 30° Beam Spread
  • Manual Zoom and Focus
  • Manual Framing Shutters
  • IR Remote Compatible

ADJ ENC132 Encore Profile 1000 Color RGBW LED Ellipsoidal w/ Manual Zoom and 12-30° Zoom Specs

General
Product Model
ENC132 Encore Profile 1000
Type
RGBW LED Ellipsoidal Reflector Spotlight (ERS)
Use Case
Theatrical, studio, architectural profile lighting
Light Source
LED Type
High-CRI RGBW LED Array
Equivalent Output
Comparable to 1000W traditional ERS
Color Temperature Range
3200K to 6500K (variable white)
CRI
Greater than 90
Optical System
Beam Angle
Manual zoom, 12 to 30 degrees
Lens System
Ellipsoidal reflector with multi-element lens train
Framing Shutters
4 rotating shutters for beam shaping
Gobo Slot
Standard "A" size for metal/glass gobos
Focus
Manual focus adjustment
Color System
Color Mixing
Full RGB color mixing with variable white
Control
DMX control of RGBW intensity and white temperature
Control
Control Protocol
DMX-512
DMX Channels
5 / 6 / 7 selectable
Physical
Housing
Theatrical-grade steel with black finish
Cooling
Passive cooling (fanless)
Mounting
Standard yoke with 1/2" female receiver for clamps
Weight
Approximately 7 kg (15.4 lbs)
Power & Connectivity
Power Supply
Auto-switching 100-240V AC
Power Consumption
Approximately 160W
Connector
3-pin XLR for DMX In/Out

Key Features

  • 120W RGBW Ellipsoidal with Zoom
  • 5 Modes and Master/Slave Function
  • 5 DMX Channels
  • 0 to 100% Electronic Dimming
  • 64 Static Colors
  • 130' Throw at 12° Beam Spread
  • 90' Throw at 30° Beam Spread
  • Manual Zoom and Focus
  • Manual Framing Shutters
  • IR Remote Compatible

FAQs about ADJ ENC132 Encore Profile 1000 Color RGBW LED Ellipsoidal w/ Manual Zoom and 12-30° Zoom
