ADJ

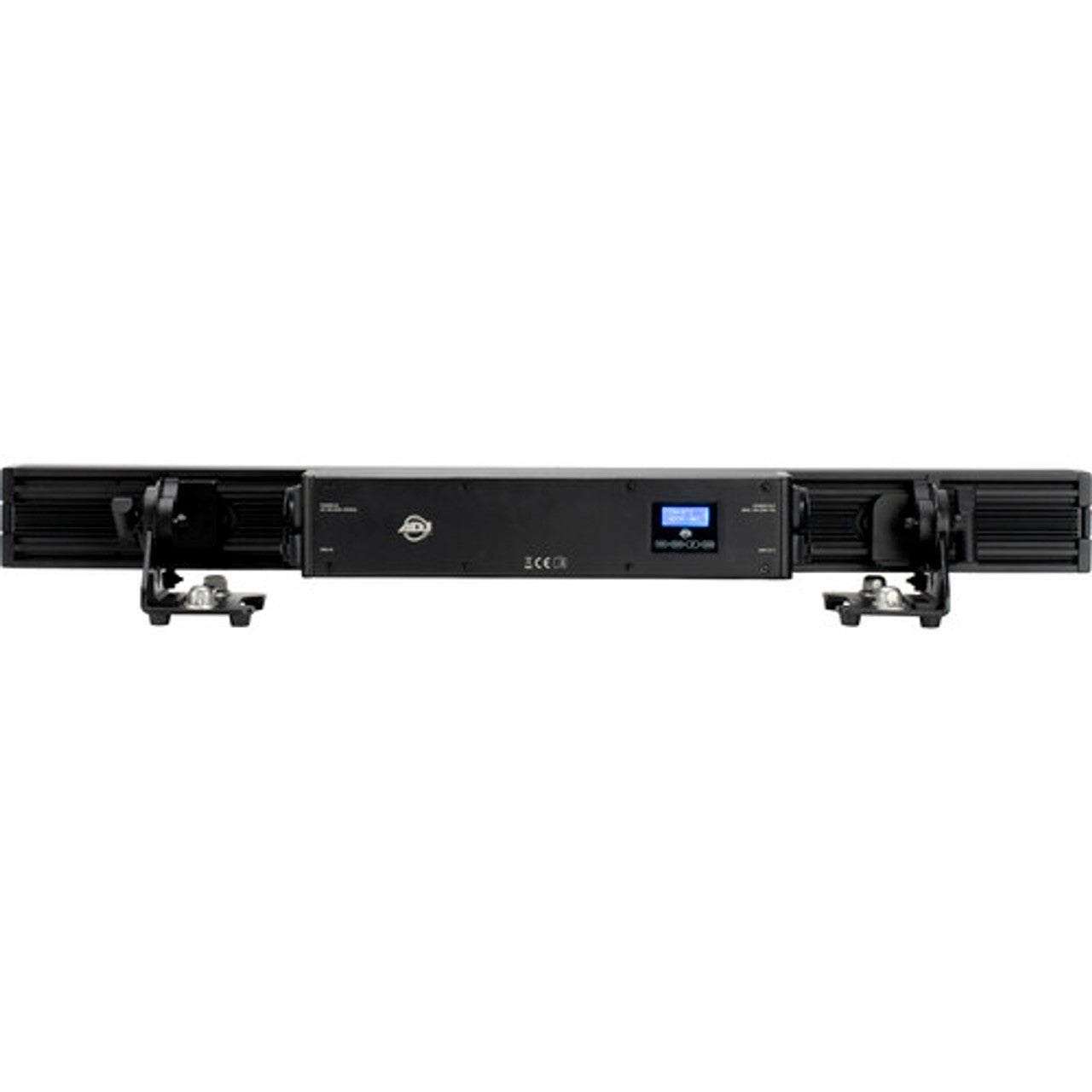

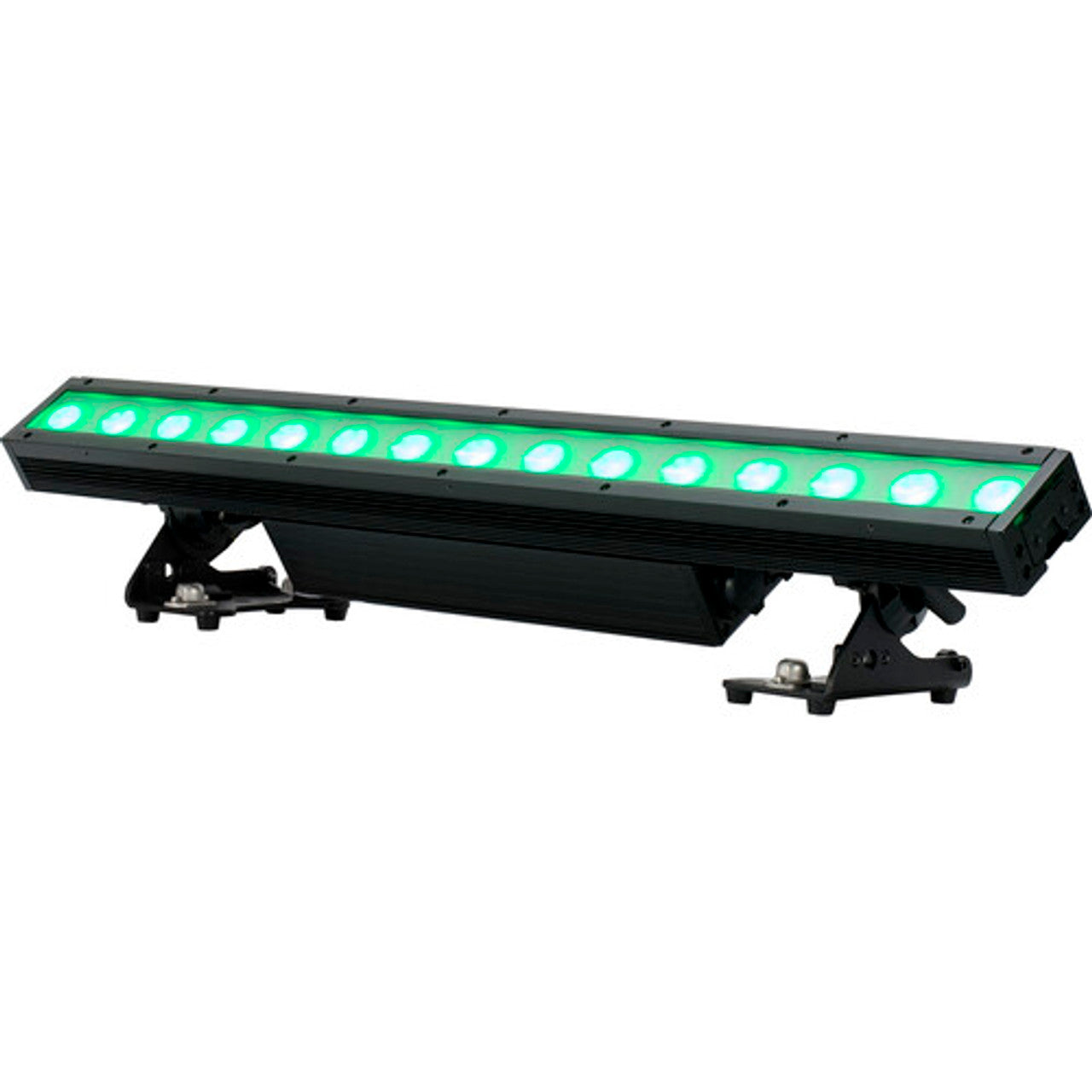

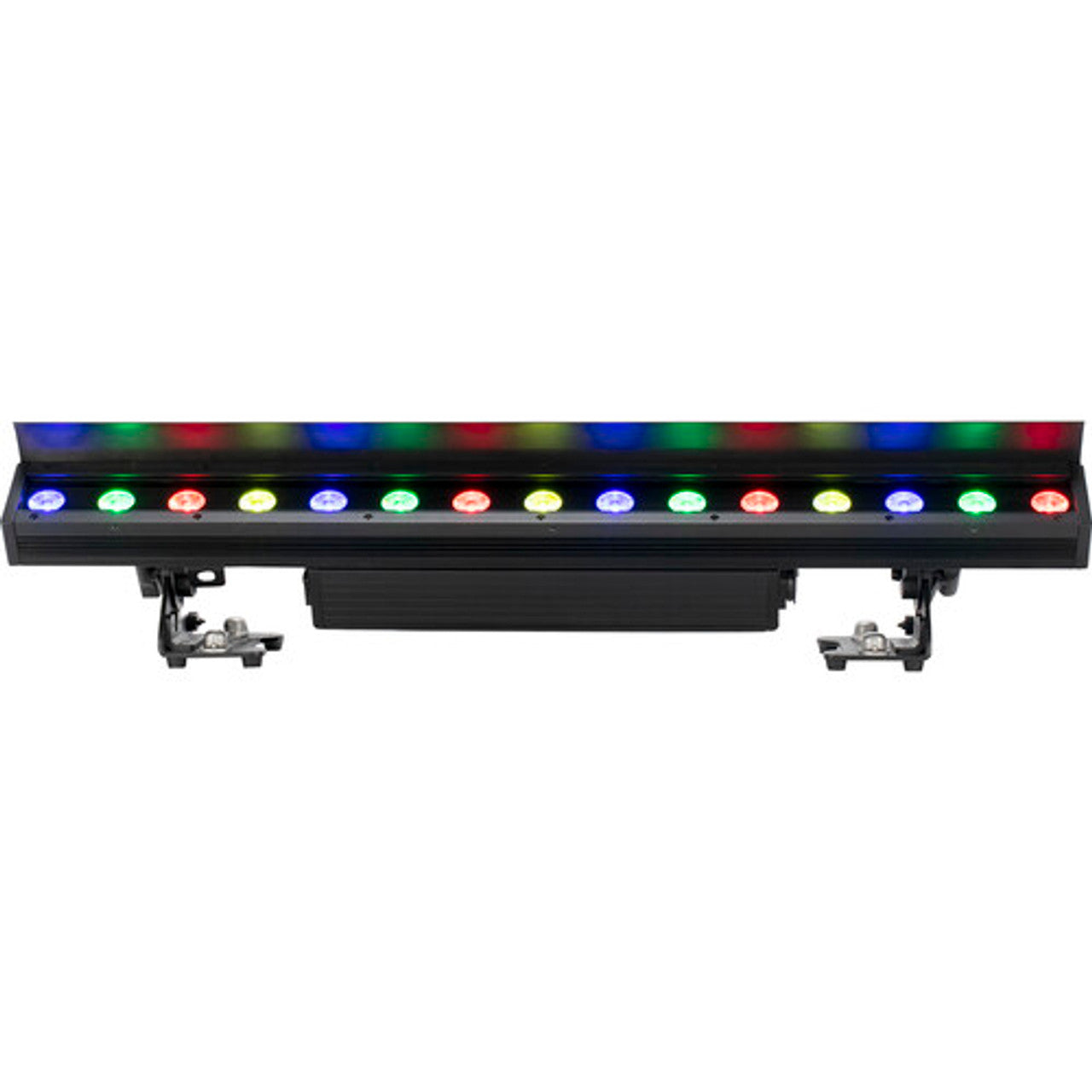

ADJ ENC820 Encore LB15 IP Quad-Color IP-65 Linear LED Wash

$877.45 - $1,299.99

The LB15 IP is part of ADJ’s Lime Par Series of LED wash fixtures utilizing high output 4-in-1 color mixing LEDs that each include individually controllable red, green, blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of color options achieved through mixing the four primary colors at varying levels of intensity. These include white light with a variable color temperature of 2700K to 7000K, which can be easily selected using either linear control or one of six preset macros. Inclusion of the Lime LED element boosts both CRI and perceived brightness as well as filling in gaps in the color spectrum. 16-Bit fine control over the four primary LED elements allows for a huge variety of color possibilities, while 64 built-in macros facilitate easy selection of popular options. The LB15 IP features 15 LEDs, with an equally spaced linear arrangement, which can each be controlled independently to allow for the creation of pixel-mapped effects.

View Product Features

  • IP65 Rated: Ingress Protection against liquid, snow, dust and sand
  • All metal construction
  • Beam angle: 12.4° (24° with attached diffusion filter)
  • Light Source: 15 x 20-Watt Quad RGBL LEDs (Red, Green, Blue & Lime)
  • Lumens: 5982
  • CRI: 89.3 / CRI R9: 69
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the ADJ ENC820 Encore LB15 IP Quad-Color IP-65 Linear LED Wash

The ADJ ENC820 Encore LB15 IP is a high-performance, weatherproof linear LED wash fixture engineered for architectural, theatrical, and event lighting installations requiring robust environmental protection and superior color quality. Built to an IP65 ingress protection rating, it is completely dust-tight and shielded against low-pressure water jets from any direction, making it suitable for both permanent outdoor applications—such as illuminating building facades, arches, and landscapes—and challenging indoor environments like pools, atriums, or stages where moisture and dust are concerns. Its durable, extruded aluminum housing and tempered glass lens are designed to endure long-term exposure to the elements while maintaining optical integrity.

This fixture distinguishes itself with a sophisticated quad-color LED system, typically incorporating combinations such as RGBW (Red, Green, Blue, White) or RGBAW (adding Amber) to achieve an exceptionally broad and rich color palette. This advanced mixing technology allows for the creation of deep, saturated hues, delicate pastels, and a full spectrum of high-quality white light with precise color temperature control from warm to cool. The inclusion of dedicated white and often amber LEDs is critical for achieving excellent color rendering index (CRI) values, ensuring that illuminated surfaces, materials, and skin tones appear natural and vibrant under its light.

The "linear" form factor of the LB15 IP is designed to produce a smooth, even, and continuous wash of light over a wide area, free from the individual hotspots or pixelation that can occur with discrete LED fixtures. It is an ideal tool for graze washing vertical surfaces, covelighting, or providing seamless color accents along architectural lines. For professional integration, the fixture offers multiple control options, including DMX-512 for detailed individual control, as well as simplified modes for stand-alone operation or wireless control systems, allowing for easy programming of static colors, dynamic chases, and timed scenes.

Ultimately, the ADJ Encore LB15 IP represents a fusion of aesthetic lighting capability and rugged dependability. It provides lighting designers, architects, and installers with a versatile and reliable tool for creating dramatic color effects and elegant white light accents in environments where standard fixtures would fail. Its combination of IP-rated durability, advanced color mixing, and a smooth linear output makes it a premier choice for demanding permanent installations that require both visual impact and long-term resilience against weather and wear.

Key Features

  • IP65 Rated: Ingress Protection against liquid, snow, dust and sand
  • All metal construction
  • Beam angle: 12.4° (24° with attached diffusion filter)
  • Light Source: 15 x 20-Watt Quad RGBL LEDs (Red, Green, Blue & Lime)
  • Lumens: 5982
  • CRI: 89.3 / CRI R9: 69

ADJ ENC820 Encore LB15 IP Quad-Color IP-65 Linear LED Wash Specs

Environmental Rating
Ingress Protection
IP65 (Dust-tight & protected against water jets)
Light Source
LED System
Quad-Color LED Array (e.g., RGBW or RGBAW)
Color Mixing
Advanced mixing for full color spectrum & tunable white
Optical & Performance
Beam Angle
Optimized for wide, even linear wash (e.g., asymmetric spread)
CRI (Color Rendering Index)
High (typically >80, often >90 for white)
Light Output
High lumen output for architectural applications
Control
Protocols
DMX-512, Standalone, Wireless options (model dependent)
DMX Channels
Multiple channel modes for color and effect control
Control Features
Static color, dynamic chases, dimming, strobe (if applicable)
Electrical
Power Input
Typically low-voltage DC (e.g., 24V or 48V) via external driver
Input Voltage
Specified by driver
Power Consumption
Varies based on length and output
Physical
Form Factor
Linear bar
Mounting
Multiple brackets for surface, truss, or architectural mounting

Key Features

  • IP65 Rated: Ingress Protection against liquid, snow, dust and sand
  • All metal construction
  • Beam angle: 12.4° (24° with attached diffusion filter)
  • Light Source: 15 x 20-Watt Quad RGBL LEDs (Red, Green, Blue & Lime)
  • Lumens: 5982
  • CRI: 89.3 / CRI R9: 69
