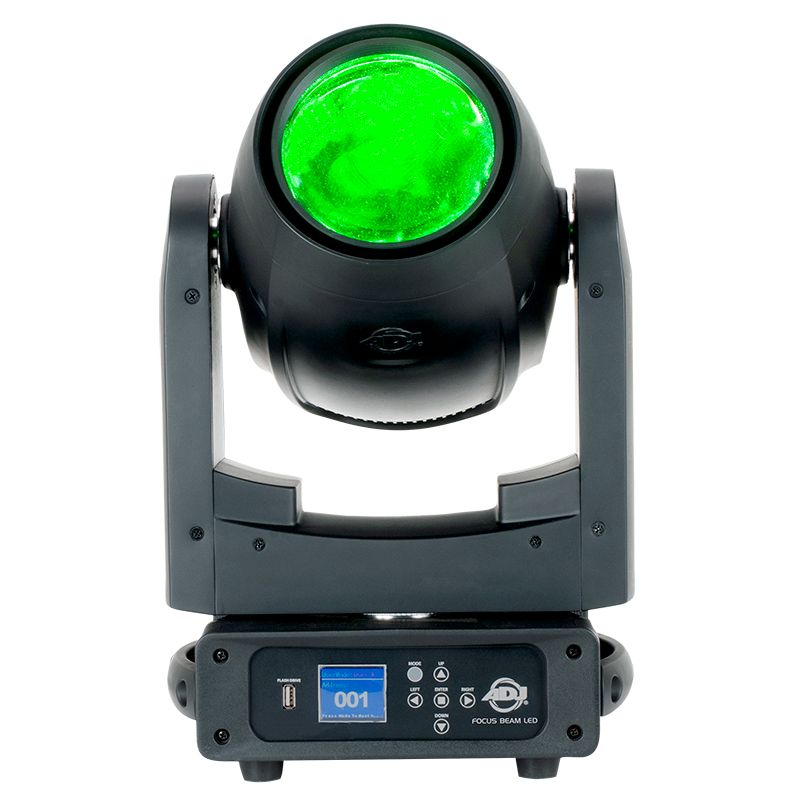

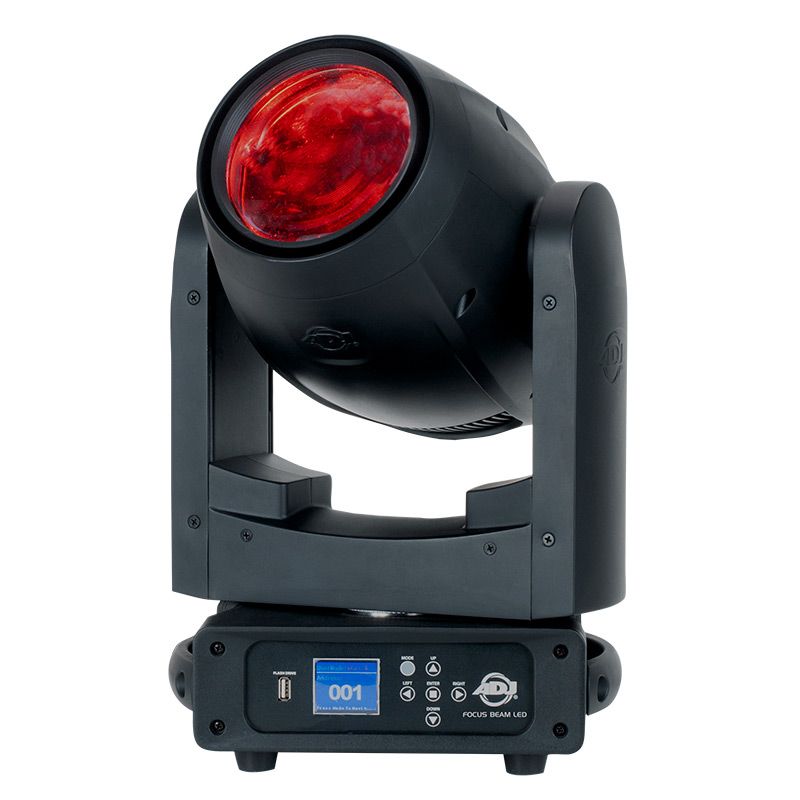

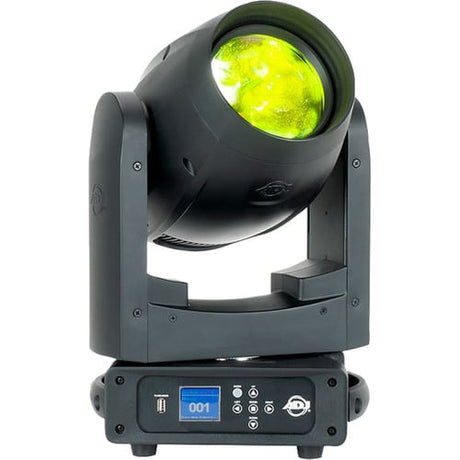

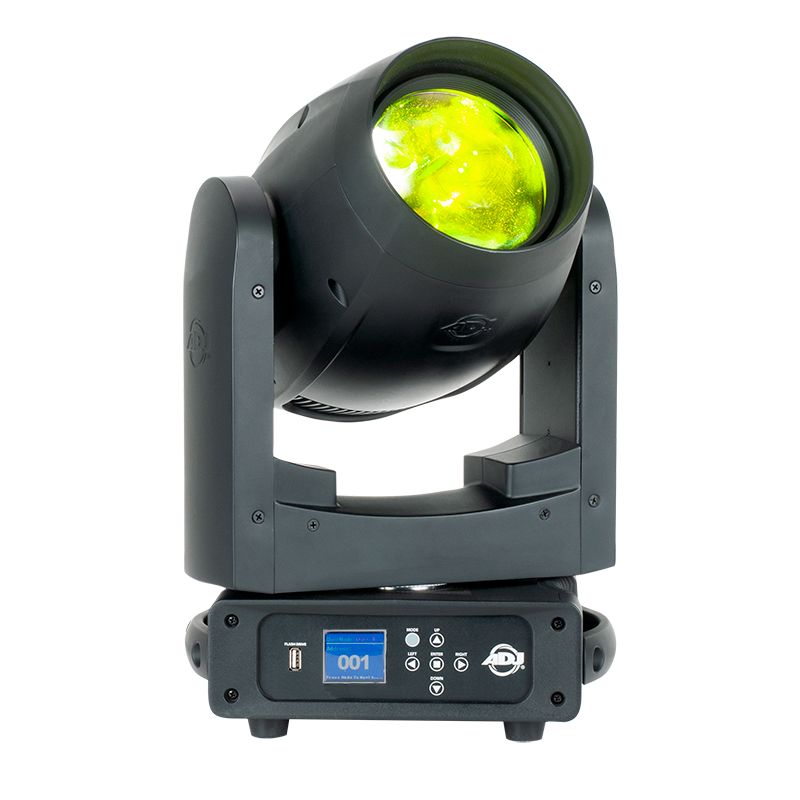

The American DJ Focus Beam LED is a professional-caliber moving head LED beam fixture designed for lighting installations and live performance applications in clubs, theaters, and concert productions. It features an 80W LED light source (rated at 50,000 hours), 630° pan, 270­° tilt, 16-bit movement resolution, and motorized focus.

The color wheel has 13 dichroic colors and white, and the metal gobo wheel features 15 static gobos plus open and shake effects. Two prism wheels include rotatable 8-facet circular and 6-facet linear prisms with indexing and overlay features. Also included are six selectable dimming curves (standard, stage, TV, architectural, theater, and stage 2). Additional features include adjustable gamma settings, an adjustable LED refresh rate, and a linear frost filter for wash effects.

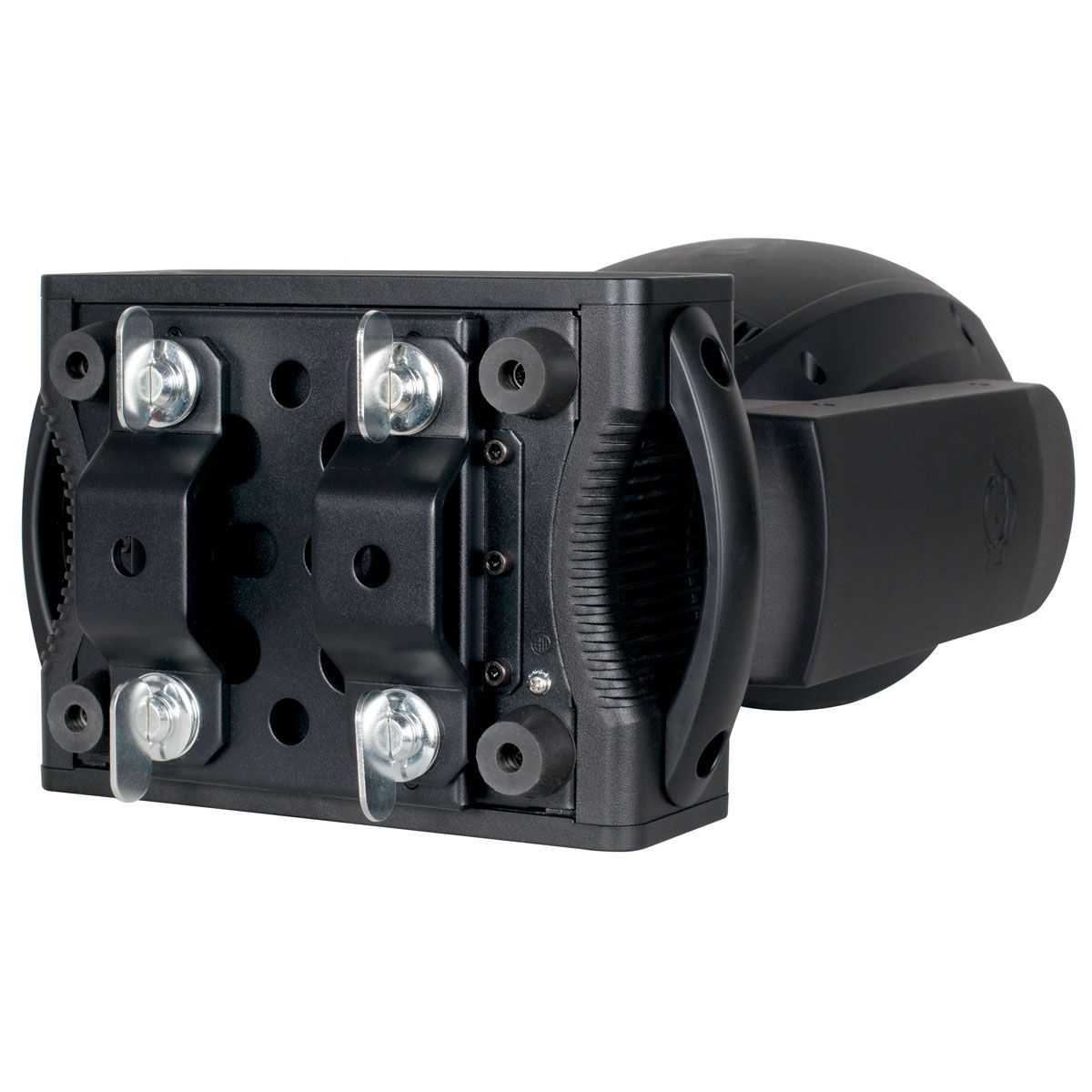

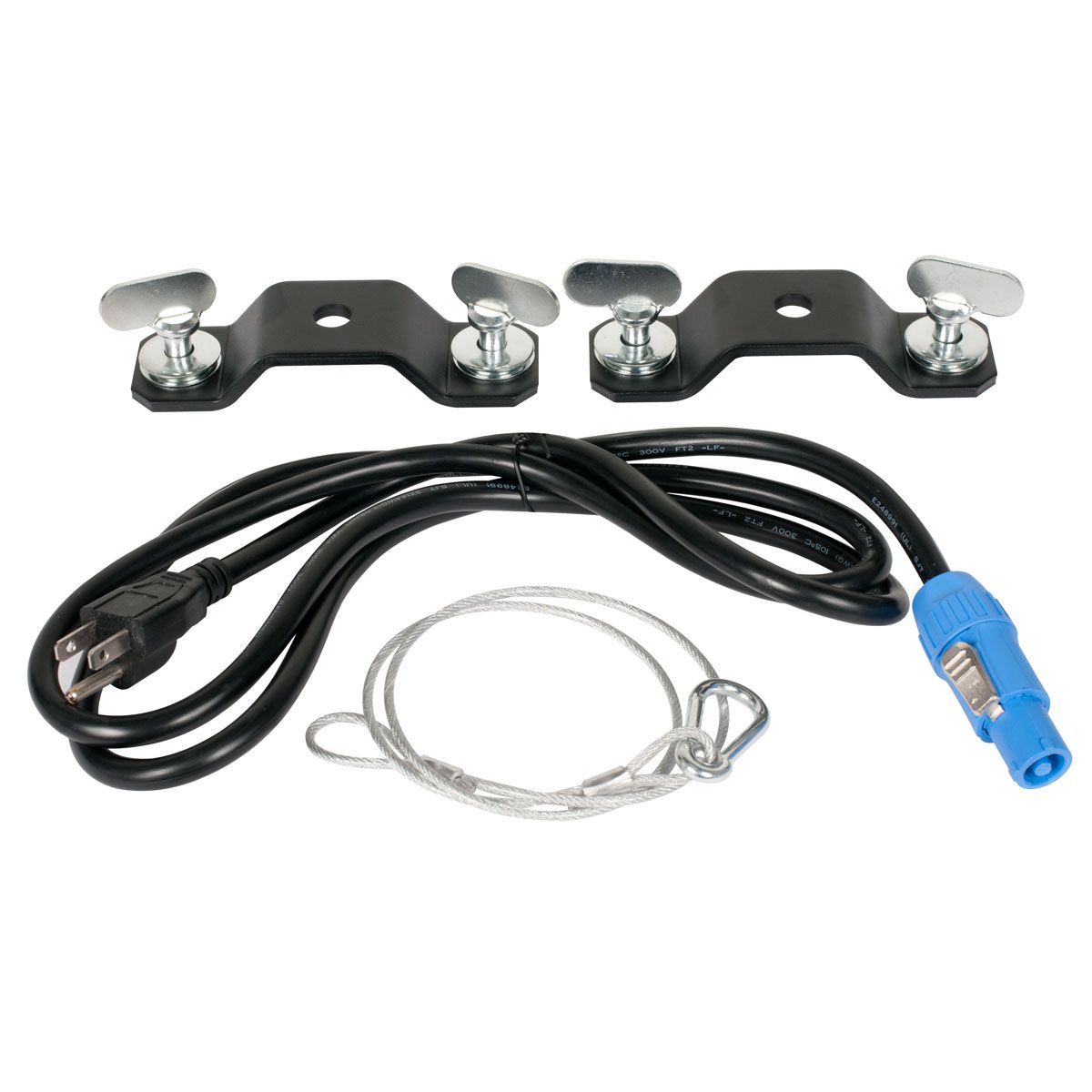

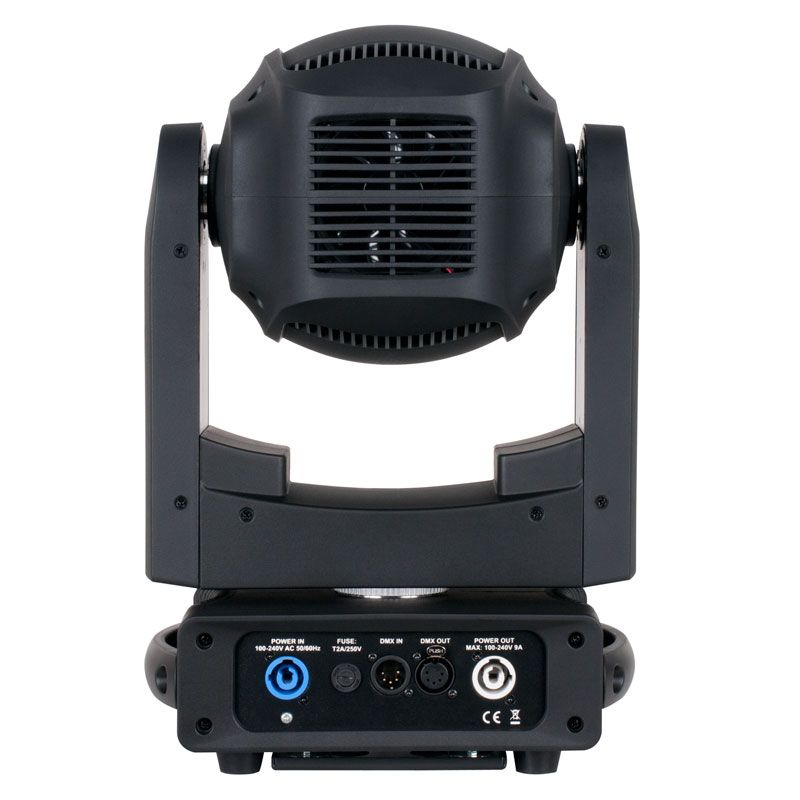

For controls, the unit works with RDM and DMX protocols with two DMX channel modes (16 and 18 channels). The 3-pin XLR DMX input and output connectors and Seetronic locking power input and output connectors allow for daisy chaining multiple units to create complex lighting installations. The onboard function display with 5 touch buttons makes it easy to dial in custom settings. The American DJ Focus Beam LED ships with two Omega brackets and a Seetronic locking power cord.
