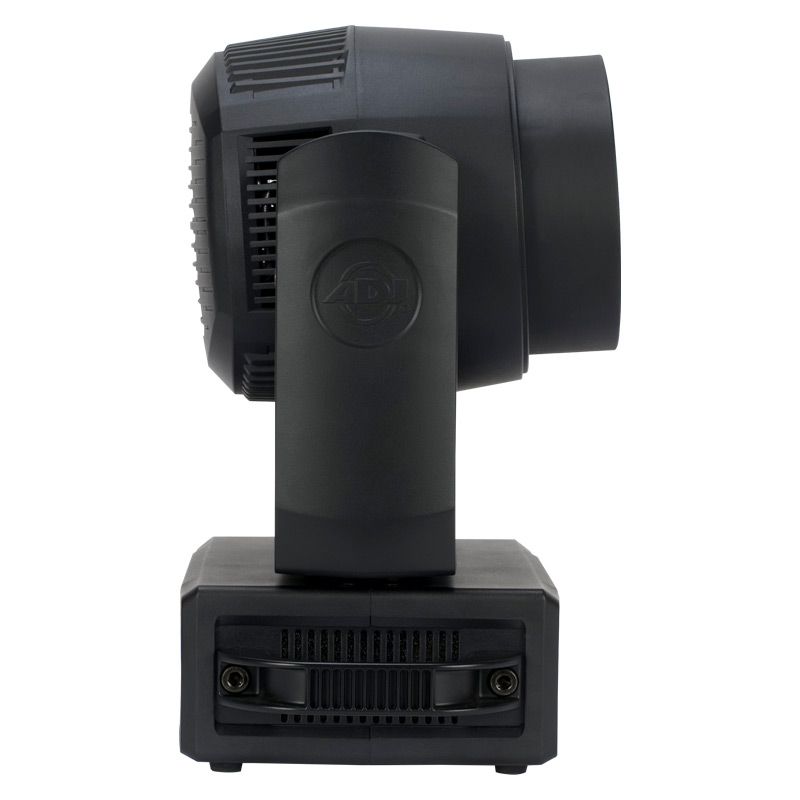

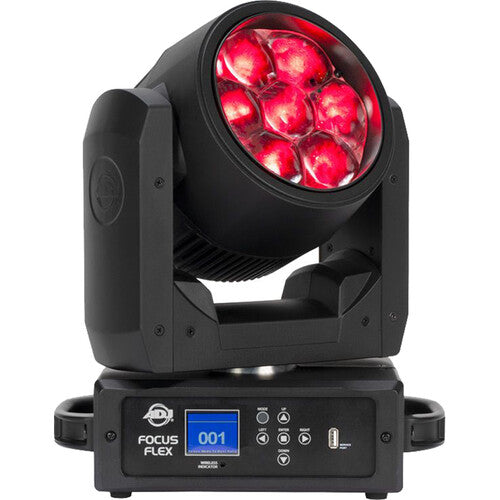

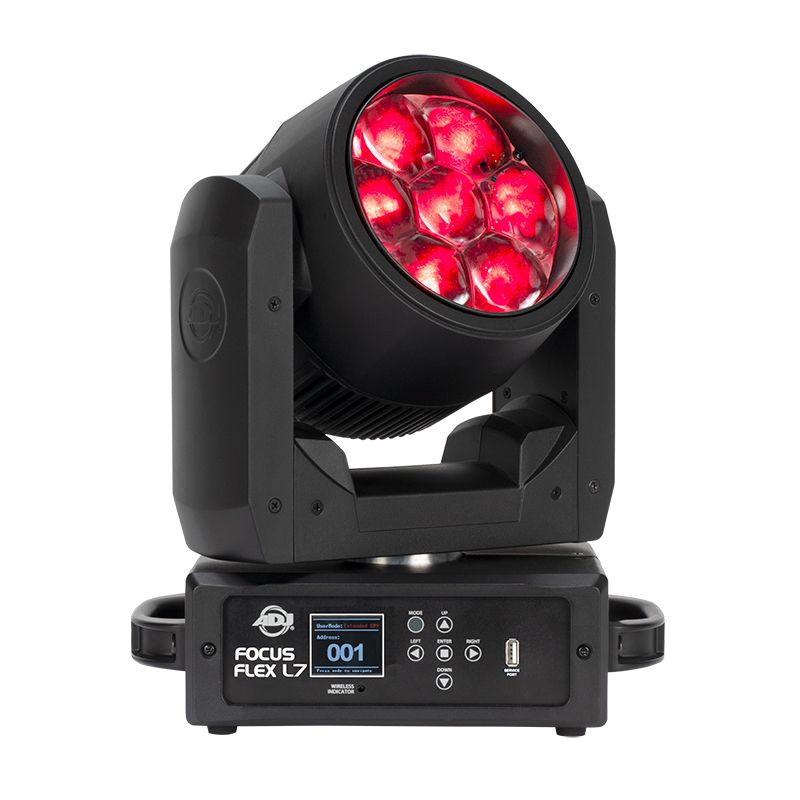

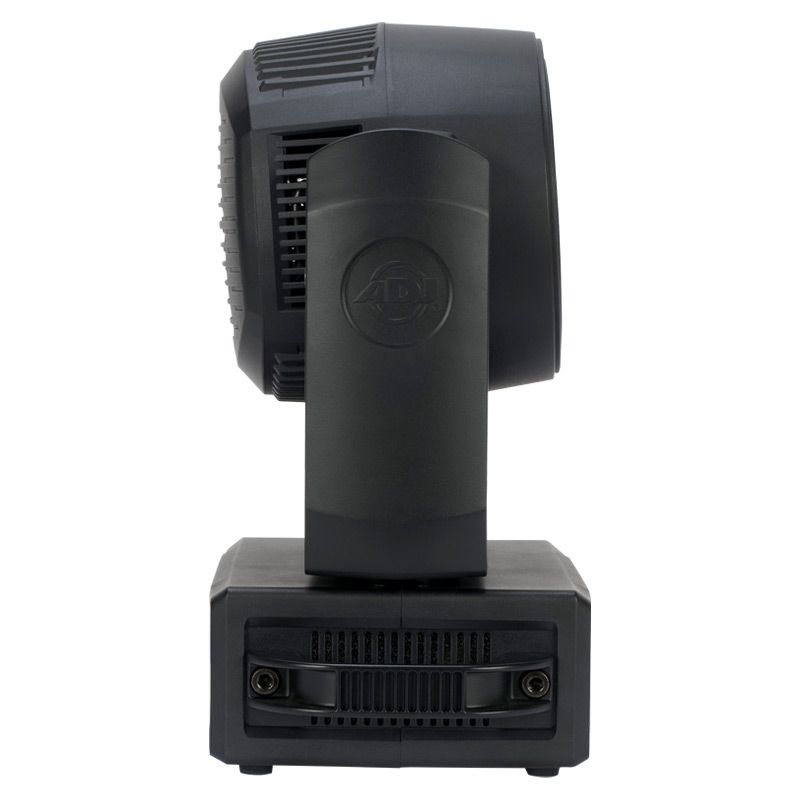

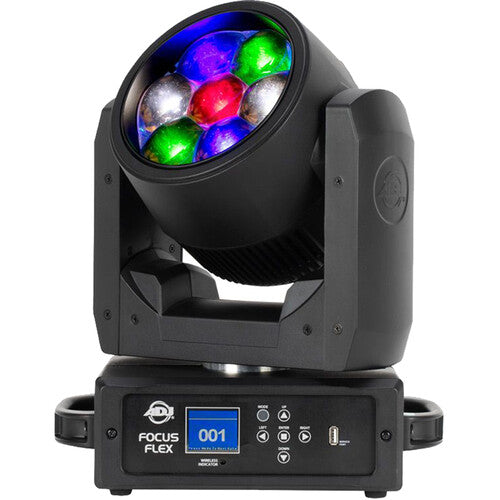

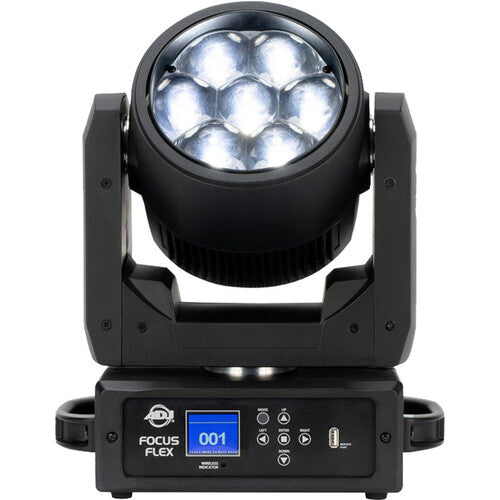

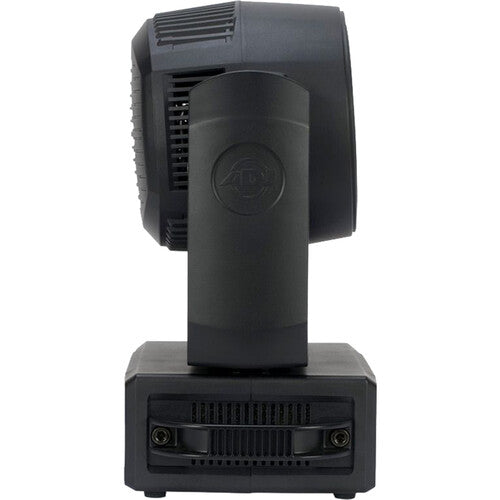

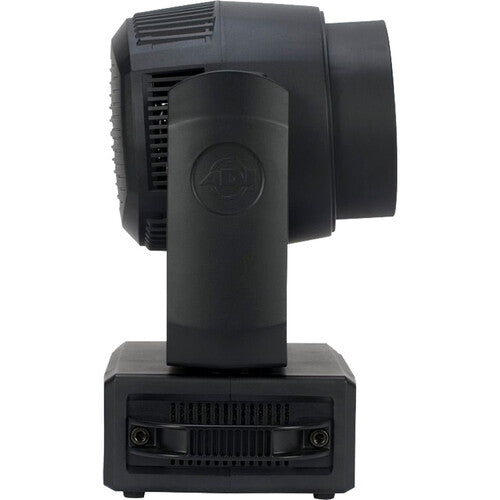

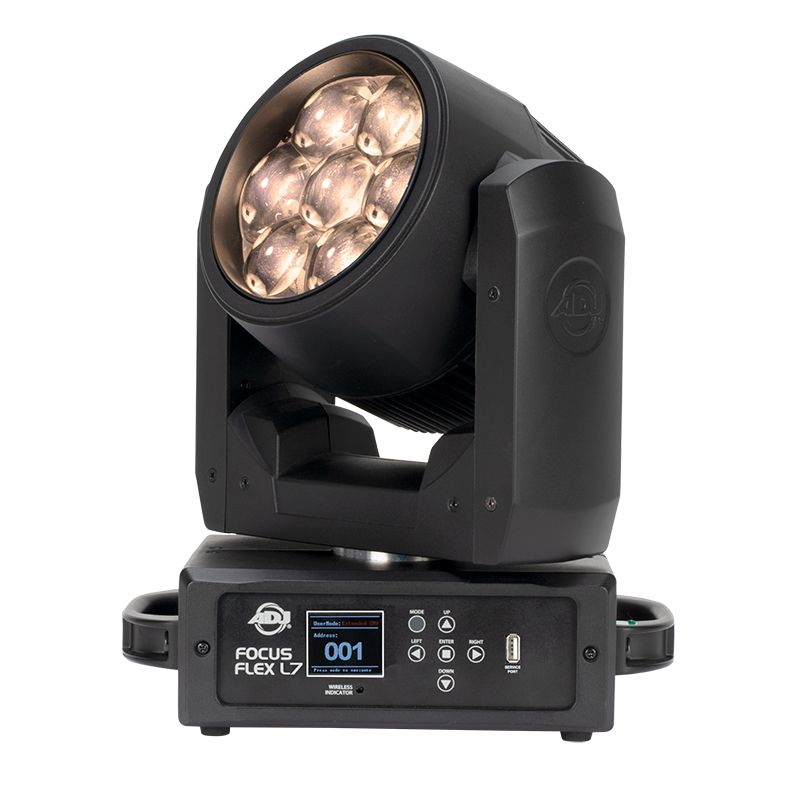

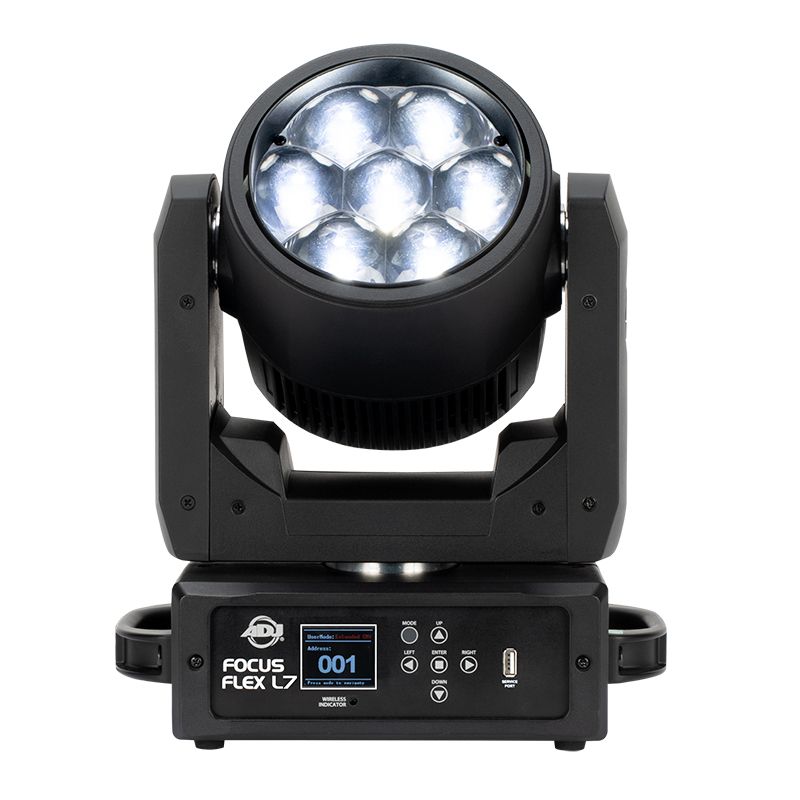

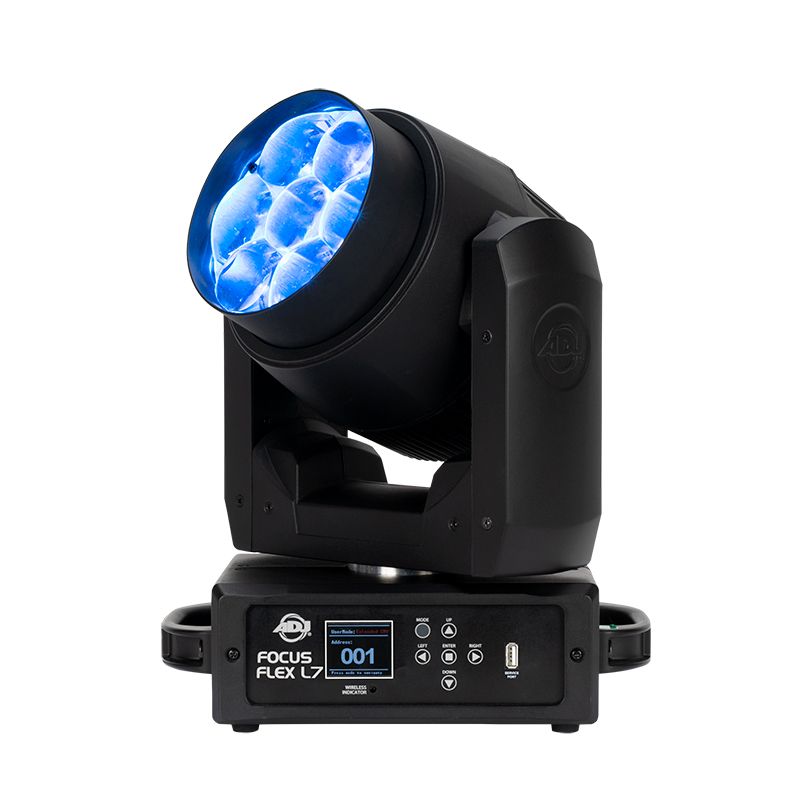

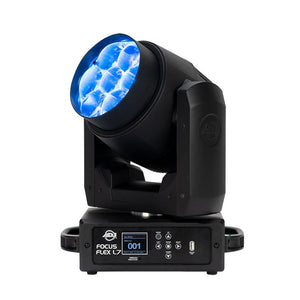

ADJ Focus Flex 7-Pixel RGBW LED Moving Head

$0.00

Items Included

Item Notes

Condition: Out of stock
Once stock replenishes, inventory will display below.
Pricing
Sold out
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The Focus Flex is powered by seven 40W 4-in-1 (red, green, blue, white) color mixing LEDs, each of which can be controlled independently. It offers a motorized zoom with variable field angle of 6 to 57°. With a variety of DMX mode options appropriate for different applications, Focus Flex offers virtual background and foreground color-wheel control and virtual CMY color mixing, as well as a choice of seven DMX modes. The Focus Flex includes a locking power cord, Omega brackets, and a WiFLY antennae. Read more

Features

  • Moving head pixel wash with pixel effects
  • Electronic strobe / dimmer
  • Pan/Tilt: 540 to 630º / 265º
  • Motorized zoom
  • Beam Angle: 4 to 35°
  • Field Angle: 6 to 57°
  • Color calibrated pixels, so units match from batch to batch
  • Virtual CMY DMX control modes
  • Virtual foreground and background color wheel control
  • Selectable led refresh rates (900 Hz to 25 kHz)
  • Selectable Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2, and User settable dim speed (0.1 to 10 sec)
  • 4 Dim Curves: Square, Linear, Inv. Square, and S. Curve
  • 0 to 100% smooth dimming
  • Various strobe speeds
  • USB firmware update port
  • Fan cooled
  • Antenna for WiFLY EXR wireless DMX

Business Financing Options Avaiable

View Available Financing

The Focus Flex is powered by seven 40W 4-in-1 (red, green, blue, white) color mixing LEDs, each of which can be controlled independently. It offers a motorized zoom with variable field angle of 6 to 57°. With a variety of DMX mode options appropriate for different applications, Focus Flex offers virtual background and foreground color-wheel control and virtual CMY color mixing, as well as a choice of seven DMX modes. The Focus Flex includes a locking power cord, Omega brackets, and a WiFLY antennae. Read more

Features

  • Moving head pixel wash with pixel effects
  • Electronic strobe / dimmer
  • Pan/Tilt: 540 to 630º / 265º
  • Motorized zoom
  • Beam Angle: 4 to 35°
  • Field Angle: 6 to 57°
  • Color calibrated pixels, so units match from batch to batch
  • Virtual CMY DMX control modes
  • Virtual foreground and background color wheel control
  • Selectable led refresh rates (900 Hz to 25 kHz)
  • Selectable Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2, and User settable dim speed (0.1 to 10 sec)
  • 4 Dim Curves: Square, Linear, Inv. Square, and S. Curve
  • 0 to 100% smooth dimming
  • Various strobe speeds
  • USB firmware update port
  • Fan cooled
  • Antenna for WiFLY EXR wireless DMX

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the ADJ Focus Flex 7-Pixel RGBW LED Moving Head

The ADJ Focus Flex is a compact, yet powerful, moving head fixture that utilizes a unique 7-pixel LED array to deliver versatile beam and wash effects. Unlike traditional moving heads with a single source, this fixture features seven individual high-output RGBW LEDs arranged in a hexagonal pattern, each capable of being controlled independently or in groups. This pixel-mapping capability allows for the creation of dynamic patterns, sharp geometric shapes, and multi-colored beam effects that are impossible with a standard fixture. The motorized head provides full pan and tilt movement, enabling these intricate pixel-based effects to be projected and scanned across a stage or venue with precision, adding a new layer of visual creativity to lighting designs for nightclubs, mobile DJs, and stage productions.

The fixture combines the functions of a beam light and a wash light. When all seven pixels are unified, it acts as a bright RGBW wash light, capable of mixing a vast spectrum of colors and rich whites. When controlled individually via advanced DMX modes, the pixels can create effects like color splitting, chasing patterns, and detailed logos or text. The optical system includes a motorized zoom to adjust the beam angle from a tight spot to a wide flood, and a motorized focus to sharpen or soften the edges of the beam and pixel elements. Housed in a rugged, lightweight chassis, the Focus Flex is designed for rigging or truss mounting and features a quiet cooling system suitable for noise-sensitive environments.

Integration is straightforward through standard DMX512 protocol, with multiple DMX channel modes offering control over the complexity of pixel mapping. The fixture is also compatible with ADJ's MyDMX software for PC-based lighting control. Its combination of pixel-level control, full movement, zoom, and RGBW color mixing in a single fixture makes the ADJ Focus Flex a highly innovative and flexible tool for lighting designers seeking to push beyond conventional moving head effects and create truly customized, intelligent visual displays.

Key Features

  • Moving head pixel wash with pixel effects
  • Electronic strobe / dimmer
  • Pan/Tilt: 540 to 630º / 265º
  • Motorized zoom
  • Beam Angle: 4 to 35°
  • Field Angle: 6 to 57°
  • Color calibrated pixels, so units match from batch to batch
  • Virtual CMY DMX control modes
  • Virtual foreground and background color wheel control
  • Selectable led refresh rates (900 Hz to 25 kHz)
  • Selectable Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2, and User settable dim speed (0.1 to 10 sec)
  • 4 Dim Curves: Square, Linear, Inv. Square, and S. Curve
  • 0 to 100% smooth dimming
  • Various strobe speeds
  • USB firmware update port
  • Fan cooled
  • Antenna for WiFLY EXR wireless DMX

Already own this item and want to sell it?

Click here to sell your item

ADJ Focus Flex 7-Pixel RGBW LED Moving Head Specs

Light Source
LED Array
7 x High-Power RGBW LEDs
Total Power
280W LED Engine
Pixel Control
Independently addressable
Optical System
Zoom Range
3° - 50° (Motorized)
Focus
Motorized
Pan/Tilt
540° Pan / 270° Tilt
Color & Control
Color Mixing
Full RGBW plus variable white
Control Protocol
DMX512, Master/Slave, Sound Active
DMX Channels
Multiple Modes (e.g., 20, 32, 40 channels)
Physical & Mounting
Fixture Weight
Approx. 12 kg
Mounting
Yoke with Omega Bracket
Cooling
Quiet Fan-forced
Power & Environmental
Input Voltage
100-240V AC, 50/60Hz
Power Consumption
350W Max
Operating Temperature
-10°C to 40°C

Key Features

  • Moving head pixel wash with pixel effects
  • Electronic strobe / dimmer
  • Pan/Tilt: 540 to 630º / 265º
  • Motorized zoom
  • Beam Angle: 4 to 35°
  • Field Angle: 6 to 57°
  • Color calibrated pixels, so units match from batch to batch
  • Virtual CMY DMX control modes
  • Virtual foreground and background color wheel control
  • Selectable led refresh rates (900 Hz to 25 kHz)
  • Selectable Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2, and User settable dim speed (0.1 to 10 sec)
  • 4 Dim Curves: Square, Linear, Inv. Square, and S. Curve
  • 0 to 100% smooth dimming
  • Various strobe speeds
  • USB firmware update port
  • Fan cooled
  • Antenna for WiFLY EXR wireless DMX

Already own this item and want to sell it?

Click here to sell your item

FAQs about ADJ Focus Flex 7-Pixel RGBW LED Moving Head

What is the ADJ Focus Flex?

It is a high-speed, compact moving head LED wash/beam fixture powered by seven 40-Watt 4-in-1 RGBW (Red, Green, Blue, White) LEDs. Designed for tour lighting, live events, stages, and installations, it offers multi-pixel mapping capabilities alongside motor-driven zoom functions.

What light output and optical engine capabilities does it feature?

The fixture houses seven 40W RGBW LEDs capable of producing total outputs over 3,000 lumens. Combining Red, Green, Blue, and White diodes allows for smooth full-spectrum color mixing, saturated hues, high-CRI white light rendering, and linear color temperature control (2700K to 10000K).

What is the beam angle range provided by the motorized zoom?

It features a motorized optical zoom range from a narrow 4-degree beam angle to a wide 57-degree wash coverage. This enables rapid switching between tight mid-air aerial beams, targeted spot highlights, and wide, soft-edged stage washes.

Does it support pixel mapping across the individual LEDs?

Yes, each of the seven 40W LEDs can be controlled independently via DMX or network control. This individual pixel mapping allows lighting operators to program dynamic multi-color visual effects, ring patterns, and visual motion chases across the lens face.

What wired and wireless control protocols are supported?

The fixture supports standard DMX-512, RDM (Remote Device Management), and wired digital communication networks including Art-Net and sACN. It also incorporates ADJ's WiFLY EXL wireless DMX transceiver for wire-free signal reception.

How fast and precise are the pan and tilt motor movements?

It features high-speed 16-bit motor movements providing 540-degree pan and 270-degree tilt capability. It includes fine-movement resolution, customizable pan/tilt limits for targeted zones, and auto-position correction if bumped out of alignment.

What power and connectivity interfaces are built into the unit?

The rear panel features locking powerCON TRUE1-compatible power input/output connectors alongside 5-pin DMX XLR jacks and RJ45 etherCON network ports for Ethernet daisy-chaining. Main power can be linked across multiple units on a single power line.

What are the physical dimensions and transport specs for touring rigs?

The Focus Flex is built compact for agile movement, measuring 11.0" x 7.3" x 14.7" (278 x 186 x 373 mm) and weighing 15.5 lbs (7.0 kg). It includes quick-lock Omega brackets for fast truss installation and features side-integrated handles for transport.
