SKU: FOCUS SPOT 4Z-B

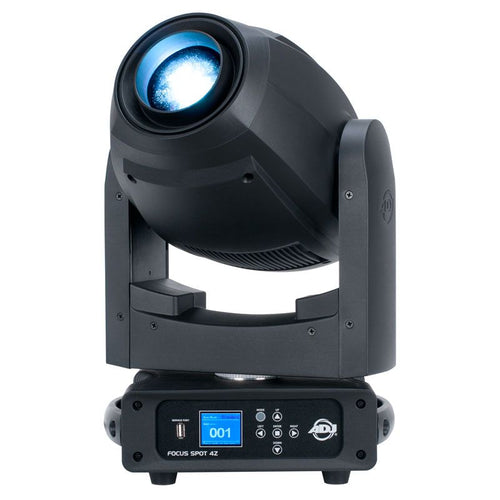

ADJ FOC200 Focus Spot 4Z 200W LED Moving Head Fixture

$0.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Sold out
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

Lighting designers in need of a feature-rich moving head will be impressed with the pearl American DJ Focus Spot 4Z, a 200W moving head spot fixture with motorized focus and zoom well suited for lighting installations and live performance applications in clubs, theaters, and concert productions. The 4Z features a 200W cool-white LED engine (rated at 50,000 hours), 16-bit fine tilt and pan movement, 16-bit fine dimming resolution, motorized focus, and a motorized zoom from 11 to 22°. 200W LED Moving Head Spot Fixture with Motorized Focus & Motorized Zoom (11 ~ 22-degrees). Equipped with 6 GOBOs plus open, 8 colors + white and 2 prism wheels. Read more

Features

  • Motorized Focus
  • Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
  • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
  • 0-100% smooth dimming
  • Various strobe speeds

Business Financing Options Avaiable

View Available Financing

Lighting designers in need of a feature-rich moving head will be impressed with the pearl American DJ Focus Spot 4Z, a 200W moving head spot fixture with motorized focus and zoom well suited for lighting installations and live performance applications in clubs, theaters, and concert productions. The 4Z features a 200W cool-white LED engine (rated at 50,000 hours), 16-bit fine tilt and pan movement, 16-bit fine dimming resolution, motorized focus, and a motorized zoom from 11 to 22°. 200W LED Moving Head Spot Fixture with Motorized Focus & Motorized Zoom (11 ~ 22-degrees). Equipped with 6 GOBOs plus open, 8 colors + white and 2 prism wheels. Read more

Features

  • Motorized Focus
  • Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
  • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
  • 0-100% smooth dimming
  • Various strobe speeds

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the ADJ FOC200 Focus Spot 4Z 200W LED Moving Head Fixture

The ADJ FOC200 Focus Spot 4Z is a compact and versatile 200W LED moving head spot fixture designed for mobile DJs, nightclubs, small to medium-sized stages, and houses of worship. It offers a rich feature set at an accessible price point, making professional moving head effects available to a broad range of users. The "4Z" in its name highlights two of its key capabilities: a 4-facet rotating prism and a motorized zoom. The prism allows the single beam to be split into multiple beams for dramatic aerial effects, while the motorized zoom provides dynamic control over the beam size from a tight spot to a wider beam, adding versatility to its projection capabilities.

This fixture utilizes a 200W white-light LED engine, providing bright output with the efficiency and long life of LED technology. Its optical system includes a color wheel with fixed colors (including open white), a gobo wheel with rotating/indexing gobos, the 4-facet prism, and the variable zoom. This combination allows it to produce classic moving spot effects such as sharp gobo projections, vibrant colored beams, and textured patterns with prism effects. It features smooth and quiet 16-bit pan and tilt movement for precise positioning and sweeping effects. The LED source enables instant on/off and strobe effects without the warm-up time or lamp replacement costs of traditional discharge fixtures.

Housed in a compact and durable casing, the Focus Spot 4Z is built for portability and reliability. It offers comprehensive control via DMX with multiple channel modes, a user-friendly LCD display for setup, and includes standalone/sound-active modes for operation without a dedicated lighting console. While it may not have the extreme output or advanced features of higher-end professional moving heads, its balanced combination of essential spot effects, motorized zoom, prism, and solid construction makes it a popular and effective choice for adding dynamic, automated lighting to a wide variety of events and venues.

Key Features

  • Motorized Focus
  • Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
  • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
  • 0-100% smooth dimming
  • Various strobe speeds

Already own this item and want to sell it?

Click here to sell your item

ADJ FOC200 Focus Spot 4Z 200W LED Moving Head Fixture Specs

Optical System & Light Source
Light Source
200W White Light LED
Beam Angle
4° - 15° (Motorized Zoom)
Effects
Motorized 4-facet rotating prism, Rotating/Indexing Gobo Wheel, Fixed Color Wheel
Gobos
Typically 7 rotating/indexing metal gobos + open
Color Wheel
Typically 7 fixed colors (e.g., CTO, Cyan, Magenta, Yellow, UV, etc.) + open
Prism
Motorized 4-facet rotating prism
Dimming/Strobe
0-100% smooth dimming, electronic strobe effect
Movement & Mechanics
Pan Range
540°
Tilt Range
270°
Pan/Tilt Speed
High-speed, 16-bit precision movement
Zoom
Motorized
Focus
Motorized
Prism Rotation
Motorized, with indexable position control
Control & Connectivity
Control Protocol
DMX-512
DMX Channels
Multiple selectable modes (e.g., 16, 20, or 24 channels)
Control Modes
DMX, Master/Slave, Standalone, Sound-Active
Display
LCD screen for addressing and mode configuration
Connectivity
3-pin & 5-pin XLR DMX In/Out, PowerCON TRUE1 In/Out (linkable)
Physical & Electrical
Power Supply
Auto-switching 100-240V AC, 50/60Hz
Power Consumption
~220 Watts (maximum)
Housing
Die-cast aluminum and high-impact plastic composite
Cooling
Quiet, temperature-controlled fan
Weight
Approx. 17 kg (37.5 lbs)
Dimensions (LxWxH)
Approx. 380 x 330 x 540 mm (15" x 13" x 21.3")
Mounting
Standard yoke with Omega bracket, integrated carry handles
Additional Features
Effects Engine
Built-in auto programs for movement, color, and gobo chases
Display Menu
Intuitive menu navigation via buttons and LCD
Software Updates
Firmware upgradable via USB (internal port)
Safety
Thermal protection, safety cable eyelets
Typical Use
Nightclub and mobile DJ effects, stage aerial beams, theatrical specials, worship service lighting, party and event entertainment.

Key Features

  • Motorized Focus
  • Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
  • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
  • 0-100% smooth dimming
  • Various strobe speeds

Already own this item and want to sell it?

Click here to sell your item

FAQs about ADJ FOC200 Focus Spot 4Z 200W LED Moving Head Fixture

What LED light engine powers the ADJ Focus Spot 4Z (FOC200)?

It is powered by a high-output 200W cold white LED engine (rated at 50,000 hours), making it an ideal spot fixture for long-throw stage projections, night clubs, and event productions.

What motorized zoom and focus capabilities are built into the optics?

The fixture features motorized zoom with a variable beam angle from 11 degrees to 22 degrees, along with motorized focus to keep gobo projections and beam edges sharp at varying projection distances.

What color wheel and color options are available?

It includes a dichroic color wheel with 8 vibrant colors plus open white, featuring split-color capabilities and continuous color wheel scroll effects.

What GOBO pattern projections and rotation capabilities are included?

It features a rotating GOBO wheel containing 6 interchangeable, indexable glass GOBOS plus open. It supports GOBO morphing, GOBO shake effects, and smooth GOBO scroll modes.

What prism effects does the Focus Spot 4Z feature?

The fixture includes two indexable, rotating prisms—a 6-facet circular prism and a 6-facet linear prism—which can be engaged independently or layered to split beam projections into wide mid-air effects.

What control protocols, wireless options, and operational modes are supported?

It supports standard DMX-512 and RDM protocols with 2 DMX channel modes (16 or 18 channels). It also features built-in WiFLY EXR wireless DMX capability for wireless signal reception up to 2,500 feet away (line of sight).

Is the Focus Spot 4Z safe for television, film, and video streaming?

Yes, it delivers 100% flicker-free operation with customizable LED refresh rates (from 900Hz to 25,000Hz), 0–100% electronic dimming, and 6 selectable dimming curve options (Standard, Stage, TV, Architectural, Theatre, and Stage 2).
