Product Model

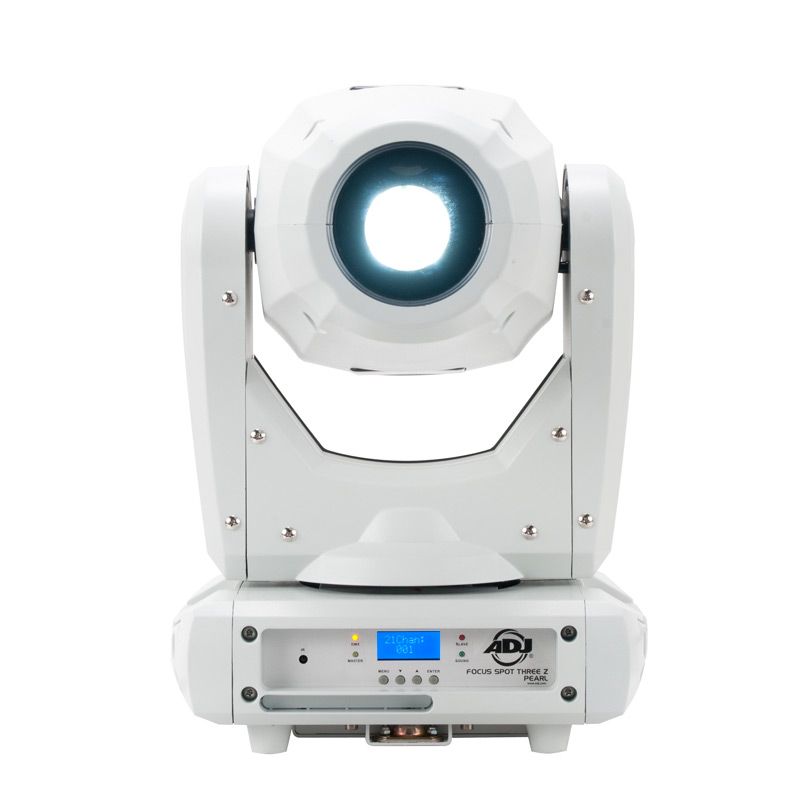

FOCUS SPOT THREE Z PEARL 100W
Type
LED Moving Head Spotlight
Color Temperature
Approximately 8000K
Gobo Wheels
2 Wheels (Fixed and rotating/indexable gobos)
Gobo Count
Typically 7+1 on each wheel
Prism
3-facet rotating prism
Color Wheel
Fixed color wheel
Frost
Variable frost effect
Color Mixing
CMY (Cyan, Magenta, Yellow) mixing system
Pan/Tilt Speed
16-bit micro-step control
Control Protocol
DMX-512, Master/Slave, Standalone
DMX Channels
20 or more channels (varies by mode)
Built-in Effects
Strobe, pulse, gobo rotation, prism rotation, color macros
Housing Material
Die-cast aluminum
Mounting
Integrated yoke with safety lock
Power Supply
Auto-switching 100-240V AC
Power Consumption
Approximately 130W
Connectors
PowerCON TRUE1 In/Out, 3-pin XLR DMX In/Out
