SKU: Hydro Profile

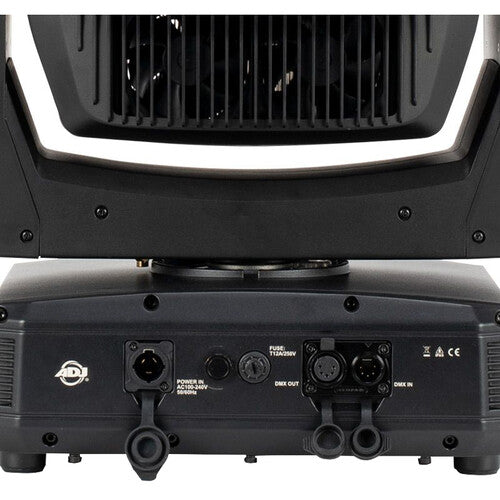

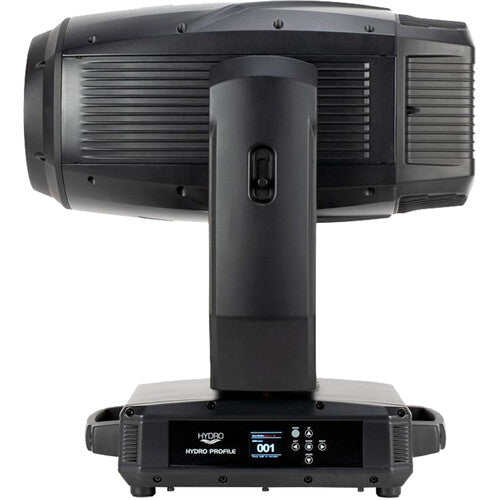

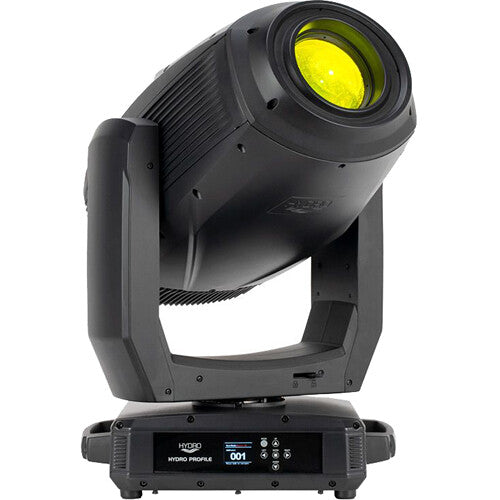

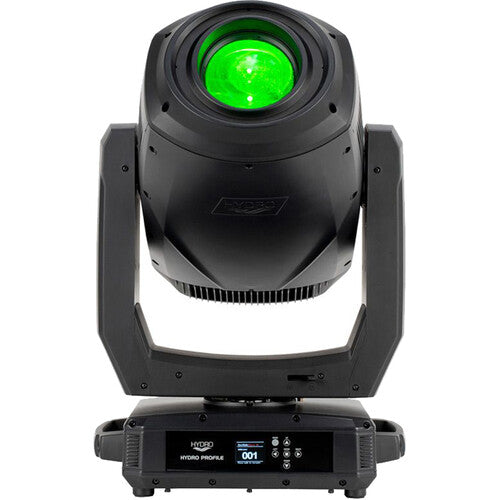

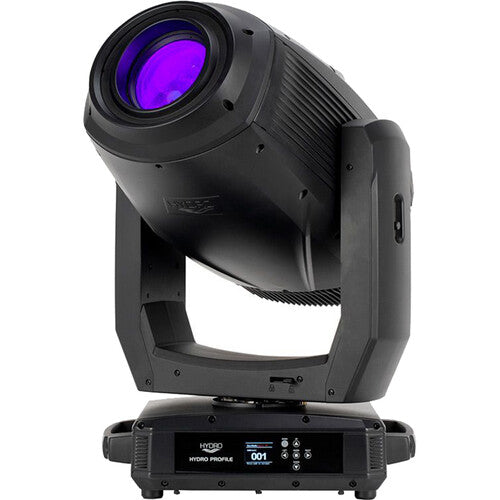

ADJ Hydro Profile IP65-B LED Moving Head Fixture

$5,999.99 $9,999.95

Items Included

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Title
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

Lighting designers in search of an outdoor-rated, professional-caliber automated luminaire will be impressed with the American DJ Hydro Profile, a bright feature-rich moving head that's well suited for theatrical, concert touring and event production applications. The IP65-rated Profile features a 660W cool-white LED engine, 540° pan and 270° tilt, motorized focus, and a motorized zoom from 6 to 45°. Read more

Features

Business Financing Options Avaiable

Lighting designers in search of an outdoor-rated, professional-caliber automated luminaire will be impressed with the American DJ Hydro Profile, a bright feature-rich moving head that's well suited for theatrical, concert touring and event production applications. The IP65-rated Profile features a 660W cool-white LED engine, 540° pan and 270° tilt, motorized focus, and a motorized zoom from 6 to 45°. Read more

Features

About the ADJ Hydro Profile IP65-B LED Moving Head Fixture

The ADJ HYD580 Hydro Profile is a robust, high-performance IP65-rated LED moving head fixture engineered for reliable operation in demanding environmental conditions. This versatile luminaire merges the sharp beam shaping and framing capabilities of a traditional profile spot with the environmental sealing necessary for outdoor events, permanent architectural installations, and challenging indoor venues where moisture, dust, or temperature fluctuations are a concern. At the core of its light engine is a potent 580-watt white LED source, which provides an intense, pure white output suitable for powerful beam effects, crisp gobo projection, and vivid aerial work. The fixture's IP65 certification guarantees complete protection against dust ingress and low-pressure water jets from any direction, making it resilient against rain, splashing, and particulate matter, thereby offering exceptional reliability for festivals, touring, and fixed outdoor applications.

The optical system of the HYD580 is designed for maximum creative control, featuring a high-resolution motorized zoom that allows for smooth adjustment of beam angle, along with a precision focus mechanism to ensure sharp projections from any distance. It boasts a rich selection of visual assets, including two independently rotating gobo wheels with a mix of indexed and replaceable glass gobos, a full-color RGBW additive color mixing system, a fixed color wheel with dichroic filters, and a variable CTO color temperature correction module. The fixture also includes a sophisticated framing shutter system with four independently controllable blades, enabling the creation of precise hard-edge shapes, slices, and intricate masking effects. Smooth, silent 16-bit pan and tilt movement with a wide range provides fluid and accurate positioning, essential for dynamic lighting choreography.

Control and integration are facilitated through industry-standard DMX protocols, with multiple personality options and an extensive channel count for detailed parameter access. The fixture is built with a durable aluminum housing and features a convection-based thermal management system that operates silently without external fans, a critical feature for noise-sensitive environments. With its combination of high-output LED technology, comprehensive feature set, and true all-weather construction, the ADJ HYD580 Hydro Profile stands as a professional-grade tool that delivers both creative versatility and unwavering durability for lighting designers who cannot compromise on performance or reliability.

Key Features

ADJ Hydro Profile IP65-B LED Moving Head Fixture Specs

Light Source & Output
Light Source
580W White LED
Luminous Flux
Approximately 8,500 lumens
Color Temperature (White)
8,500K
IP Rating
IP65 (Dust-tight and protected against water jets)
Optics & Beam
Beam Angle
4° to 50° (motorized zoom)
Focus
Motorized
Framing Shutter
4 independent, rotating blades with 540° total rotation
Gobos & Effects
Gobo 1
7 replaceable glass gobos + open, indexable rotation
Gobo 2
7 fixed steel gobos + open, indexable rotation
Gobo Rotation
Independent, bidirectional 540° continuous rotation
Color System
RGBW additive color mixing, plus fixed color wheel and CTO correction
Movement
Pan
540° (16-bit)
Tilt
270° (16-bit)
Movement Speed
Fast and precise positioning
Control & Power
Control Protocol
DMX-512, RDM, Master/Slave, Standalone
DMX Channels
Multiple selectable modes (e.g., 24, 37, 45 channels)
Power Connection
PowerCON TRUE1 In and Out
Power Consumption
750W maximum
Operating Voltage
100-240V AC, 50/60 Hz
Physical
Housing
Die-cast aluminum
Cooling
Silent convection (fanless)
Weight
Approximately 50 lbs (22.7 kg)
Installation
Yoke mount with locking tilt mechanism

Key Features
