ADJ Jolt Panel FX2 IP20, RGBCW LED w/ Wired Digital Communication Network

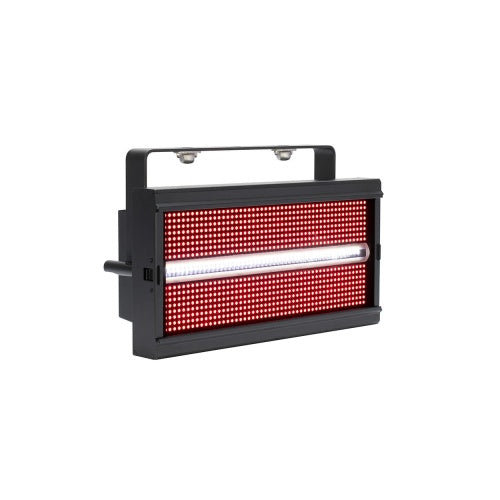

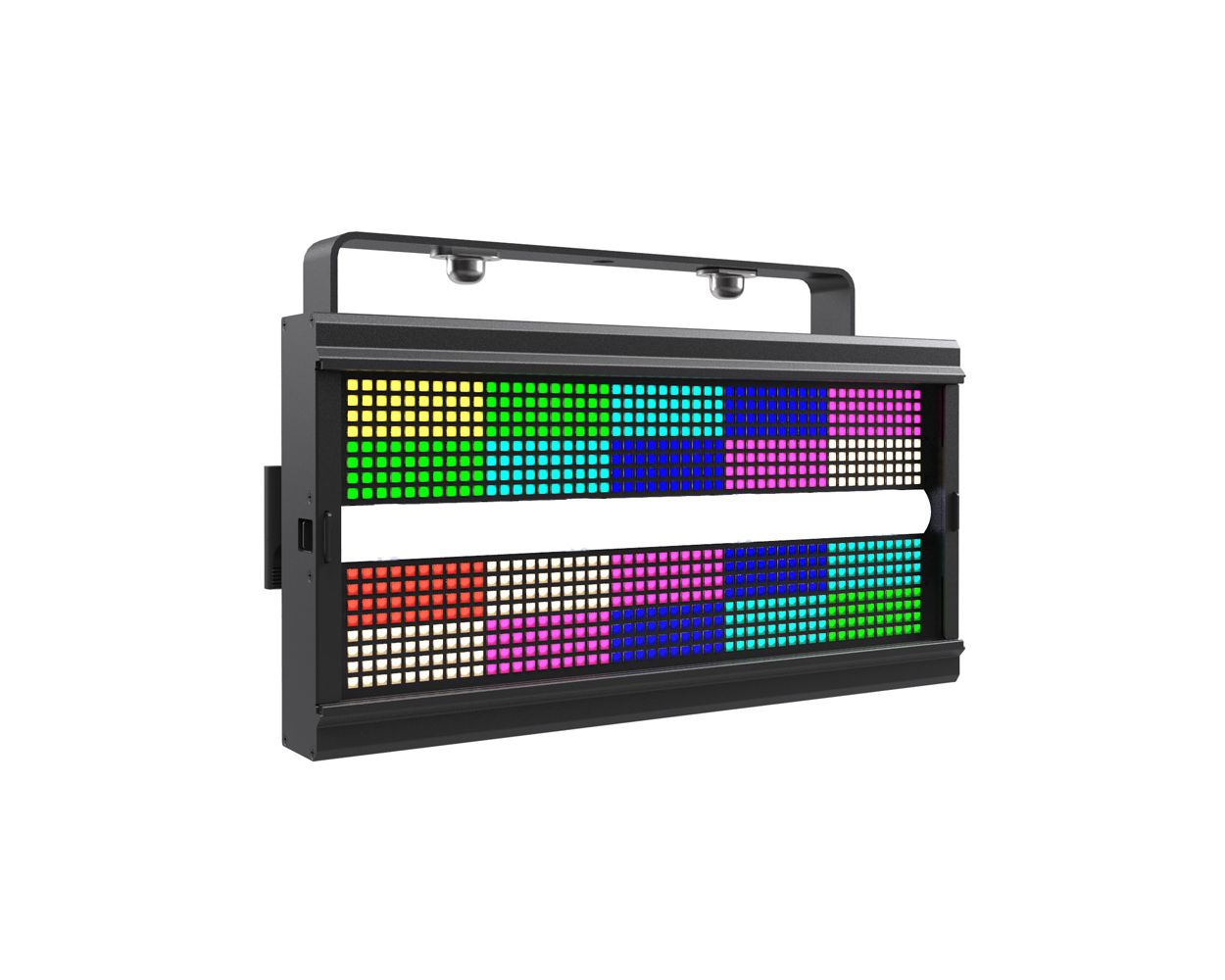

The ADJ Jolt Panel FX2 is a flat-panel LED fixture designed for high-impact pixel-mapped graphics, vibrant color washes, and intense strobe/blinder effects in professional indoor environments. As part of the Jolt FX2 series, it features the advanced RGBCW (Red, Green, Blue, Cyan, White) color system. The inclusion of a dedicated Cyan LED significantly expands the color gamut, allowing for exceptionally vibrant and accurate cyans, teals, and aquas that are difficult to achieve with standard RGB or RGBW fixtures. The fixture consists of a dense grid of individually addressable pixels, transforming it into a versatile tool that can function as a smooth wash light, a high-resolution blinder, or a dynamic low-resolution video screen for graphics and animations.

A defining professional feature is its support for a wired digital communication network via an RJ45 Ethernet port. This allows the fixture to be controlled using industry-standard protocols like Art-Net or sACN, enabling seamless integration into large, networked lighting systems. This network capability simplifies cabling (using Ethernet instead of multiple DMX lines) and provides the high channel count and precise synchronization required for complex pixel-mapped video content. It retains standard 3-pin/5-pin DMX inputs for universal compatibility and offers multiple control modes, including standalone operation with built-in programs.

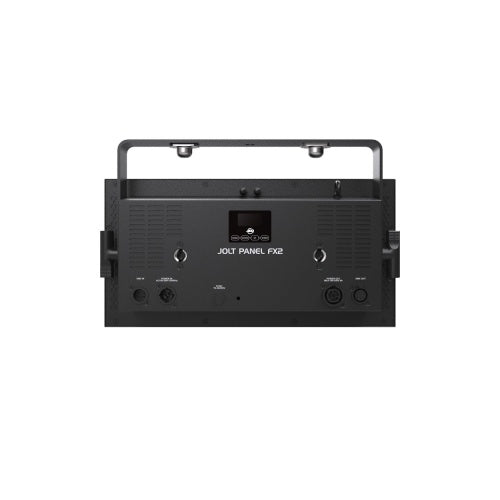

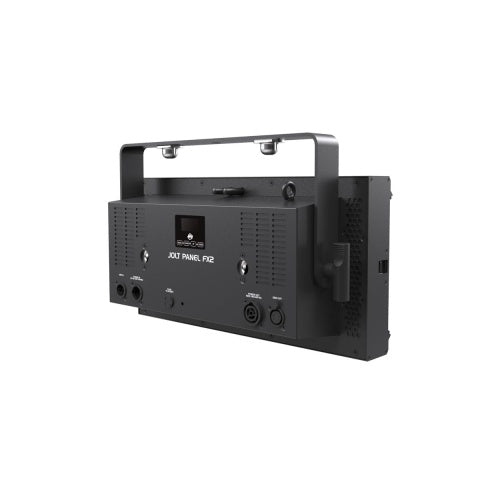

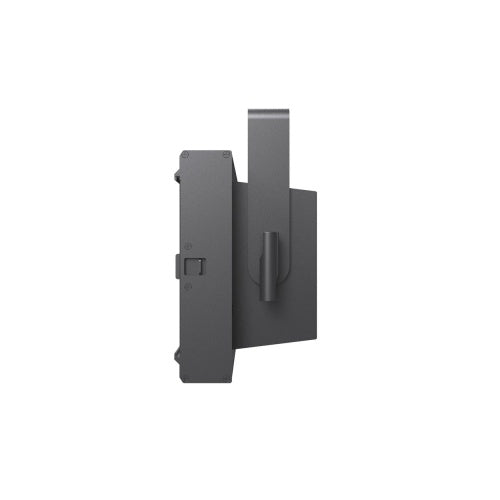

Housed in a slim, rectangular panel with a robust metal frame, the Jolt Panel FX2 is built for touring and installation. Its IP20 rating indicates it is designed for indoor use only, protecting against touch but not against moisture or dust. It is an ideal solution for concert stages, television studios, nightclubs, theatrical productions, and corporate events where designers need a flat-panel fixture that can serve multiple roles—from creating blinding audience sweeps to displaying animated logos or serving as a bold architectural wash light—all with superior color rendering and network-based control.
