SKU: Pixie Strip-30

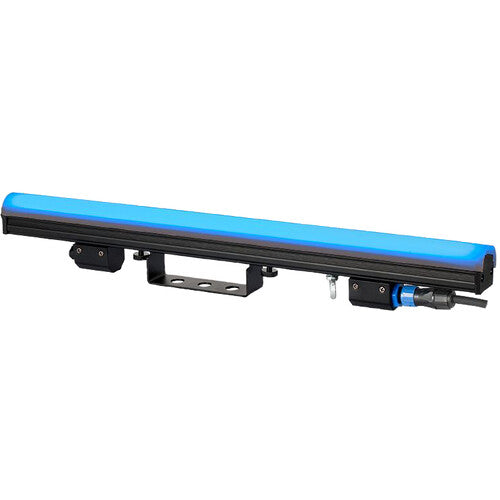

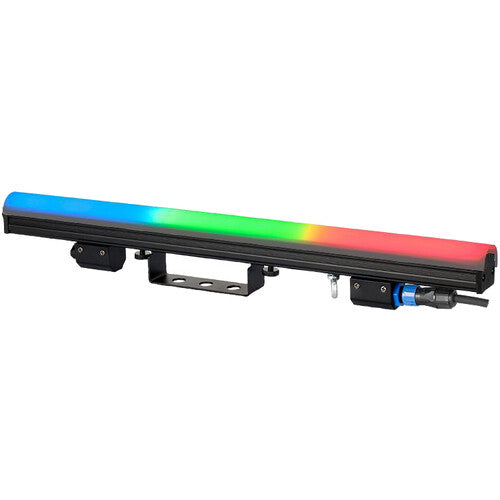

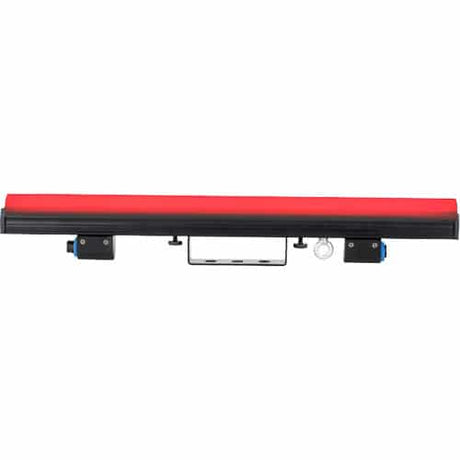

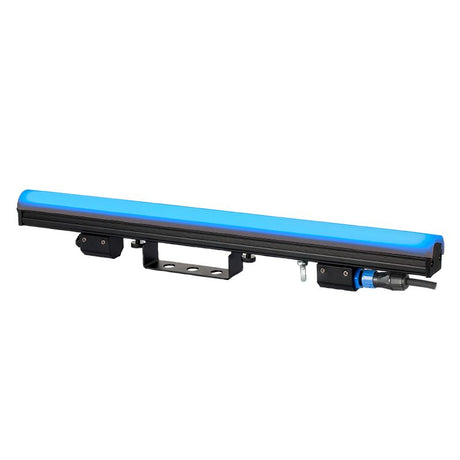

ADJ Pixie Strip 30 RGB Indoor Linear Fixture

$144.99

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The 1.6' American DJ Pixie Strip 30 is an indoor pixel-mapping RGB LED linear fixture designed for showing video and/or motion graphics in clubs, event halls, theaters, and broadcast TV and film studios. It features 30 tricolor RGB (red, green, blue) SMD LEDs with a 16.5mm pixel pitch and a 120 x 120° viewing angle. The unit is compatible with ArtNet, KlingNet, and sACN control protocols. Read more

Features

  • RGB LED pixels: 30 individual 3-in-1 SMD RGB LEDs.
  • Kling-Net pixel control: Automatic mapping with Kling-Net protocol.
  • Art-Net/sACN support: compatible with standard lighting control systems.
  • Magnetic ends: seamless connection between multiple strips.
  • Wide viewing angle: 120-degree light dispersion coverage.
  • Lightweight aluminum housing: durable, yet easy to install.

Business Financing Options Avaiable

View Available Financing

The 1.6' American DJ Pixie Strip 30 is an indoor pixel-mapping RGB LED linear fixture designed for showing video and/or motion graphics in clubs, event halls, theaters, and broadcast TV and film studios. It features 30 tricolor RGB (red, green, blue) SMD LEDs with a 16.5mm pixel pitch and a 120 x 120° viewing angle. The unit is compatible with ArtNet, KlingNet, and sACN control protocols. Read more

Features

  • RGB LED pixels: 30 individual 3-in-1 SMD RGB LEDs.
  • Kling-Net pixel control: Automatic mapping with Kling-Net protocol.
  • Art-Net/sACN support: compatible with standard lighting control systems.
  • Magnetic ends: seamless connection between multiple strips.
  • Wide viewing angle: 120-degree light dispersion coverage.
  • Lightweight aluminum housing: durable, yet easy to install.

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the ADJ Pixie Strip 30 RGB Indoor Linear Fixture

The ADJ Pixie Strip 30 is a flexible, addressable RGB LED tape light designed for decorative and accent lighting in indoor event and entertainment spaces. Part of ADJ's accessible "Pixie" series, it provides a user-friendly entry point into pixel-mappable linear lighting without the complexity and cost of higher-density professional video panels. The "30" signifies it has 30 individually addressable RGB LED nodes per meter, allowing for smooth color chasing, dynamic patterns, and basic pixel-mapped graphics when controlled via DMX. This makes it ideal for outlining stages, DJ booths, architectural features, bars, and trade show displays, adding a vibrant, programmable line of light.

The fixture operates on low-voltage DC power (commonly 12V or 24V) supplied by an external adapter. Its primary control is via a standard 3-pin DMX input, enabling integration with any DMX lighting console. It offers multiple channel modes, from a simple 3-channel mode (controlling the entire strip as one uniform RGB color) to modes that divide the strip into independently controllable segments, and up to a full pixel mode where each of the 30 nodes per meter can be individually addressed for intricate chases and simple text or logo effects. For ease of use without a console, it also features built-in standalone programs and a sound-active mode.

Designed for simplicity and flexibility, the strip comes on a reel and can be cut to custom lengths at marked cut points. It features a self-adhesive backing for easy installation on clean, dry surfaces. As an IP20-rated product, it is strictly for indoor use and must be protected from moisture and dust. The ADJ Pixie Strip 30 is a popular choice for mobile DJs, event planners, and installers looking for an affordable, effective way to add dynamic, colorful linear lighting to their setups.

Key Features

  • RGB LED pixels: 30 individual 3-in-1 SMD RGB LEDs.
  • Kling-Net pixel control: Automatic mapping with Kling-Net protocol.
  • Art-Net/sACN support: compatible with standard lighting control systems.
  • Magnetic ends: seamless connection between multiple strips.
  • Wide viewing angle: 120-degree light dispersion coverage.
  • Lightweight aluminum housing: durable, yet easy to install.

Already own this item and want to sell it?

Click here to sell your item

ADJ Pixie Strip 30 RGB Indoor Linear Fixture Specs

Optical System & Light Source
Fixture Type
Flexible, Addressable RGB LED Tape
LED Type
RGB (Red, Green, Blue) SMD LEDs
LED Density
30 LEDs per meter (individually addressable)
Pixel Control
Individual or group addressability for chases and effects
Functions
Solid color wash, color chasing, pixel patterns, built-in programs
Viewing/Beam Angle
Wide, typically 120° diffusion
Control & Operation
Control Protocol
DMX-512
DMX Input/Output
3-pin XLR (female IN / male OUT for daisy-chaining)
DMX Modes
Multiple selectable: e.g., 3-Channel (full strip RGB), 6-Channel (2 segments), 9-Channel (3 segments), and higher modes for more segments or pixel control.
Control Modes
DMX, Master/Slave, Standalone Auto Programs, Sound-Active
Standalone Programs
Built-in color chases, fades, and dynamic patterns
Physical & Electrical
Power Requirement
Low Voltage DC (Commonly 12V DC or 24V DC)
Power Supply
External AC/DC power adapter/transformer
Power Consumption
Varies by length (e.g., approximately 18-24 Watts per meter at full white)
IP Rating
IP20 (For indoor use only. Not protected against moisture.)
Strip Construction
Flexible circuit board with adhesive backing (3M tape)
Standard Reel Length
Typically 5 meters (16.4 feet)
Cut Points
Can be cut at designated points (often every 3 or 4 LEDs) for custom lengths
Additional Features
Mounting
Adhesive backing for direct application; can be installed in aluminum channel diffusers for a more professional, protected look.
Color Mixing
Full RGB spectrum
Typical Use
Event decor, stage and truss outlining, DJ booth accents, architectural highlighting, retail displays, wedding reception lighting.
Safety
For indoor use only. Ensure proper power supply rating and avoid overloading circuits.

Key Features

  • RGB LED pixels: 30 individual 3-in-1 SMD RGB LEDs.
  • Kling-Net pixel control: Automatic mapping with Kling-Net protocol.
  • Art-Net/sACN support: compatible with standard lighting control systems.
  • Magnetic ends: seamless connection between multiple strips.
  • Wide viewing angle: 120-degree light dispersion coverage.
  • Lightweight aluminum housing: durable, yet easy to install.

Already own this item and want to sell it?

Click here to sell your item

FAQs about ADJ Pixie Strip 30 RGB Indoor Linear Fixture

What LED light engine powers the ADJ Pixie Strip 30?

It is powered by 30 tri-color SMD 5050 RGB LEDs arranged in a 0.5-meter (19.7-inch) linear strip format, featuring a 16.5mm pixel pitch for smooth resolution graphics and volumetric pixel mapping.

What device is required to drive power and data to the Pixie Strip 30?

It is a passive pixel strip and requires a dedicated ADJ Pixie Driver (such as the Pixie Driver 500 or Pixie Driver 2000), which processes incoming DMX, Art-Net, or sACN control signals and supplies 24V DC power and data to the strips.

Does the Pixie Strip 30 support individual pixel control and mapping?

Yes, each of the 30 RGB LEDs can be individually controlled and pixel-mapped via the host Pixie Driver, allowing lighting designers to build custom video-mapping layouts, dynamic chases, and intricate color patterns.

What optical covers or lenses are included with the strip?

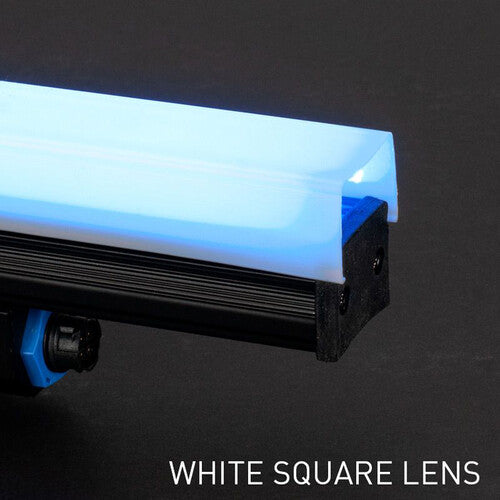

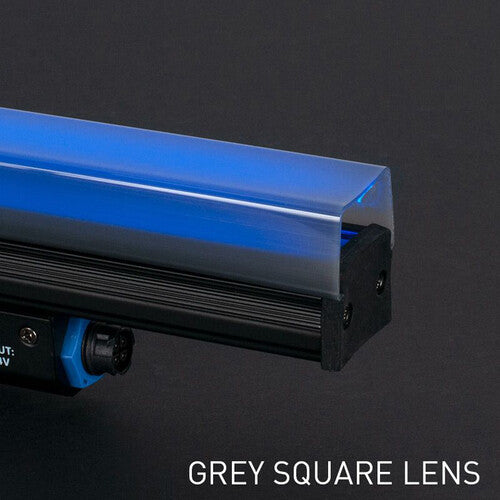

It includes four interchangeable lens covers: a square frosted lens, a square smoked lens, a rounded frosted lens, and a rounded smoked lens, allowing technicians to modify output diffusion and aesthetic appearance.

What is the physical beam angle and visual viewing angle of the LEDs?

The raw SMD LEDs offer a wide 120-degree viewing angle, ensuring rich visual dispersion and broad visibility across stages, set pieces, or architectural grids.

What physical connectors are located on the Pixie Strip 30 for cabling?

The strip features proprietary 4-pin combo power/data input and output connectors, allowing multiple strips to be daisy-chained back to the main Pixie Driver unit using dedicated 4-pin extension cables.

What mounting hardware is included for stage rig installation?

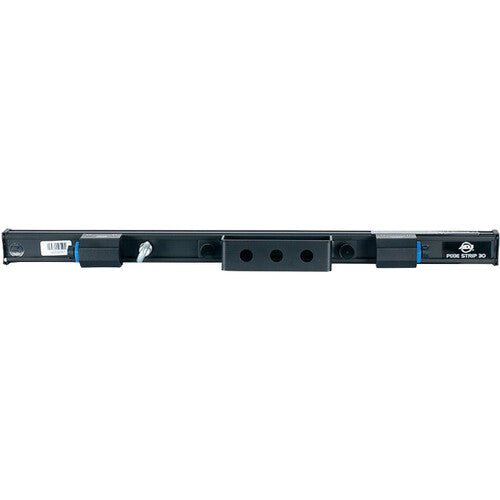

It comes equipped with an adjustable mounting bracket that slides along a rear track channel, complete with a safety cable eyelet for secure attachment to trussing, pipe grids, or wall frames.

What are the physical dimensions, weight, and power consumption specs?

The linear bar measures 19.7” x 1.2” x 2.9” (500mm x 32mm x 73mm) and weighs 1.5 lbs (0.7 kg). Operating on 24V DC supplied by the external driver, it draws a low maximum power consumption of only 6W per strip.
