SKU: Pixie Driver 2000 V2-B

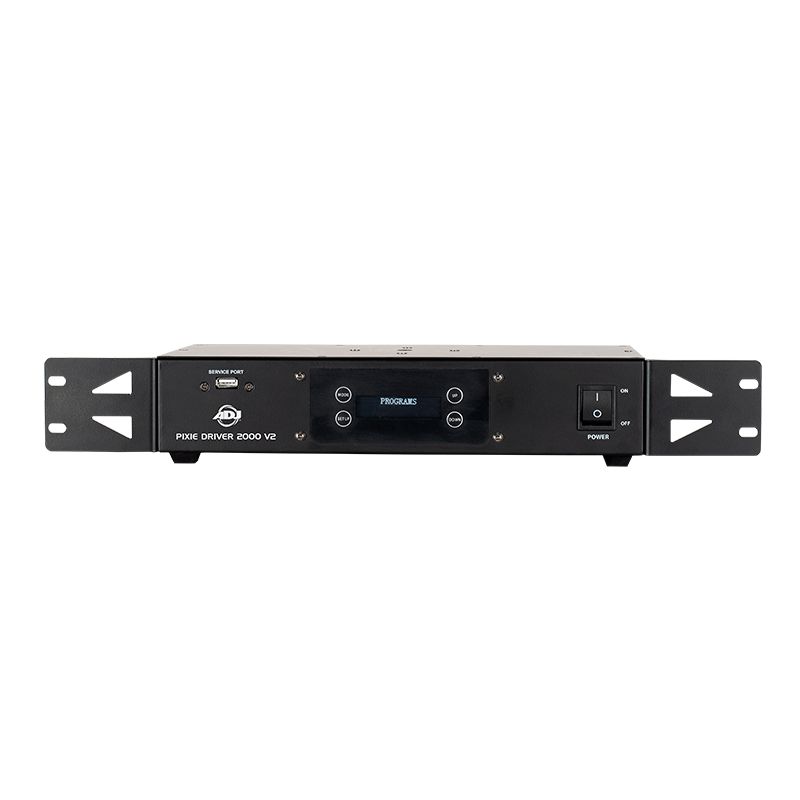

ADJ PIX261 Pixie Driver 2000 V2

$378.66

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The Pixie Driver 2000 V2 Control Unit from American DJ is designed specifically for the ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120. It provides easy and versatile control options, including simple onboard manual dimming and strobe control, plus full pixel mapping control of 2040 max pixels via Kling-Net, 340 max pixels via Art-Net or sACN (streaming ACN) protocols. The Pixie Driver 2000 V2 features a universal auto-switching power supply, a 4-button LCD control menu display, RJ-45 Ethernet in/out ports, and two outputs that use proprietary, 4-pin combo cables that supply power and data to each pixel strip. The Pixie Driver 2000 can be mounted in a standard 19" rack or attached to a truss with a clamp. There is a USB port on the front panel to easily make updates to the firmware. Read more

Features

  • Kling-Net pixel mapping: Controls up to 2,040 pixels via Kling-Net.
  • Art-Net and sACN: Supports 340 pixels max via Art-Net/sACN.
  • Manual RGB mode: Built-in simple RGB and strobe control.
  • Two 4-pin outputs: Supplies power and data to strips.
  • Universal auto switching: Multi-voltage operation (100-240V, 50/60Hz).

Business Financing Options Avaiable

View Available Financing

The Pixie Driver 2000 V2 Control Unit from American DJ is designed specifically for the ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120. It provides easy and versatile control options, including simple onboard manual dimming and strobe control, plus full pixel mapping control of 2040 max pixels via Kling-Net, 340 max pixels via Art-Net or sACN (streaming ACN) protocols. The Pixie Driver 2000 V2 features a universal auto-switching power supply, a 4-button LCD control menu display, RJ-45 Ethernet in/out ports, and two outputs that use proprietary, 4-pin combo cables that supply power and data to each pixel strip. The Pixie Driver 2000 can be mounted in a standard 19" rack or attached to a truss with a clamp. There is a USB port on the front panel to easily make updates to the firmware. Read more

Features

  • Kling-Net pixel mapping: Controls up to 2,040 pixels via Kling-Net.
  • Art-Net and sACN: Supports 340 pixels max via Art-Net/sACN.
  • Manual RGB mode: Built-in simple RGB and strobe control.
  • Two 4-pin outputs: Supplies power and data to strips.
  • Universal auto switching: Multi-voltage operation (100-240V, 50/60Hz).

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the ADJ PIX261 Pixie Driver 2000 V2

The ADJ Pixie Driver 2000 V2 (model PIX261) is a dedicated power and control interface designed for ADJ’s Pixie Strip series of pixel-mapped LED battens. It serves as the central system that delivers both regulated 24V power and high-speed data to large pixel installations, combining robust hardware with flexible control options suitable for live events, touring productions, clubs, themed environments and architectural use. The unit is engineered to simplify complex pixel setups by consolidating power distribution, protocol conversion and pixel mapping into a single device.

The Pixie Driver 2000 V2 supports advanced control protocols including Art-Net, sACN and Kling-Net, enabling seamless integration with modern media servers, lighting consoles and pixel-mapping workflows. Its two outputs can handle high pixel loads, while selectable operating modes, internal programs, and manual color/strobe controls make it suitable for both quick setup scenarios and fully programmed shows. An onboard OLED display provides direct access to configuration, patching, dimming curves and diagnostics, allowing users to manage large installations without relying solely on external software.

Built for professional environments, the unit features a rugged, rack-mountable enclosure, universal AC input, and stable thermal performance for continuous operation. The V2 revision adds firmware update capability and improved protocol handling, making it a reliable second-hand choice for users who need a high-capacity, versatile driver to power and control extensive ADJ Pixie Strip installations.

Key Features

  • Kling-Net pixel mapping: Controls up to 2,040 pixels via Kling-Net.
  • Art-Net and sACN: Supports 340 pixels max via Art-Net/sACN.
  • Manual RGB mode: Built-in simple RGB and strobe control.
  • Two 4-pin outputs: Supplies power and data to strips.
  • Universal auto switching: Multi-voltage operation (100-240V, 50/60Hz).

Already own this item and want to sell it?

Click here to sell your item

ADJ PIX261 Pixie Driver 2000 V2 Specs

Light & Control
Light Source Compatibility
Pixie Strip 30, Pixie Strip 60, Pixie Strip 120
Pixel Mapping
Full pixel mapping control (Art-Net / sACN / Kling-Net)
Max Pixels (Kling-Net)
2040 pixels (total)
Max Pixels (Art-Net/sACN)
340 pixels (total)
Manual Modes
Manual RGB mode; Internal programs; Manual dimming; Manual strobe
RDM
RDM compatible
USB
USB port for firmware updates
Display
OLED display with 4-button menu
Control Features
Pixel Mapping Protocols
Kling-Net, Art-Net, sACN
Pixels per Port (Art-Net/sACN)
170 pixels max per port
Pixels per Port (Kling-Net)
1020 pixels max per port
Port Count
2 network ports (Ethernet)
On-board Controls
Menu navigation, program selection, dimming, strobe, pixel tests
Connections
Ethernet
RJ45 Ethernet In/Out (locking on later revisions)
Data Outputs
Two proprietary 4-pin DC24V power/data outputs for Pixie Strips
Power Input
PowerLock (locking) AC input
Data Input Types
Art-Net, sACN, Kling-Net via Ethernet
Electrical
Voltage
AC100–240V, 50/60Hz (auto-switching)
Maximum Power Draw
400 W (max)
Operational Temperature Range
-20 °C to +45 °C
Power Protection
Internal thermal management and fusing (device rated for continuous duty)
Physical
Rack Mountable
Yes
Mounting Options
Rack mount or truss mount via bolt/safety eye
Dimensions (L×W×H)
480×180.8×74 mm (approx)
Weight
≈2.5 kg (5.6 lbs)
Performance & Limits
Max Strips (per port, typical)
Pixie Strip 30: 34 per port; Pixie Strip 60: 17 per port; Pixie Strip 120: 8 per port (per port, Kling-Net)
Kling-Net Total Topology
Supports mixed strip lengths per output up to total pixel limits
Operational Notes
Supports firmware updates, RDM configuration, and online pixel mapping workflows
Certifications & Reliability
Certifications
CE;cETLus (listed)
LED / Pixel Reliability
Designed to drive SMD pixel strips with standard 24V pixel protocols; operational life subject to strip type and cooling

Key Features

  • Kling-Net pixel mapping: Controls up to 2,040 pixels via Kling-Net.
  • Art-Net and sACN: Supports 340 pixels max via Art-Net/sACN.
  • Manual RGB mode: Built-in simple RGB and strobe control.
  • Two 4-pin outputs: Supplies power and data to strips.
  • Universal auto switching: Multi-voltage operation (100-240V, 50/60Hz).

Already own this item and want to sell it?

Click here to sell your item

FAQs about ADJ PIX261 Pixie Driver 2000 V2

What is the main purpose of the ADJ Pixie Driver 2000 V2?

The Pixie Driver 2000 V2 is a dedicated power and data driver designed specifically for ADJ Pixie Strip 30, 60, and 120 LED pixel fixtures. It handles power distribution and translates control signals to drive full pixel-mapping setups.

What control protocols does the driver support?

The driver supports network control protocols including Kling-Net, Art-Net, and sACN (streaming ACN) over dual RJ45 Ethernet ports. It is also RDM-compatible and includes manual RGB, strobe, and internal auto-program modes.

How many pixels can a single Pixie Driver 2000 V2 control?

It can drive up to 2,040 pixels total via Kling-Net (1,020 pixels per port). When using Art-Net or sACN, it controls up to 340 total pixels (170 pixels per port).

What output connections are used to attach the pixel strips?

The unit features two 4-pin DC24V outputs that transmit both power and data down a single proprietary combo cable to the connected Pixie Strips. Cables are sold separately and are available in lengths ranging from 1 to 50 feet.

How many Pixie Strips can be connected per output port?

Per port in Kling-Net mode, you can link up to 34 Pixie Strip 30s, 17 Pixie Strip 60s, or 8 Pixie Strip 120s. You can also mix and match strip lengths on a single line as long as you do not exceed the port's maximum pixel capacity.

How do you mount or install the driver unit?

It includes removable 19-inch rack ears for mounting directly into a standard 1U/2U equipment rack. It also features a top mounting bolt hole and safety eyelet for attaching a clamp to hang the unit from stage trussing.

Does the unit feature a display for manual settings and updates?

Yes, it includes a 4-button OLED menu screen on the front panel for manual address configuration, dimming, and pixel testing. A front-facing USB port is also provided for updating the driver's firmware.

What are the electrical power requirements?

The driver features a universal auto-switching power supply operating on AC 100-240V (50/60Hz) with a locking power input cable. It draws a maximum of 400W to feed both internal processing and all connected pixel strips.
