ADJ VIZ870 CMY300 Hybrid LED Moving Head Fixture

$0.00

Items Included

Item Notes

Condition: Out of stock
Once stock replenishes, inventory will display below.
Pricing
Sold out
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

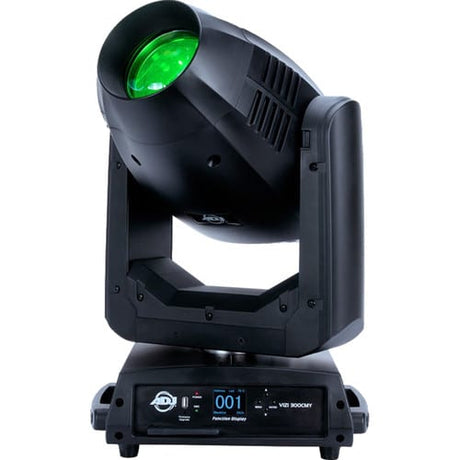

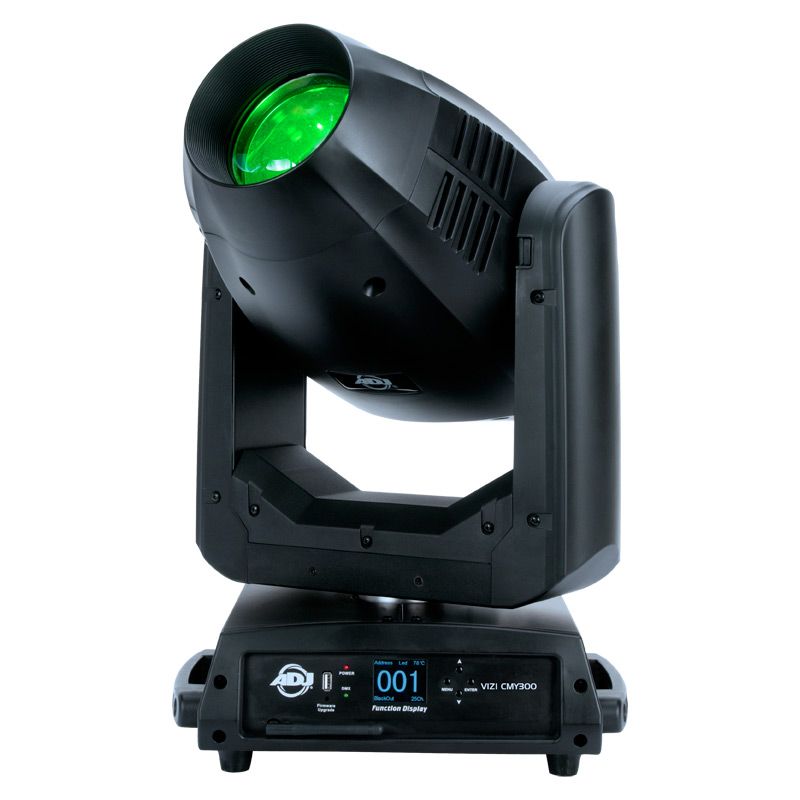

Professional lighting designers looking for a highly flexible moving head light will be impressed with the American DJ VIZI CMY300, an intelligent, hybrid LED moving head fixture that offers a vast selection of dynamic colors and effects to energize your dance floor or live stage productions. It acts as a beam, spot, and wash all-in-one fixture with a 300W cool-white LED engine, powerful enough for concert tour, theater production, and festival stage applications, or large church installations. The DJ VIZI CMY300 features full CMY color mixing which gives you the freedom to select from a much wider palette of colors than with a regular color wheel. The fixture also offers a standard RGBWA+UV color wheel, which allows for easy selection of popular colors. Effects include a motorized focus, motorized zoom, motorized iris, two rotating prisms (one six-facet linear and one three-facet circular), two separate color wheels, and two gobo wheels. The DJ VIZI CMY300 can operate in standalone, Master/Slave, or DMX mode. A built-in antenna with DMX WiFly EXR technology enables you to wirelessly control the fixture up to 2500' away. The rear panel offers powerCON power I/O, and 3-pin and 5-pin DMX connections. Read more

Features

  • For Large-Scale Venues and Tours
  • Bright 300W Cool-White LED Engine
  • Pan/Tilt: 540°/270°
  • Beam, Spot, or Wash Modes
  • CMY Color Mixing

Business Financing Options Avaiable

View Available Financing

Professional lighting designers looking for a highly flexible moving head light will be impressed with the American DJ VIZI CMY300, an intelligent, hybrid LED moving head fixture that offers a vast selection of dynamic colors and effects to energize your dance floor or live stage productions. It acts as a beam, spot, and wash all-in-one fixture with a 300W cool-white LED engine, powerful enough for concert tour, theater production, and festival stage applications, or large church installations. The DJ VIZI CMY300 features full CMY color mixing which gives you the freedom to select from a much wider palette of colors than with a regular color wheel. The fixture also offers a standard RGBWA+UV color wheel, which allows for easy selection of popular colors. Effects include a motorized focus, motorized zoom, motorized iris, two rotating prisms (one six-facet linear and one three-facet circular), two separate color wheels, and two gobo wheels. The DJ VIZI CMY300 can operate in standalone, Master/Slave, or DMX mode. A built-in antenna with DMX WiFly EXR technology enables you to wirelessly control the fixture up to 2500' away. The rear panel offers powerCON power I/O, and 3-pin and 5-pin DMX connections. Read more

Features

  • For Large-Scale Venues and Tours
  • Bright 300W Cool-White LED Engine
  • Pan/Tilt: 540°/270°
  • Beam, Spot, or Wash Modes
  • CMY Color Mixing

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the ADJ VIZ870 CMY300 Hybrid LED Moving Head Fixture

The ADJ VIZ870 CMY300 Hybrid LED Moving Head Fixture is engineered to break the traditional divide between beam and wash fixtures, offering lighting designers a single, versatile tool that masters both intense aerial effects and broad, even field coverage. Its hybrid capability is powered by a high-lumen 300W-class LED engine and a sophisticated optical system that can be adjusted from a tight, piercing beam—perfect for gobo projection and sharp aerial work—to a wide, soft-edged wash ideal for coloring large stage areas or scenic elements. The centerpiece of its creative potential is an advanced CMY (Cyan, Magenta, Yellow) color mixing system. Utilizing mechanically blended dichroic filters, this subtractive method provides silky-smooth color transitions and grants access to a deeply saturated and nuanced color palette that closely emulates the quality of light from traditional theatrical sources, a distinct advantage over many LED fixtures.

Constructed with the durability required for touring, the VIZ870 features a rugged die-cast aluminum housing, precise 16-bit pan and tilt movement, and a comprehensive suite of effects including rotating gobos, prisms, and frost filters. Control is streamlined through a standard DMX512/RDM interface, allowing intricate programming of all parameters from a lighting console. By merging the high output and color fidelity of a CMY system with the instant control, lower heat, and energy efficiency of LED technology in a dual-beam/wash platform, the VIZ870 CMY300 represents a significant step forward in moving head design. It is an ideal solution for rental houses, touring productions, and fixed installations where fixture count, creative flexibility, and operational efficiency are paramount.

Key Features

  • For Large-Scale Venues and Tours
  • Bright 300W Cool-White LED Engine
  • Pan/Tilt: 540°/270°
  • Beam, Spot, or Wash Modes
  • CMY Color Mixing

Already own this item and want to sell it?

Click here to sell your item

ADJ VIZ870 CMY300 Hybrid LED Moving Head Fixture Specs

Core Light Engine & Output
Light Source Type
High-Output LED Array (CMY Hybrid)
Equivalent Wattage
300W Class
Beam/Wash Function
True hybrid with variable beam angle (e.g., 3° to 40°)
Color System
Color Mixing Technology
Motorized CMY (Cyan, Magenta, Yellow) Subtractive Mixing
Color Performance
Full spectrum with superior saturation and pastel creation
Optics & Effects
Optical Zoom
Yes, motorized continuous zoom
Gobos
Multiple rotating/indexable steel gobo wheels
Prisms
3-facet and/or 8-facet rotating prisms
Diffusion
Motorized frost filter for wash softening
Movement & Control
Pan/Tilt
540° pan, 270° tilt with 16-bit resolution
Control Protocol
DMX512, RDM Capable
DMX Channel Modes
Multiple, selectable (e.g., 24CH, 32CH for full control)
Physical & Electrical
Housing Material
Die-cast aluminum
Cooling
Intelligent temperature-controlled fan system
Power Consumption
~400W (typical)
Input Voltage
AC 100-240V, 50/60Hz auto-switching

Key Features

  • For Large-Scale Venues and Tours
  • Bright 300W Cool-White LED Engine
  • Pan/Tilt: 540°/270°
  • Beam, Spot, or Wash Modes
  • CMY Color Mixing

Already own this item and want to sell it?

Click here to sell your item

FAQs about ADJ VIZ870 CMY300 Hybrid LED Moving Head Fixture

What LED engine powers the ADJ Vizi CMY300 (VIZ870)?

It is powered by a high-output 300W white LED light engine (8000K, rated at 50,000 hours), making it a true hybrid fixture that functions seamlessly as a Beam, Spot, or Wash moving head.

What is the motorized zoom range across its operational hybrid modes?

The fixture features a massive motorized zoom range of 8 degrees to 46 degrees. This wide spread allows it to pull tight, high-intensity mid-air beams or zoom out for wide pattern projections and stage washes.

What color system and color correction filters are built in?

It features a full CMY color mixing engine for smooth, custom color transitions, complemented by an independent color wheel with 9 dichroic colors plus open white (including CTO and CTB color correction filters).

What GOBO options and pattern projections are available?

The unit features two independent GOBO wheels: Wheel 1 offers 8 rotating, indexable, and interchangeable glass GOBOS plus open; Wheel 2 offers 9 static metal GOBOS plus open (including 3 beam reducers). It also supports GOBO morphing and GOBO scroll/shake effects.

What prism and frost capabilities does the Vizi CMY300 feature?

It features two indexable, rotating prisms—a 3-facet circular prism and a 6-facet linear prism—which can be overlaid and layered together for dense aerial effects. It also includes an independent motorized frost filter for wash transitions.

What control protocols, wireless capabilities, and DMX modes are supported?

It supports standard DMX-512 and RDM protocols with 2 DMX channel modes (21 or 25 channels). It also features built-in WiFLY EXR wireless DMX for wireless reception up to 2,500 feet away (line of sight).

Is the fixture safe for television broadcast, film, and studio use?

Yes, it delivers 100% flicker-free operation with adjustable LED refresh rates, 0–100% smooth electronic dimming, and 6 selectable dimming curve options (Standard, Stage, TV, Architectural, Theatre, and Stage 2).

What physical connections, dimensions, and power consumption specs apply?

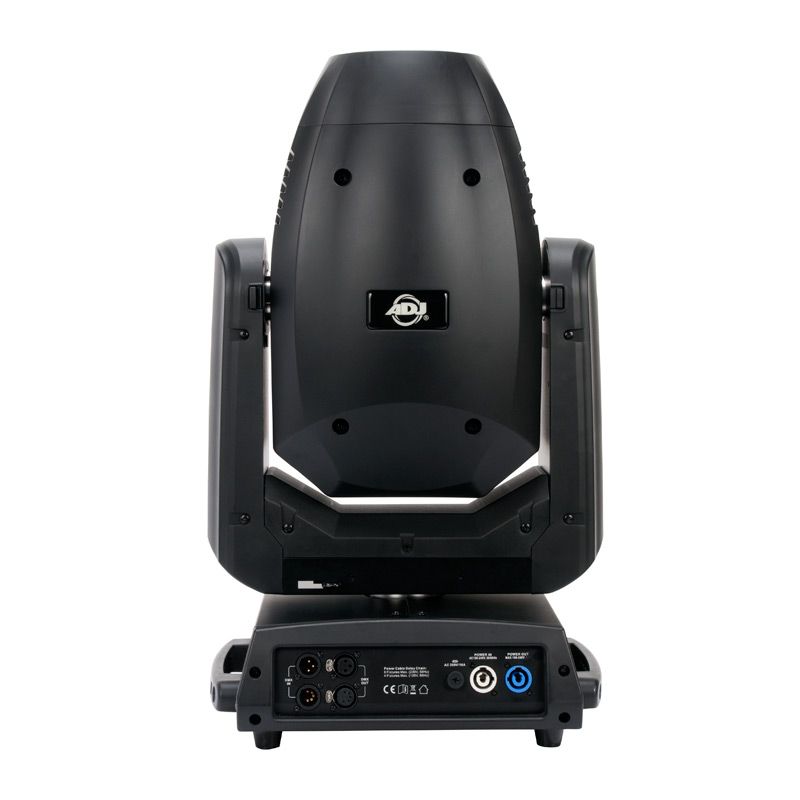

The moving head measures 14.75” x 12.75” x 24.5” (370mm x 325mm x 619mm) and weighs 51 lbs (23 kg). It features 3-pin and 5-pin XLR DMX sockets, locking power input/output pass-through ports, and operates on auto-sensing 100–240V AC power with a maximum draw of 398W.
