SKU: Vizi Beam CMY

ADJ VIZ315 Vizi Beam CMY w/ Wired Digital Communication Network

$1,072.45 - $1,599.99

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

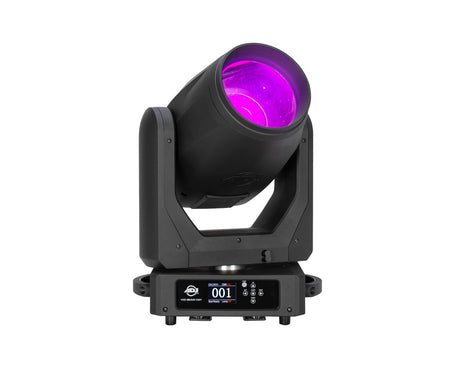

The ADJ Lighting Vizi Beam CMY is a high-performance moving head beam fixture that features a 310W Osram Sirius HRI discharge lamp, CMY color mixing and a wealth of advanced features for the modern lighting professional. Read more

Features

  • 310 W Osram Sirius HRI Discharge Lamp (6,000 h)
  • Full CMY Color Mixing + 14‑Position Dichroic Wheel
  • Motorized Optics, 16‑bit Focus & High-Speed Movement
  • GOBO, Dimming, Strobe & Manual/DMX Control
  • Rugged Build with Wired & Wireless DMX Networking

Business Financing Options Avaiable

View Available Financing

The ADJ Lighting Vizi Beam CMY is a high-performance moving head beam fixture that features a 310W Osram Sirius HRI discharge lamp, CMY color mixing and a wealth of advanced features for the modern lighting professional. Read more

Features

  • 310 W Osram Sirius HRI Discharge Lamp (6,000 h)
  • Full CMY Color Mixing + 14‑Position Dichroic Wheel
  • Motorized Optics, 16‑bit Focus & High-Speed Movement
  • GOBO, Dimming, Strobe & Manual/DMX Control
  • Rugged Build with Wired & Wireless DMX Networking

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the ADJ VIZ315 Vizi Beam CMY w/ Wired Digital Communication Network

The ADJ VIZ315 Vizi Beam CMY is a sophisticated, high-output moving beam fixture that integrates advanced color mixing technology and modern networked control for large-scale stage and event productions. Its defining feature is a subtractive CMY (Cyan, Magenta, Yellow) color mixing system, which operates like a theatrical color scroller but with far greater speed and precision. By mechanically blending dichroic filters, CMY mixing provides exceptionally smooth, nuanced color fading and the ability to create a vast palette of saturated and pastel hues, including deep, rich colors that are difficult to achieve with additive RGB LED mixing. This makes the fixture a favorite for lighting designers seeking high-quality, theatrical color reproduction in a dynamic beam light.

The fixture is built into a robust, yoke-mounted housing designed for the rigors of touring. A key operational advantage is its integrated wired digital communication network (typically based on DMX/RDM). This allows a single data cable to daisy-chain control and data for multiple parameters—not just intensity and color, but also pan, tilt, zoom, focus, beam shaping via gobos and prisms, and strobe effects. This networked control simplifies rigging, reduces cable clutter, and enables complex, synchronized programming across multiple fixtures from a lighting console. With its bright discharge or LED light source, sharp optics, and comprehensive feature set controlled via a streamlined digital link, the VIZ315 Vizi Beam CMY is a powerful and versatile tool for creating dramatic aerial beam effects, sweeping patterns, and vibrant color washes in concert tours, theatrical productions, and major live events.

Key Features

  • 310 W Osram Sirius HRI Discharge Lamp (6,000 h)
  • Full CMY Color Mixing + 14‑Position Dichroic Wheel
  • Motorized Optics, 16‑bit Focus & High-Speed Movement
  • GOBO, Dimming, Strobe & Manual/DMX Control
  • Rugged Build with Wired & Wireless DMX Networking

Already own this item and want to sell it?

Click here to sell your item

ADJ VIZ315 Vizi Beam CMY w/ Wired Digital Communication Network Specs

Light Source & Color System
Light Source
Typically a high-intensity discharge lamp (e.g., 300W) or high-power LED engine
Color Mixing
Mechanical CMY (Cyan, Magenta, Yellow) subtractive color system
Color Reproduction
Wide gamut of saturated and pastel colors with smooth fading
Optics & Beam Effects
Beam Type
Sharp, narrow beam optimized for aerial effects
Optical Zoom
Motorized zoom for beam angle adjustment
Gobos
Multiple rotating gobo wheels (indexable and rotating)
Prisms
Effects prisms (e.g., 3-facet, 8-facet) for beam multiplication
Movement & Control
Pan/Tilt
540° pan, 270° tilt (or similar) with 16-bit precision
Control Network
Integrated wired digital communication (DMX512/RDM)
DMX Channels
High channel count (e.g., 20+ channels) for full parameter control
Physical & Integration
Housing
Die-cast aluminum housing for durability and heat dissipation
Mounting
Motorized yoke with standard 35mm (1.375") clamp
Data Connection
XLR input/output for DMX network daisy-chaining
Electrical & Performance
Power Consumption
High (e.g., 400W+ for discharge lamp models)
Input Voltage
AC 100-240V, 50/60Hz

Key Features

  • 310 W Osram Sirius HRI Discharge Lamp (6,000 h)
  • Full CMY Color Mixing + 14‑Position Dichroic Wheel
  • Motorized Optics, 16‑bit Focus & High-Speed Movement
  • GOBO, Dimming, Strobe & Manual/DMX Control
  • Rugged Build with Wired & Wireless DMX Networking

Already own this item and want to sell it?

Click here to sell your item

FAQs about ADJ VIZ315 Vizi Beam CMY w/ Wired Digital Communication Network

What light engine powers the ADJ Vizi Beam CMY (VIZ315)?

It is powered by a high-output 310W Osram Sirius HRI discharge lamp (8000K, rated up to 6,000 hours) paired with a large 160mm front lens. It projects an intense, razor-sharp 2-degree beam designed for long-throw aerial beam visual effects.

What color mixing and color wheel options are built into the fixture?

The fixture features a full CMY color mixing system for smooth, multi-color transitions, alongside an independent color wheel containing 14 dichroic colors plus open white (including 3200K CTO and 5600K CTB color correction filters).

What GOBO patterns and beam-shaping optics are included?

It features a static GOBO wheel with 17 metal GOBOS plus open (including 4 beam reducers) with GOBO scroll and shake effects. It also includes motorized focus and a motorized frost filter to soften beam edges into a light wash.

What prism effects does the optical engine feature?

The unit features two indexable, rotating prisms on dual planes—a 16-facet circular prism and a 6-facet linear prism—which can be overlaid and layered together to split the beam into multi-directional geometric mid-air effects.

What control protocols, networking, and wireless options are supported?

It supports standard DMX-512 and RDM protocols, as well as ADJ’s built-in Aria X2 wireless management system for cable-free control up to 2,500 feet away. It also features a wired digital communication network for high-speed daisy-chaining.

Is the Vizi Beam CMY suitable for broadcast, television, and film production?

Yes, it offers 100% flicker-free operation with customizable LED/lamp refresh rates, 0–100% smooth mechanical dimming, and 6 selectable dimming curves to prevent camera scan line interference.

What physical connections are located on the base panel?

The base enclosure features locking 5-pin XLR DMX input and output sockets, dual RJ45 Ethernet network ports for signal distribution, and locking power input and output pass-through connectors.

What are the physical dimensions, weight, and power consumption specs?

The fixture measures 14.9” x 9.3” x 22.0” (379mm x 236mm x 558mm) and weighs 38 lbs (17.2 kg). Operating on auto-sensing 100–240V AC power, it draws a maximum power consumption of 410W.
