ADJ VS5029 VS5 Vision Series High-Resolution Video Panel

$0.00

Items Included

Item Notes

Condition: Out of stock
Once stock replenishes, inventory will display below.
Pricing
Sold out
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

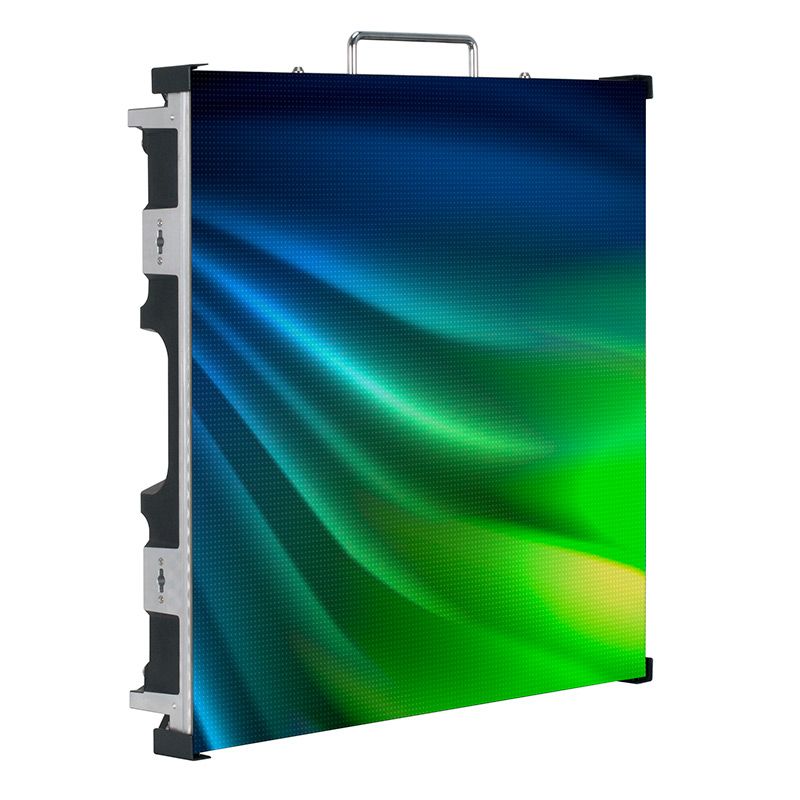

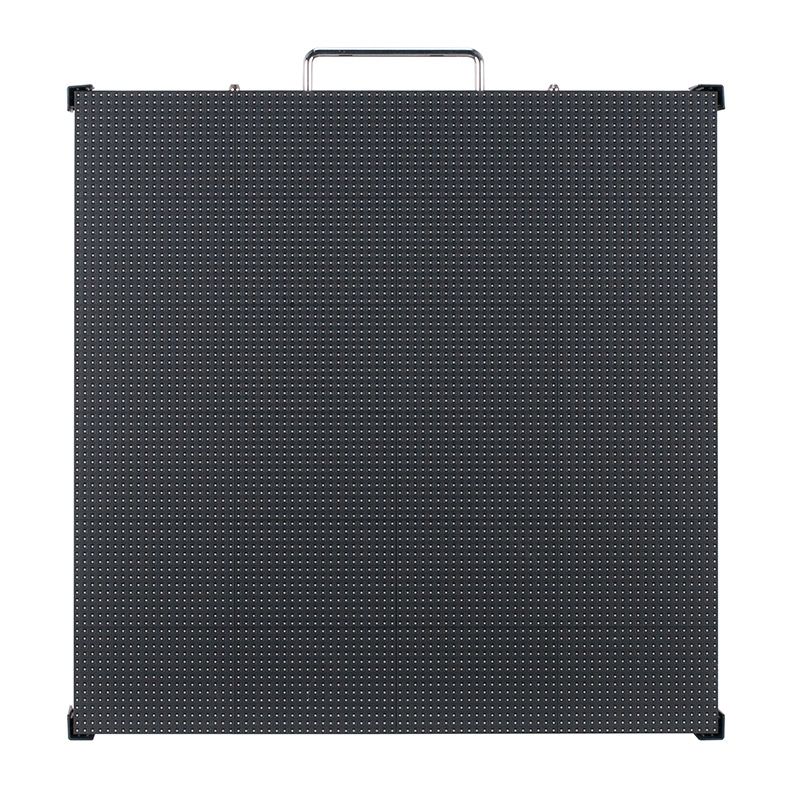

The VS5 is a high-resolution video wall panel with a pixel pitch of 5.95mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS5 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS5 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar. Read more

Features

  • 5.95mm Pixel Pitch
  • 3-in-1 RGB SMD2121 LED
  • 84 x 84 Pixel Density
  • 160/140° Viewing Angles at 9.75'
  • 1000 nits Brightness
  • Four Mini LED Modules per Panel
  • 256 Display Colors (14-Bit Processing)
  • PowerLock Input & Output
  • DataLock Input & Output
  • NovaStar A5s Receiving Card

Business Financing Options Avaiable

View Available Financing

The VS5 is a high-resolution video wall panel with a pixel pitch of 5.95mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS5 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS5 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar. Read more

Features

  • 5.95mm Pixel Pitch
  • 3-in-1 RGB SMD2121 LED
  • 84 x 84 Pixel Density
  • 160/140° Viewing Angles at 9.75'
  • 1000 nits Brightness
  • Four Mini LED Modules per Panel
  • 256 Display Colors (14-Bit Processing)
  • PowerLock Input & Output
  • DataLock Input & Output
  • NovaStar A5s Receiving Card

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the ADJ VS5029 VS5 Vision Series High-Resolution Video Panel

The ADJ VS5029 is a high-resolution LED video panel from the Vision Series, designed for rental, staging, and fixed installation applications where bright, vibrant visual displays are required. As part of a modular system, these panels can be tiled together to create video walls of virtually any size and shape, making them suitable for concert backdrops, corporate events, trade show exhibits, and architectural installations. The panel utilizes surface-mount device (SMD) LED technology, typically with a pixel pitch around 2.9mm (hence the "5029" model number), balancing resolution and viewing distance to deliver sharp images and video content even when viewed from a relatively close range. Key performance aspects include a high refresh rate to eliminate flicker in camera shots, a wide viewing angle to ensure consistent color and brightness across the audience, and robust color reproduction for impactful visuals.

Engineered for reliability and ease of use, the VS5029 panel features a lightweight yet durable aluminum or composite cabinet with quick-connect locking mechanisms that allow for fast and secure assembly. Integrated power and data connectors enable daisy-chaining of multiple cabinets, reducing cable clutter and simplifying setup. The panels are designed with front-serviceability in mind, often allowing for individual LED modules or power supplies to be replaced from the front without dismantling the entire wall. They are compatible with standard video processors and media servers that handle content mapping, scaling, and color correction, integrating seamlessly into professional AV workflows.

Built to withstand the demands of touring, the cabinets are robust and include integrated hanging points for rigging. The system is designed for efficient heat dissipation to ensure consistent performance and long LED lifespan. The ADJ VS5029 Vision Series panel offers a balance of resolution, brightness, and practicality, providing a versatile building block for creating immersive and dynamic large-format video displays in a wide range of professional environments.

Key Features

  • 5.95mm Pixel Pitch
  • 3-in-1 RGB SMD2121 LED
  • 84 x 84 Pixel Density
  • 160/140° Viewing Angles at 9.75'
  • 1000 nits Brightness
  • Four Mini LED Modules per Panel
  • 256 Display Colors (14-Bit Processing)
  • PowerLock Input & Output
  • DataLock Input & Output
  • NovaStar A5s Receiving Card

Already own this item and want to sell it?

Click here to sell your item

ADJ VS5029 VS5 Vision Series High-Resolution Video Panel Specs

Panel Specifications
Pixel Pitch
2.9 mm
Pixel Configuration
SMD LEDs (e.g., 1R1G1B)
Cabinet Resolution
Typically 64 x 64 pixels (4096 pixels per cabinet)
Cabinet Dimensions (W x H x D)
500 x 500 x ~80 mm
Weight per Cabinet
Approx. 6.5 kg
Performance
Brightness
>1200 nits (adjustable)
Refresh Rate
≥1920 Hz
Viewing Angle (H/V)
≥160° / 160°
Color Temperature
3200K - 9300K adjustable
Gray Scale
16-bit processing
Control & Connectivity
Input Signal
DVI, HDMI, SDI (via external video processor)
Data Connector
Standard LED panel input/output (e.g., HD-15, NL4)
Power Connector
PowerCON TRUE1 (In/Out)
Power Consumption
~180W per cabinet (max)
Voltage
100-240V AC, 50/60 Hz
Environmental & Construction
Cabinet Material
Die-cast aluminum
IP Rating
Typically IP20 (indoor use)
Operating Temperature
-20° to 45° C
Storage Temperature
-30° to 60° C
Mean Time Between Failures (MTBF)
>50,000 hours
Features
Assembly
Quick-lock magnetic or mechanical system
Serviceability
Front serviceable modules and power supply
Calibration
Support for pixel-by-pixel brightness/color calibration

Key Features

  • 5.95mm Pixel Pitch
  • 3-in-1 RGB SMD2121 LED
  • 84 x 84 Pixel Density
  • 160/140° Viewing Angles at 9.75'
  • 1000 nits Brightness
  • Four Mini LED Modules per Panel
  • 256 Display Colors (14-Bit Processing)
  • PowerLock Input & Output
  • DataLock Input & Output
  • NovaStar A5s Receiving Card

Already own this item and want to sell it?

Click here to sell your item

FAQs about ADJ VS5029 VS5 Vision Series High-Resolution Video Panel

What is the pixel pitch and resolution of the ADJ VS5 video panel?

The VS5 features a 5.95mm pixel pitch using 3-in-1 RGB SMD2121 LEDs. Each $500\text{ mm} \times 500\text{ mm}$ panel has a matrix of $84 \times 84$ pixels, providing a density of 28,224 pixels per square meter.

Can one person set up a video wall using these panels?

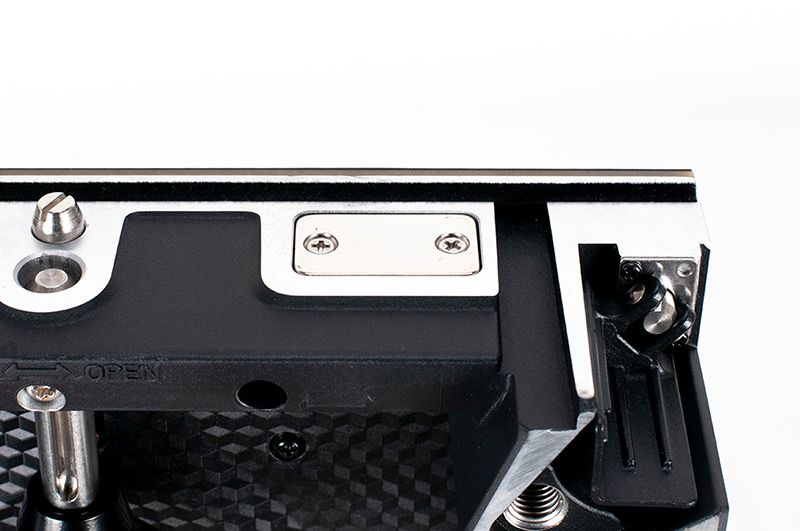

Yes, integrated magnets at the top and bottom temporarily hold neighboring panels together before you lock them. This allows a single technician to safely position and securely latch panels into place.

How are the LED modules serviced if one fails during an event?

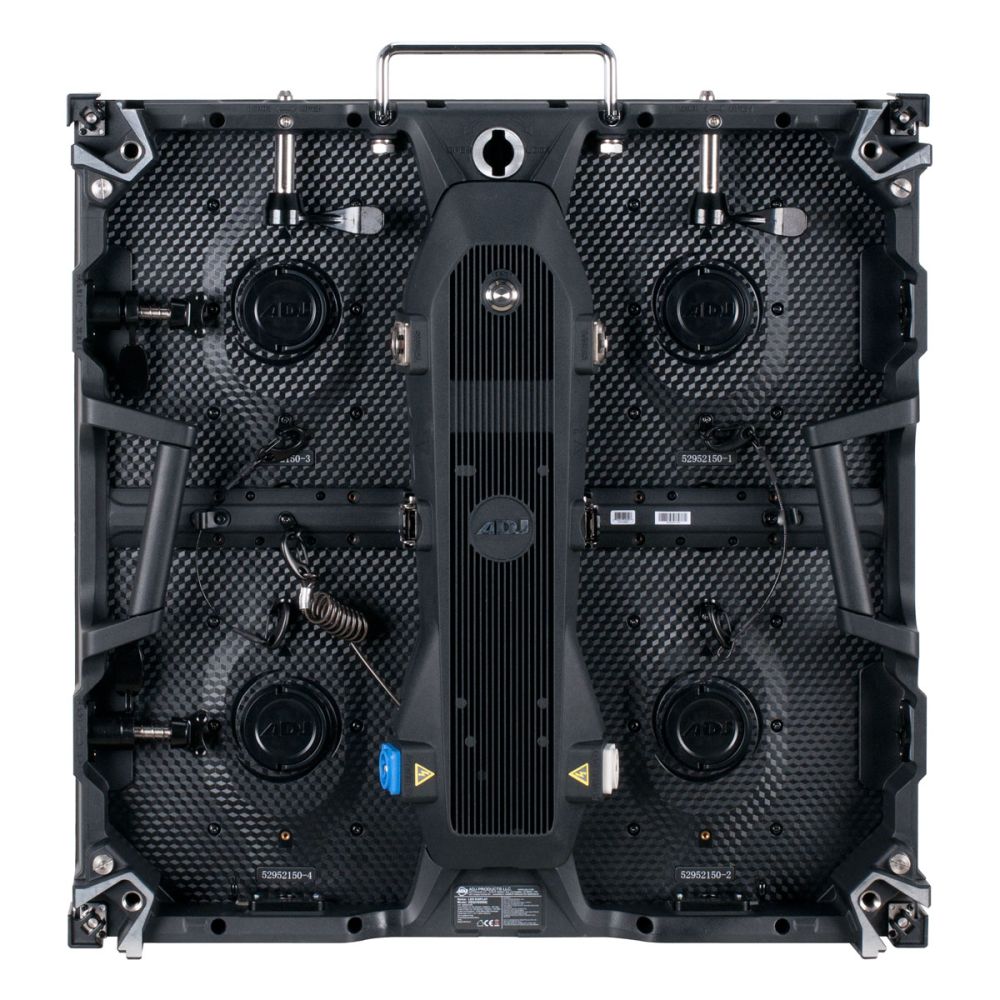

The panel is both front and rear serviceable, containing four independent magnetic mini-modules per frame. You can quickly replace an individual module from either side without dismantling the entire screen structure.

Can I mix the VS5 with other ADJ Vision Series panels in the same setup?

Yes, all Vision Series panels share the same frame dimensions, lock mechanisms, rigging bars, and flight cases. This lets you combine different pixel pitch models seamlessly across the same production grid.

What receiving card is built into the VS5 panel?

Every panel comes equipped with a built-in Novastar A5s receiving card. It connects via locking DataLock (RJ45) data connections and works natively with Novastar video processors.

Is the VS5 suitable for outdoor broadcasts or outdoor events?

The VS5 is IP20-rated, meaning it is designed specifically for indoor use. It offers a high refresh rate of 3840Hz and 1000 NITS of brightness, making it flicker-free for indoor cameras and stage environments.

How are the panels protected against damage during transit and setup?

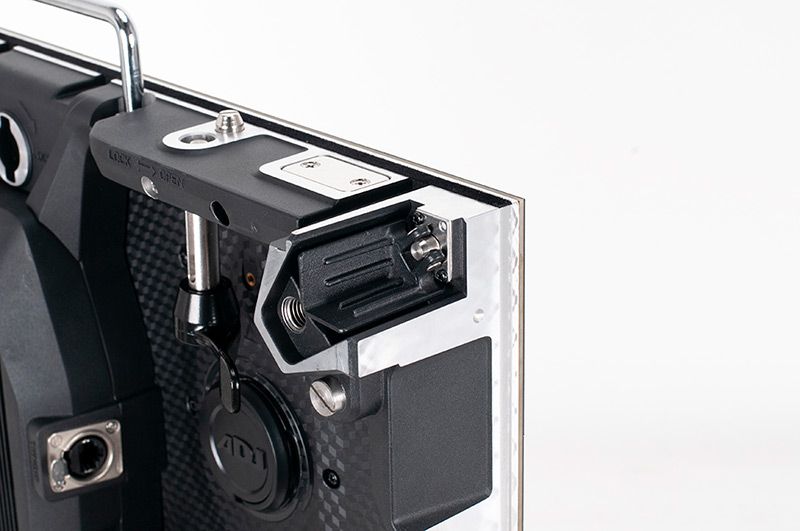

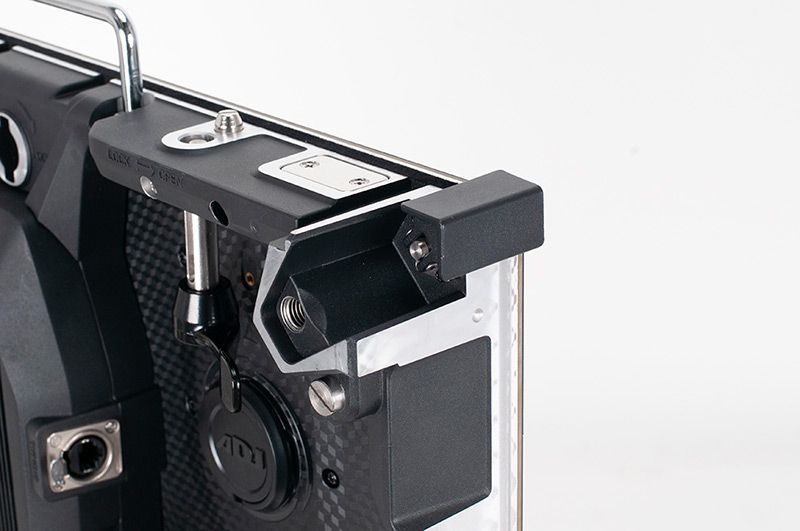

The panel features built-in, drop-down corner protectors that shield the outer LEDs from impact during handling. Once panels are latched together, the protectors fold safely out of the way.

How many VS5 panels can be safely suspended from a single rigging bar?

Using the optional VSRB1 rigging bar, you can suspend up to 20 Vision Series panels vertically in a single column.

What are the power requirements and power linking options?

The panel operates on multi-voltage 100–240V with a maximum power draw of 170W per panel (68W average). It features PowerLock input and output connections to easily daisy-chain AC power across multiple units.
