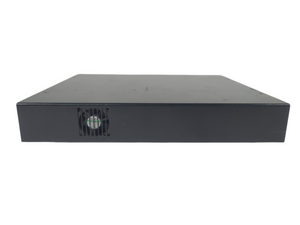

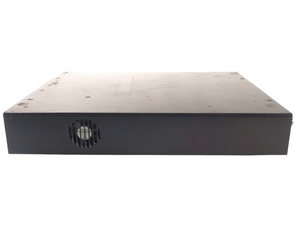

Adtec Edge 4111 HD Digital Media Player

$65.00

The Adtec edge 4111 HD is a digital media player for AVC/H.264 and MPEG 2 high and standard definition file playback and IP stream decoding. Whatever your source, the 4111 series can automatically scale the content to match your output target up to 1080P60 for outstanding HD playback over all video systems. The highly advanced 4111 can easily be configured using the included web-based control application and front panel menu.

View Product Features

  • Play AVC/H.264 and MPEG-2 HD files reliably.
  • Automatic scaling up to 1080i resolution output.
  • Web-based interface for remote media management.
  • Dual Ethernet ports for control and multicast separation.
  • Frame-accurate playback from internal 160GB storage.
  • Front panel LCD with six-button tactile keypad.
In stock
6 in stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Adtec Edge 4111 HD Digital Media Player

The Adtec Edge 4111 HD is a professional digital media player and IP stream decoder designed for AVC/H.264 and MPEG-2 high definition and standard definition file playback. Engineered for unattended operation in digital signage, kiosks, museums, trade shows, and private IP networks, this 1U rack-mountable unit automatically scales content to match output targets up to 1080i (60 Hz) for outstanding HD playback across virtually any display system. The player accepts virtually any source format and applies advanced scaling algorithms to deliver consistent output, eliminating resolution mismatches that plague consumer-grade players. A 160GB internal PATA drive stores media locally, while the Adtec-optimized POSIX-compliant embedded Linux 2.6 kernel ensures stable, crash-resistant operation suitable for 24/7 deployment.

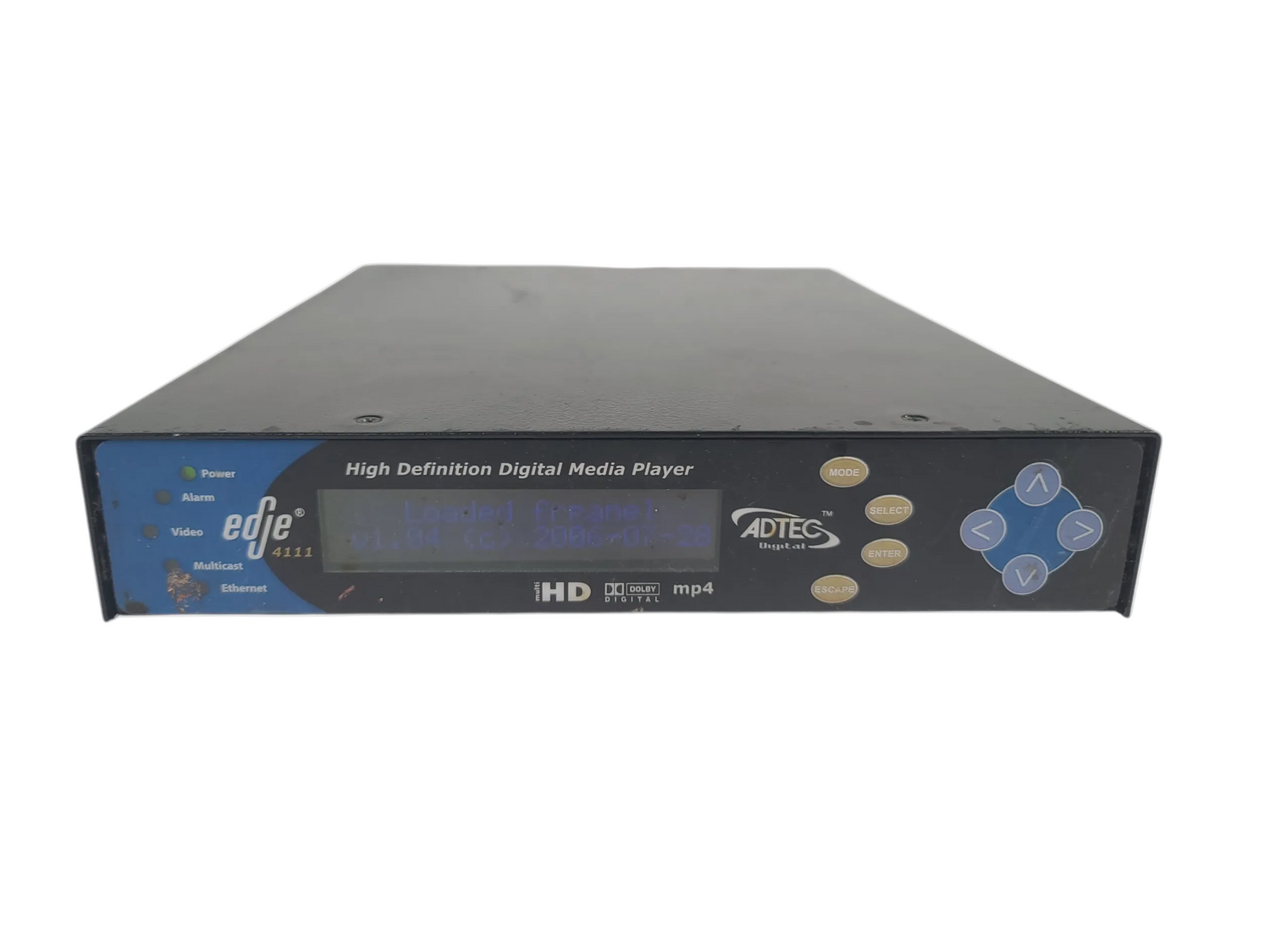

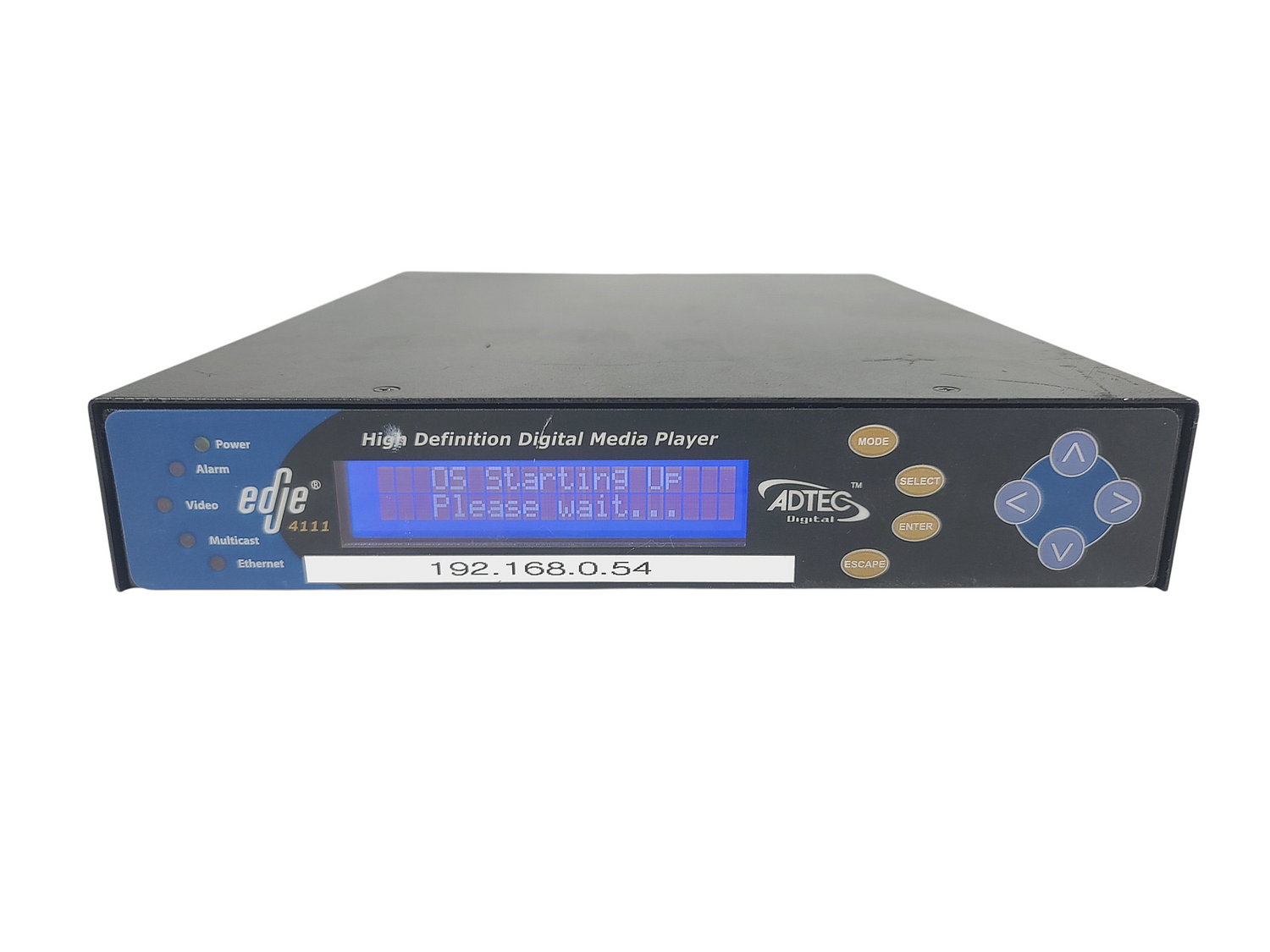

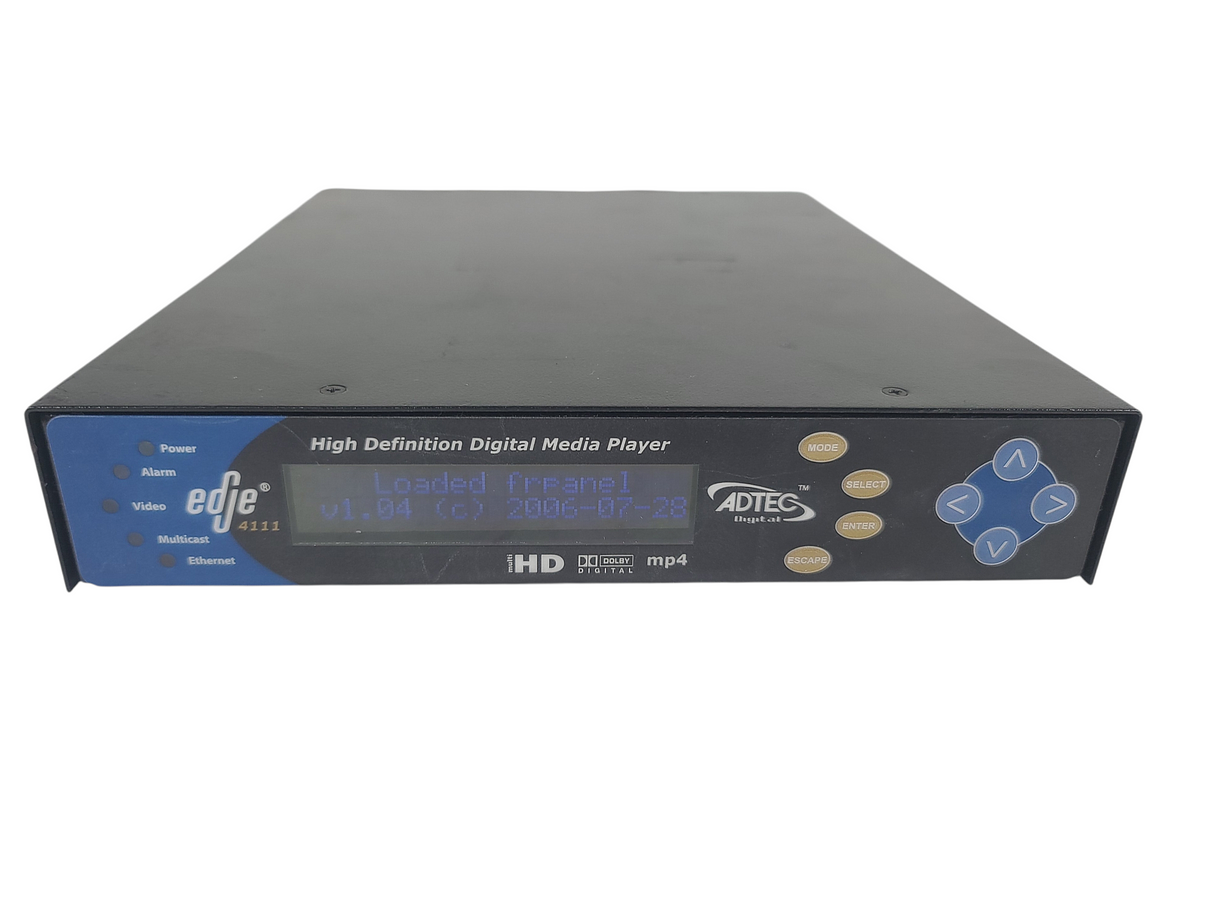

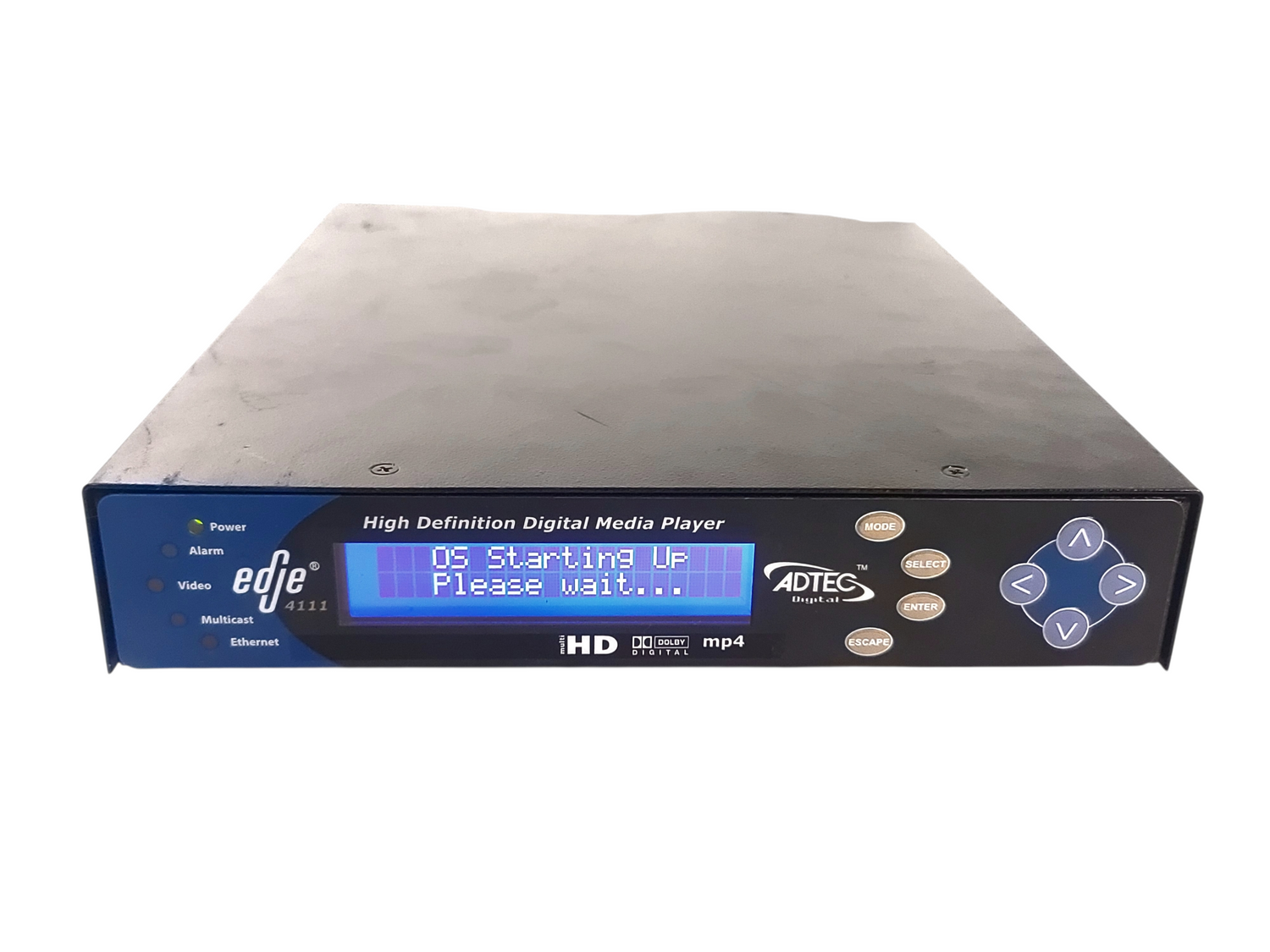

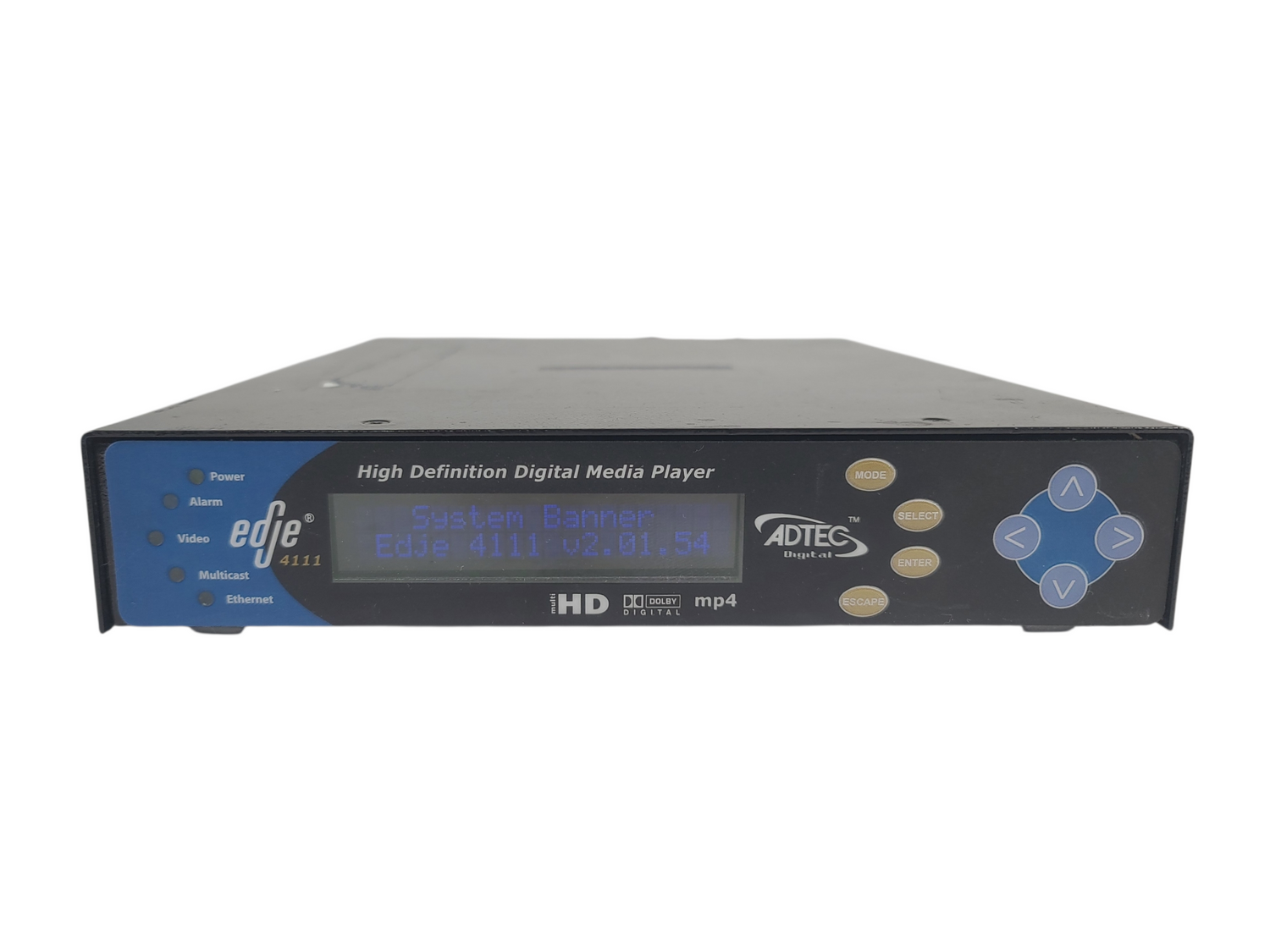

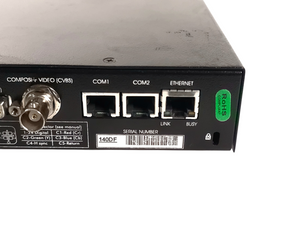

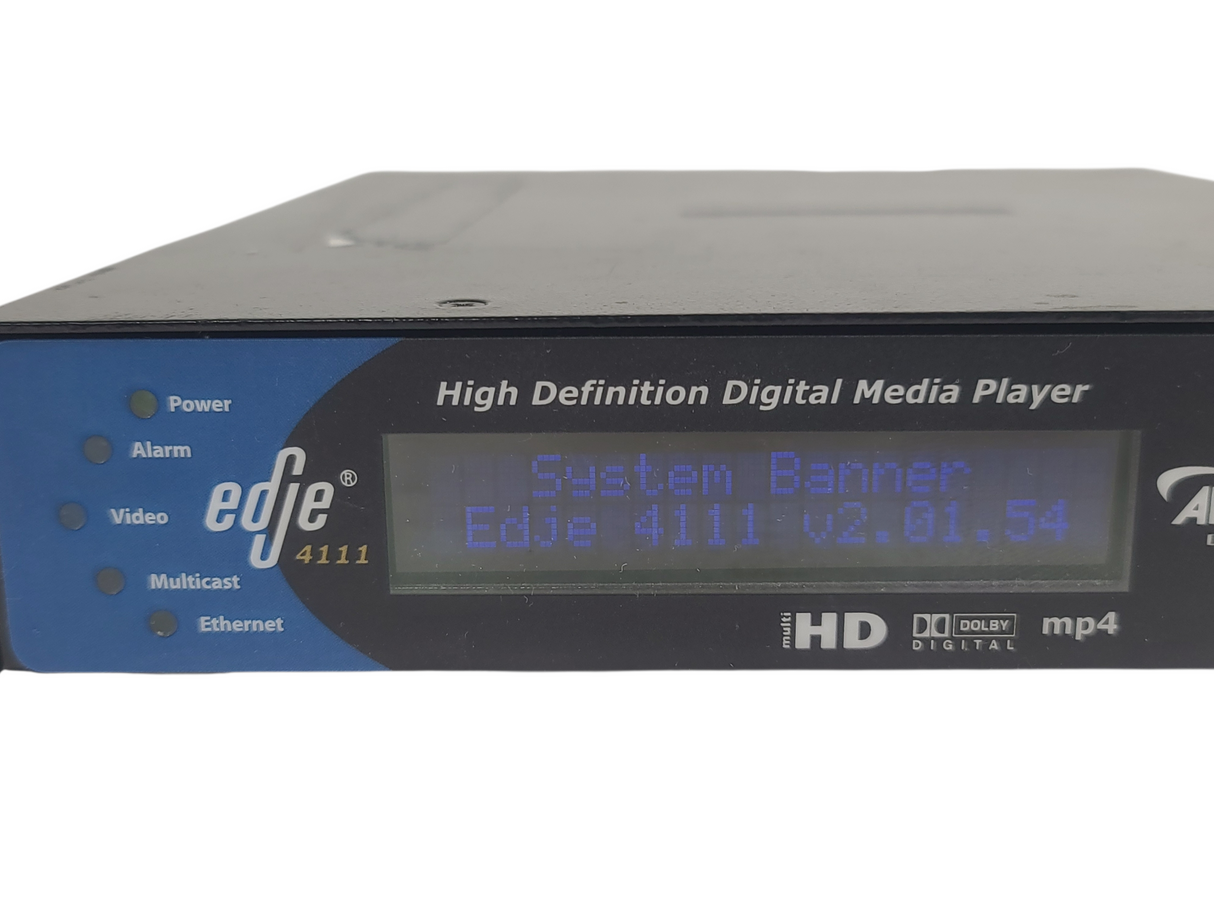

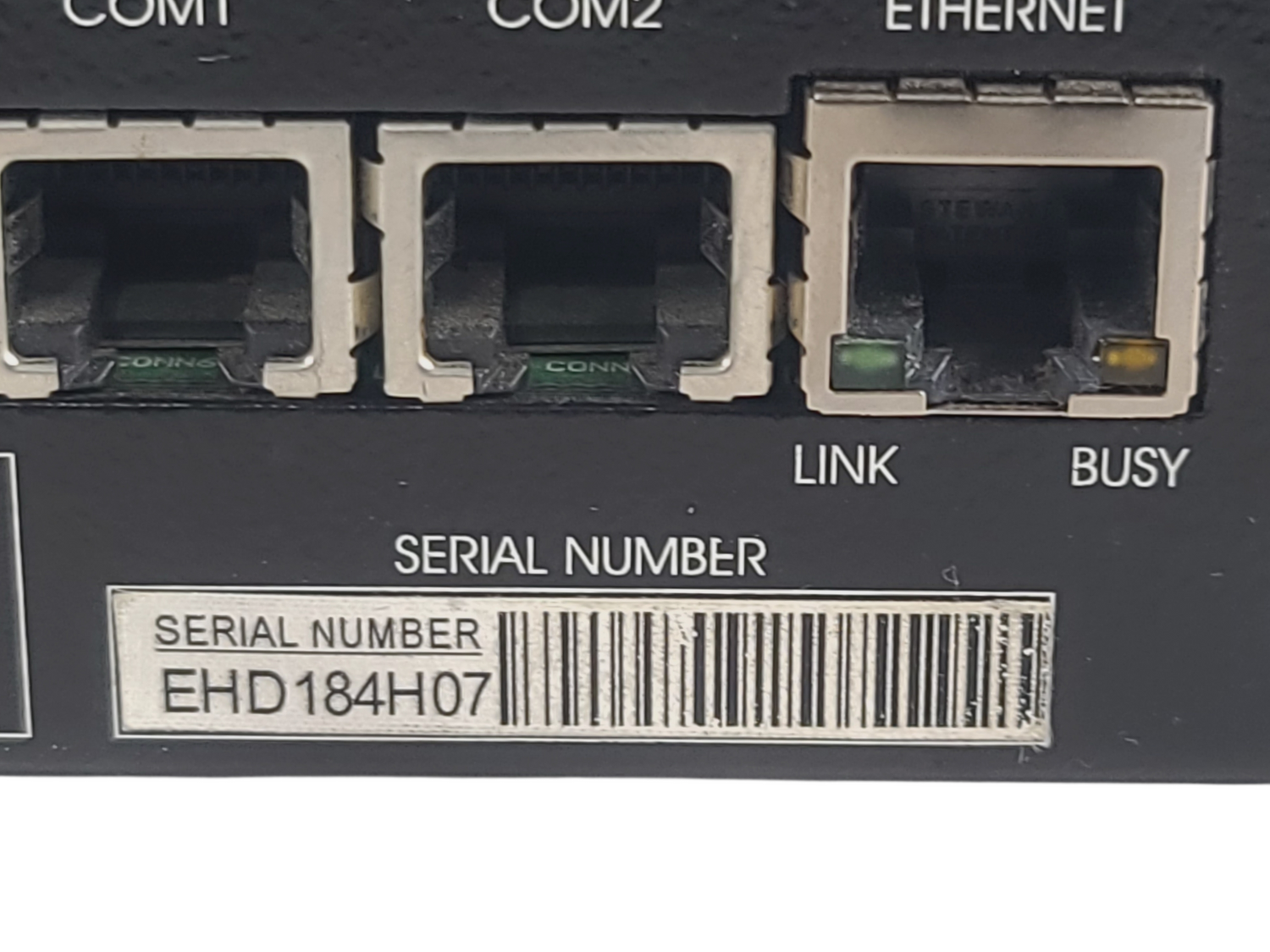

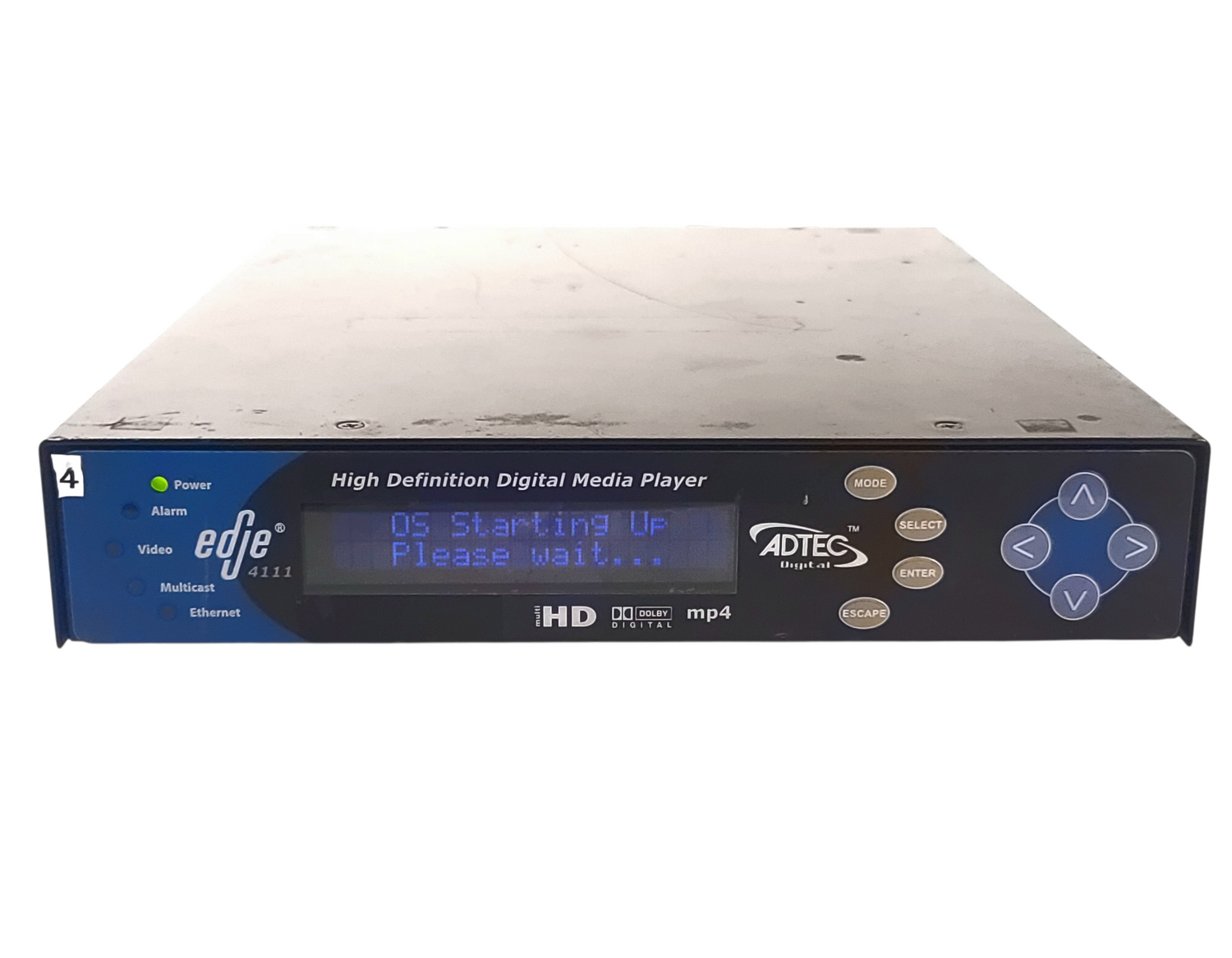

Control and configuration are accessible through multiple interfaces. The included web-based user interface enables remote media loading, playlist creation, scheduling, and firmware updates without requiring proprietary software installation on client machines. Alternatively, the front panel features a 20-character by 2-row blue translucent LCD with a six-button keypad (Mode, Select, Enter, Escape, and arrow keys) for local IP address configuration and display target selection. Two RS-232 serial ports and Ethernet 10/100 with Telnet, FTP, and Adtec command API support allow integration into automation systems. Advanced capabilities include synchronous playback across multiple networked units, graphic overlay with video scaling, and IP multicast tuning with fallback to stored content. The device accepts 70–240 V AC or 12 V DC power, weighs 4 lbs, and measures 8.5 inches wide by 10.5 inches deep by 1.70 inches tall. Multiple sources confirm this product has reached end-of-life status; however, it remains documented here for legacy system reference and maintenance purposes.

Key Features

  • Play AVC/H.264 and MPEG-2 HD files reliably.
  • Automatic scaling up to 1080i resolution output.
  • Web-based interface for remote media management.
  • Dual Ethernet ports for control and multicast separation.
  • Frame-accurate playback from internal 160GB storage.
  • Front panel LCD with six-button tactile keypad.

Adtec Edge 4111 HD Digital Media Player Specs

Decoder & Video Processing
Decoder Type
AVC/H.264 and MPEG-2 HD/SD file playback plus IP stream decoding
Maximum Output Resolution
1080i (60 Hz)
Scaling
Automatic with advanced scalar algorithms

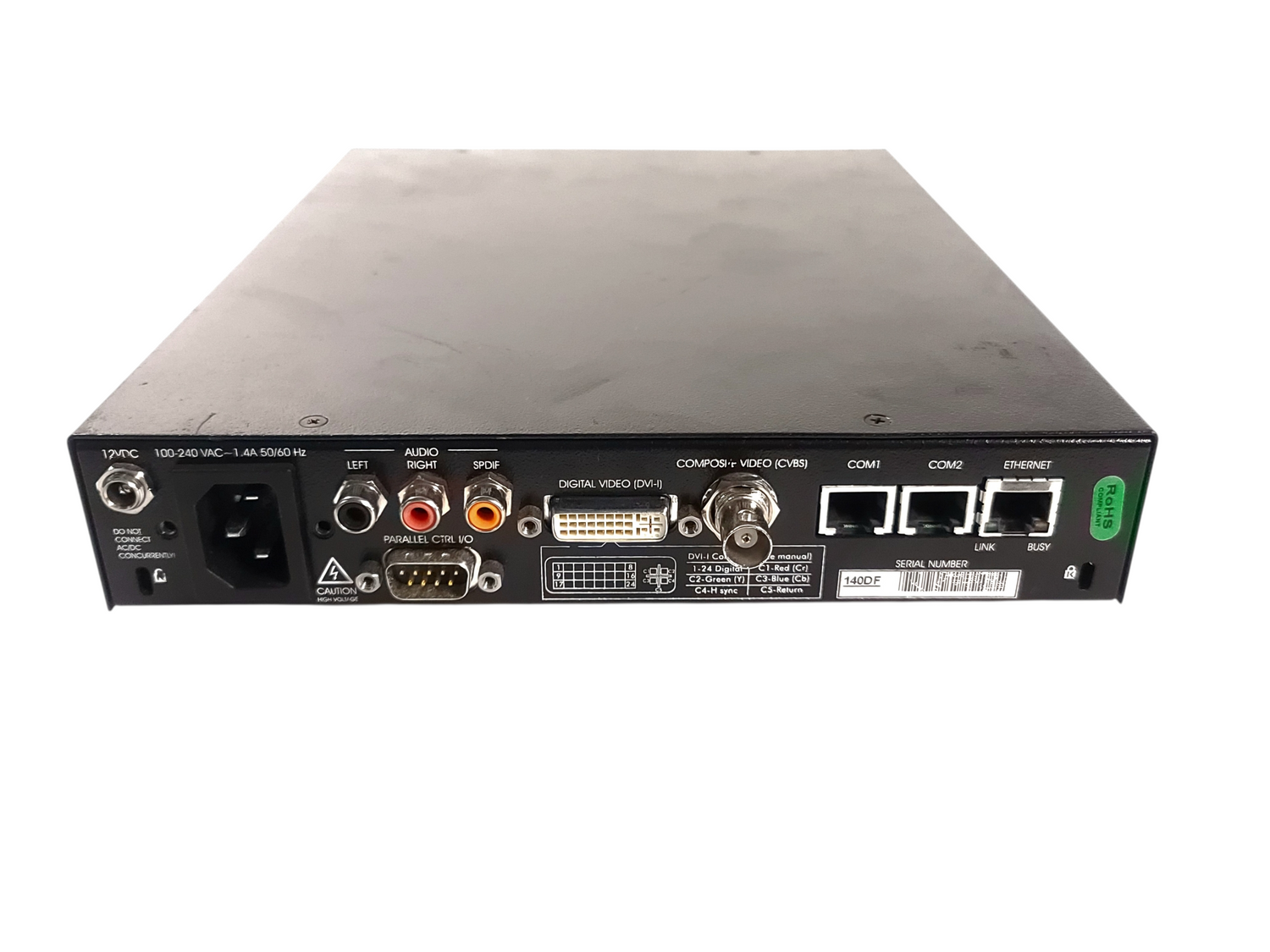

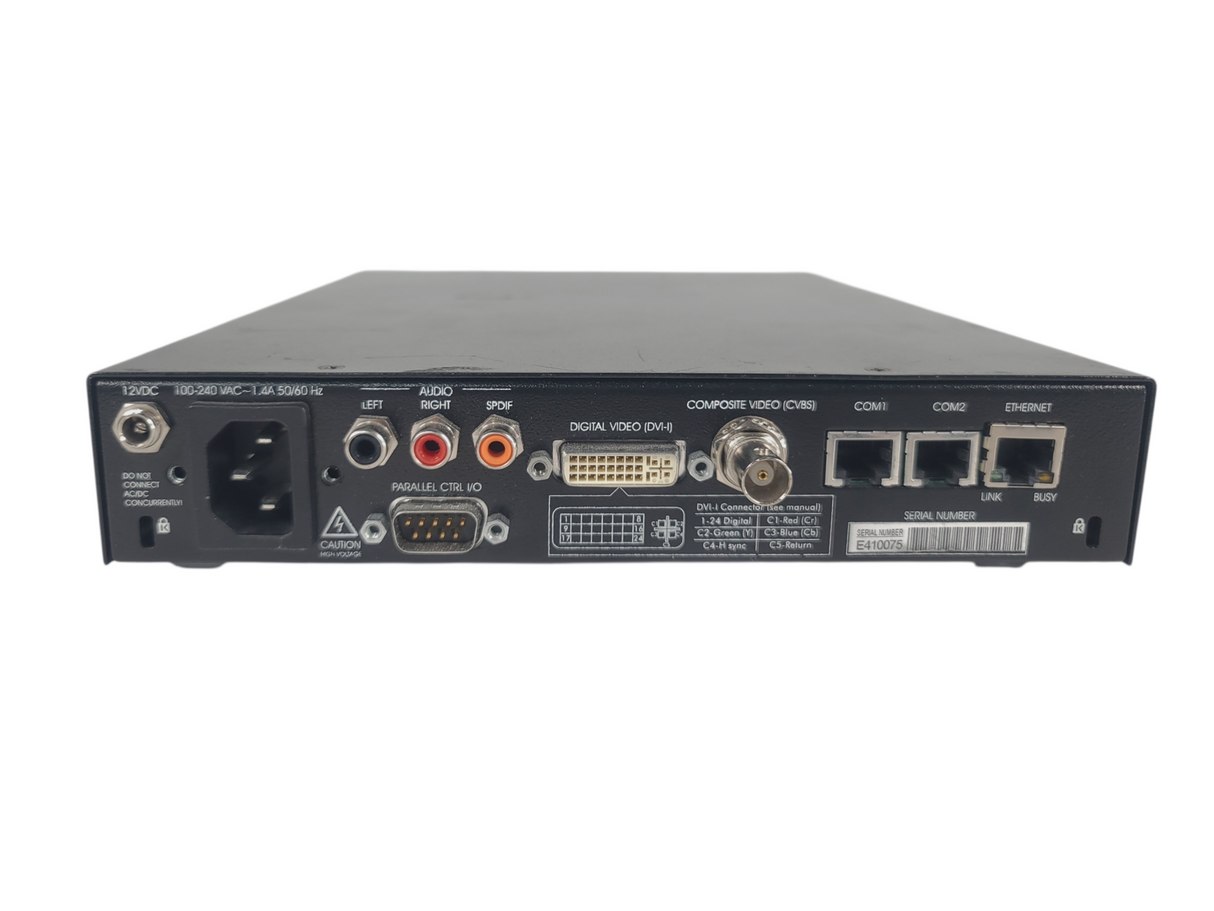

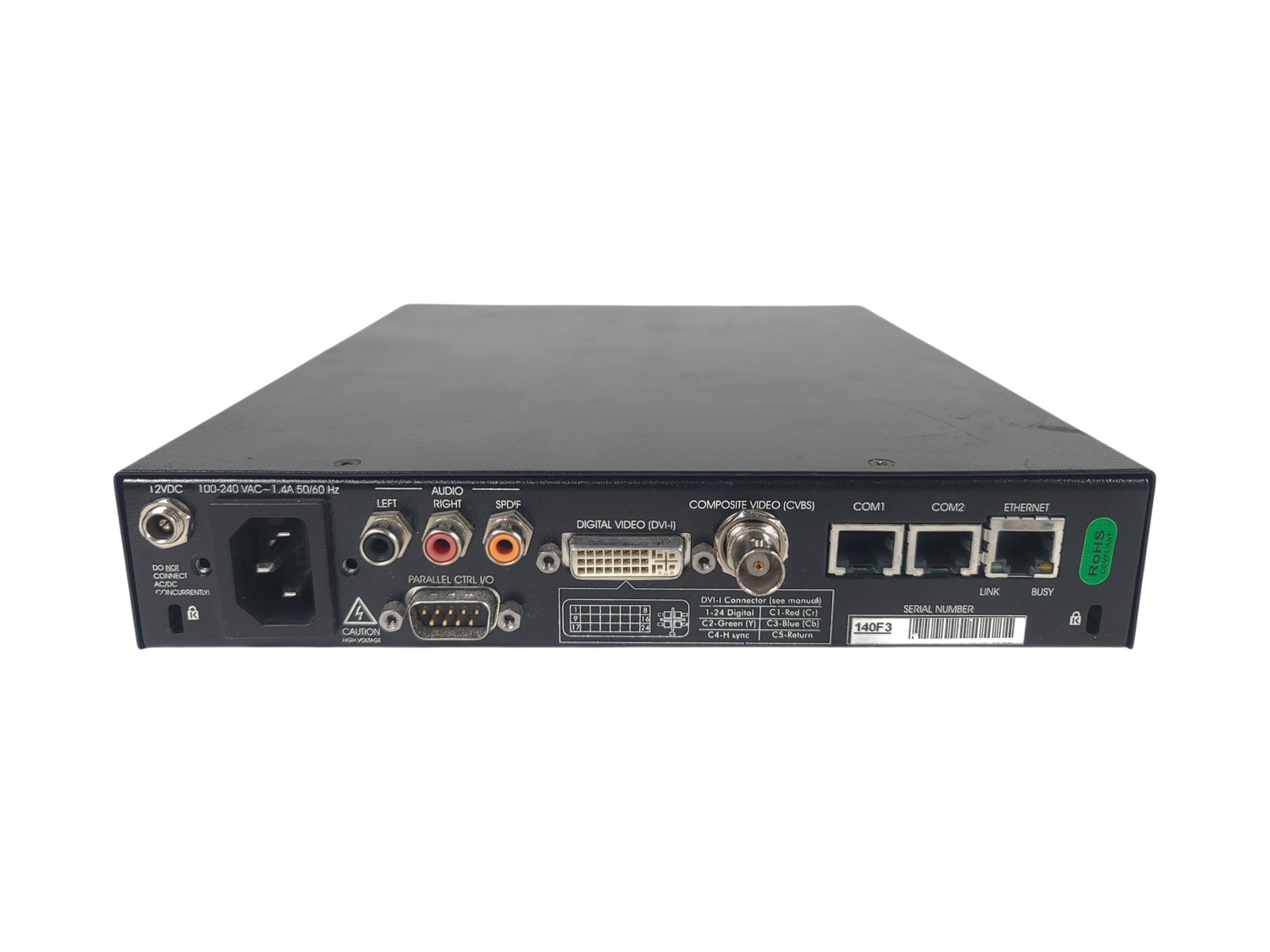

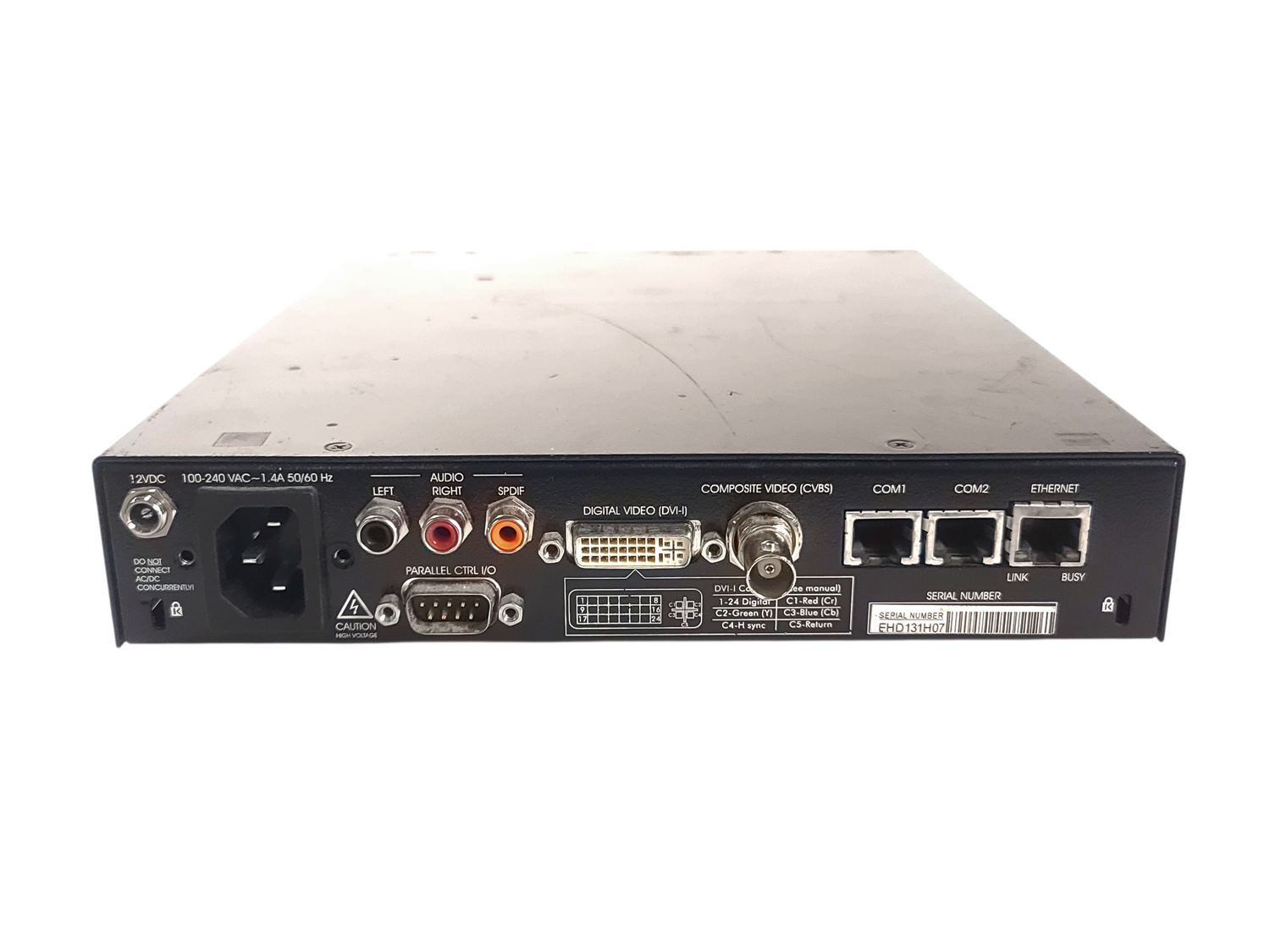

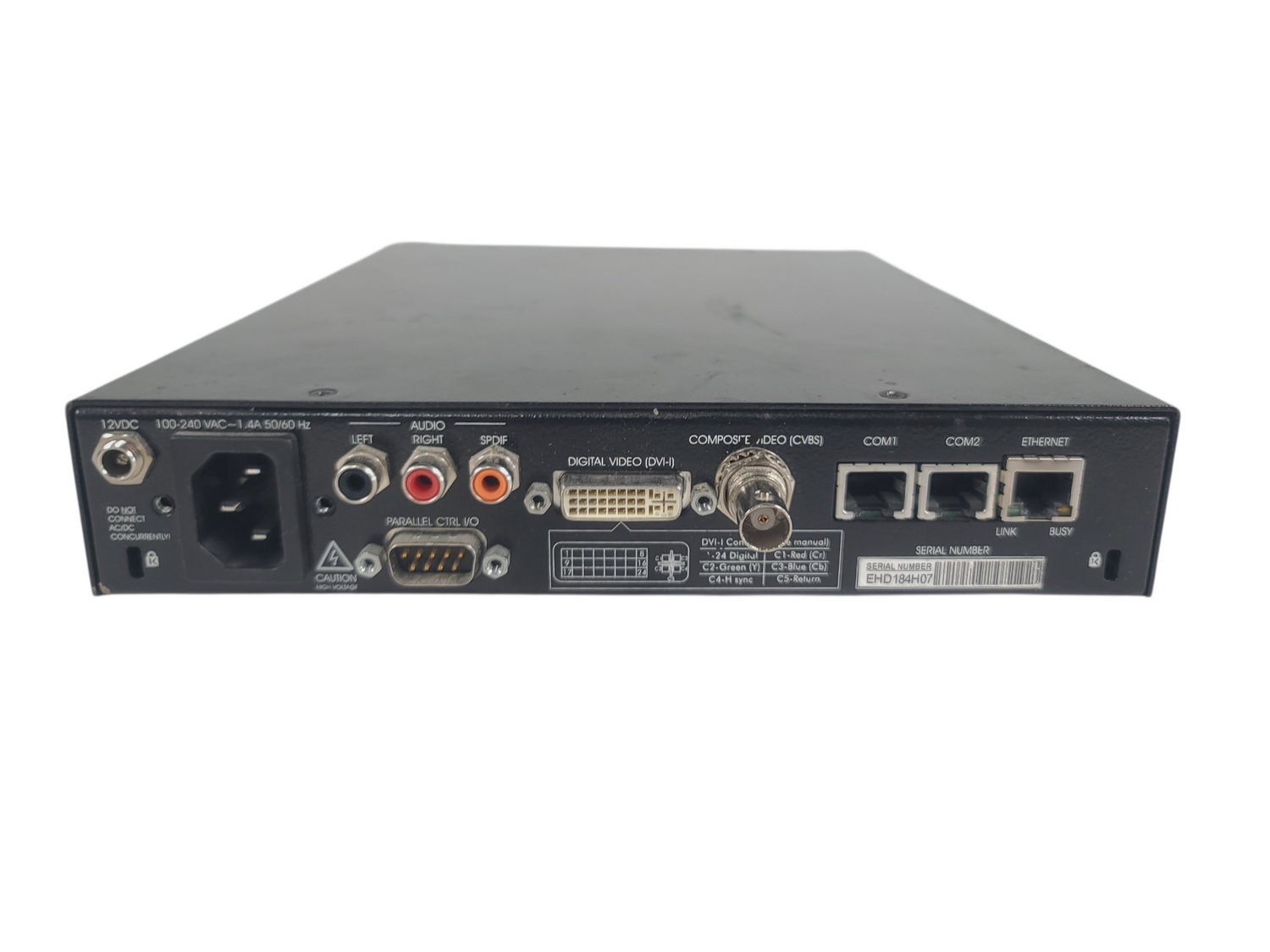

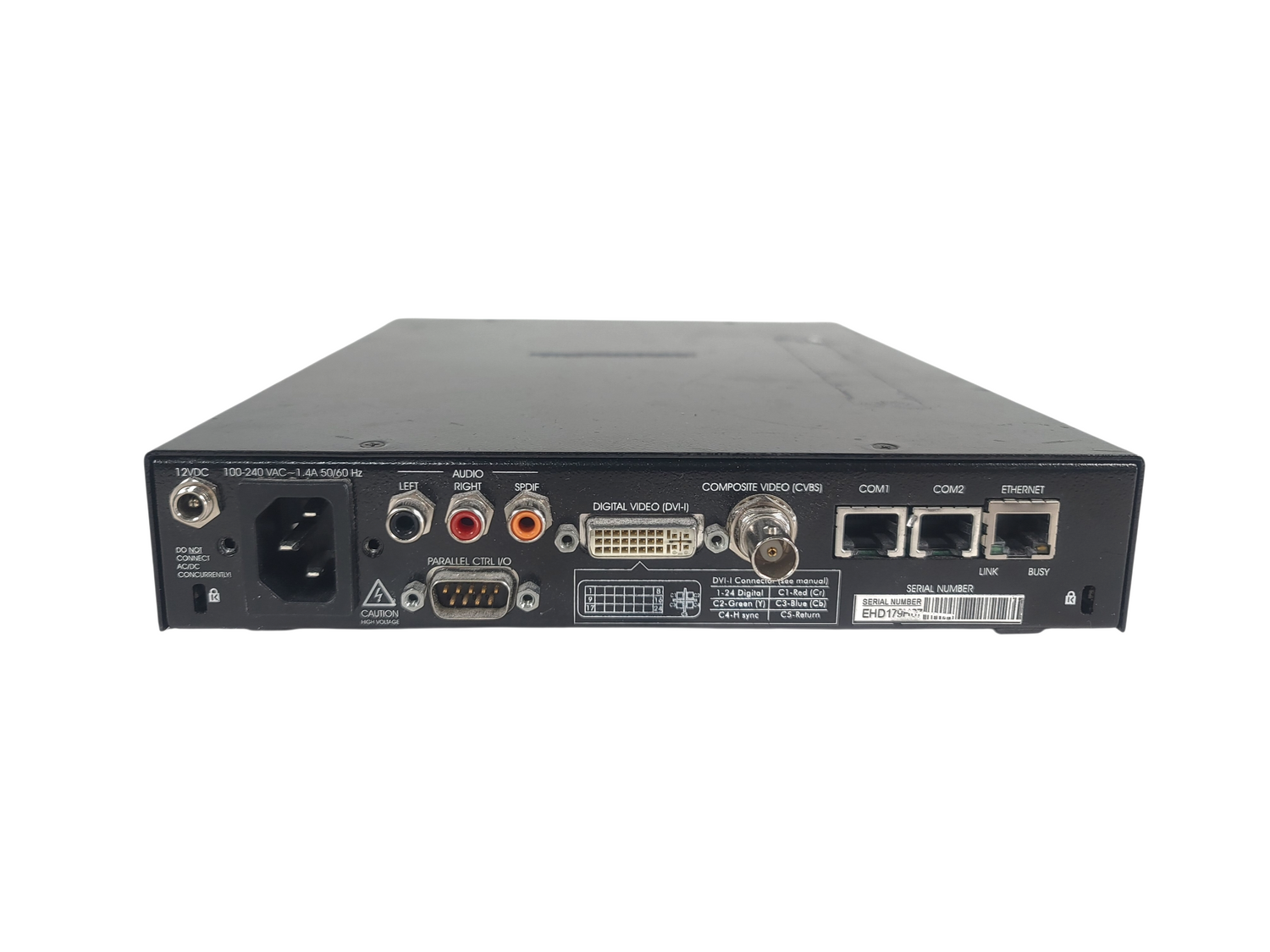

Video Outputs
1 x DVI-I, 1 x Composite (BNC)
Standard Definition Decode
MPEG-2 SD (MP@ML, 422P@ML), AVC/H.264 (MP@L3.1)
High Definition Decode
MPEG-2 HD (MP@HL), AVC/H.264 (MP@L4.1, HP@L4.1)
Video Aspect Formats
4:3, 16:9, or custom via API
Special Features
Error concealment, de-blocking filter, back-to-back frame-accurate playback
Audio Specifications
Audio Outputs
S/PDIF digital audio (RCA female), unbalanced analog stereo (1/8" female)
Dolby Digital AC-3
Up to 640 kbps, 32/44.1/48 kHz sampling, downmix to Dolby Pro Logic
MPEG Audio
Layers I, II, III (MP3) 2.0 up to 448/384/320 kbps, multiple sampling rates
AAC-LC
MPEG-2 and MPEG-4 up to 384 kbps, 7.35–48 kHz sampling rates
Storage & System
Internal Storage
160 GB PATA drive
Operating System
Adtec-optimized POSIX-compliant embedded Linux 2.6 kernel
File Management
Web UI or mediaControl application (legacy, web interface recommended)
Communications & Control

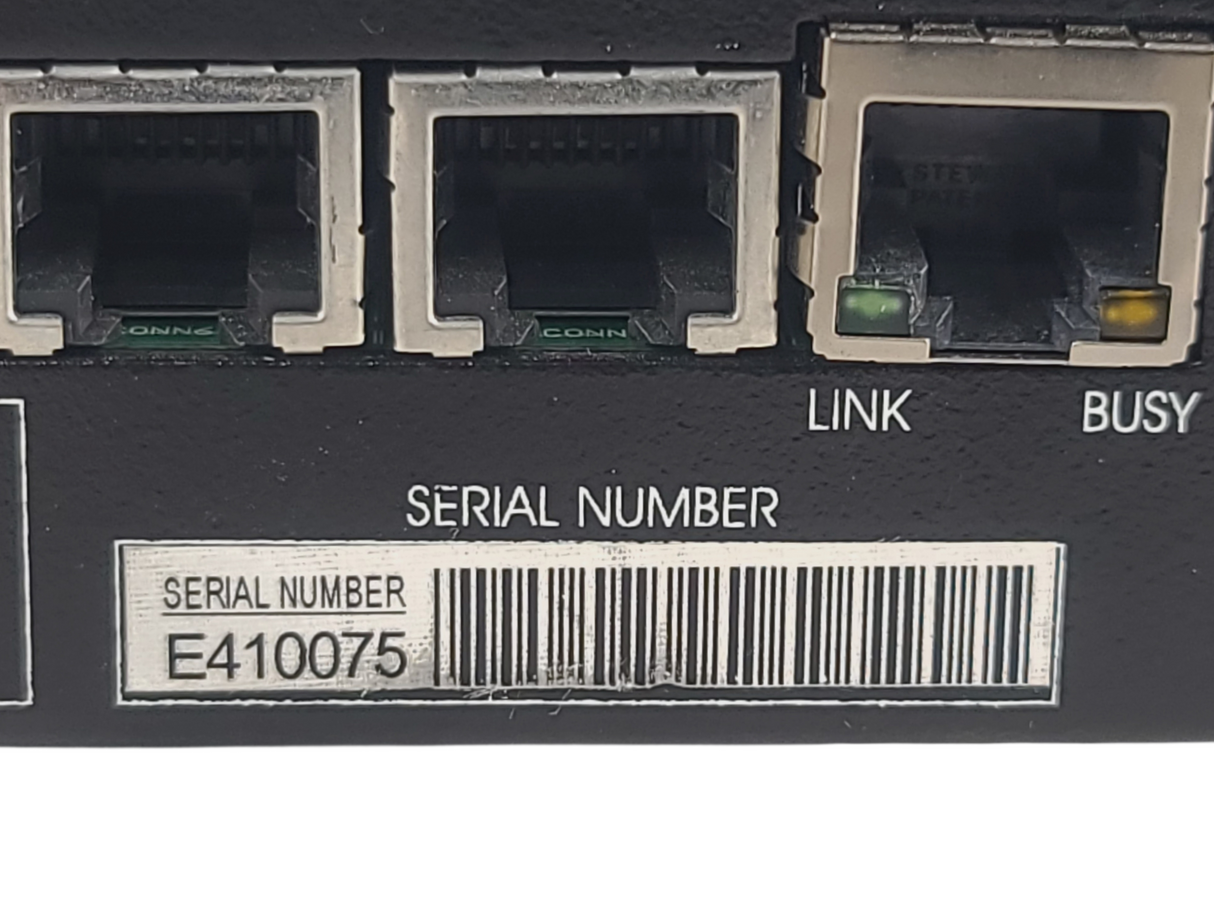

Ethernet Ports
10/100 (RJ-45) and optional GigE (RJ-45 for IP multicast)
Ethernet Protocols
HTTP, Telnet, FTP, Adtec command API

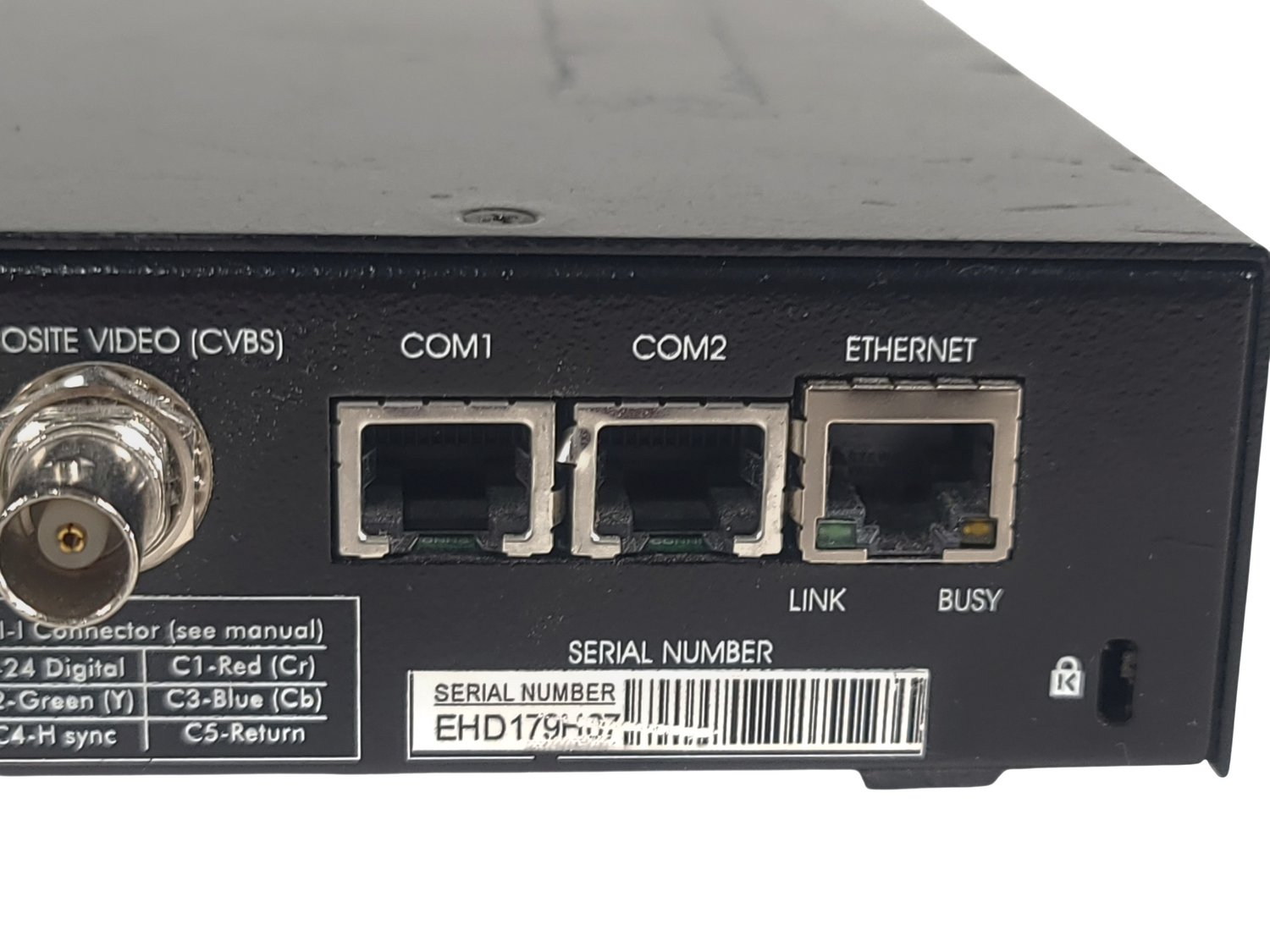

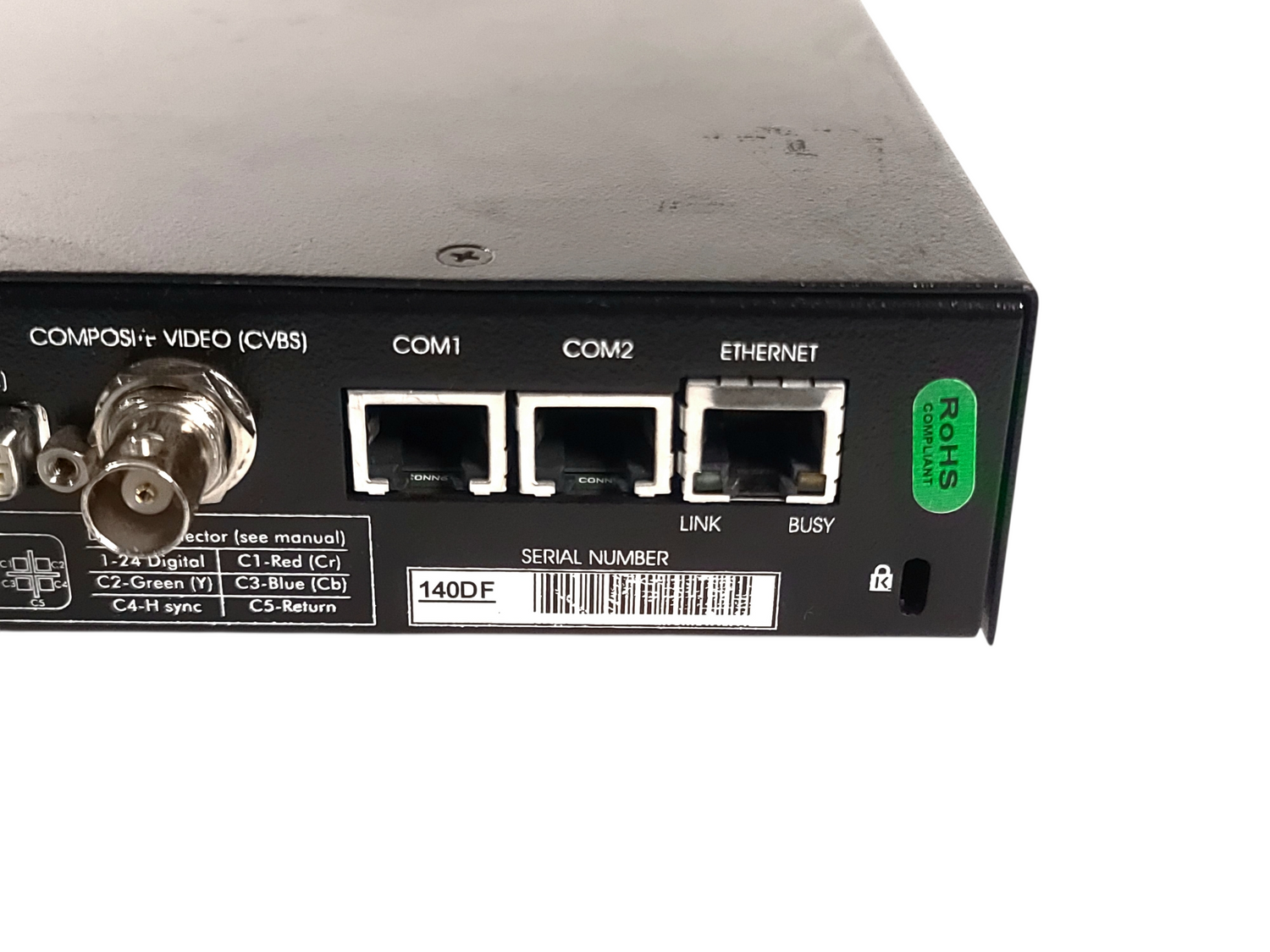

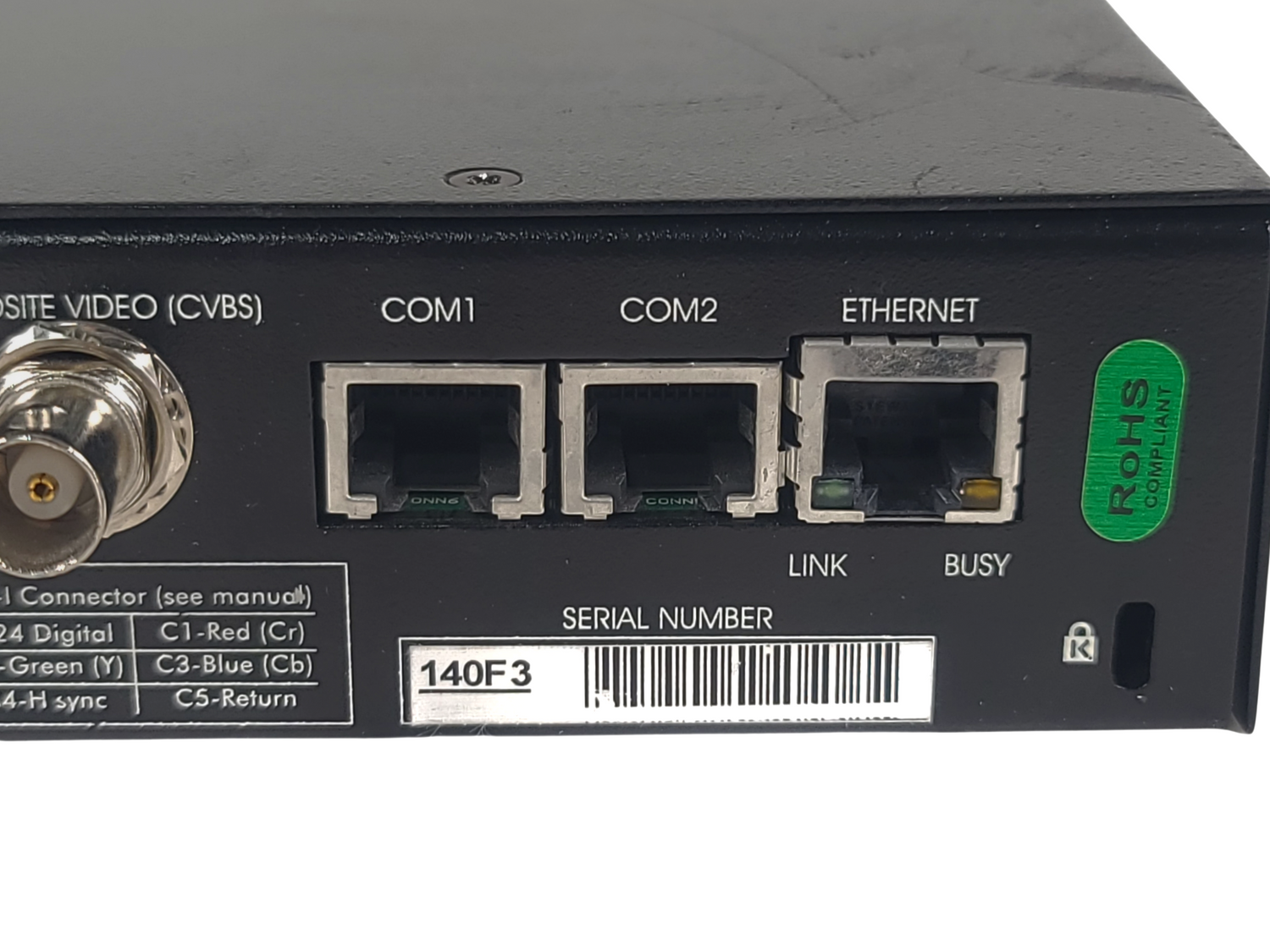

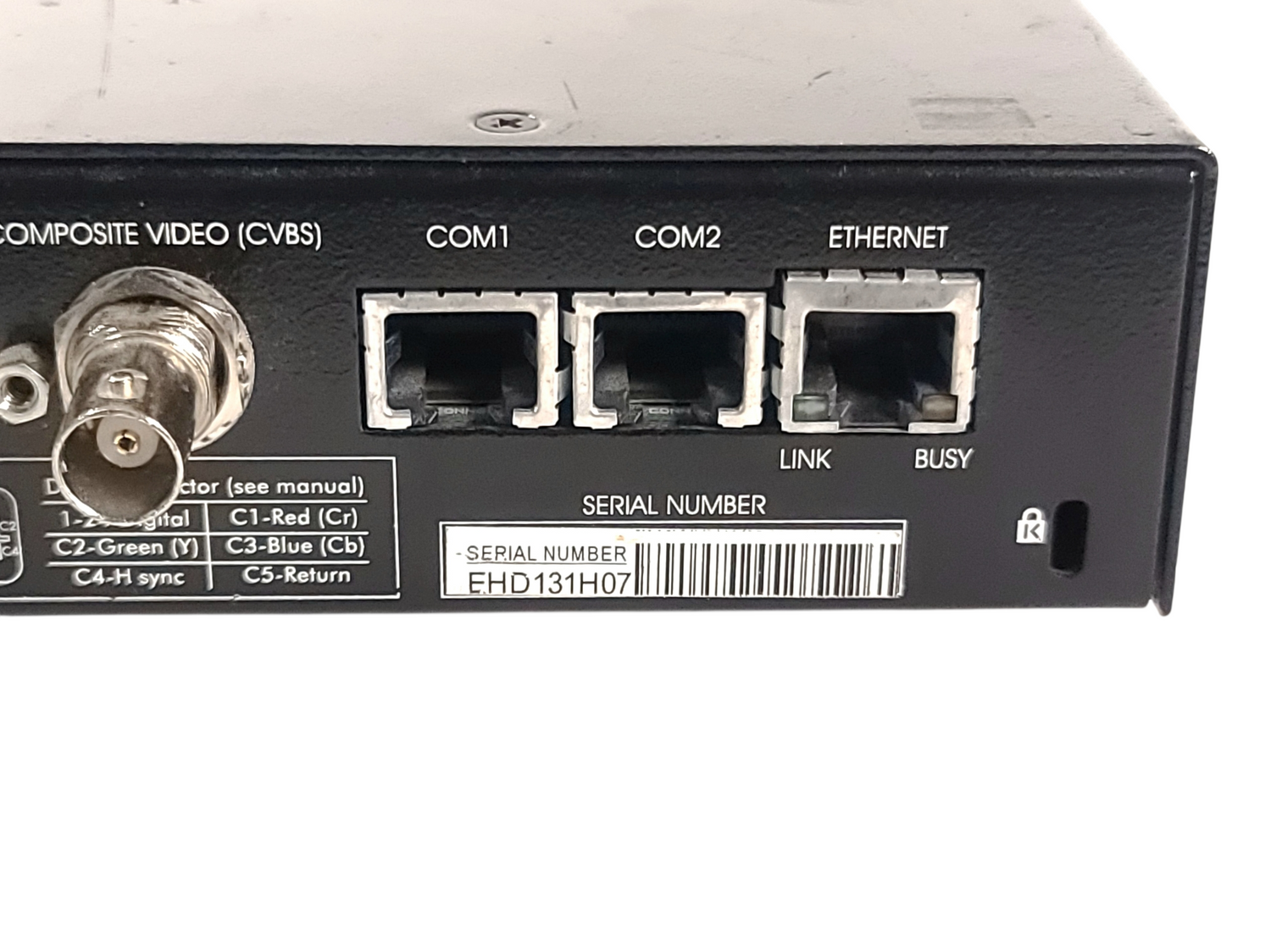

Serial Communications
2 x RS-232 (38,400–115,200 baud, 8 data bits, 1 stop bit, no parity)

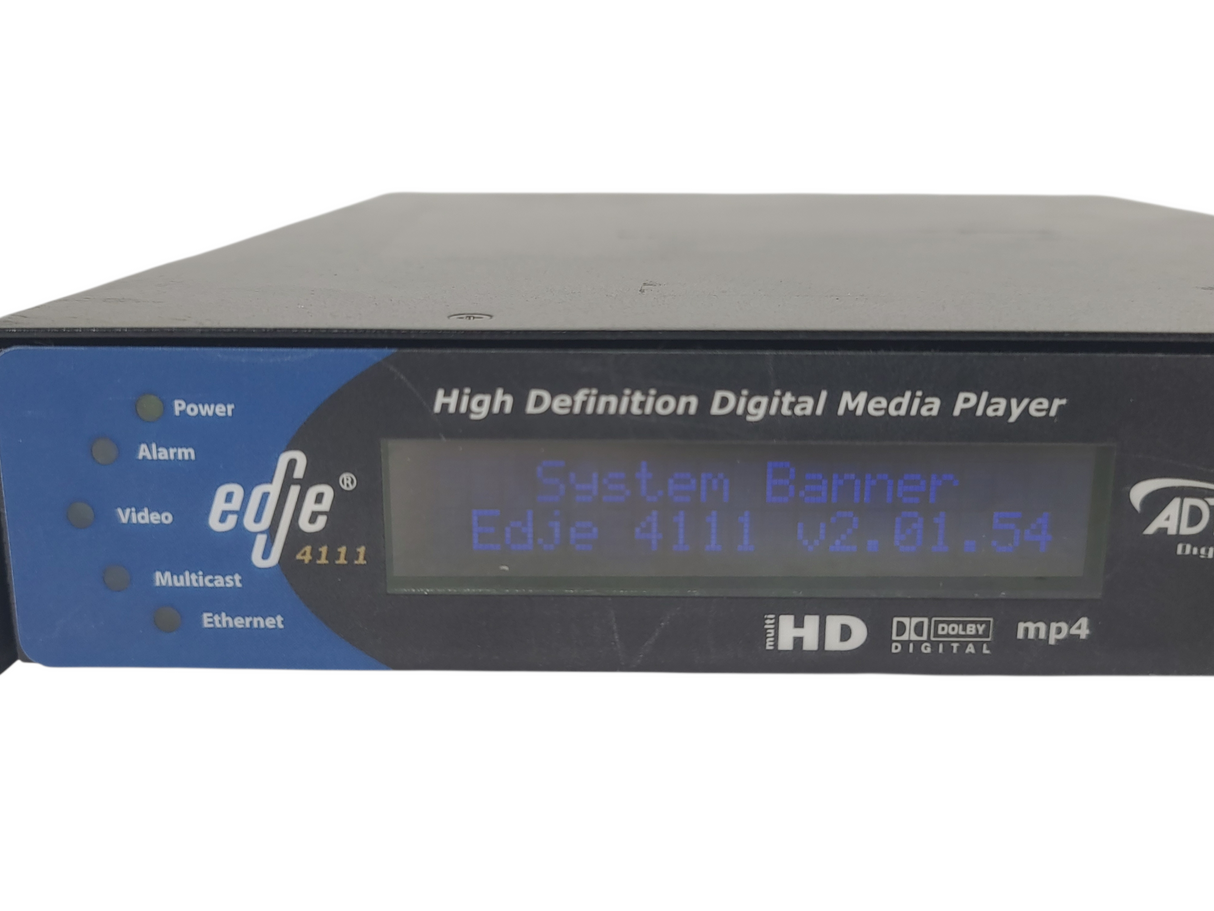

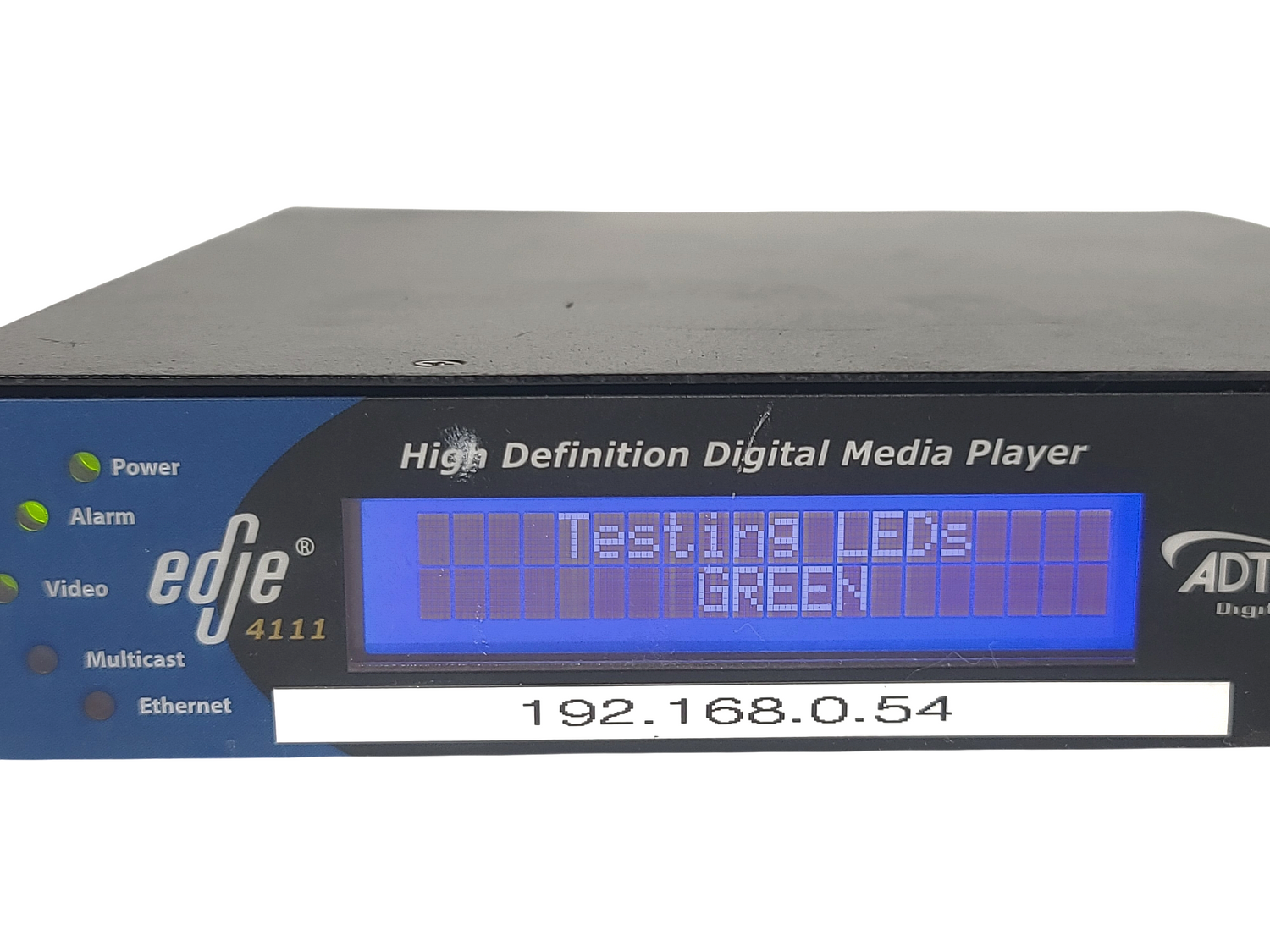

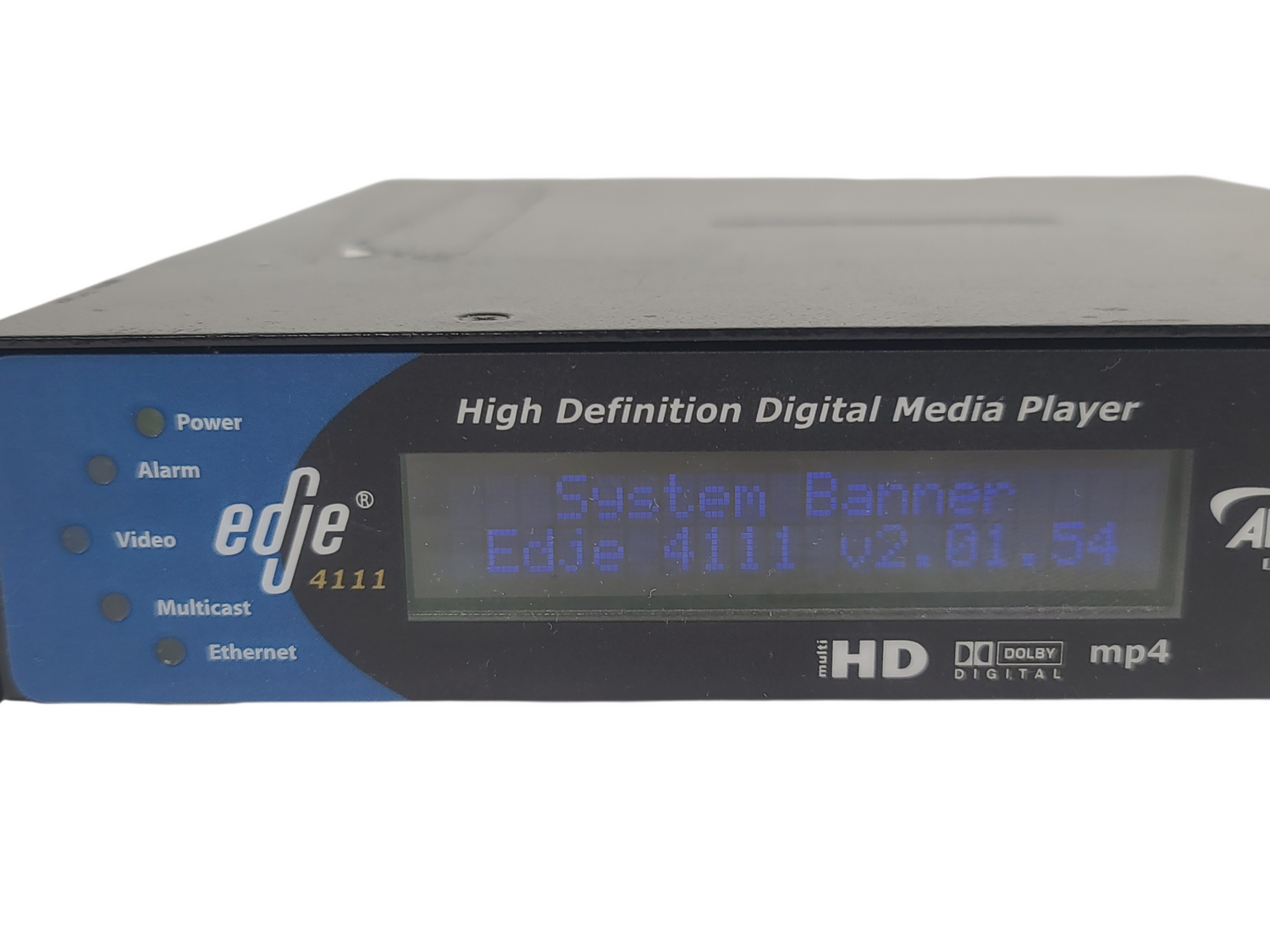

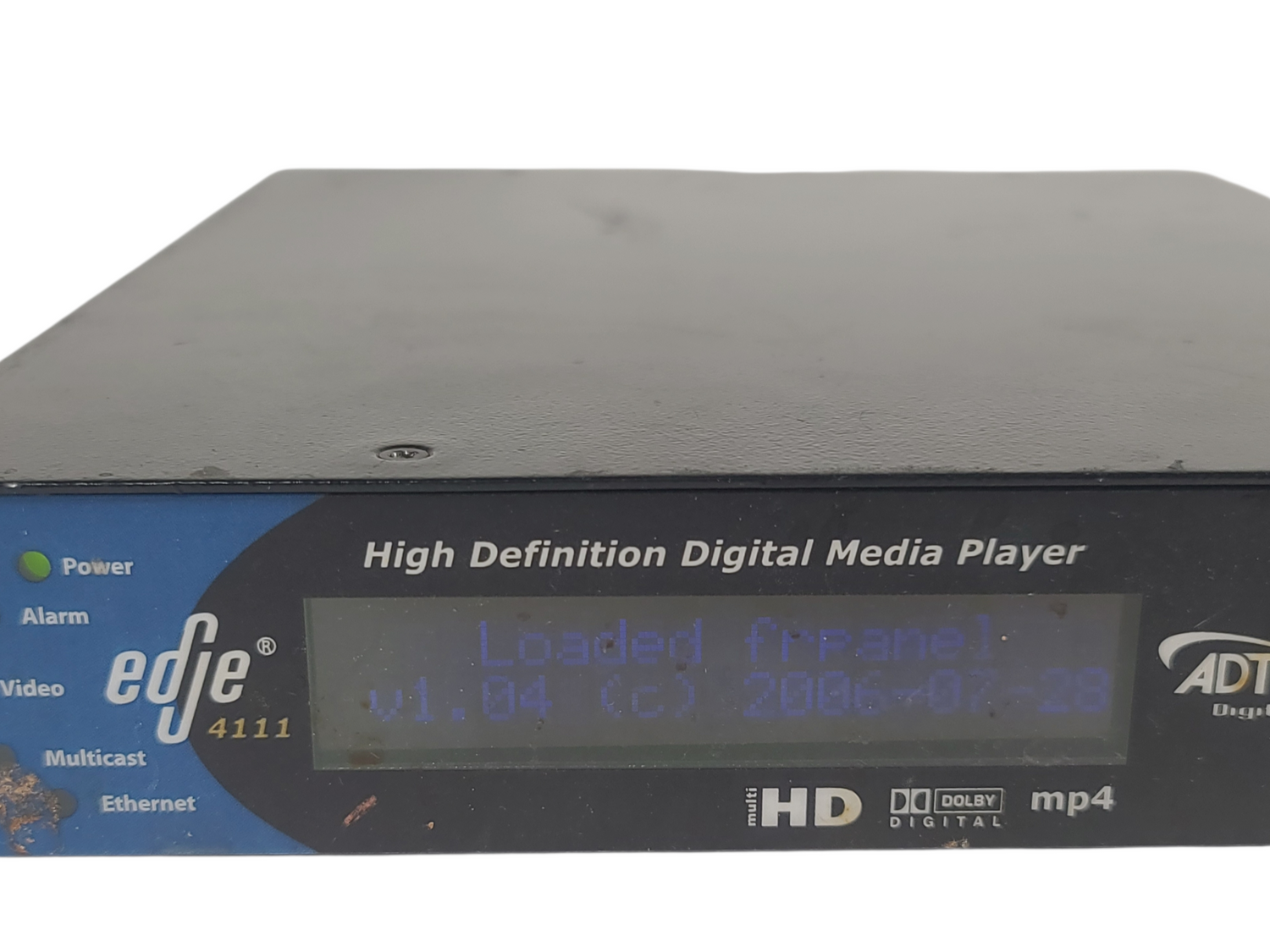

Front Panel Display
20-character x 2-row blue translucent LCD
Control Methods
Web UI, front panel, serial, Telnet
