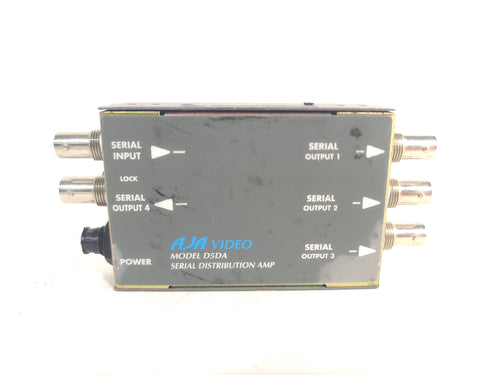

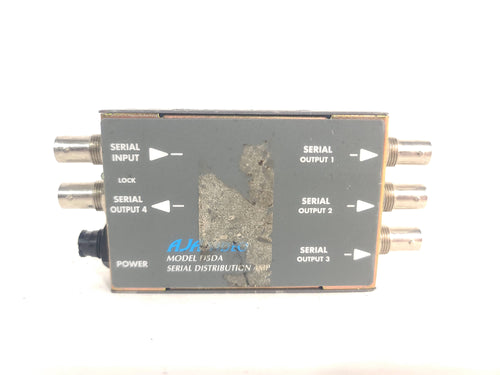

The AJA D5DA is a professional, high-quality single-channel SD-SDI distribution amplifier engineered to reliably split a single standard definition serial digital video signal into multiple identical outputs without signal degradation. This compact unit addresses a fundamental need in broadcast and production facilities: maintaining signal integrity when one source must feed multiple destinations, such as monitors, routers, recorders, or additional processing equipment. It accepts an SD-SDI input conforming to SMPTE 259M standards, supporting both 270 Mb/s and 360 Mb/s data rates for standard definition formats (including 480i and 576i), and then actively re-clocks, re-drives, and distributes it to several isolated outputs. This process of active amplification and re-clocking is crucial as it regenerates a clean, stable signal, compensating for cable losses and jitter accumulated from the source, thereby ensuring that each output is a robust, broadcast-quality copy suitable for long cable runs to downstream equipment.

Constructed with a focus on transparency and reliability, the D5DA utilizes high-performance circuitry to preserve the critical timing and data integrity of the SDI signal. Each output is electrically isolated and buffered, preventing any interaction or failure in one downstream device from affecting the signal feeding other devices. This isolation is a key feature for system stability in complex installations. The device operates without requiring any user configuration; it is a true "set-and-forget" component that automatically handles the incoming signal format. Its robust build, housed in a small metal enclosure, is designed for continuous operation in demanding 24/7 broadcast environments, providing consistent performance with minimal thermal output.

The unit’s design prioritizes ease of integration and flexibility within existing infrastructure. It features industry-standard BNC connectors for all inputs and outputs and can be conveniently mounted in a rack using optional mounting hardware. Often capable of being powered via an external AC adapter or direct DC input, it offers installation versatility. By performing the essential but critical task of flawless signal distribution, the AJA D5DA serves as an unsung hero in the signal chain, ensuring that vital video feeds remain strong, stable, and available to all necessary points within a production or transmission facility, thereby upholding overall system reliability.
