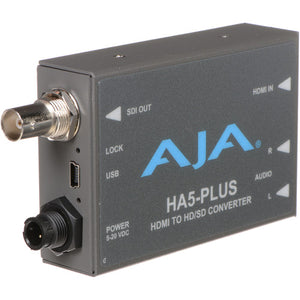

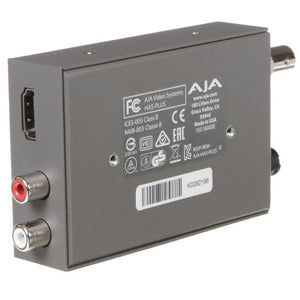

The AJA HA5-Plus is a compact, versatile converter designed to facilitate seamless signal translation between HDMI and professional HD/SD-SDI domains, while also accommodating analog composite video. This device supports bi-directional conversion, allowing it to function either as an HDMI to SDI/composite encoder or an SDI/composite to HDMI decoder, providing essential flexibility in diverse video workflows. It is engineered to bridge consumer and pro-grade equipment, enabling sources like computers, Blu-ray players, or gaming consoles with HDMI outputs to connect to broadcast routers, monitors, and recorders that utilize SDI infrastructure. Conversely, it allows professional SDI camera feeds or archived composite video to be displayed on standard HDMI monitors or captured via consumer-grade recording devices. This adaptability makes it a critical tool for integration in broadcast trucks, edit suites, live event production, and presentation systems.

The converter excels in handling a broad spectrum of video formats, from legacy standard definition NTSC/PAL via its composite BNC input to high definition 1080p signals at 60Hz via its 3G-SDI interface. A significant feature of the "Plus" model is the inclusion of a 3.5mm stereo audio output jack, which actively de-embeds audio from the incoming SDI or HDMI stream. This provides a straightforward, integrated solution for direct audio monitoring via headphones or connection to an external analog audio system without requiring a separate de-embedder. The device manages critical signal processing tasks such as automatic input format detection, color space conversion, and aspect ratio handling, ensuring a stable, correctly formatted output. It also supports important broadcast features like audio embedding from the analog input and the passthrough of ancillary data.

Housed in a durable, all-metal casing, the HA5-Plus is built for reliability in both permanent installations and mobile production kits. It offers flexible powering options, capable of operating from the included external AC adapter or drawing bus power directly from a computer via its USB port, enhancing its portability for field use. Clear status LEDs provide immediate visual confirmation of power, signal lock, and active input format. By combining wide format support, integrated audio de-embedding, bidirectional functionality, and a rugged, user-friendly design, the AJA HA5-Plus serves as a dependable, all-in-one interface solution for solving common but critical signal compatibility challenges in professional and prosumer video environments.
