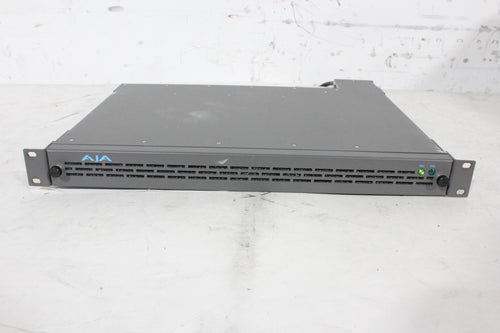

The AJA Video Systems FR-1 and FR-1D are modular frame systems designed to house a variety of specialized signal distribution and conversion cards, forming a highly customizable and scalable solution for professional video and audio infrastructure. The FR-1 frame serves as a passive, cooled chassis with multiple card slots, into which users can install individual DA (Distribution Amplifier) or processing modules to build a tailored signal management hub. The FR-1D is an intelligent version that includes an integrated control processor and software, enabling advanced system monitoring, control via Ethernet, and automatic card identification and configuration. This modular approach allows broadcast facilities, post-production houses, and live production trucks to consolidate numerous discrete signal processing tasks—such as distribution, conversion, embedding, de-embedding, and frame synchronization—into a single, organized, and reliable 1RU or 2RU chassis, dramatically simplifying cabling, power management, and system troubleshooting.

Each card slot in the frame accepts a specific type of AJA interface card, such as the DA 12Y for distributing 12 outputs of component video, the FS1 for frame synchronization, or various HDMI/SDI conversion cards. The beauty of the system lies in its flexibility; an engineer can populate the frame with a mix of cards that exactly matches the facility's current signal flow requirements and easily swap or add cards as those needs evolve. The frames provide clean, centralized power and cooling to all installed modules, ensuring consistent performance and longevity. The intelligent management of the FR-1D model offers remote access to the status of every card, including input signal presence, format, and temperature, and allows for saving and recalling entire system configurations, which is invaluable for facilities that reconfigure their routing for different shows or clients.

These frames represent a professional, future-proof philosophy toward signal infrastructure. By investing in the FR-1/FR-1D platform, organizations move away from a rack full of single-function black boxes toward a unified, manageable system. This reduces points of failure, lowers total cost of ownership through shared power and chassis resources, and provides a clean, standardized appearance. For system integrators and chief engineers, the AJA frame system offers a powerful tool to design robust, adaptable, and monitorable signal cores that can handle the ever-changing format and connectivity demands of modern video production, from SD-SDI to 4K and beyond, all while maintaining the signal integrity and reliability that AJA is known for.
