American DJ Pixie Driver 8000 V2 Controller
$1,199.20
Unit price
/
Pixie Driver 8000 V2 is designed specifically for the ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 8,160 max pixels via Kling-Net, Art-Net or sACN (streaming ACN) protocols.
View Product Features
View Product Features
Out of Stock
0 in stock
Once stock replenishes, inventory will display below.
In-Stock Inventory
About the American DJ Pixie Driver 8000 V2 Controller
Key Features
American DJ Pixie Driver 8000 V2 Controller Specs
Control Features:
• Power / data supply for ADJ Pixie Strip 30, Pixie Strip 60, Pixie Strip 120 and Pixie Curve 60
• Manual RGB mode
• Internal programs
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• Drives up to 8,160 Pixels via ArtNet or sACN (1,020 Pixels per port)
• OLED screen with 4-button menu
• USB port for Firmware Updates
Control Quantity
Art-Net/sACN
max 34x Pixie Strip 30; 17x Pixie Strip 60 or Pixie Curve 60; 8x Pixie Strip 120 (Per port, or any combination not exceeding 1,020 pixels per port)

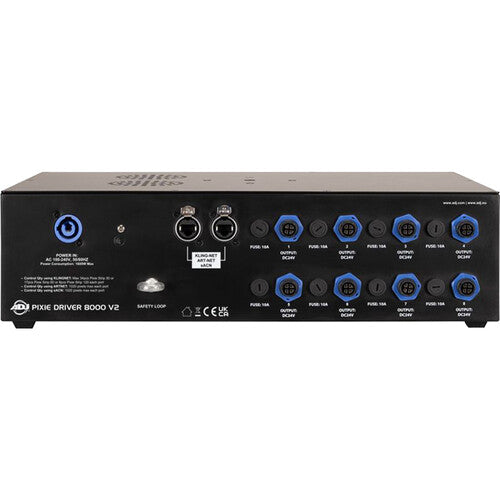

Connections
• Power
PowerLock Input
• Two locking RJ45 ports
• Eight 4-pin DC24V power/data outputs to Pixie Strips
Mounting Options
• Bolt to add a clamp to hang from truss (clamp and truss not included)
• Includes 19-inch rack mount ears
• Safety eye
Electrical
Multi-voltage operation
AC 100-240V, 50/60Hz
Power Consumption
1,600W max
• -4°F to 113°F (-20°C to 45°C)
Dimensions / Weight
Dimensions (LxWxH)
11.8” x 18.9” x 4.7” / 300.3x480x120mm
Weight
13.4 lbs. / 6.1 kg.
Approvals:
CE
cETLus (Pending)
