ADJ

American DJ Pixie Strip 120 RGB Indoor Linear Fixture (6.6')

$214.45 - $319.99

The PIXIE STRIP 120™ is a 2 meter, indoor LED pixel strip featuring (120) tri-color RGB SMD LEDs with a 16.5mm pixel pitch, a refresh rate of 44000Hz for flicker free operation for broadcast TV and FILM applications. Each pixel strip is housed in a lightweight aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, two integrated adjustable mounting brackets, a safety cable loop, and includes square and rounded frosted lens attachments.

View Product Features

  • Flicker Free Operation for TV & Film
  • 120 Tricolor RGB SMD LEDs
  • 16.5mm Pixel Pitch
  • 44,000 Hz Pulse Width Modulation
  • Magnetic End Caps
  • Seamless End-to-End Pixel Spacing
  • ArtNet, KlingNet, sACN Protocols
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the American DJ Pixie Strip 120 RGB Indoor Linear Fixture (6.6')

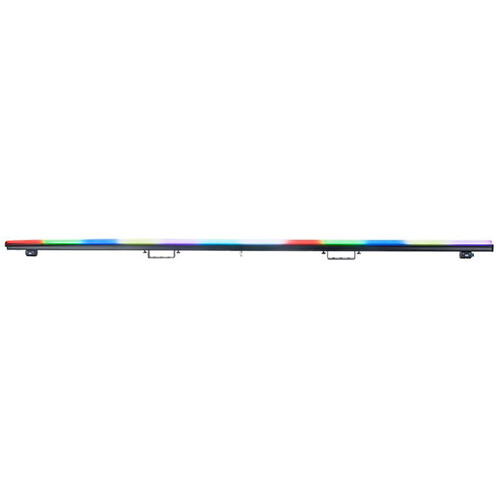

The 6.6' American DJ Pixie Strip 120 is an indoor pixel-mapping RGB LED linear fixture designed for showing video and/or motion graphics in clubs, event halls, theaters, and broadcast TV and film studios. It features 120 tricolor RGB (red, green, blue) SMD LEDs with a 16.5mm pixel pitch and a 120 x 120° viewing angle. The unit is compatible with ArtNet, KlingNet, and sACN control protocols.

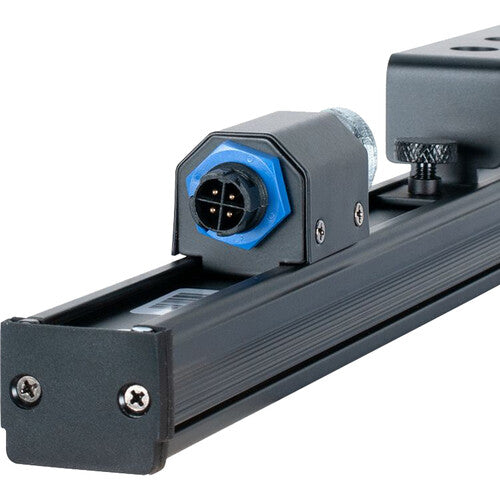

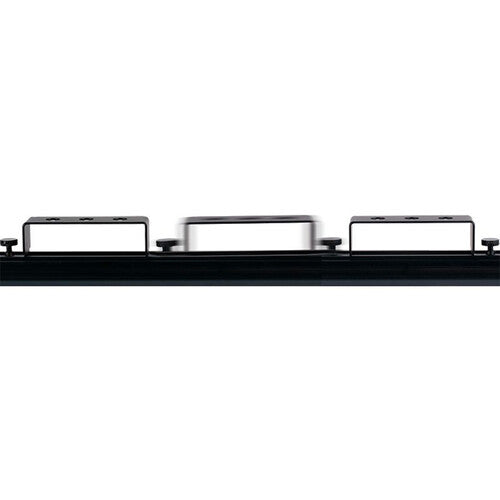

The Pixie Strip comes with a set of square and rounded frost filters to help shape the light output of the fixture. A magnetic system on the end caps allows for connecting multiple bars together and ensures seamless end-to-end pixel spacing for smooth visuals. The unit is powered and controlled by the Pixie Driver 2000 processor (available separately) via a proprietary 4-pin combo cable (also available separately), which supplies data and power.

Key Features

  • Flicker Free Operation for TV & Film
  • 120 Tricolor RGB SMD LEDs
  • 16.5mm Pixel Pitch
  • 44,000 Hz Pulse Width Modulation
  • Magnetic End Caps
  • Seamless End-to-End Pixel Spacing
  • ArtNet, KlingNet, sACN Protocols

American DJ Pixie Strip 120 RGB Indoor Linear Fixture (6.6') Specs

Light
Fixture Type
Linear/Bar Light
Light Source
120x Color LED (SMD)
Colors
Blue, Green, Red
LED Distribution
60 per 3.28' / 1 m
Photometrics
9 fc / 99 Lux at 3.3' / 1 m (Full On)
Coverage Angle
120 x 120°
Shutter / Strobe
Electronic
Iris
No
Focus
Manual
Zoom Adjustment
No
Dimming
Electronic
Performance
Operating Modes
DMX, Program
Gobos
No
Color Resolution
8-Bit per Color / 24-Bit per Pixel
Control
Control Protocols
Art-Net, Kling-Net, sACN
Display / Controls
No
Remote Control
No
Mobile App Compatible
No
Connectivity
Inputs/Outputs
2 x Proprietary 4-Pin Data/Power Input/Output
Wireless
No
Power
AC Power Connector
Input: Proprietary Output: Proprietary
Input Power
100 to 240 VAC, 60 / 50 Hz
Fuse
No
Power / Current Consumption
24 W (Max)
Physical
Environmental Resistance
No
Mounting
Mounting Bracket
Included Accessories
4x Filter 1x Power Cable
Exterior Color
Black
Certifications
CE, cETL
Dimensions
78.8 x 2.6 x 1.3" / 6.7 x 3.2 x 3.2 cm
Weight
4.6 lb / 2.1 kg

Key Features

  • Flicker Free Operation for TV & Film
  • 120 Tricolor RGB SMD LEDs
  • 16.5mm Pixel Pitch
  • 44,000 Hz Pulse Width Modulation
  • Magnetic End Caps
  • Seamless End-to-End Pixel Spacing
  • ArtNet, KlingNet, sACN Protocols
